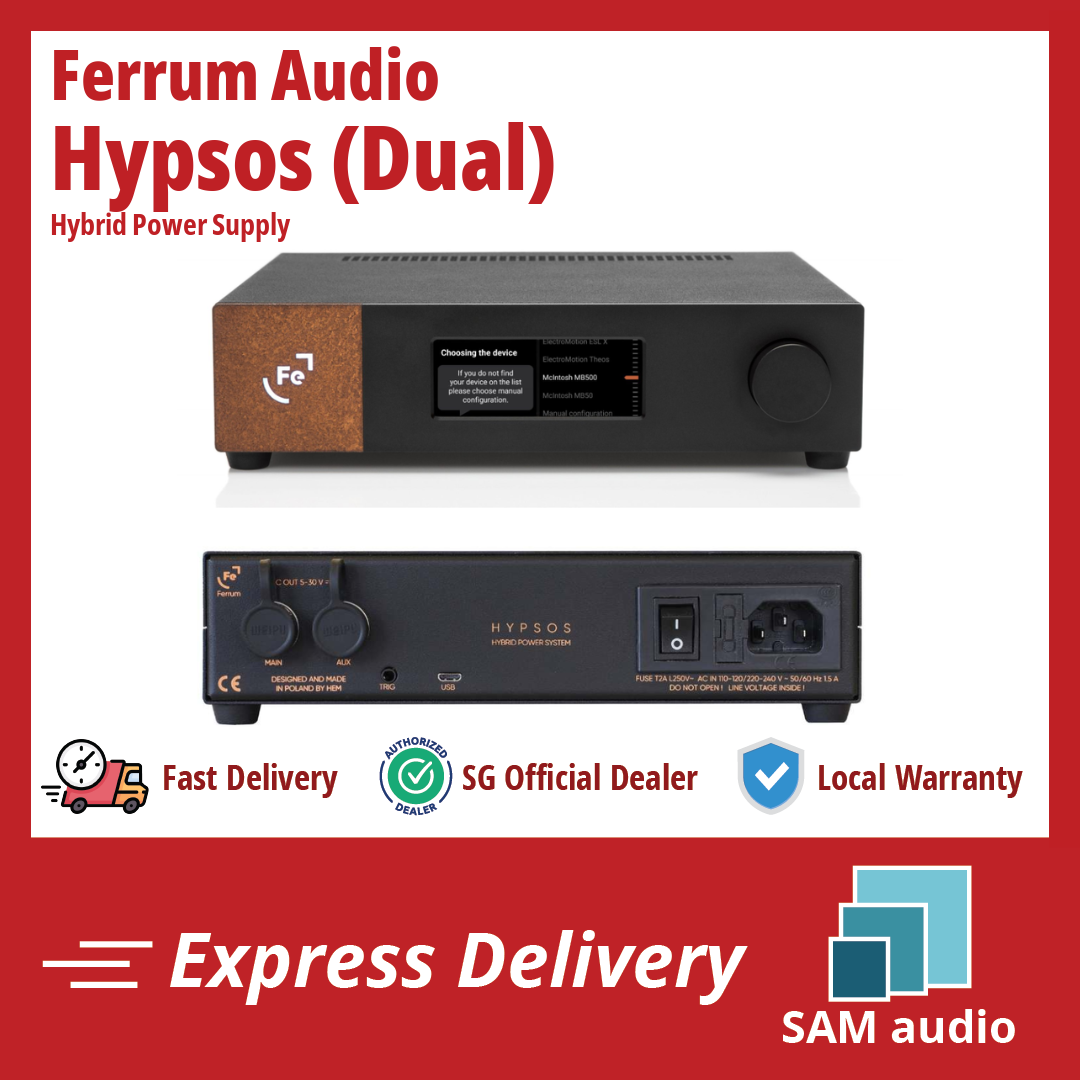

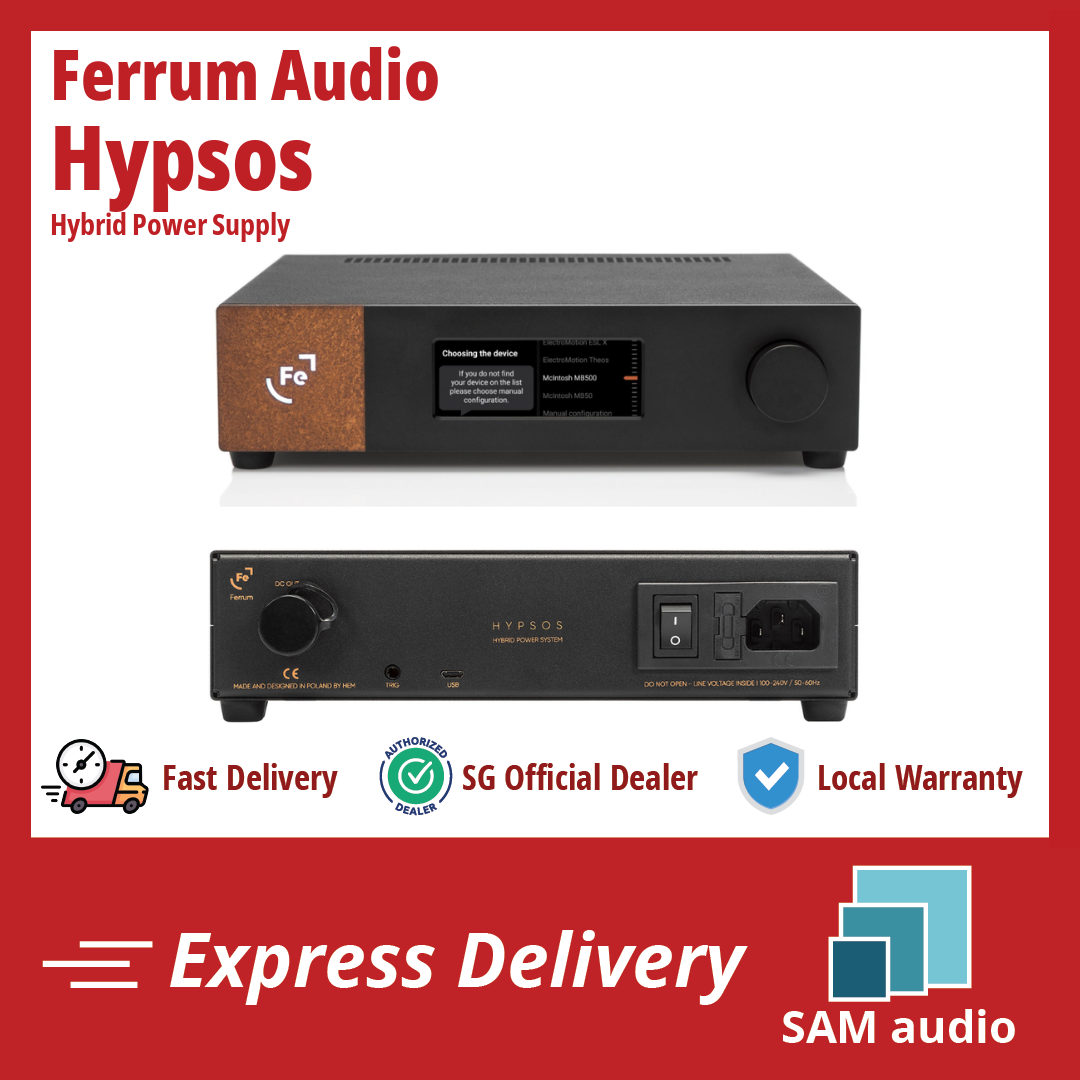

[🎶SG] Ferrum Audio HYPSOS - Hybrid Power System / Linear Power System

🎵 OFFICIAL FERRUM AUDIO DEALER - 1 Year Local Warranty & Aftersales Support

Contact Us:
📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084
📧 Email us @ sales@samaudiosg.com
🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), S(338729) - Demo units available

--
Experience unparalleled audio performance with the advanced HYPSOS Hybrid Power System.

KEY BENEFITS:
- Hybrid power technology blends linear and switching designs for superior audio fidelity.
- Customizable voltage settings allow fine-tuning to suit your devices and preferences.
- User-friendly interface provides effortless device compatibility and setup.

--
DESCRIPTIONS:

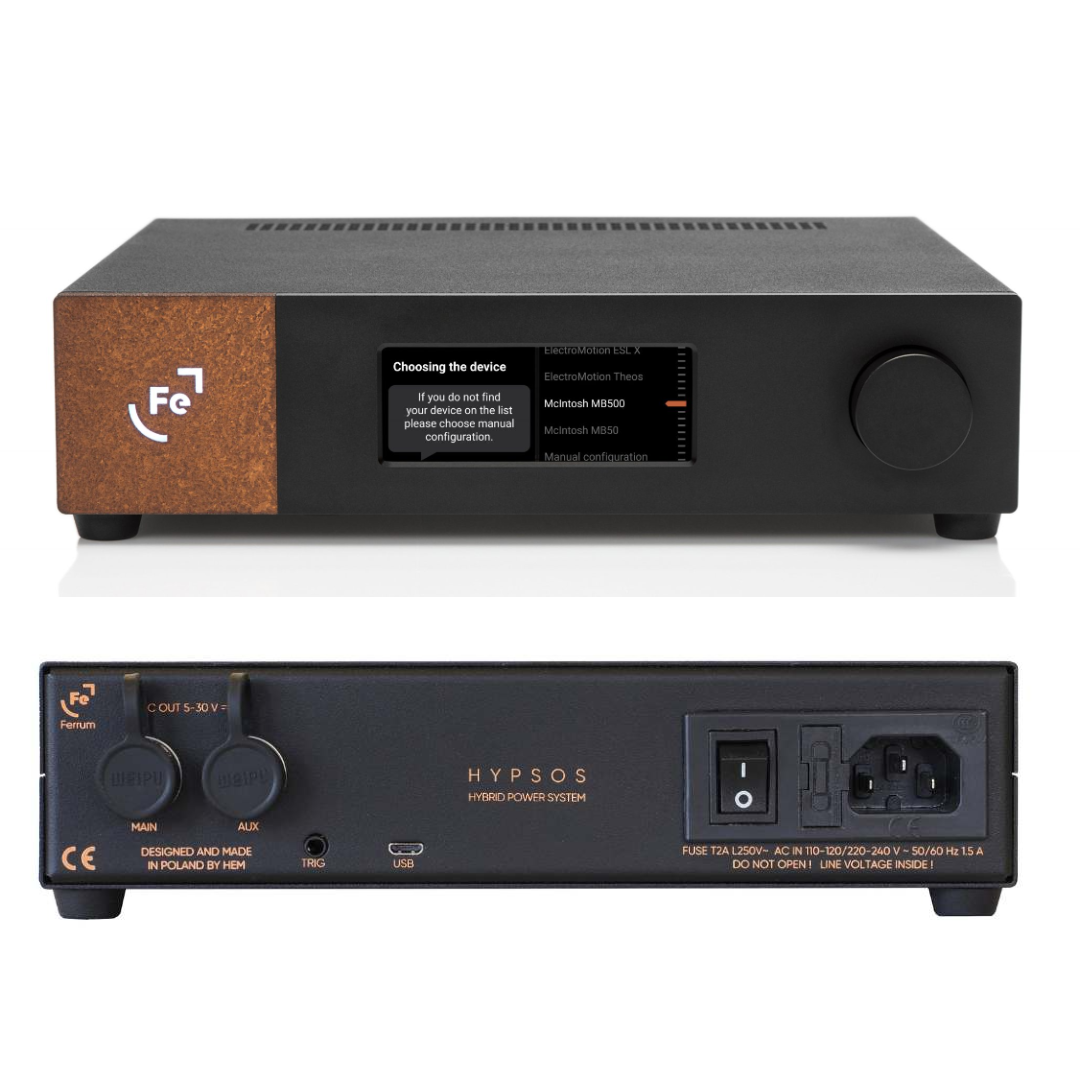

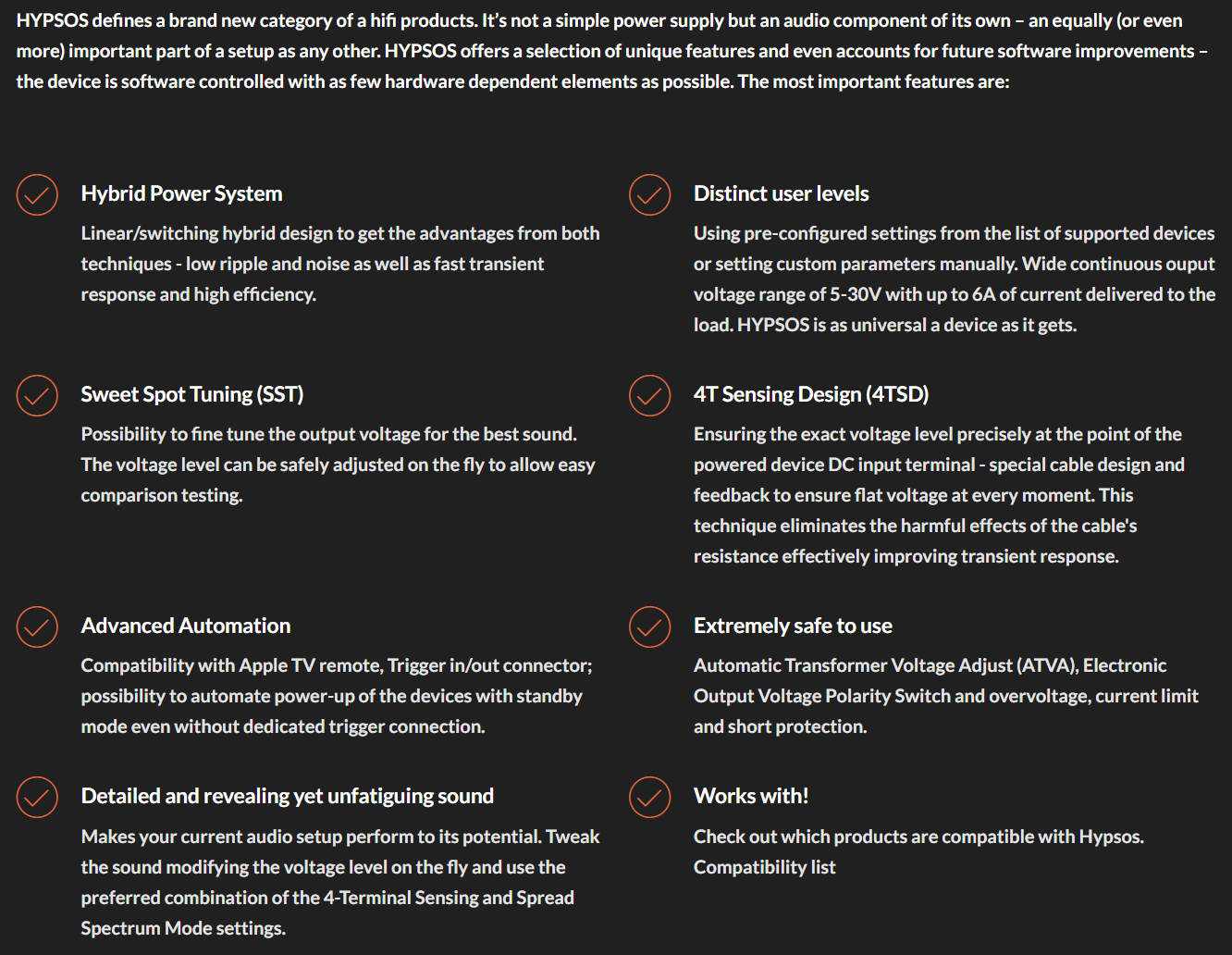

The Ferrum HYPSOS Dual Output Hybrid Power System redefines the standards of high-fidelity audio equipment by merging a linear and switching power supply system. This innovative technology delivers incredibly low ripple and noise, impressive transient response, and exceptional efficiency. With the HYPSOS, audio enthusiasts can elevate their listening experience with a consistent and high-quality power supply tailored for various audio devices.

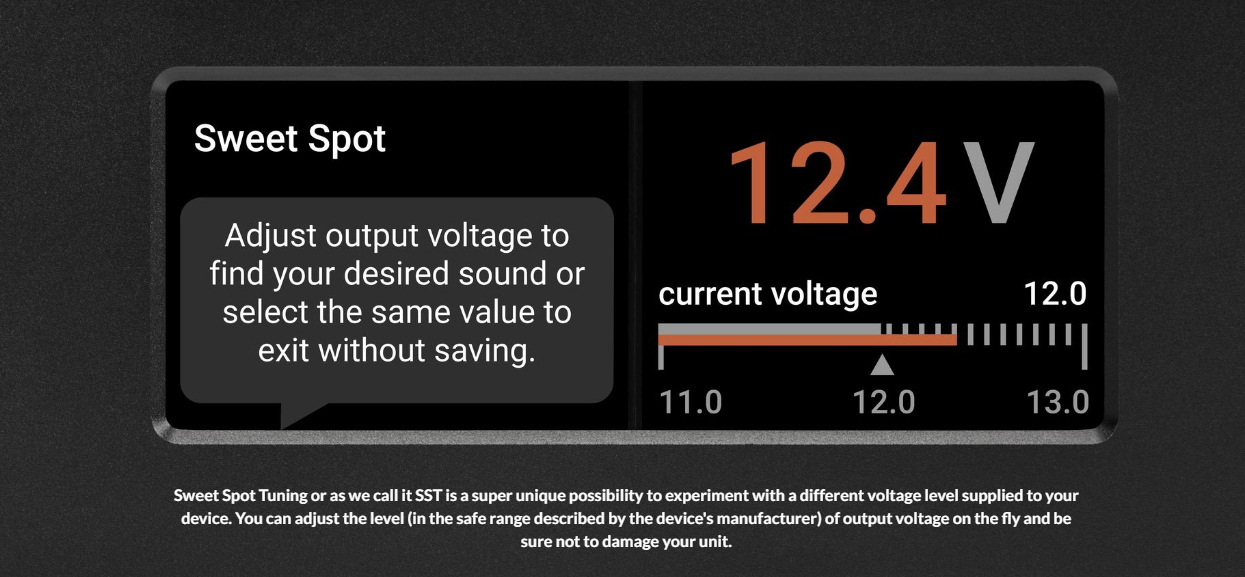

One of the standout features of the HYPSOS is its Sweet Spot Tuning (SST), which allows users to easily adjust the output voltage on demand. This feature supports audio testing and fine-tuning, enabling you to find your perfect sound. Additionally, the advanced automation feature makes it compatible with devices such as the Apple TV remote, ensuring seamless integration within your existing audio setup without the need for additional trigger connections.

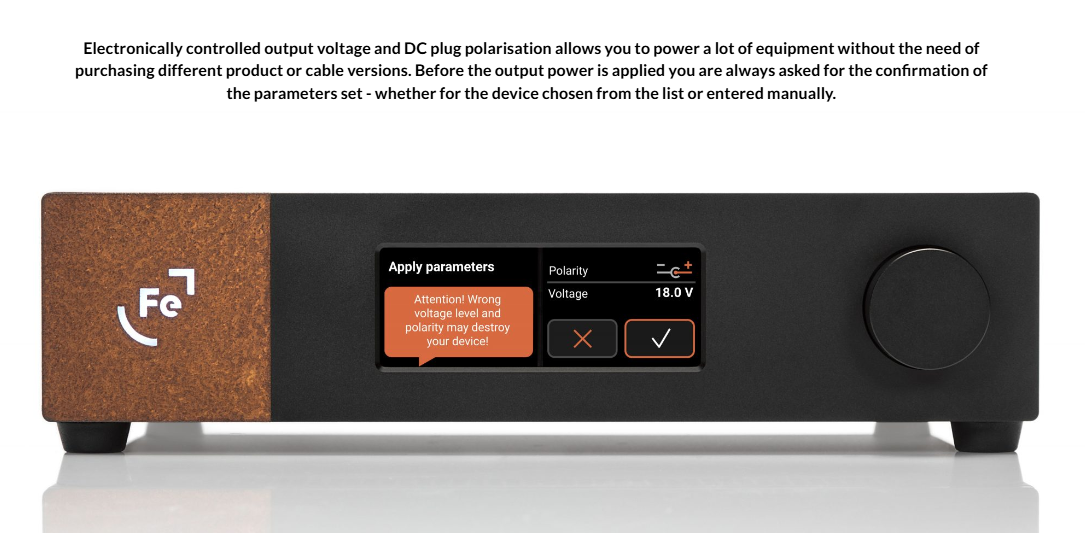

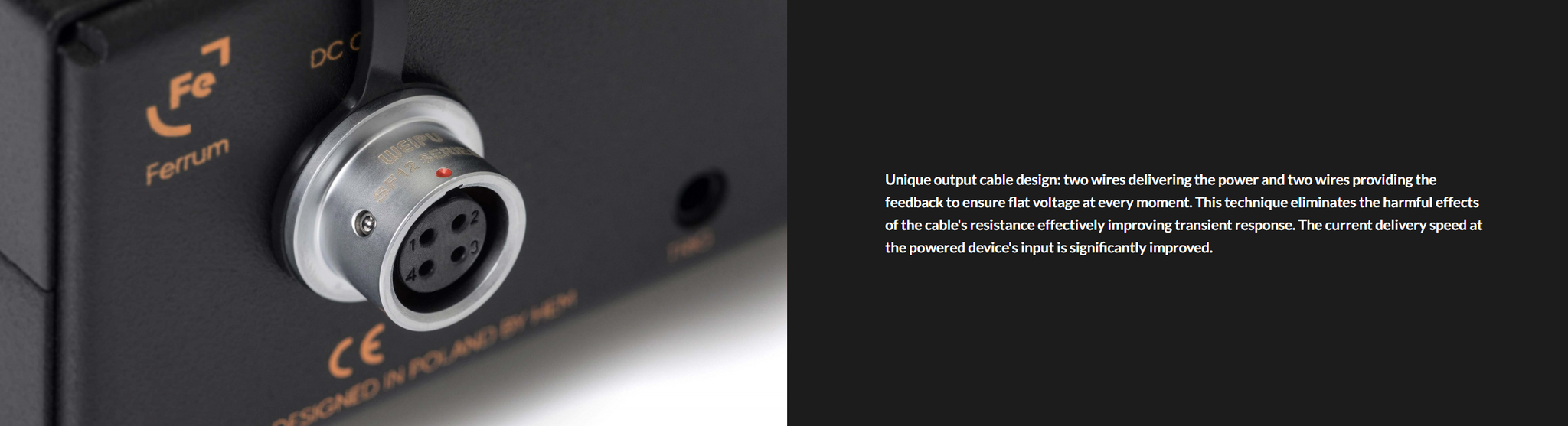

The device is designed for safety and efficiency, featuring an Automatic Transformer Voltage Adjust (ATVA) system and protective mechanisms like voltage polarity switching and overcurrent protection. The 4T Sensing Design (4TSD) guarantees that the exact voltage level is accurately delivered to connected devices, effectively improving transient response and minimizing the impact of cable resistance. Moreover, the output cable design incorporates feedback loops for consistent voltage evaluation, ensuring optimal performance.

--

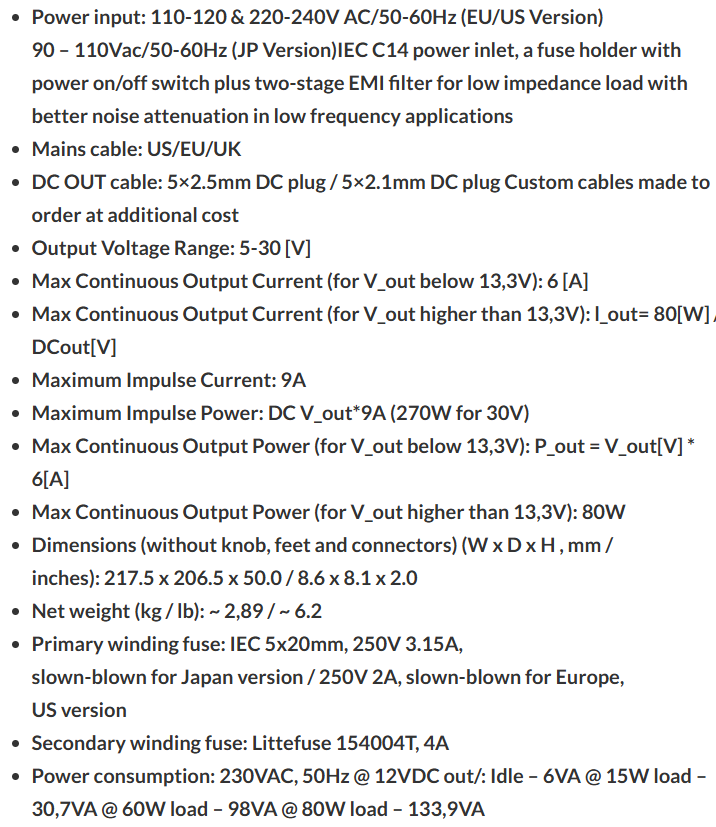

SPECIFICATIONS:

SINGLE:
Number of DC Outputs: 1
Output Voltage Range: 5–30 V DC
Voltage Sharing: N/A
Max Continuous Output Current: Up to 6 A (≤ 13.3 V), Power-limited above 13.3 V
Max Continuous Output Power: Vout × 6 A (≤ 13.3 V), 80 W (> 13.3 V)
Maximum Impulse Current: 9A
Maximum Impulse Power: Up to 270 W (30 V × 9 A)
4TSD Functionality: Yes
DC Output Connectors: 5.5 × 2.5 mm, 5.5 × 2.1 mm
Power Input (AC): 220–240 V / 50–60 Hz
Mains Inlet: IEC C14
EMI Filter: Two-stage EMI filter (low-impedance optimized)
Primary Winding Fuse: IEC 5×20 mm, 250 V, 2 A, slow-blow
Secondary Winding Fuse: Littelfuse 154004T, 4 A
Power Consumption (Idle): 6 VA
Power Consumption (80 W Load): 133.9 VA
Dimensions (W × D × H): 217.5 × 206.5 × 50.0 mm
Net Weight: 2.89 kg

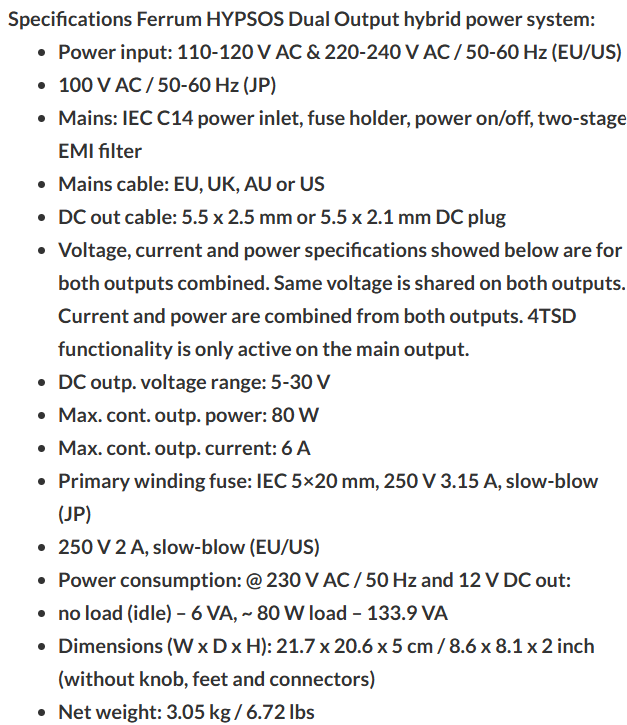

DUAL:
Number of DC Outputs: 2 (shared voltage)
Output Voltage Range: 5–30 V DC
Voltage Sharing: Same voltage on both outputs
Max Continuous Output Current: 6 A (combined)
Max Continuous Output Power: 80 W (combined)
Maximum Impulse Current: -
Maximum Impulse Power: -
4TSD Functionality: Main output only
DC Output Connectors: 5.5 × 2.5 mm, 5.5 × 2.1 mm
Power Input (AC): 220–240 V / 50–60 Hz
Mains Inlet: IEC C14
EMI Filter: Two-stage EMI filter
Primary Winding Fuse: IEC 5×20 mm, 250 V, 2 A, slow-blow
Secondary Winding Fuse: -
Power Consumption (Idle): 6 VA
Power Consumption (80 W Load): 133.9 VA
Dimensions (W × D × H): 217.5 × 206.5 × 50.0 mm
Net Weight: 3.05 kg

COMPATIBILITY / REQUIREMENTS:
Compatible with a range of audio devices as specified in the compatibility list. User can also enter manual configurations if the device is not listed.

WARRANTY / SUPPORT:
1 Year Singapore Warranty.
