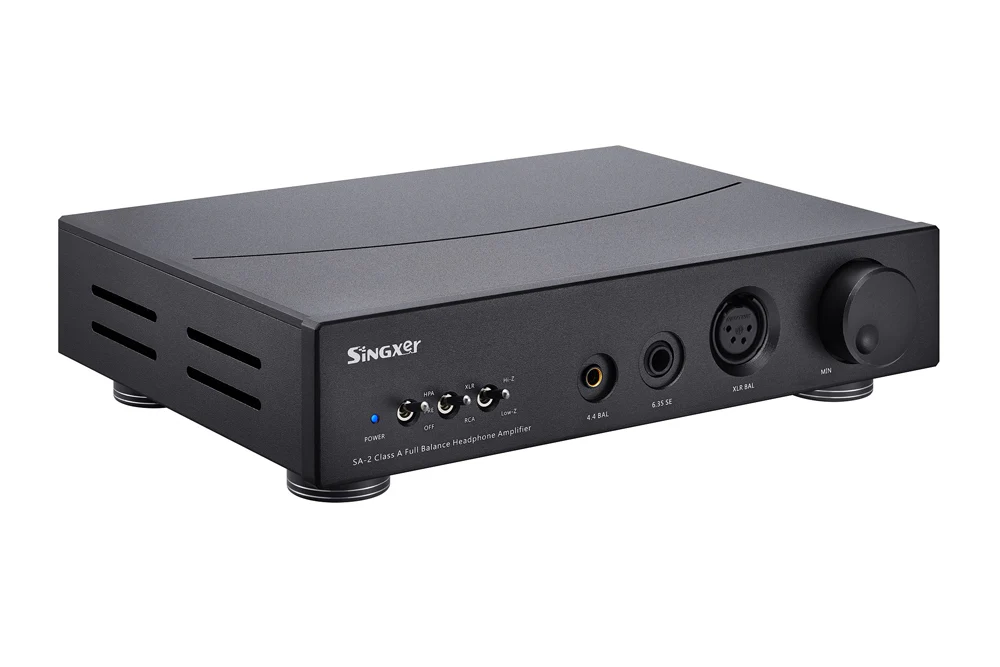

Experience high-fidelity audio with the fully balanced SINGXER SA2 headphone amplifier, designed for exceptional performance and versatility.

KEY BENEFITS:
- Optimized for ultra-low distortion and noise, ensuring a pristine listening experience.
- Supports a wide range of headphone impedances, catering to both low and high-demand audio equipment.
- Features multiple output interfaces for seamless switching between balanced and single-ended setups.

--
DESCRIPTIONS:

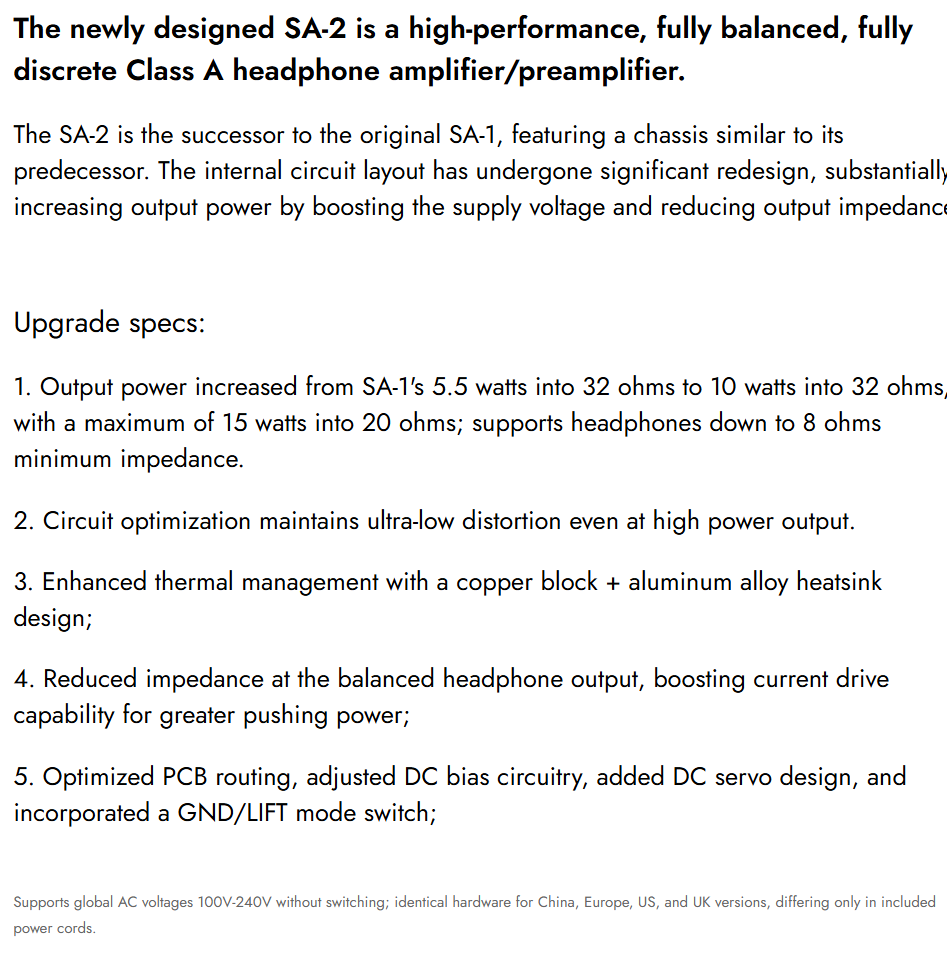

The SINGXER SA2 is a state-of-the-art headphone amplifier and preamplifier that stands out due to its fully balanced, Class A discrete design. This innovative unit, the successor of the original SA1, offers a robust build quality and sophisticated circuit layout that significantly enhances the output power, making it capable of driving even the most demanding headphones with ease. With a maximum output power of 15 watts into 20 ohms and support for headphones down to 8 ohms, the SA2 is ready to deliver an exceptional audio performance across a broad range of audio gear.

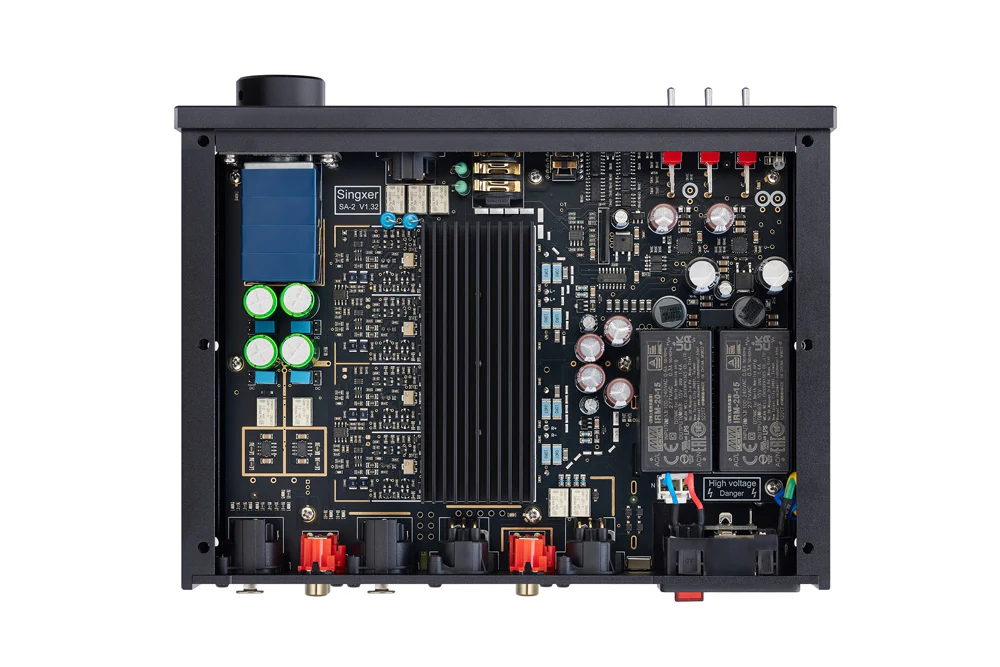

Equipped with advanced thermal management, the SA2 utilizes a combination of copper blocks and aluminum alloy heat sinks to maintain optimal temperatures during prolonged use. Its circuit optimization ensures ultra-low distortion, with THD+N measurements recorded at -125dB for preamp use and -117dB at a balanced headphone output. The impeccable signal-to-noise ratio further enhances its performance, offering users a dynamic range that exceeds 146dB-AW.

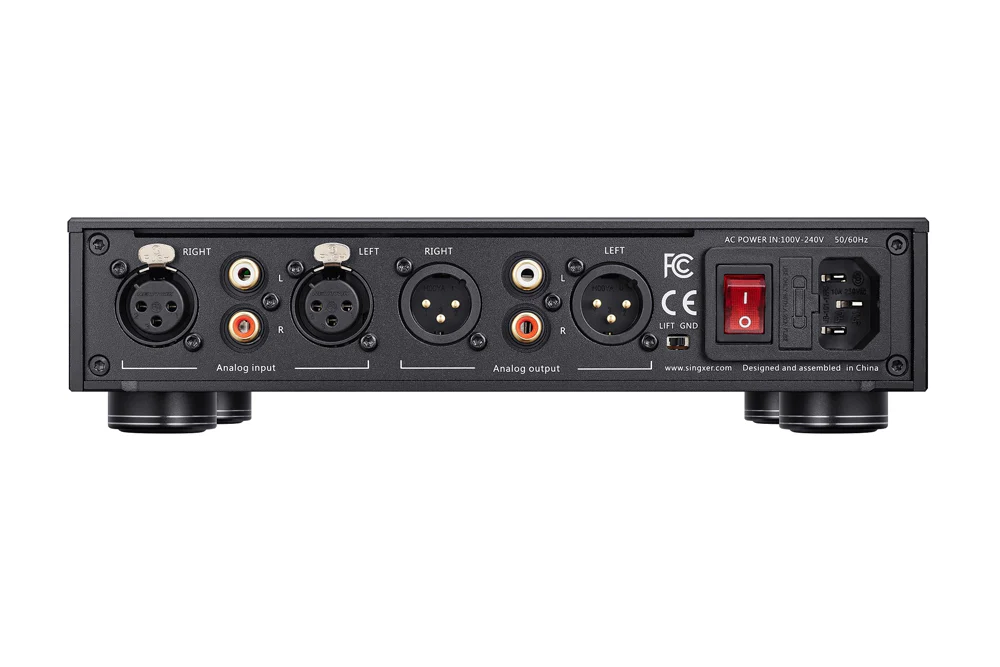

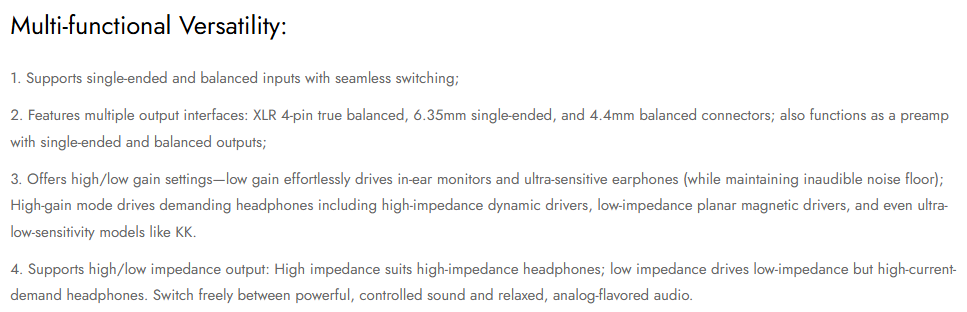

This amplifier is designed for versatility with support for both single-ended and balanced inputs. It features XLR true balanced outputs, a 6.35mm single-ended output, and a 4.4mm balanced connection, allowing seamless switching for varied audio setups. Additionally, it caters to a wide range of headphone impedances, making it suitable for both high-impedance and low-impedance headphones, while maintaining exceptional sound quality without compromising on performance.

--
SPECIFICATIONS:

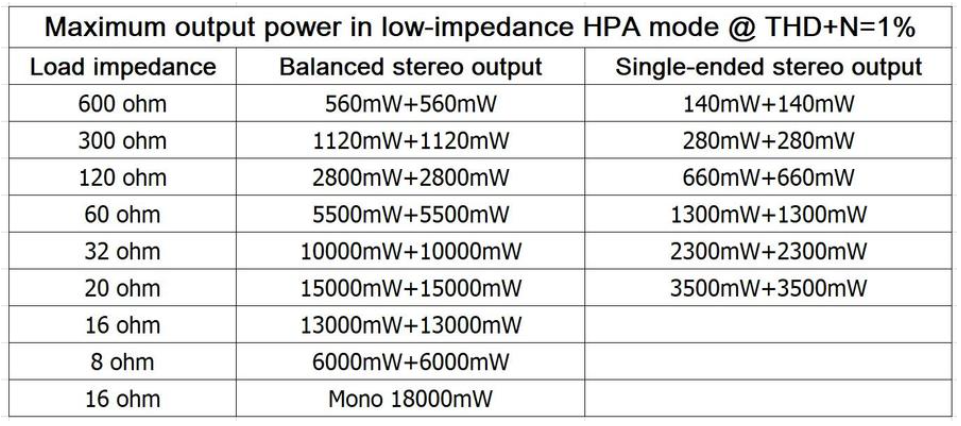

SA-2 Output:
Balanced 32-ohm: 10000mW;
Balanced 60-ohm: 5500mW;
Balanced 120-ohm: 2800mW;
Balanced 300-ohm: 1120mW;
Balanced 600-ohm: 560mW;

SA-2 Gain Settings:
Single-ended input to single-ended output: Low gain = 0dB, High gain = 12.8dB;
Single-ended input to balanced output: Low gain = 6dB, High gain = 18.8dB;
Balanced input to single-ended output: Low gain = -6dB, High gain = 6.8dB;
Balanced input to balanced output: Low gain = 0dB, high gain = 12.8dB;

Input impedance:
Single-ended: 33K ohms;
Balanced: 20K ohms;

Input sensitivity:
Balanced input to balanced output: High gain: 4.2V RMS;
Low gain: 18V RMS;
Single-ended input to balanced output: Low gain: 9V RMS;
Single-ended input balanced output: High gain: 2.1V RMS;

Headphone Output Impedance:
Switch LOW-Z is low-impedance mode, HI-Z is high-impedance mode;
Low-impedance output impedance: 0.15 ohms (balanced) and 1.1 ohms (single-ended);
High-impedance output impedance: 10 ohms (balanced) and 11 ohms (single-ended);
Preamp Output: Single-ended impedance: 75 ohms, balanced impedance: 150 ohms;

Dimensions of the chassis: 234mm × 170mm × 46mm, excluding the height of the chassis feet and protruding connectors at the rear;
Unit weight: approximately 1.8kg;
