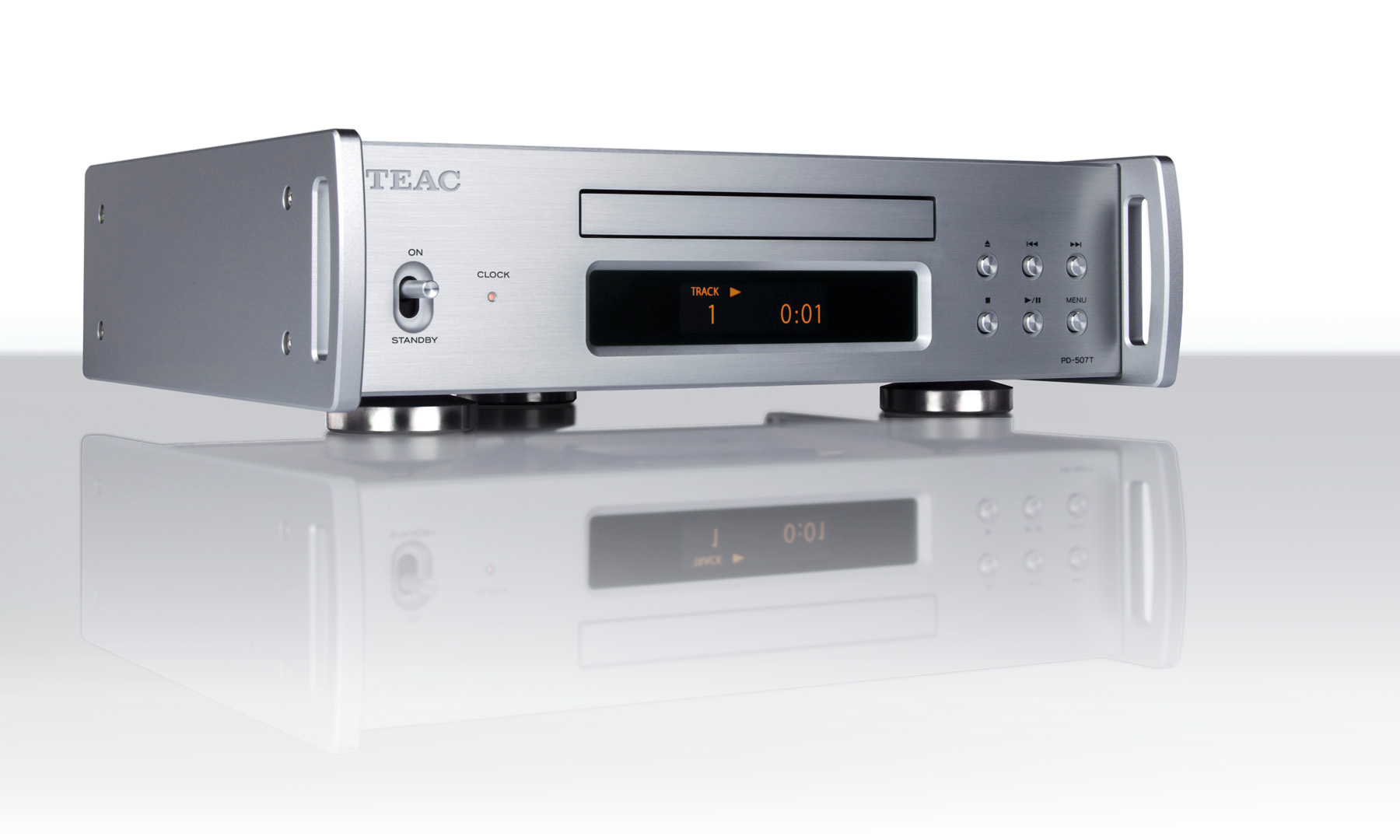

TEAC PD-507T - CD Transport

> The Reference 500 Series CD transport, based on TEAC's proprietary CD transport mechanism long used in the broadcast industry, and has been meticulously enhanced to deliver even greater sound quality

> In-House Designed CD Transport Mechanism: Based on highly acclaimed CD-5020A with custom circuits and parts.
> Semi-Floating Drive Mount Architecture: Provides open sound stage.
> Toroidal-Core Transformer: Designed for dynamic, clean power supplying capability.
> Two Independent Rectifier Circuits for Motor / Pickup: Designed for clean signal reading.
> Two Independent Rectifier Circuits for Clock / Digital Audio Output: for pure signal output.
> Upgraded Mechanical Construction and Circuits: Achieve even higher sound quality.
> The Selectable Coaxial/Optical Digital Output: for maximum signal purity.
>Low Phase Noise Crystal Clock Oscillator: For accurate sound image.
> 10MHz External Clock Input: Provides system upgradability with the CG-10M-X.
> Amber Color OLED Full-Dot Display: Highly legible / perfect match with 507 series components.

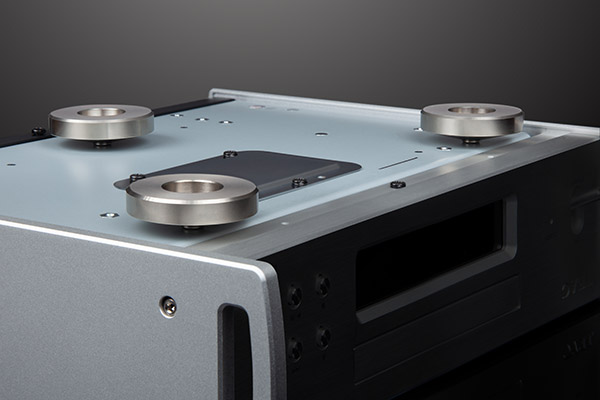

> Stress-Less Isolation Foot: Designed for enhances focus and preserves natural timbre.
> The semi-floating top panel: Adds an open tonality to the sound.
> Remote Controller (RC-1338)
> IEC Power Inlet: enables customer free choice of power cord.
> Normal / Repeat (track/album) / Shuffle / Random / Program Playback
> Power-On Play Function
> Track Elapsed Time / Track Remaining Time / Total Remaining Time Display
> Dimmer Function
> Auto Power Save Function
> 12V Trigger In / Through

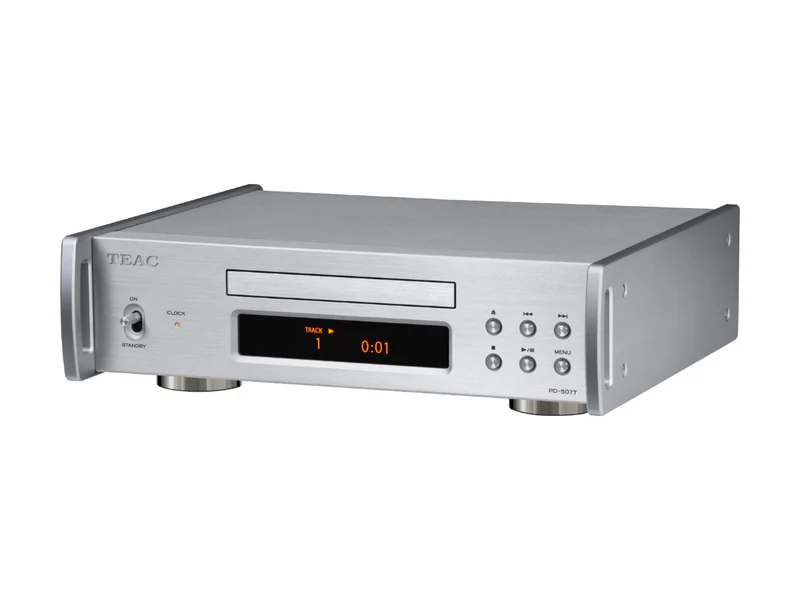

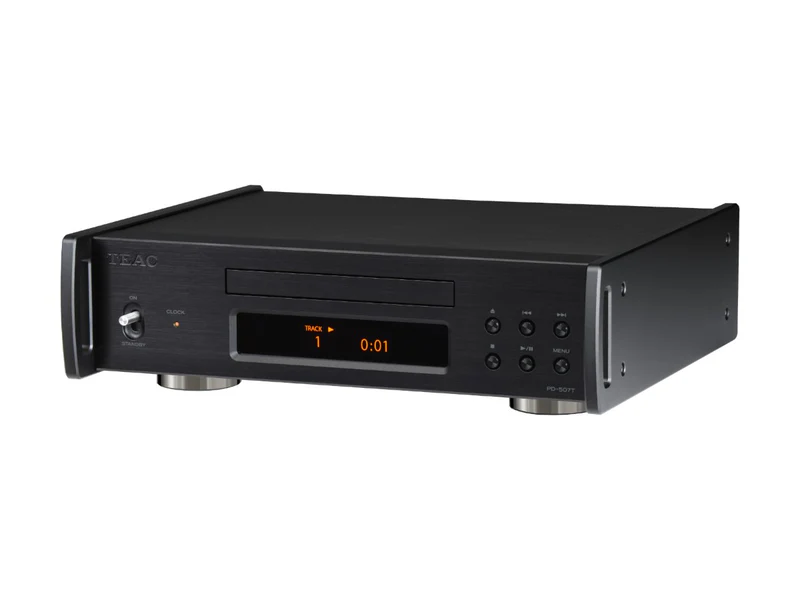

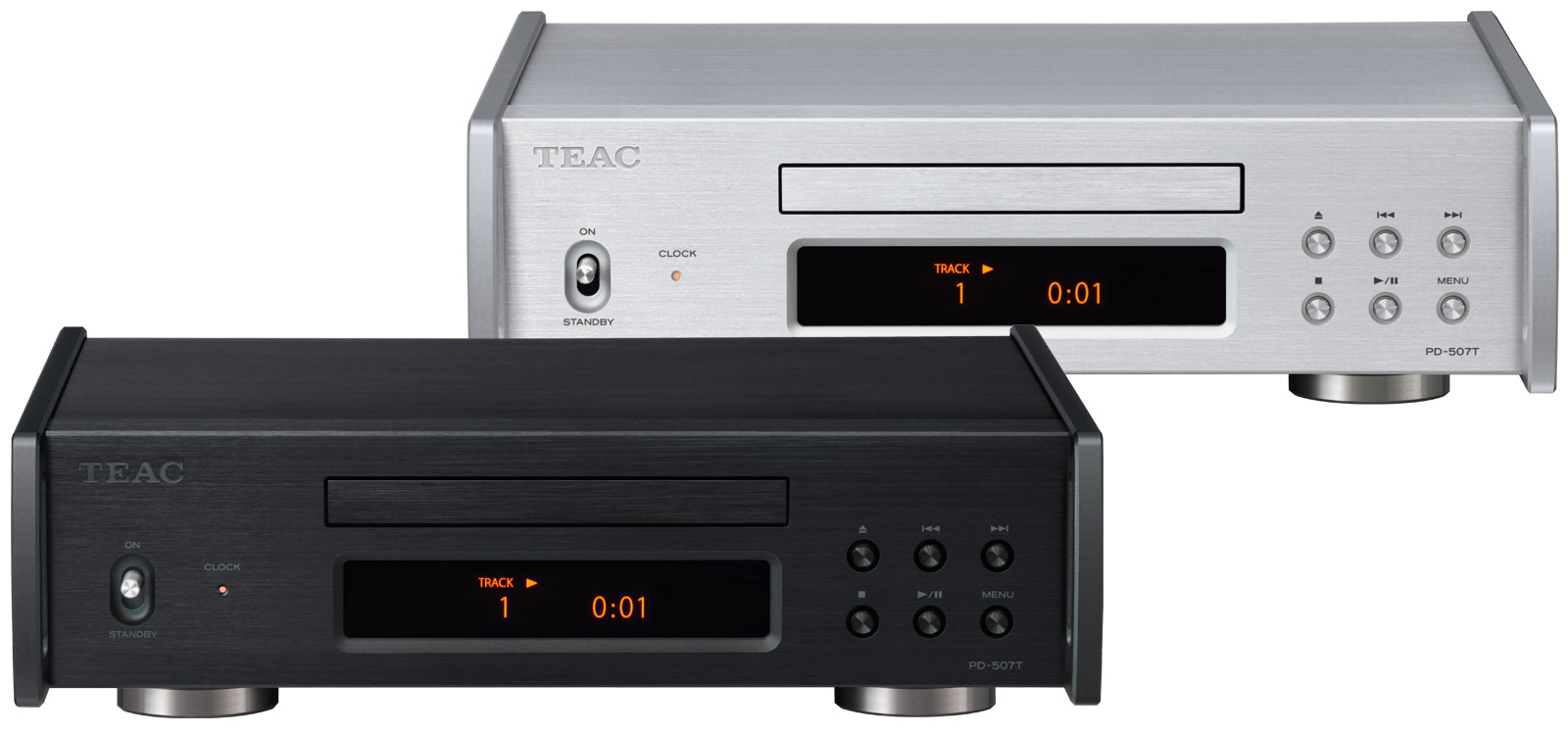

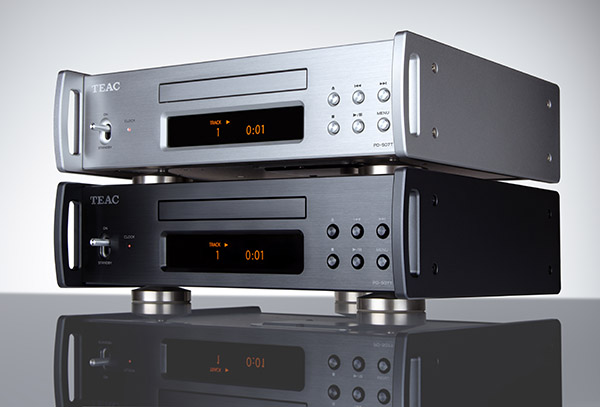

> Two Color Options: Silver / Black

--
Descriptions:

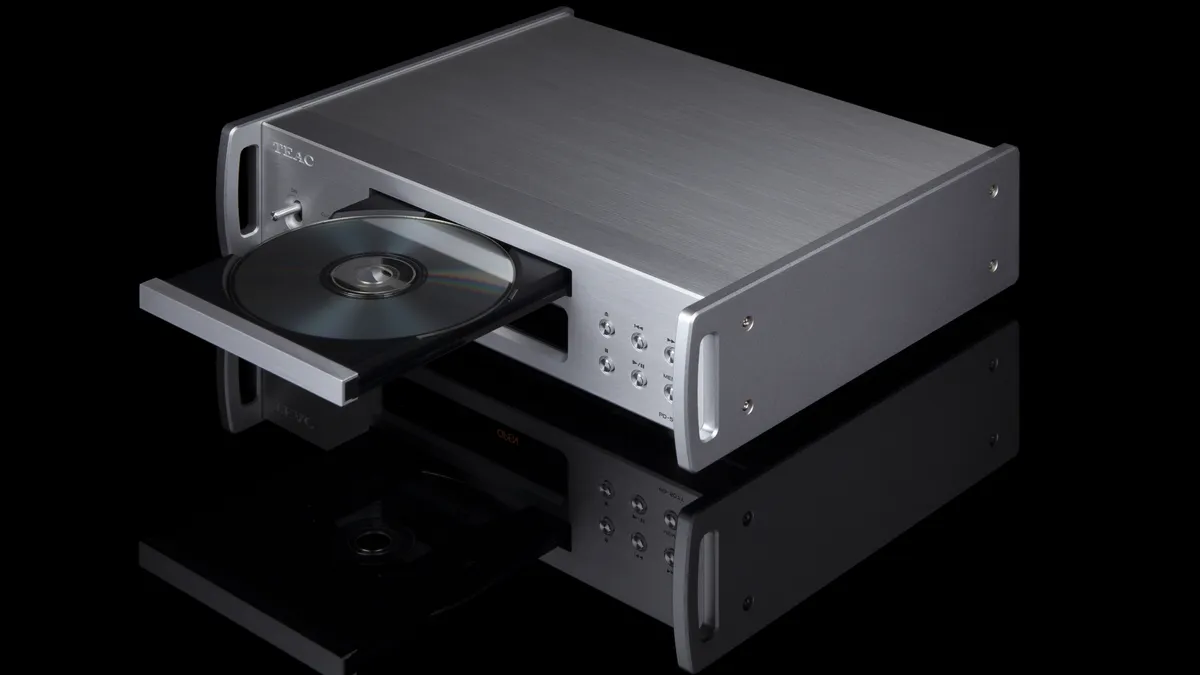

> The PD-507T is a CD transport that uses highly acclaimed TEAC‘s in-house manufactured CD transport mechanism. By specializing in pristine digital output without DAC, it enables high-quality CD playback through various audio systems equipped with digital inputs, including Reference 500 Series USB DAC models.

> The basic CD transport mechanism is the TEAC CD-5020A, which has a long-standing track record of success in broadcast applications. By combining this rugged and highly reliable mechanism with a semi-floating mounting structure and a specially designed drive circuit, the PD-507T achieves even higher sound quality.

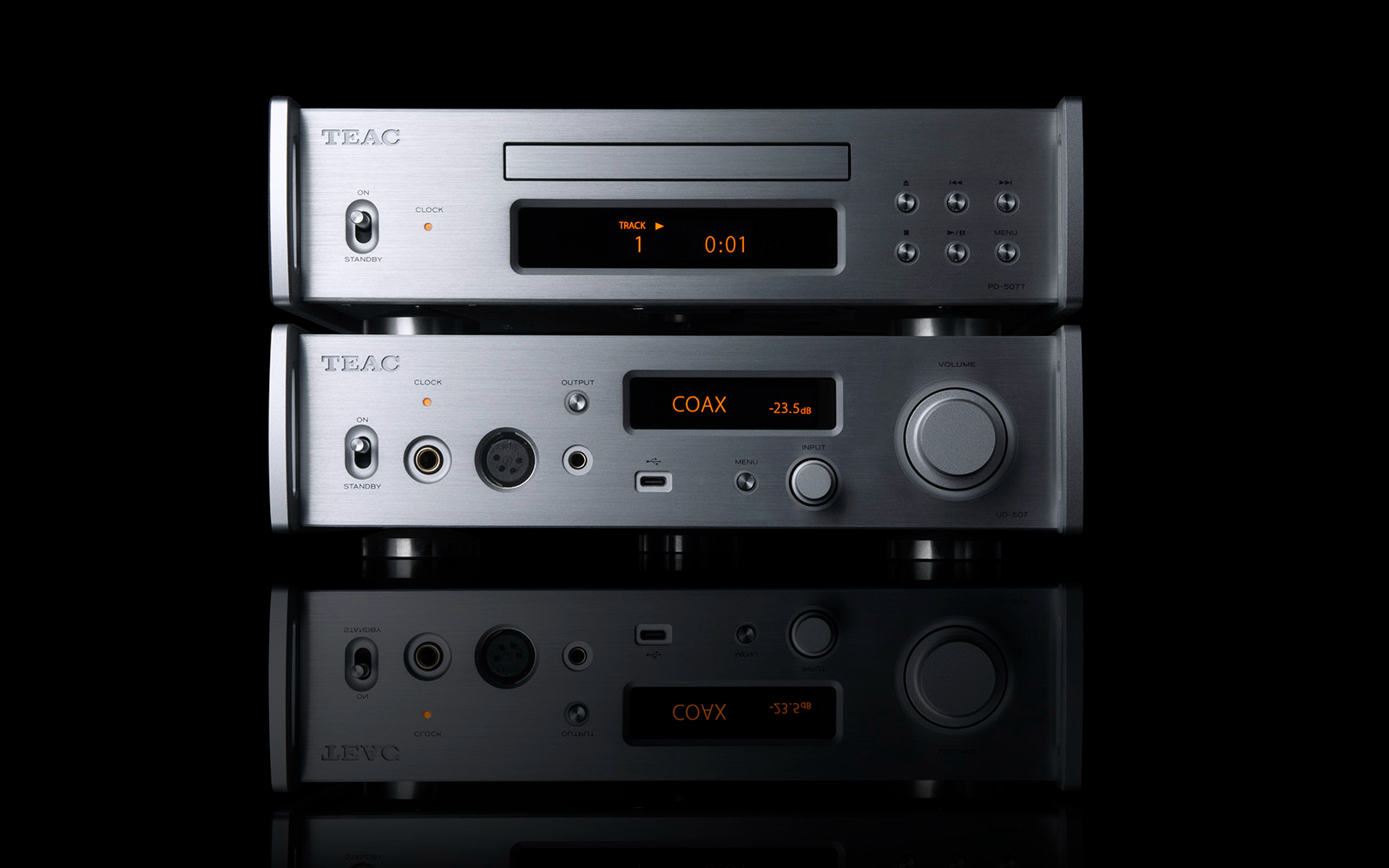

> The new PD-507T has a new feature that allows you to turn off unused digital outputs. Separate power supplies have been implemented for each clock and digital output. Additionally, the electrical circuitry and mechanical construction have been fine-tuned to deliver an even higher level of sound quality than previous models. The PD-507T also offers connectivity with the CG-10M-X master clock generator to enhance sound quality with an external 10MHz clock. The UD-507 features a new amber (orange) full-dot OLED display and control terminals, which improving system usability when used alongside other Reference 507 Series components.

--
Specifications:

CD Section
> Supported media: Audio CD (CD-R/CD-RW supported)

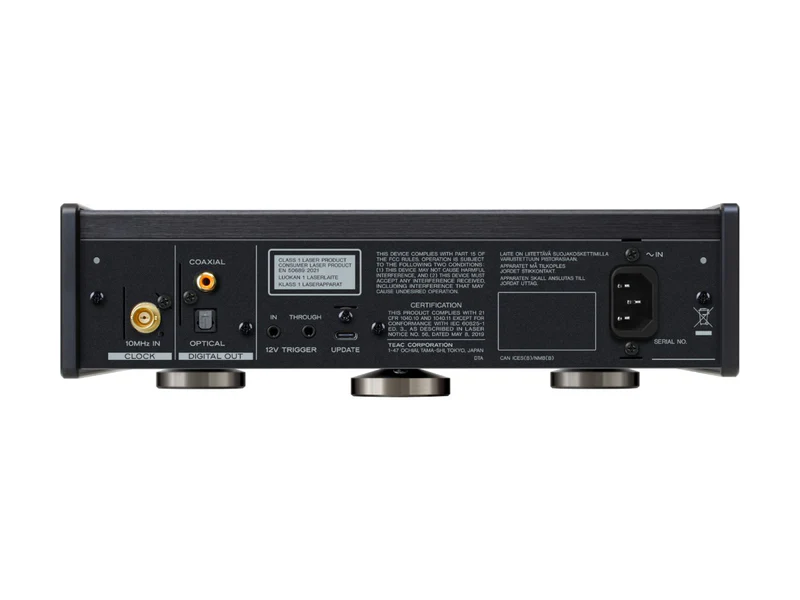

Digital audio putputs

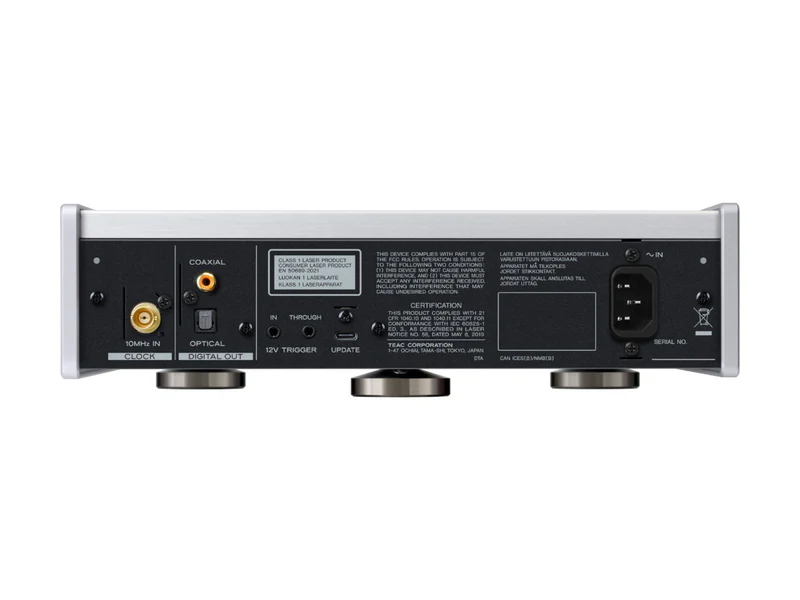

COAXIAL
> Connector: RCA (gold-plated) × 1
> Output level: 0.5Vp-p
> Output impedance: 75Ω
OPTICAL
> Connector: TOS (JEITA RC5720C) × 1

Clock sync input
> Connector BNC (gold-plate) × 1
> Input frequency 10MHz
> Input impedance 50Ω
> Input level
> Rectangle wave Equivalent to TTL level
> Sine wave 0.5 to 1.0Vrms

External control
Trigger IN
> Connector 3.5mm Monaural mini jack × 1
> Input signal DC 12V, 1mA
Trigger OUT (THRU)
> Connector 3.5mm Monaural mini jack × 1

> Power: AC120V, 60Hz | AC220-240V, 50/60Hz
> Power consumption    4W
> Standby power    0.3W
> Overall dimensions (W×H×D): 290 × 84.5 × 248.8mm / 11½” × 3 ⅜” × 9 ⅞”(including protrusions)
> Weight: 4.0kg / 8.8 lbs
> Included accessories: AC cord, Remote control (RC-1338), AAA batteries × 2, Foot pads × 3, Owner's Manual

--
