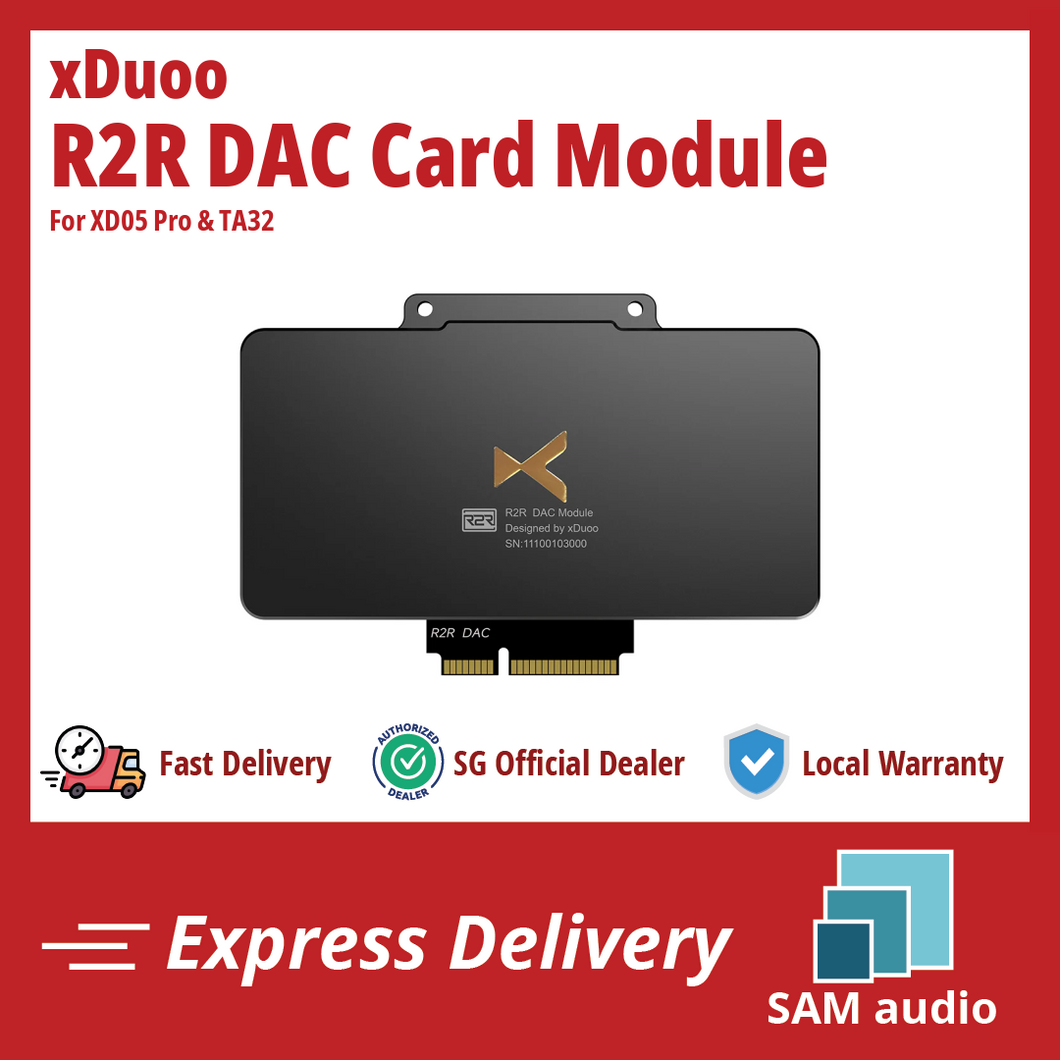

XDUOO R2R DAC CARD For XD05 Pro & TA32

> Discrete 32-bit R2R resistor ladder DAC with FPGA compensation
> Independent left/right channel circuits
> 128 precision thin-film resistors with 0.1% accuracy
> FPGA 57-bit accumulator algorithm for precise decoding
> Native PCM and DSD decoding up to DSD512
> Unified timing management for low jitter and stable phase
> NOS (No Oversampling) mode for natural, vinyl-like sound
> Compatible with XD05 Pro and TA-32 amplifiers
> Balanced and unbalanced output options with high power delivery

--
Descriptions:

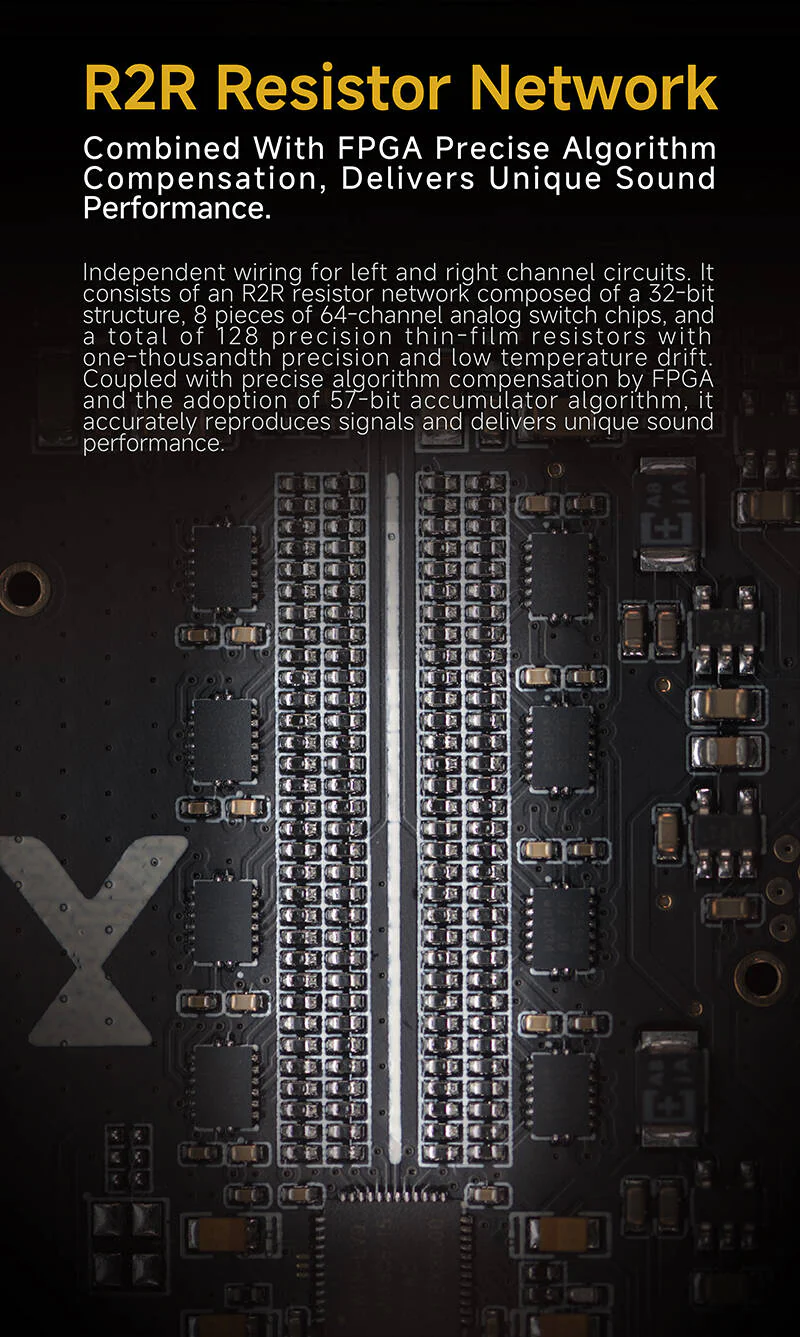

> R2R Resistor Network
> Combined With FPGA Precise Algorithm Compensation, Delivers Unique Sound Performance
> Independent wiring for left and right channel circuits. It consists of an R2R reistor network composed of a 32-bit structure, 8 pieces of 64-channel analog switch chips, and a toal of 128 precision and low temperature drift. Coupled with precise algorithm compensation by FPGA and the adoption of 57-bit accumulator algorithm, it accurately reproduces signals and delivers unique sound performance.

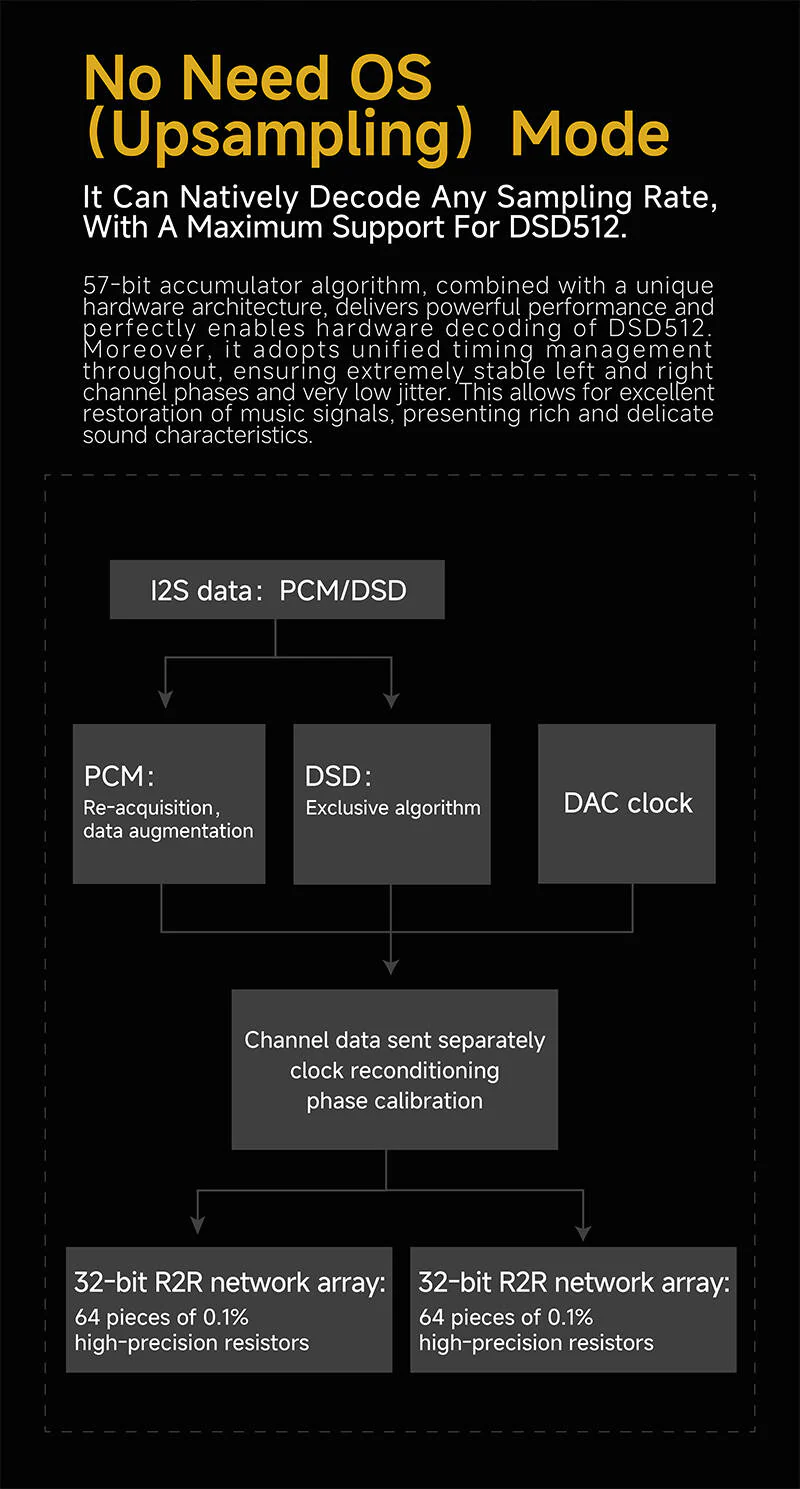

> No Need OS (Upsampling) Mode
> It Can Natively Decode Any Sampling Rate, With A Maximum Support For DSD512.
> 57-bit accumulator algorithm, combined with a unique hardware architecture, delivers powerful performance and perfectly enables hardware decoding of DSD512. Moreover, it adopts unified timing management throughout, ensuring extremely stable left and right channel phases and very low jitter. This allows for excellent restoration of music signals, presenting rich and delicate sound characteristics.

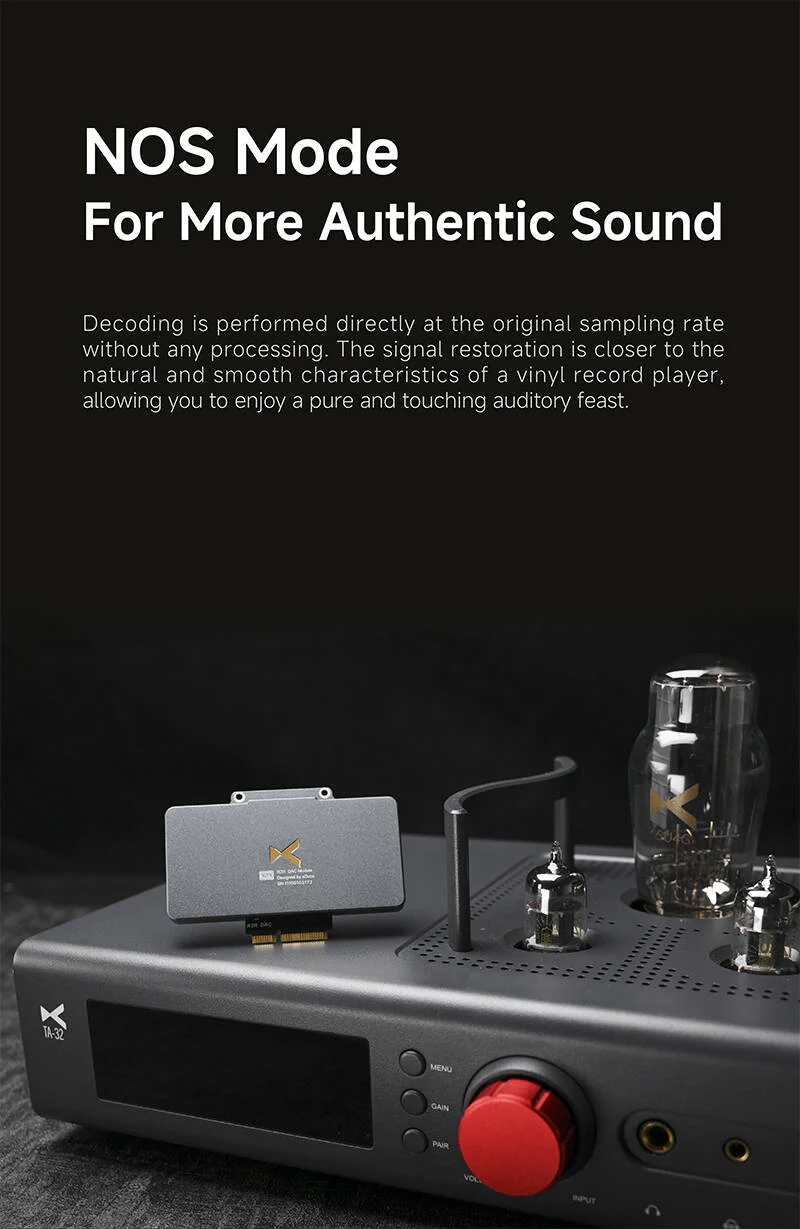

> NOS Mode For More Authentic Sound
> Decoding is performed directly at the original sampling rate without any processing. The signal restoration is closer to the natural and smooth characteristics of a vinyl record player, allowing you to enjoy a pure and touching auditory feast.

--
Specifications:

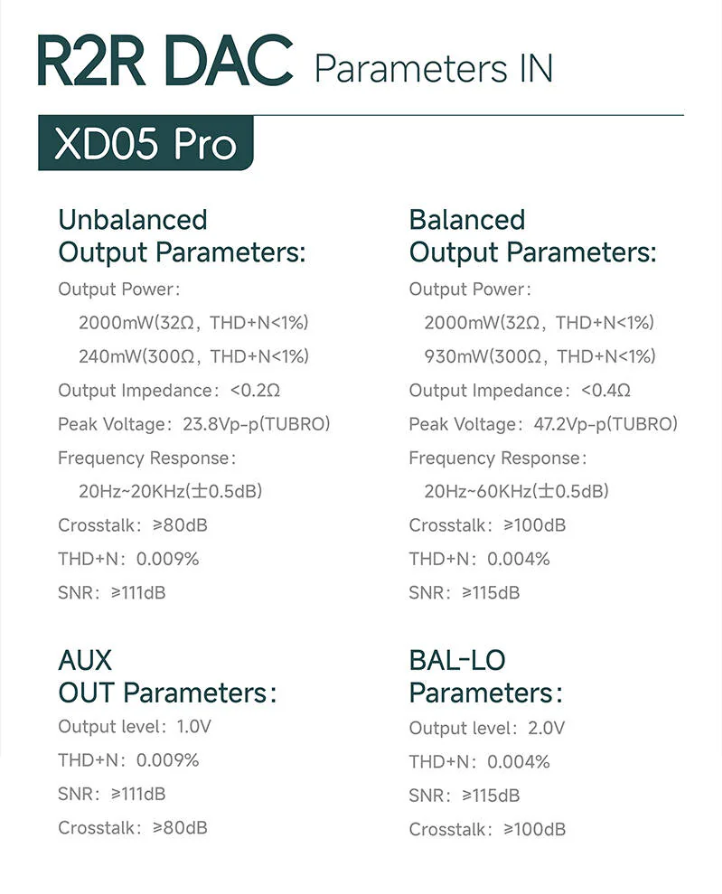

XD05 Pro:
> Unbalanced output power: 2000mW (32Ω, THD+N<1%) / 240mW (300Ω, THD+N<1%)
> Output impedance: <0.2Ω
> Peak voltage: 23.8Vp-p (Turbo)
> Frequency response: 20Hz–20kHz (±0.5dB)
> Crosstalk: >80dB
> THD+N: 0.009%
> SNR: ≥111dB

> Balanced output power: 2000mW (32Ω, THD+N<1%) / 930mW (300Ω, THD+N<1%)
> Output impedance: <0.4Ω
> Peak voltage: 47.2Vp-p (Turbo)
> Frequency response: 20Hz–60kHz (±0.5dB)
> Crosstalk: >100dB
> THD+N: 0.004%
> SNR: ≥115dB
> AUX OUT: 1.0V, THD+N: 0.009%, SNR: ≥111dB, Crosstalk: >80dB
> BAL-LO: 2.0V, THD+N: 0.004%, SNR: ≥115dB, Crosstalk: >100dB

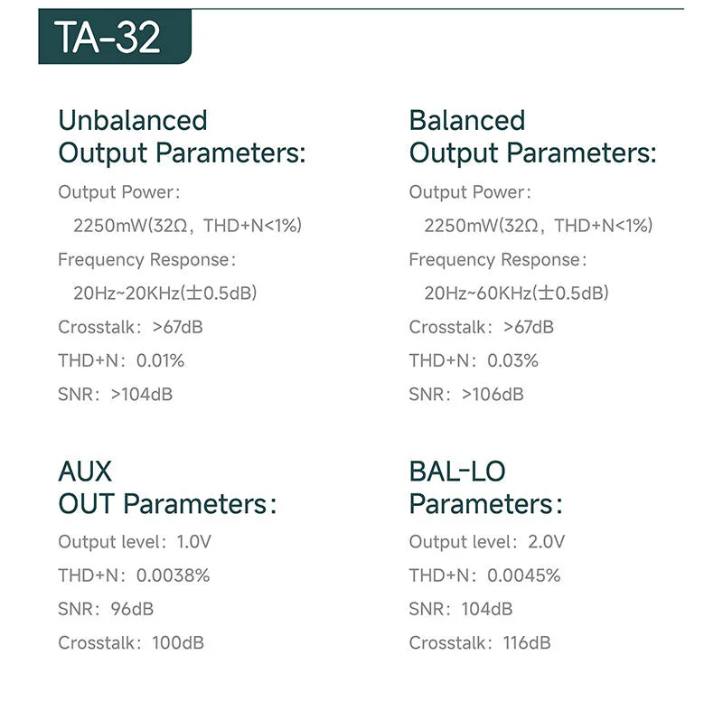

TA-32:
> Unbalanced output power: 2250mW (32Ω, THD+N<1%)
> Frequency response: 20Hz–20kHz (±0.5dB)
> Crosstalk: >67dB
> THD+N: 0.01%
> SNR: >104dB

> Balanced output power: 2250mW (32Ω, THD+N<1%)
> Frequency response: 20Hz–60kHz (±0.5dB)
> Crosstalk: >67dB
> THD+N: 0.03%
> SNR: >106dB
> AUX OUT: 1.0V, THD+N: 0.0038%, SNR: 96dB, Crosstalk: 100dB
> BAL-LO: 2.0V, THD+N: 0.0045%, SNR: 104dB, Crosstalk: 116dB

--
