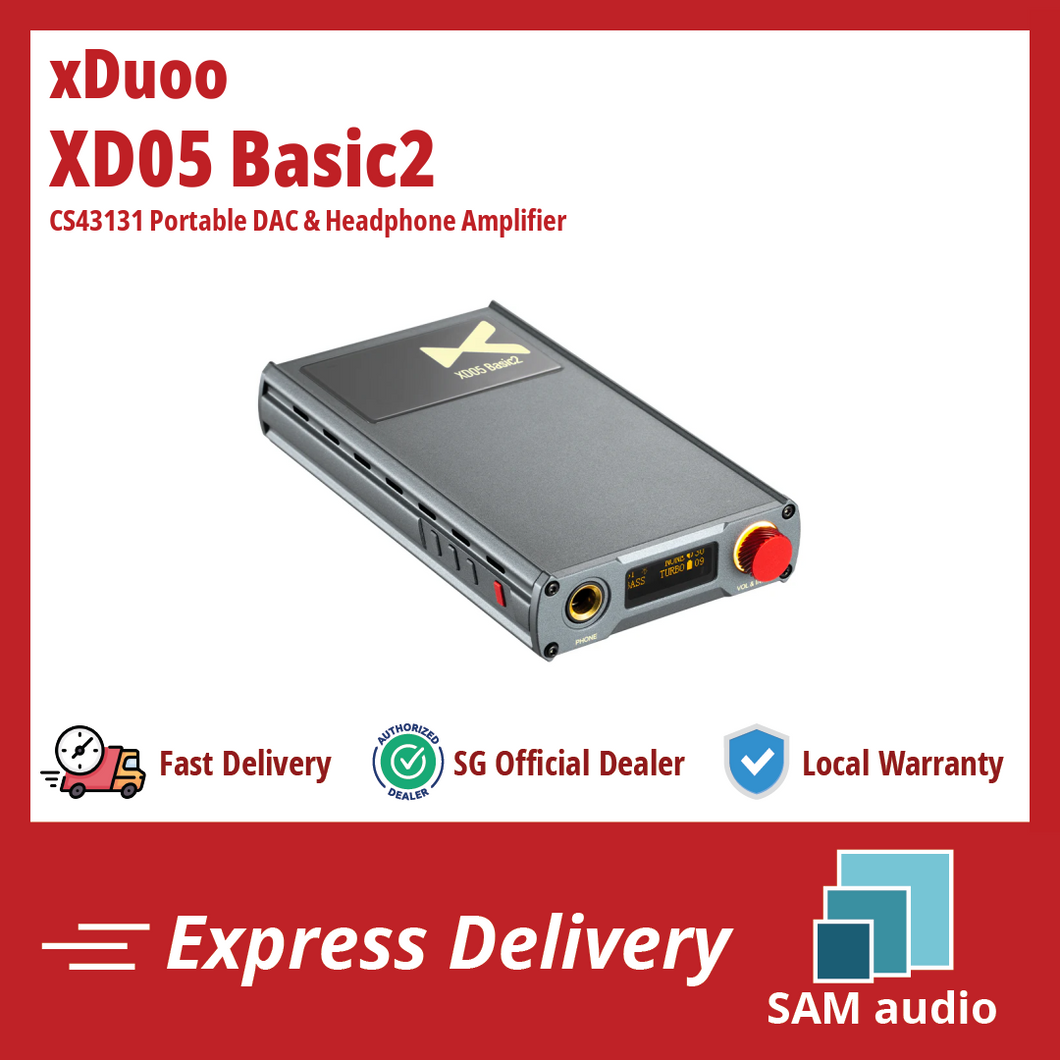

[🎶SG] XDUOO XD05 BASIC2 CS43131 Portable DAC & Headphone Amplifier

🎵 OFFICIAL XDUOO DEALER - 1 Year Local Warranty & Aftersales Support

Contact Us:
📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084
📧 Email us @ sales@samaudiosg.com
🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68  (Lobby 2), Singapore 338729

--

XDUOO XD05 BASIC2
CS43131 Portable DAC & Headphone Amplifier

> 750mW Output Power
> 32bit/384kHz DSD256 MQA 8X
> 124dB SNR
> BASS
> Digital Volume
> Replaceable Op-amp Chip
> Desktop/Portable
> Bluetooth 5.4 LE Audio
> Multiple Audio In

--
Descriptions:

> Convenient To Carry
> It is very convenient whether you carry it with you at home, in the office, on business trips or during travels, allowing you to enjoy high-quality music anytime and anywhere.

> Powerful Decoding Ability
> It has the USB DAC function, which makes it convenient to connect via USB to various devices, such as computers, smartphones, tablets and smart music players, then output higher-quality music signals.

> Direct Stream Digital 256
> PCM 32bit/384kHz
> MQA
> It has a very strong decoding ability and can decode high-definition formats, such as PCM 32bit/384kHz, DSD256, and MQA with 8X unfolding.
> This allows you to feel more musical details brought by the high-definition formats, such as the subtle sounds of musical instruments that are usually difficult to hear.

> LE Audio Bluetooth 5.4
> The new generation of Bluetooth 5.4 technology features faster transmission speed.
> It supports the new generation of LE Audio Bluetooth coding protocol, which has lower latency and better sound quality, making it well worth experiencing. It supports LC3, aptX_Lite, and aptX_AD formats.
> It continues to be compatible with traditional Bluetooth coding protocols and supports a variety of high-definition formats, such as aptX, aptX_HD, aptX_Adaptive, aptX_Loss-less, LDAC and other formats.

> Powerful Driving Ability
> The output power of the headphones jack reaches 750mW per channel. Coupled with the high and low gain adjustment, it can deal with various types of headphones very well.

> Excellent Parameters
> The THD reaches 0.0006%, which ensures that the audio signal maintains its original tones during the amplification process, reducing distortion and noise.

> The SNR reaches 124dB
> A high SNR means low background noise and a purer audio singal, allowing users to hear musical details more clearly.

> Freely Switch Between Portable & Desktop Mode
> It has two power supply modes: DC and battery. When you need to use it flexibly and move around, you can use battery power supply, which is convenient for listening to music anytime and anywhere. When it is used in a fixed position on the desktop, you can use DC power supply, and the driving force will soar. At the same time, DC power supply greatly reduces the battery load and effectively extends the battery life.

> EQ Adjustment
> When watching a movie and you want to experience the feeling of explosive roars and thumping bass, you can turn on the bass in the setting in the menu settings.

> Digital Volume Adjustment
> The sensitivity of modern HiFi headphones is extremely high, which undoubtedly poses stringent requirements for the precision of volume control. Therefore, we adopt digital volume adjustment to solve the problem of left and right channel imbalance of traditional potentiometers at low volumes, ensuring that the left and right channels can be perfectly synchronized at every volume level.
> With 99 fine-grained volume adjustment levels, for headphones of any impedance and any sensitivity, you can find the "exclusive volume" that suits them.

> Simple To Change Amplifier Chip
> For players who purse the ultimate audio experience, it is really fascinating to be able to adjust the sound style with their own hands. Therefore, the operational amplifier chip in our design is removable and replaceable. Without the need for professional tools, you can easily replace the operational amplifier chip with just your hands, and experience the distinct sound quality brought about by different chips.

> Carefully Selected Materials
> We have selected and tested the materials that affect the sound quality numerous times, all with the aim of presenting a better sound quality.
> We adopt the professional-grade DAC chip CS43131 as the decoding chip because it has better THD, higher SNR and higher resolution.

> We use the audio-specific capacitors of internationally renowned brands such as NICHICON and ELNA because they have very low ESR, very small leakage current, and good temperature stability, and perform extremely well in terms of their impact on sound.

--
Specifications:

> Battery: 3.7V/3000mAh
> Screen: 0.91 inch OLED
> Compliant OS: Windows/Linux/MAC OS X/iOS/Andriod
> Frequency Response: USB/BT (20 - 20kHz ±0.5dB), AMP (10 - 80kHz ±0.5dB)
> Sampling Rate Support: PCM 16-32Bit/44.1 - 384kHz , DSD64 - DSD256 , MQA 8X
> Bluetooth: (LE Audio: LC3, aptX_Lite, aptX_AD) (Classic Audio: SBC, AAC, aptX, aptX_HD, aptX_Adaptive, atpX_Low Latency, aptX_High Quality, aptX_Lossless, LDAC
> Gain: +0dB/6dB
> Bass: 0/+6dB

Headphone Out Parameters
> Output Power: 750mW (32Ω load)
> THD+N: 0.0006% @ 1kHz
> S/N: 124dB
> Crosstalk: ≥107dB

AUX Out Parameters
> Output Level: 2.0Vrms
> THD+N: 0.0003% @ 1kHz
> SNR: 124dB
> Crosstalk: ≥107dB

> Battery Life: 11Hr (USB In), 15Hr (BT In)
> Charging Time: 3hours (fast charging) | 5hours (slow charging)
> Size 13.9 x 7.5 x 2.3 cm
> Weight: 0.3Kg

--
