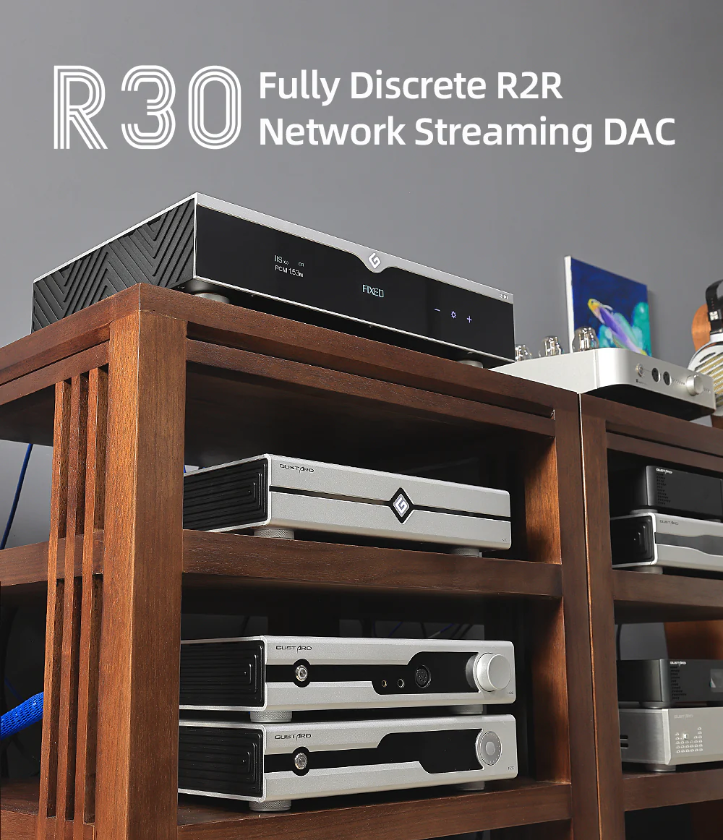

GUSTARD R30 - Fully Discrete R2R DAC

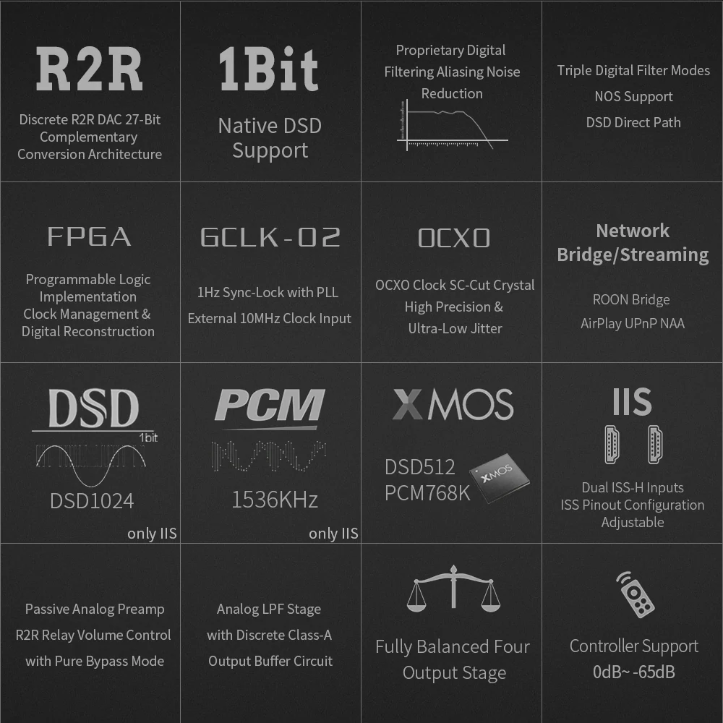

> Fully discrete R2R ladder DAC
> Native DSD1024 decoding (via I²S)
> Triple digital filter modes: Linear Sharp, Minimum Slow, Super Slow
> FPGA programmable logic for clock and signal control

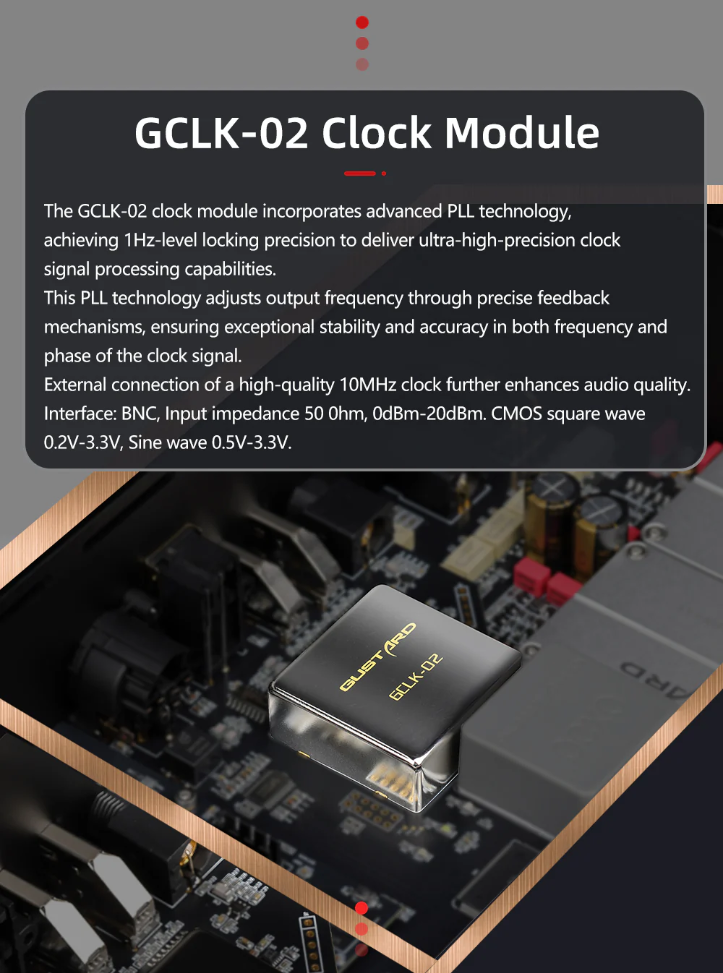

> OCXO clock with SC-cut crystal and external 10MHz input
> Self-developed CelWare network bridge with Roon, AirPlay, UPnP, NAA, Spotify support
> Discrete Class-A analog output stage
> Relay-based passive preamp with pure bypass mode
> Balanced and unbalanced analog outputs (XLR, RCA)
> XMOS XU216 USB interface with multi-stage filtering

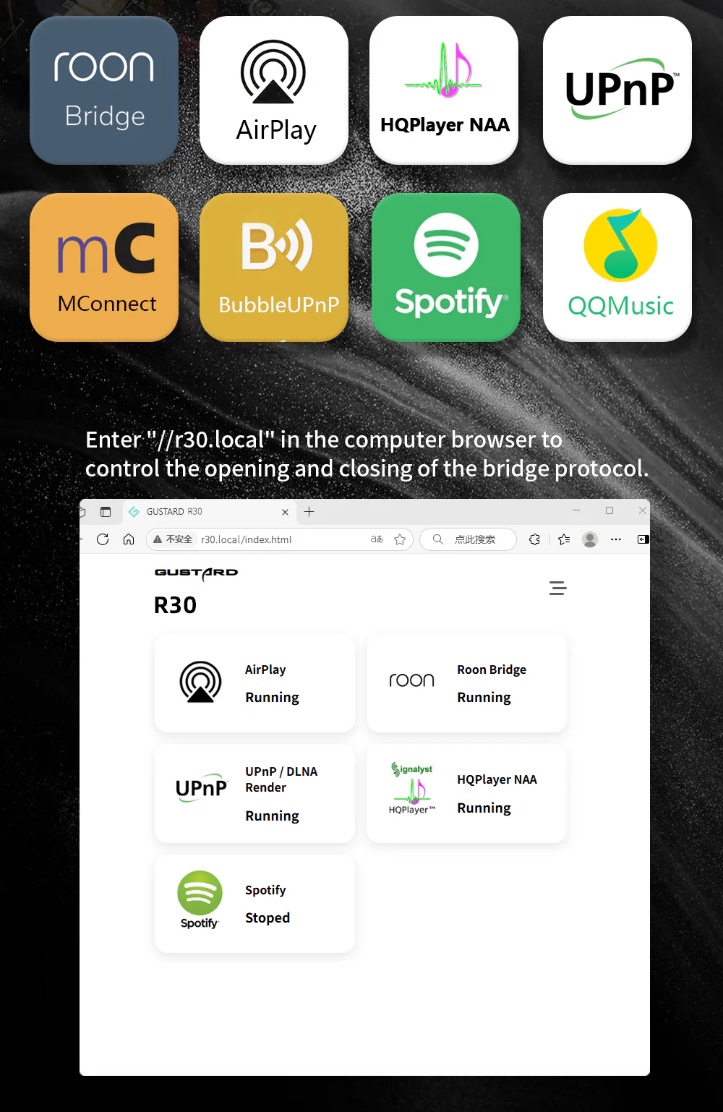

> Web-based control via “//r30.local”

--
Descriptions:

> Digital done differently
> The R30 is made for listeners who want digital done differently. Decoding is handled by a fully discrete R2R ladder network: resistors switching in perfect precision rather than the high-frequency 0/1 toggling of delta-sigma DACs. The result is a sound that’s natural, detailed, and free of the digital edge. Around this core feature, the R30 applies serious engineering: true 1-bit DSD decoding, FPGA-based clock management, a self-developed network bridge, and a discrete Class-A analog output stage. Together, these elements create a DAC that sounds utterly natural.

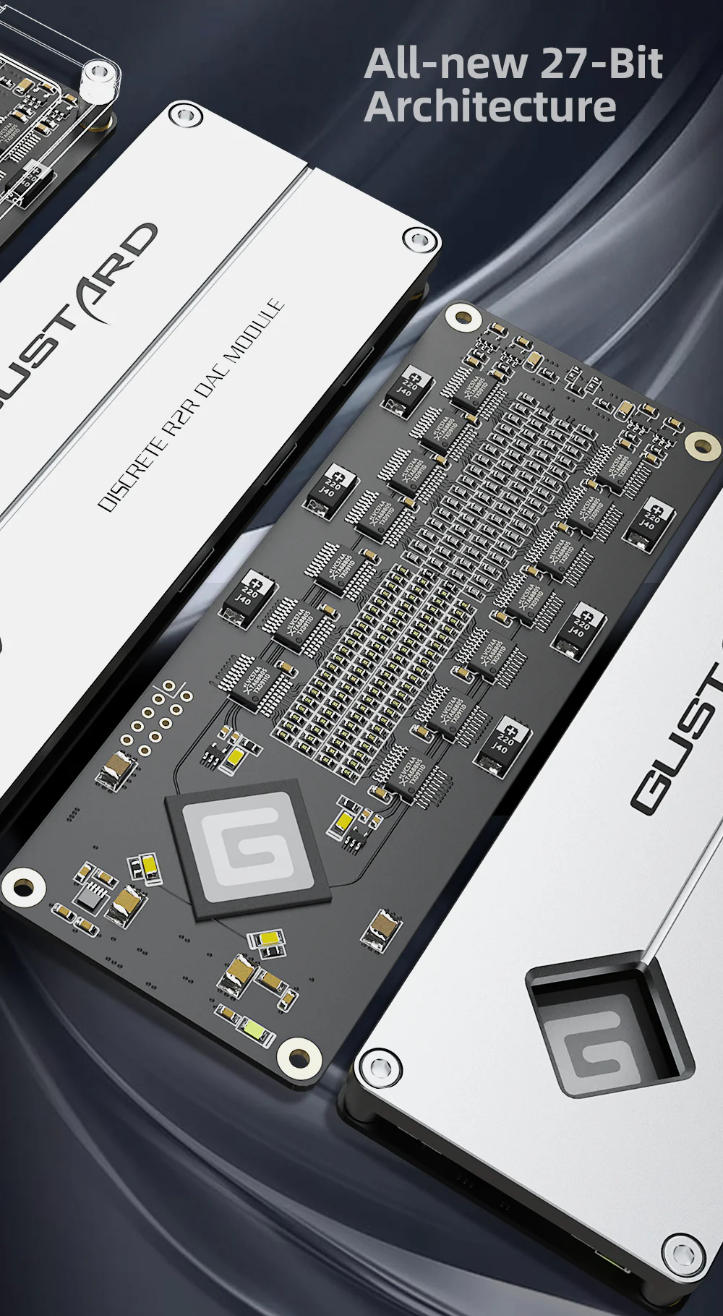

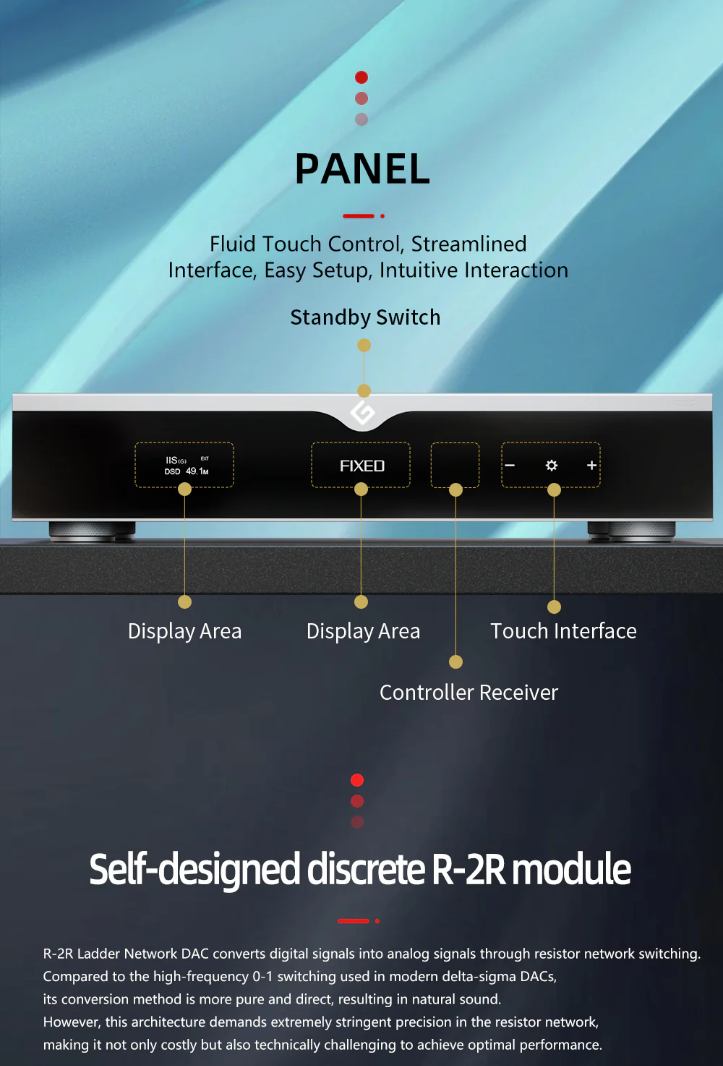

> Organic-sounding discrete R2R ladder
> The R30’s discrete R2R module converts digital signals directly through a resistor ladder network. This design demands extreme resistor matching and precision, but it pays off with a more organic-sounding conversion.

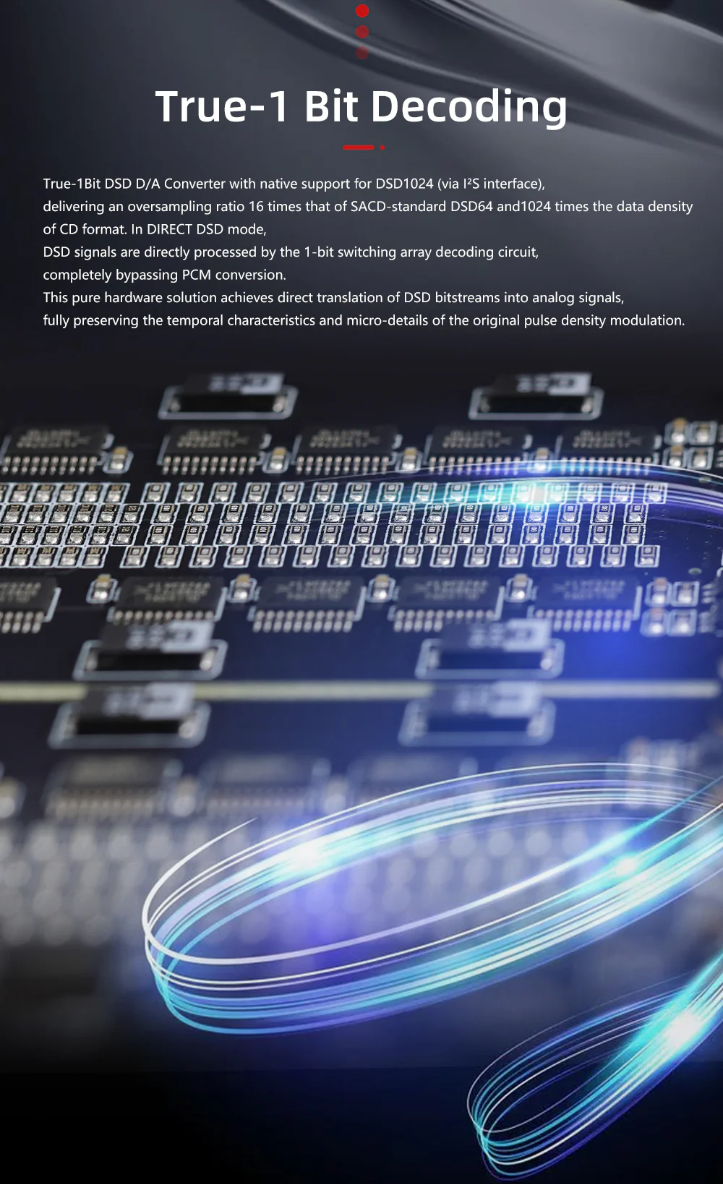

> True 1-bit DSD decoding
> Native support for DSD1024 means the R30 can handle data density 1,024 times that of CD audio. In DIRECT DSD mode, the bitstream bypasses PCM conversion entirely, decoded straight through a 1-bit switching array, which preserves micro-details and timing integrity.

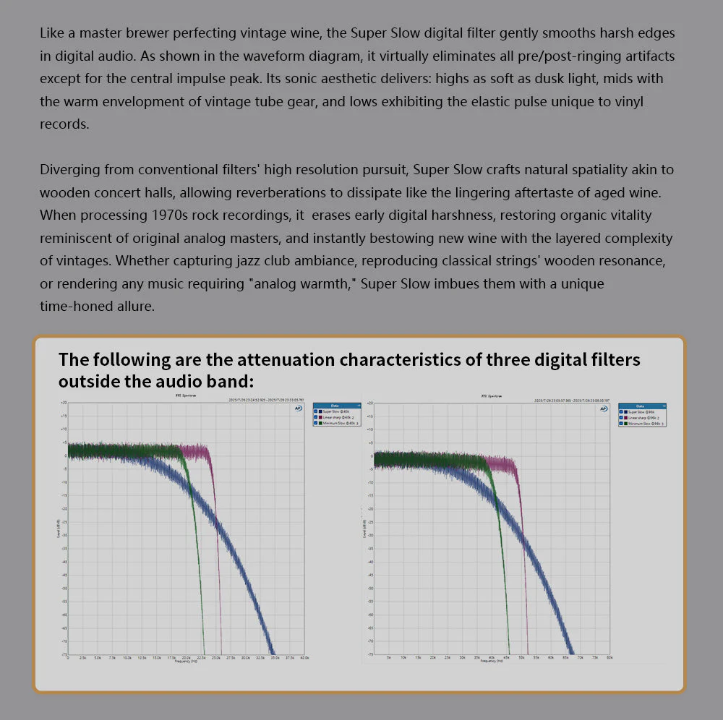

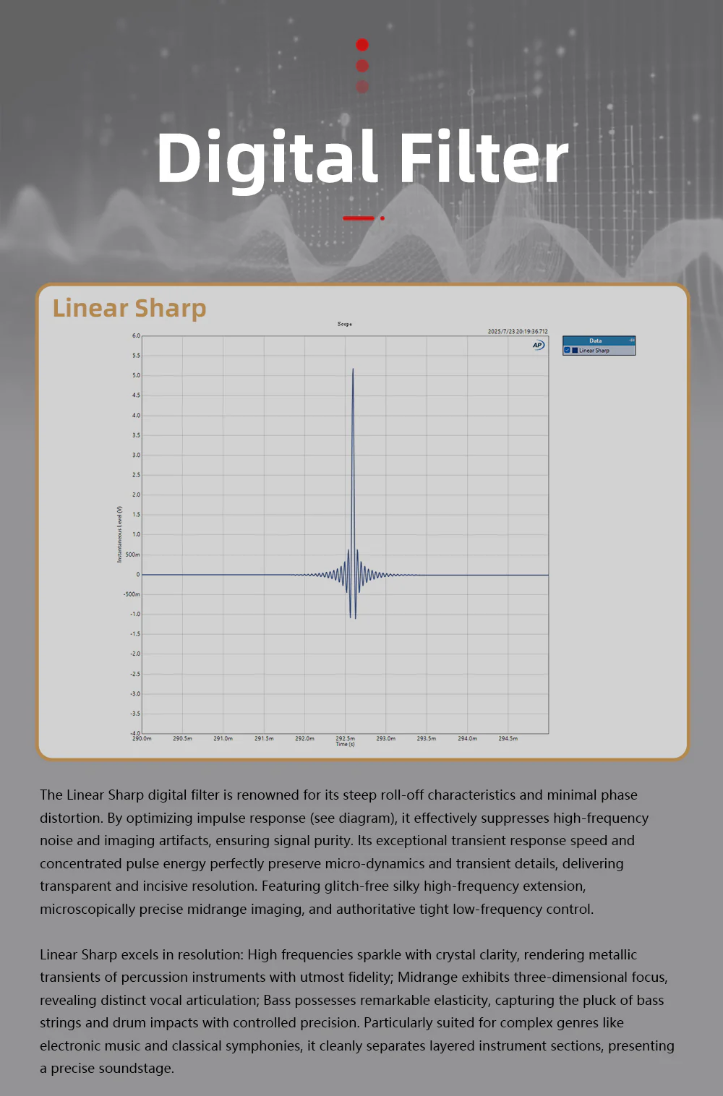

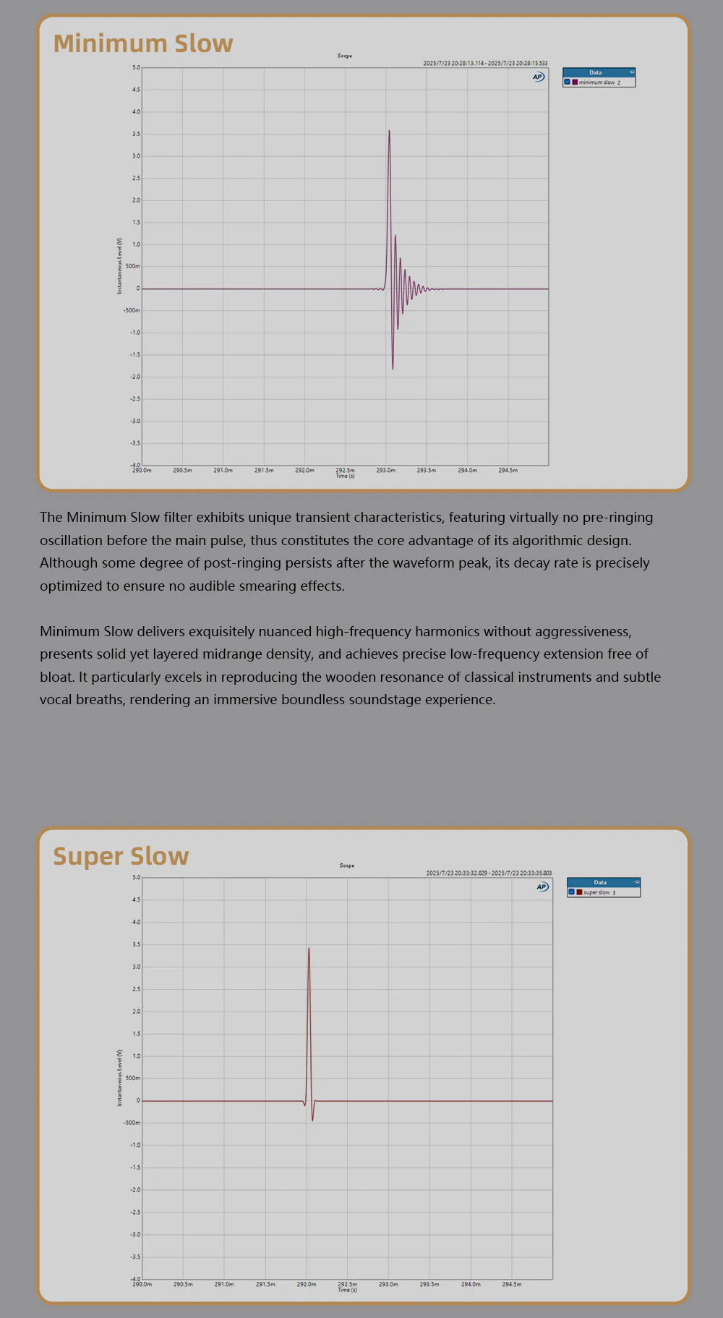

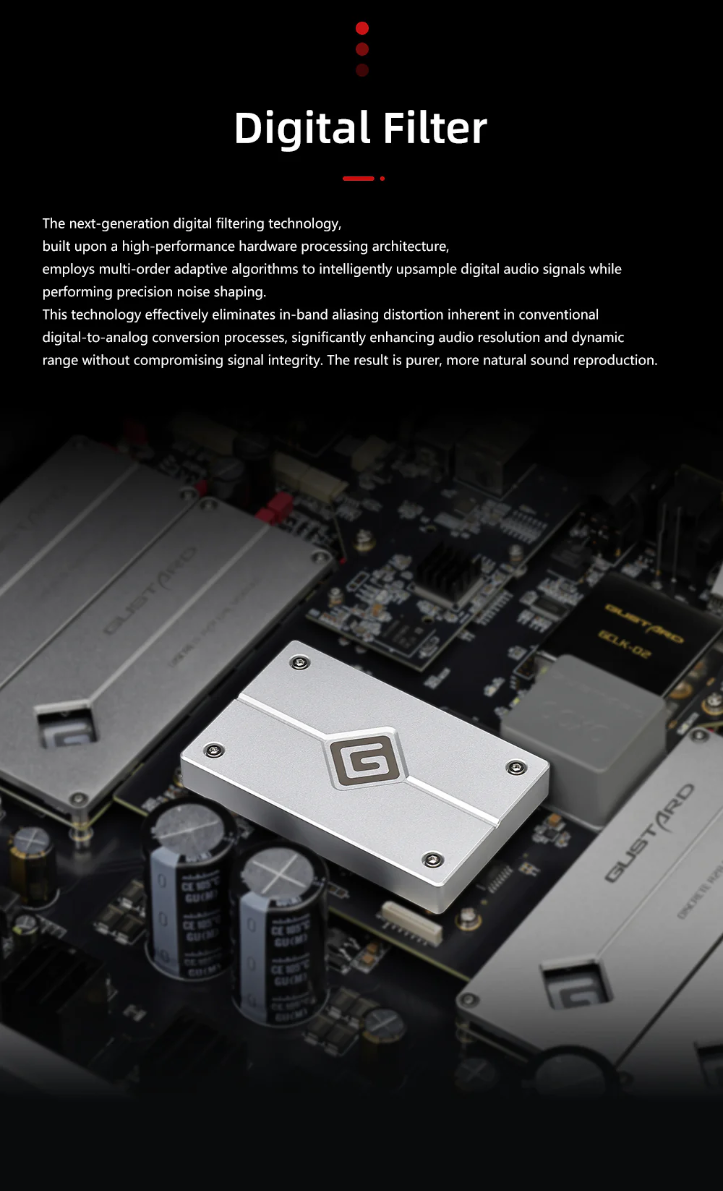

> Smart digital filtering
> Three filter modes—Linear Sharp, Minimum Slow, and Super Slow—let you choose how the DAC shapes your sound. Built on adaptive multi-order algorithms, the filtering reduces aliasing noise while enhancing resolution and dynamics.

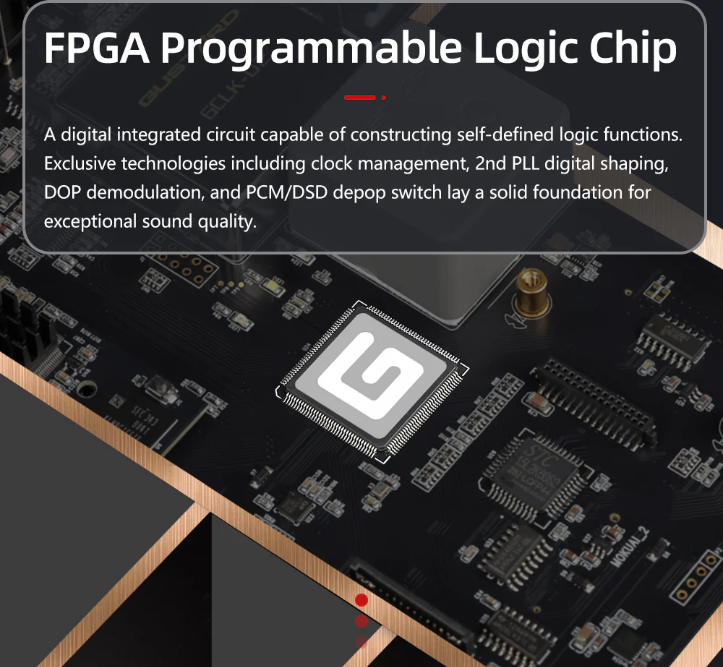

> FPGA-powered control
> A programmable FPGA handles clock management, PLL shaping, depop switching, and signal routing. This architecture lays the foundation for low jitter, stable synchronization, and customizable logic control that stays rock solid no matter how intricate the music gets.

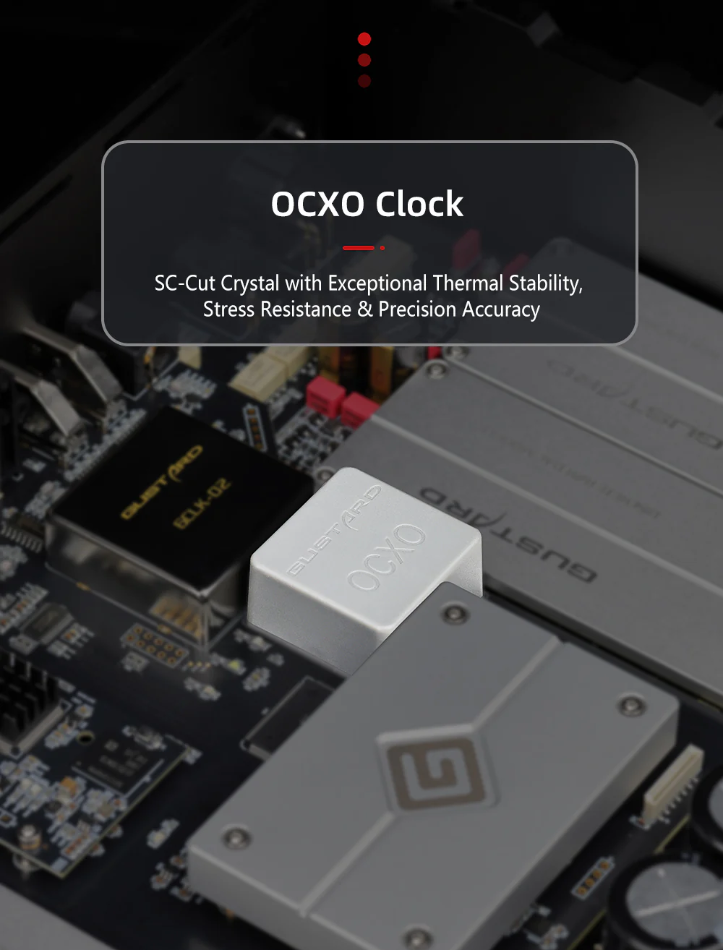

> Precision OCXO clocking
> The SC-cut crystal OCXO clock keeps jitter to imperceptible levels thanks to exceptional thermal stability and stress resistance. The R30 also accepts an external 10MHz clock input if you want to sync it to your reference system.

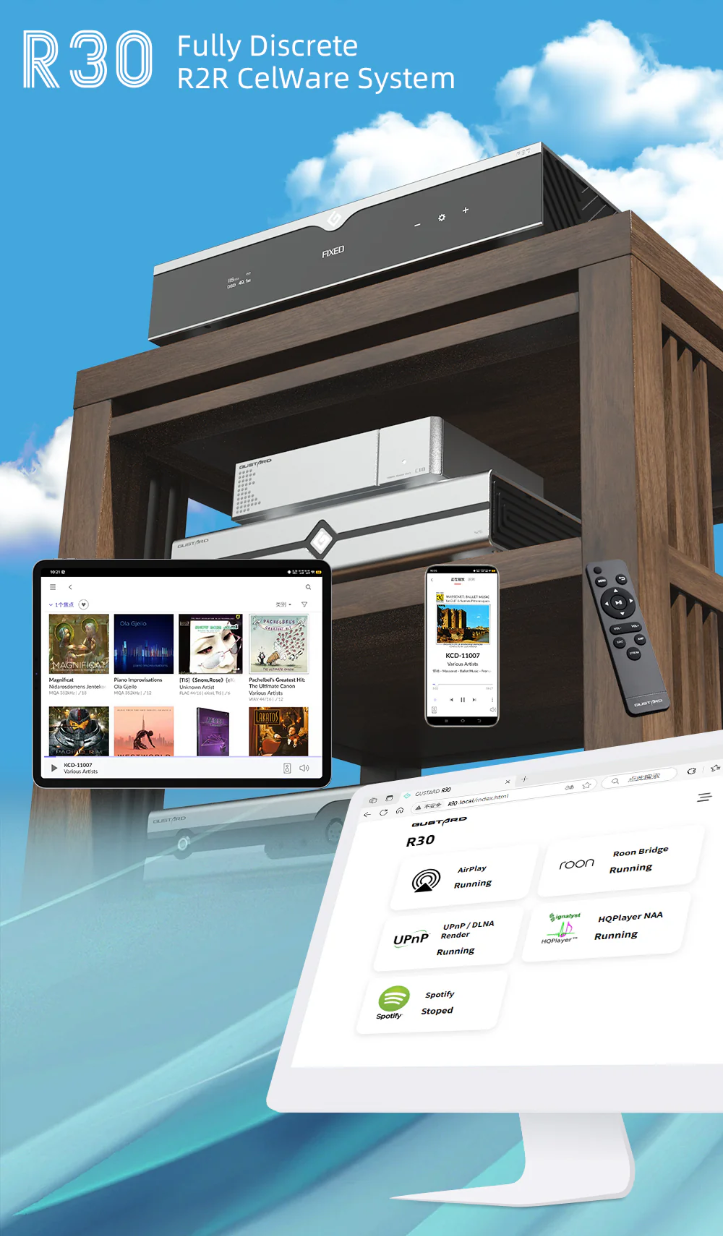

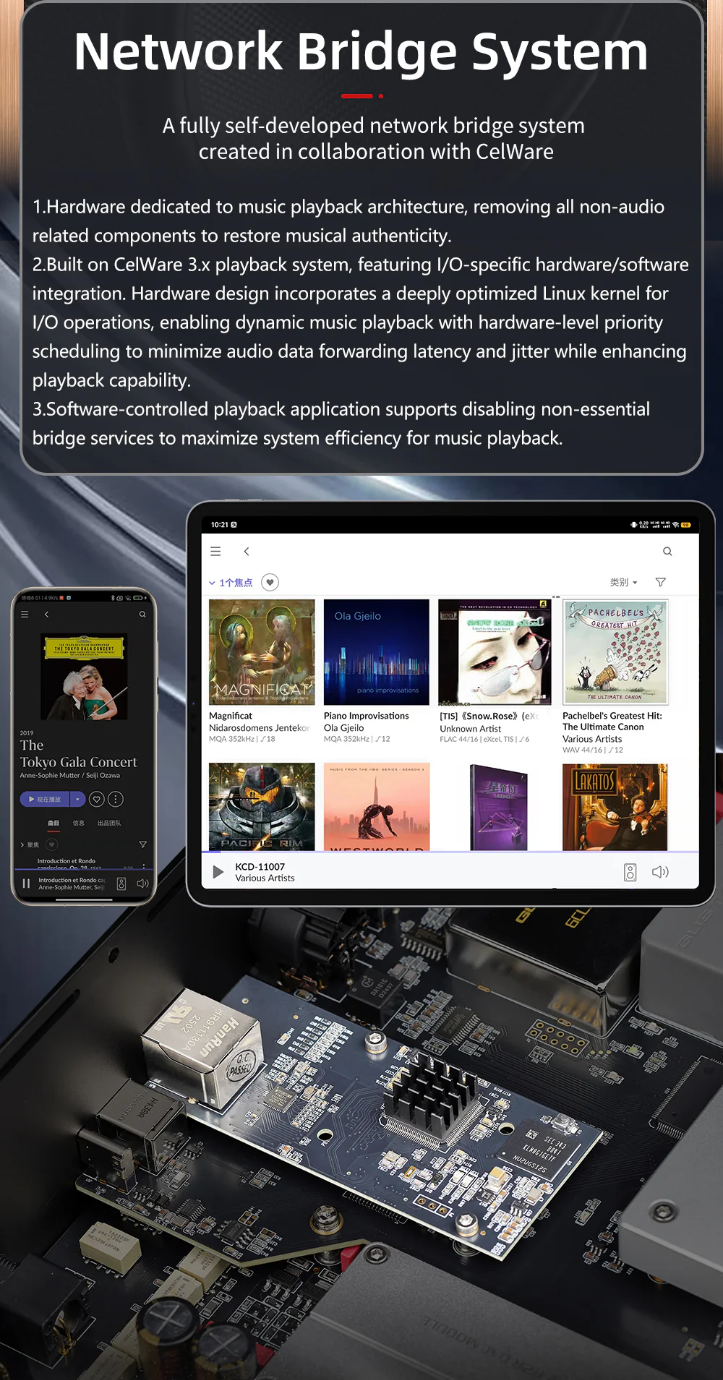

> A network bridge built for music
> The R30 comes with a self-developed CelWare-based network bridge system. This isn’t a generic Linux box. It’s a playback-dedicated design that strips away non-audio processes, minimizing jitter and latency. Protocol support includes Roon Bridge, AirPlay, HQPlayer NAA, UPnP/DLNA, Spotify Connect, MConnect, BubbleUPnP, and QQMusic.

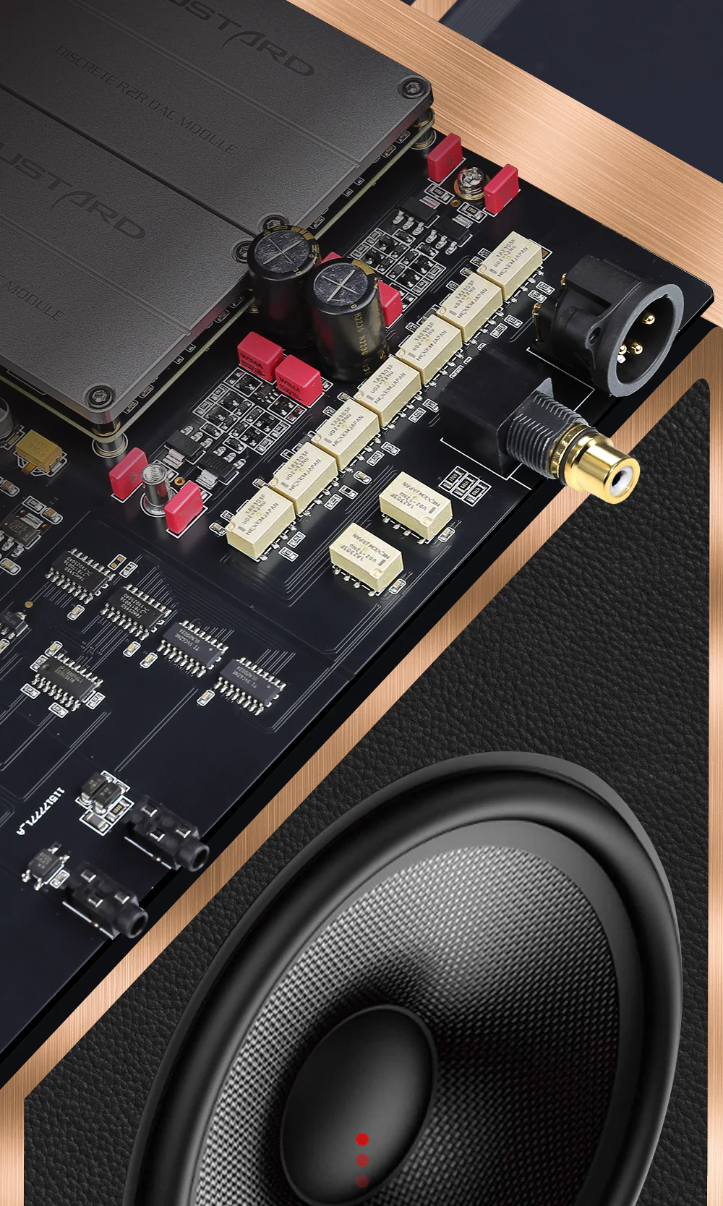

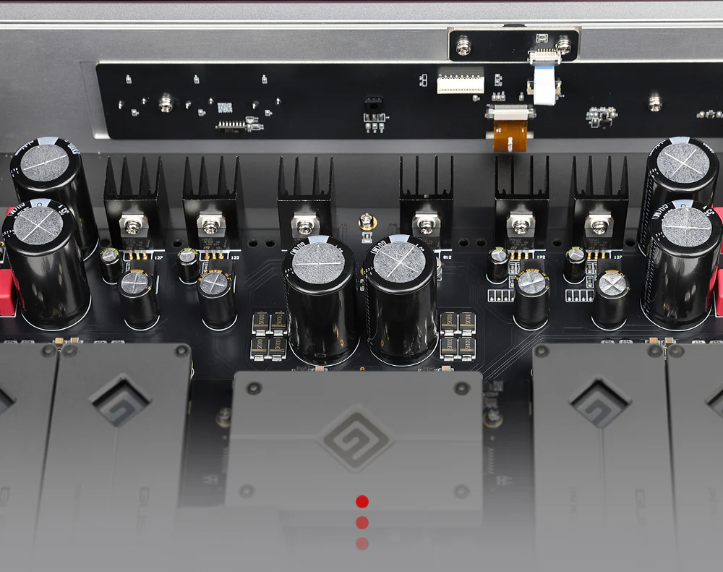

> Class-A analog stage
> Instead of integrated op-amps, the R30’s discrete Class-A low-pass filter stage lets each component be tuned individually. That means better control of frequency response, harmonic character, and transient handling.

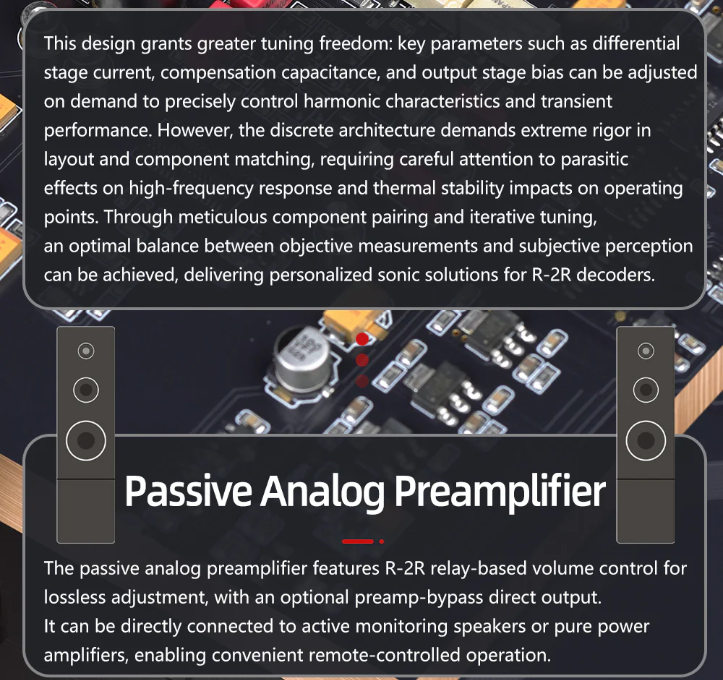

> Passive relay preamplifier
> With its R2R relay-based volume control, the R30 doubles as a passive analog preamp. Switch into pure bypass mode to use it strictly as a DAC, or connect it directly to powered monitors or a power amp and control volume remotely.

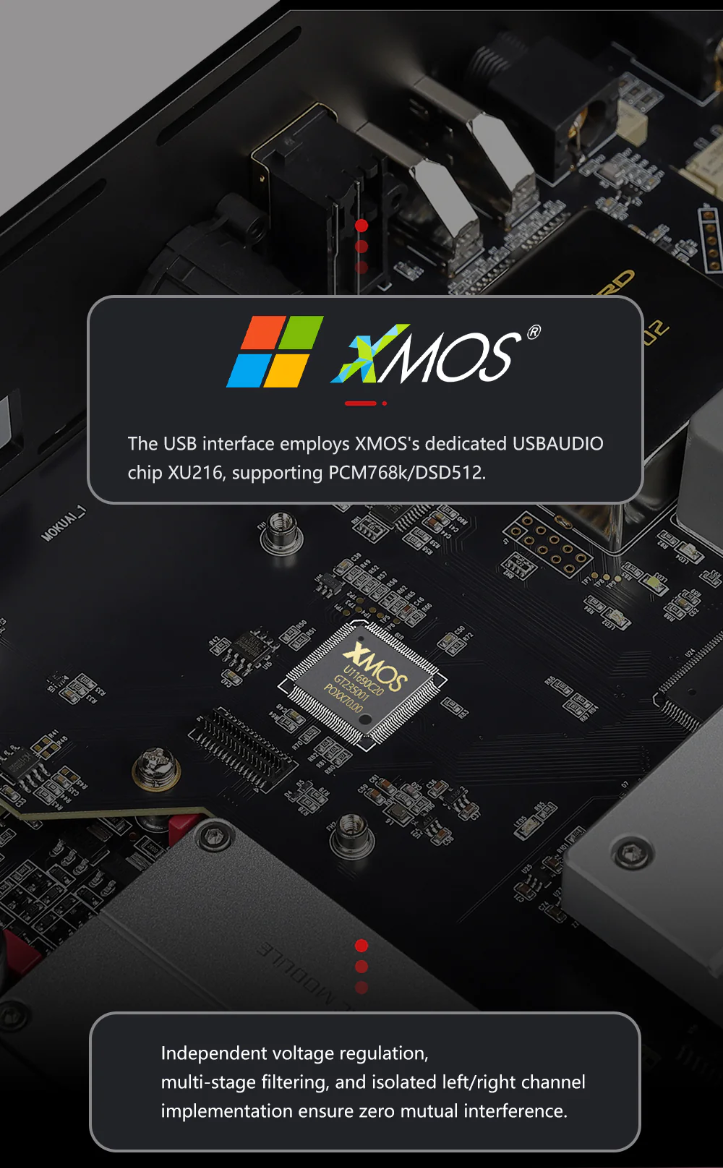

> XMOS USB with isolation
> The USB input runs on an XMOS XU216 interface, supporting PCM768k and DSD512. Independent voltage regulation and isolated left/right channels keep crosstalk and interference to a minimum, ensuring your USB connection doesn’t become a weak link.

--

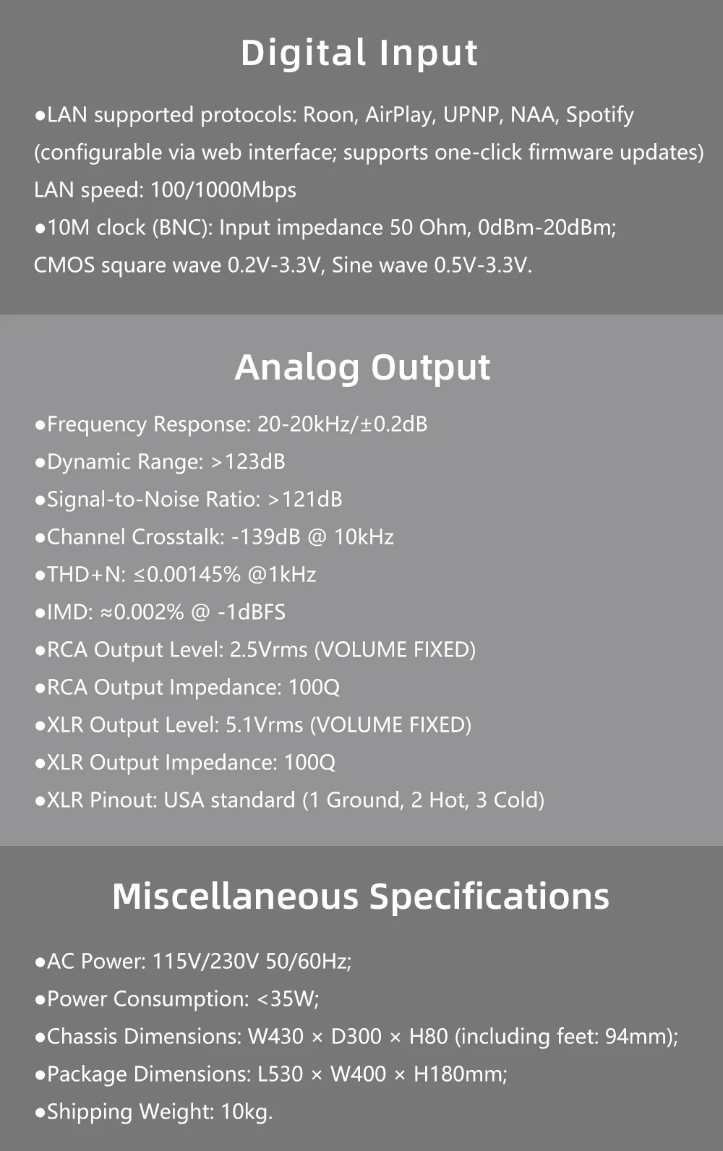

Specifications:

Digital performance:
> PCM: up to 1536kHz (I²S), 768kHz (USB)
> DSD: up to DSD1024 (I²S), DSD512 (USB)
> Digital filter modes: Linear Sharp, Minimum Slow, Super Slow

Analog output:

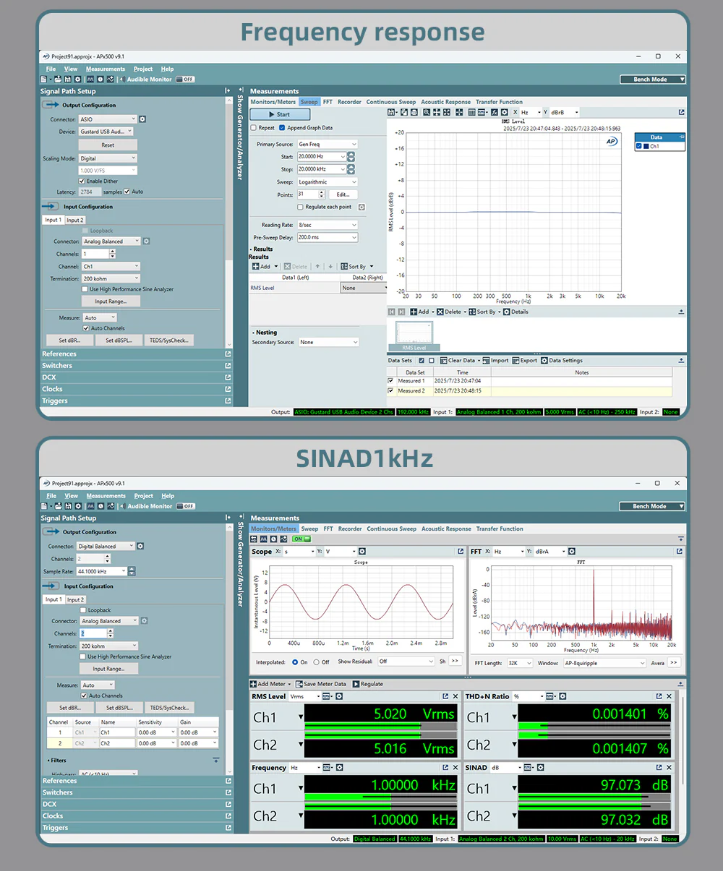

> Frequency response: 20Hz–20kHz / ±0.2dB

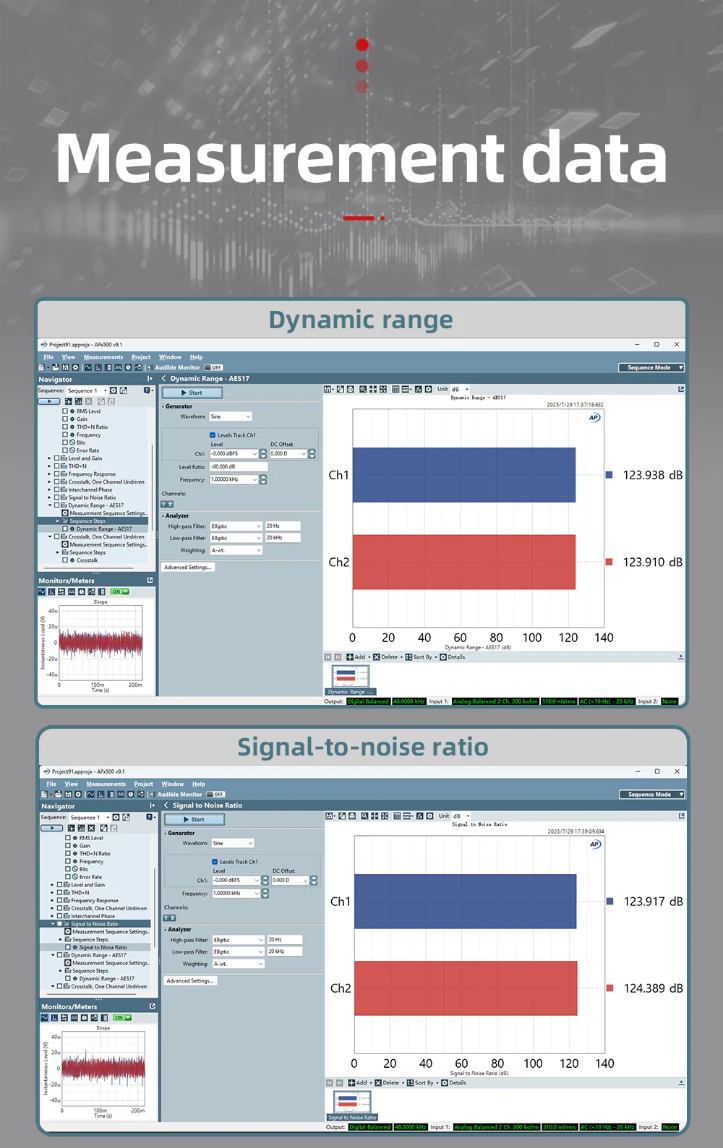

> Dynamic range: >123dB
> SNR: >121dB

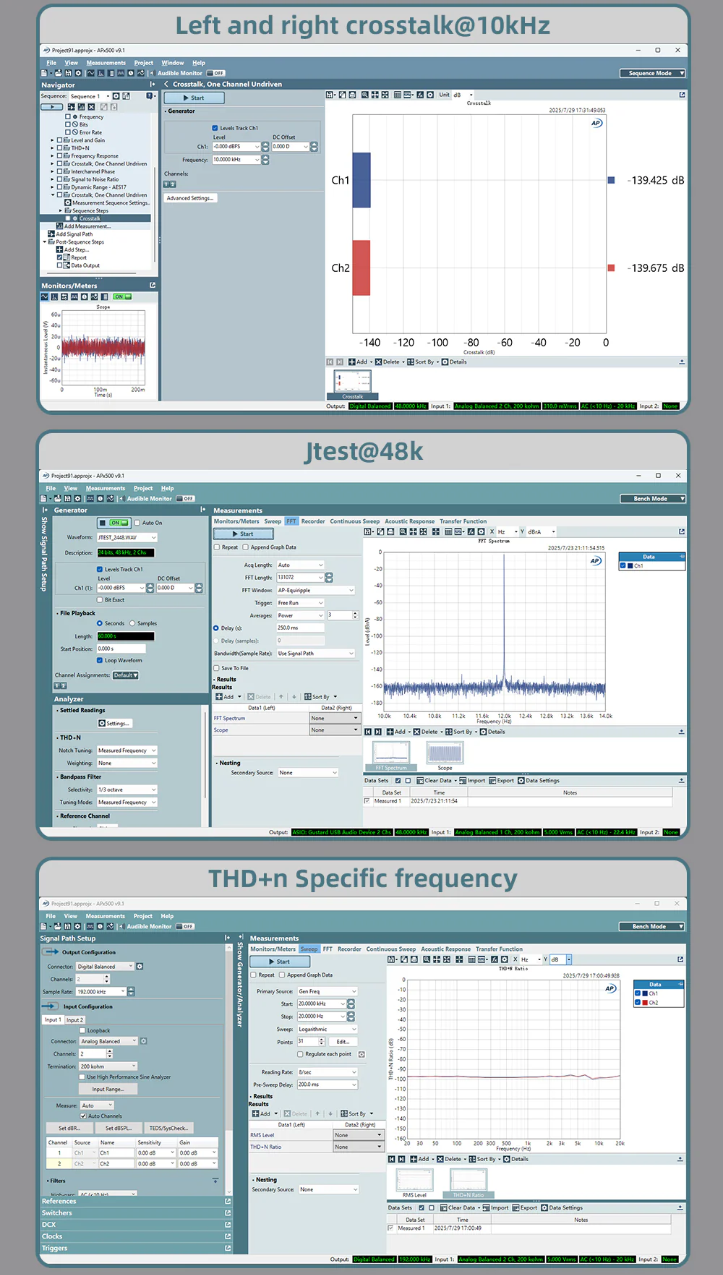

> Crosstalk: –139dB @10kHz
> THD+N: ≤0.00145% @1kHz
> IMD: ≈0.002% @ –1dBFS
> RCA: 2.5Vrms fixed, 100Ω
> XLR: 5.1Vrms fixed, 100Ω

Clocking:
> Internal: SC-cut crystal OCXO with ultra-low jitter
> External clock input: 10MHz BNC, 50Ω, 0–20dBm

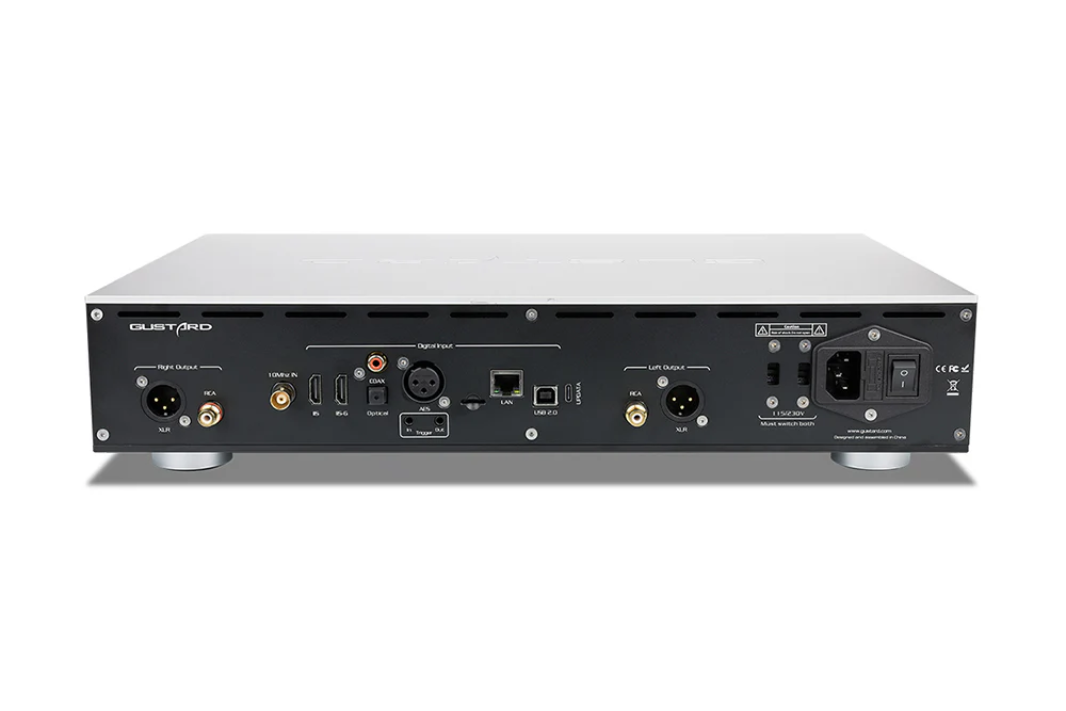

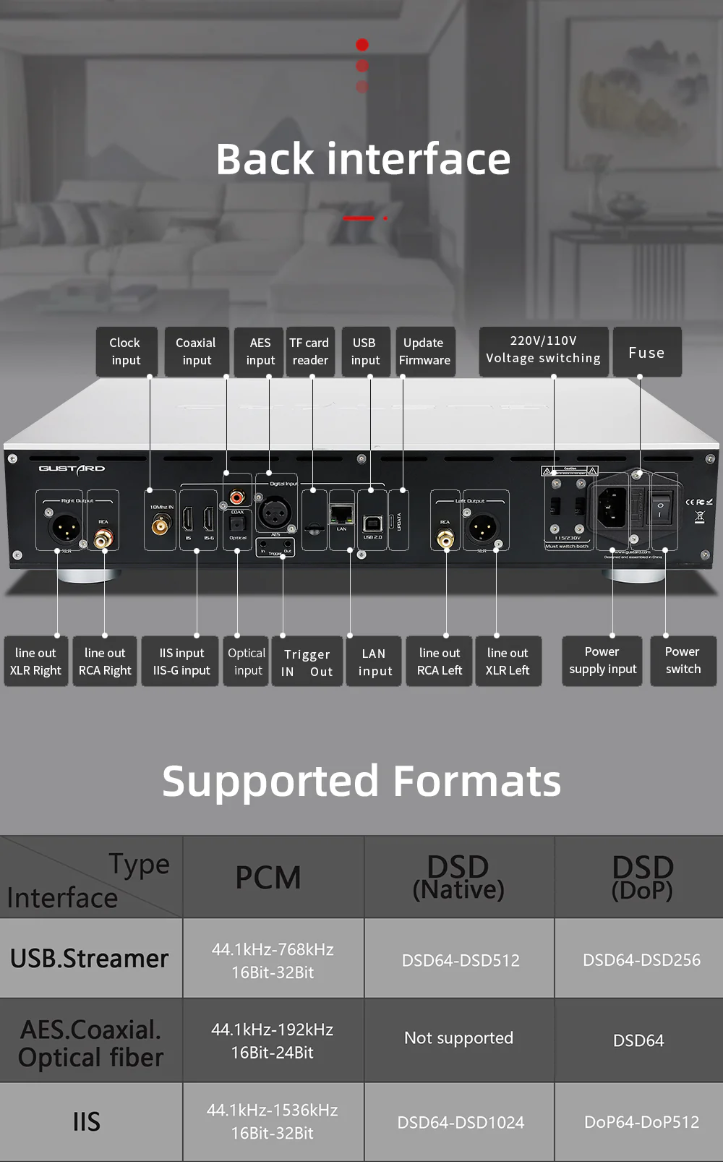

Digital inputs:
> USB (XMOS XU216)
> Coaxial
> Optical
> AES/EBU

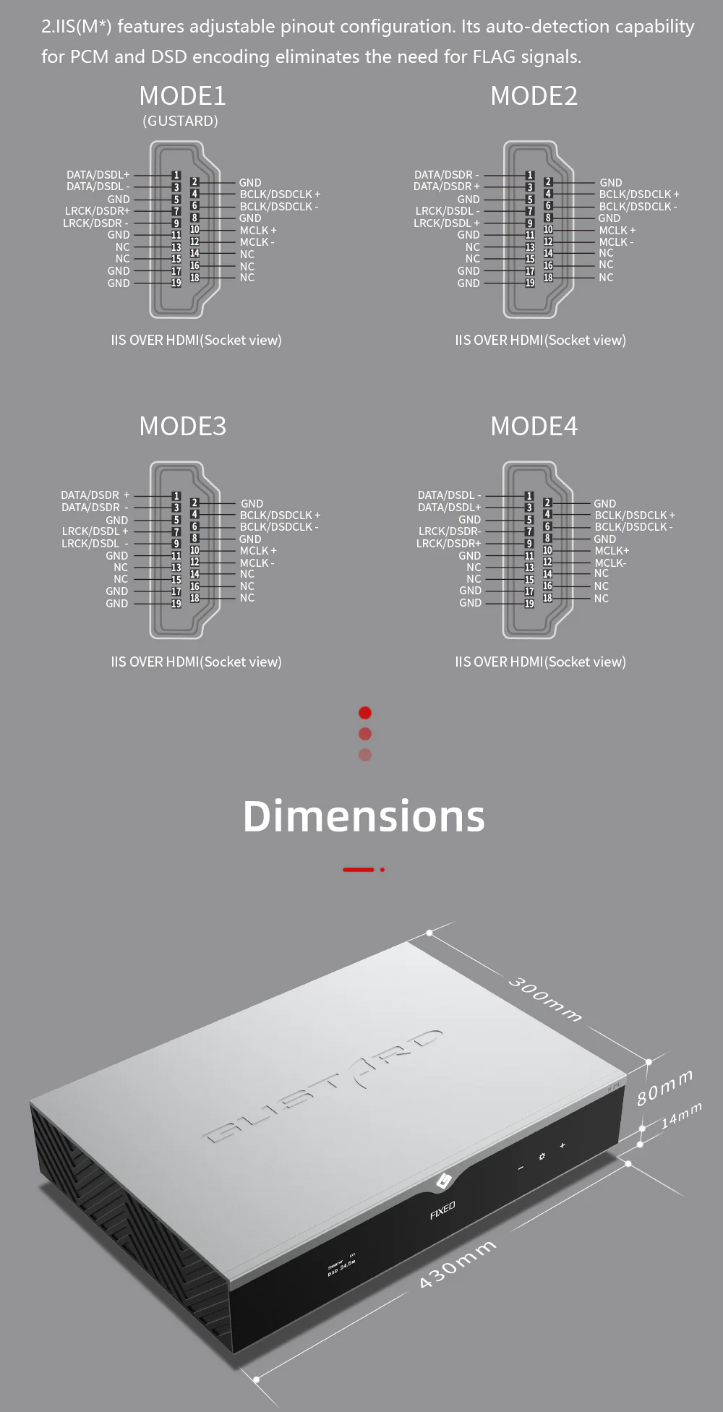

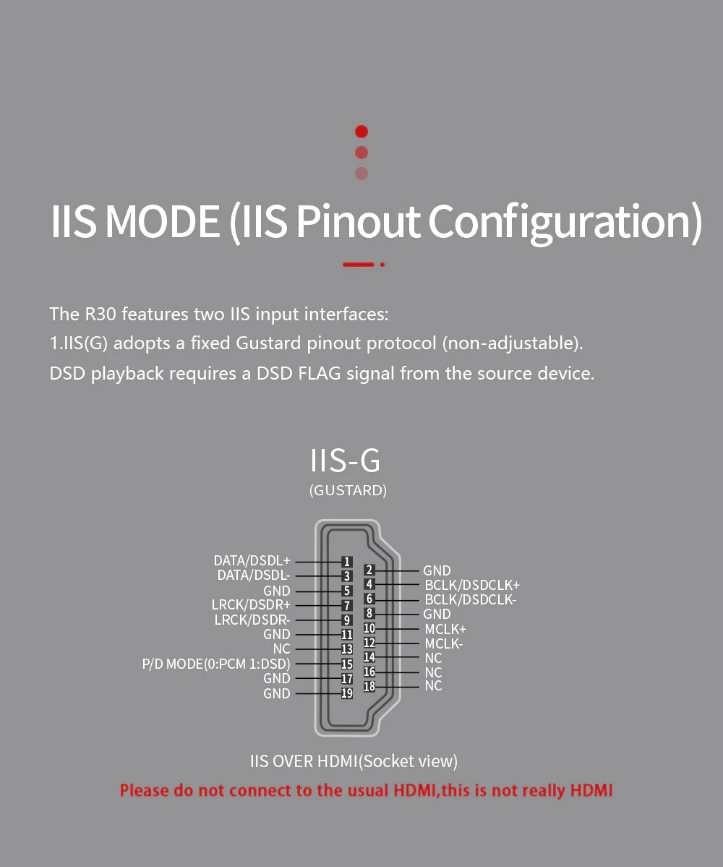

> Dual I²S (adjustable pinout)
> LAN (100/1000 Mbps, Roon/AirPlay/UPnP/NAA/Spotify)
> TF card reader

Outputs:
> XLR balanced L/R
> RCA unbalanced L/R
> Trigger in/out

General:

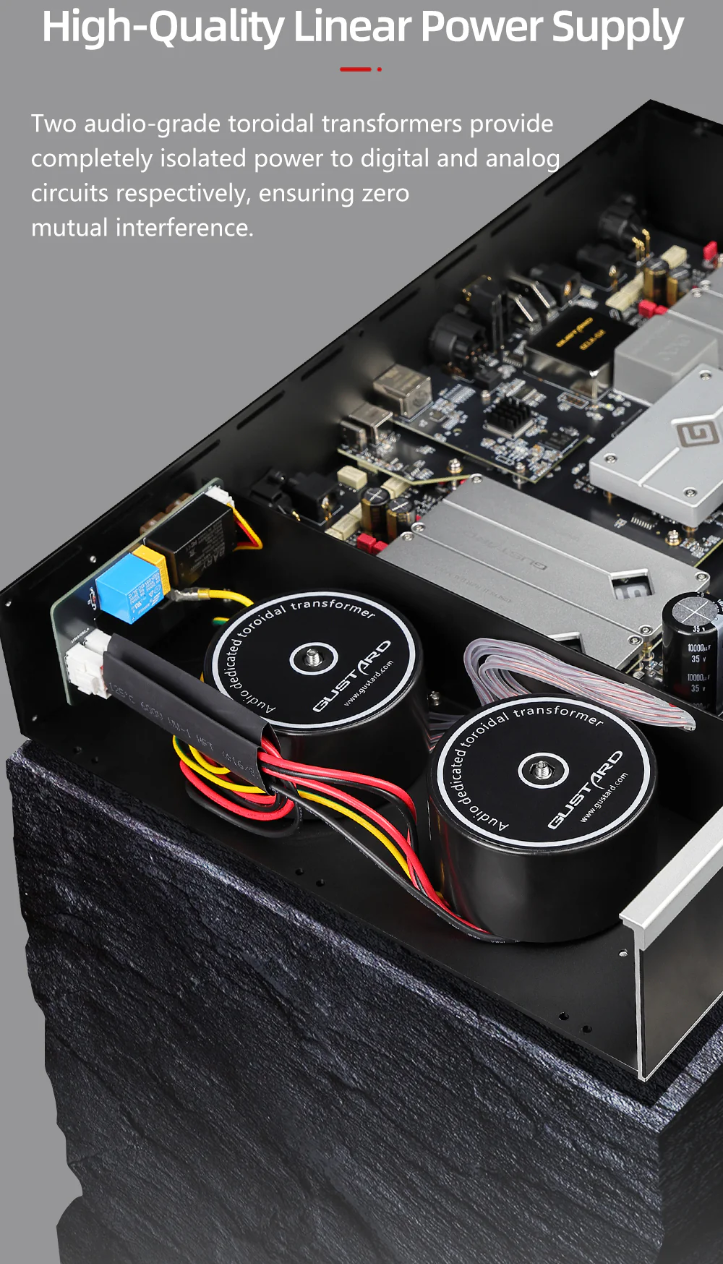

> Power: AC 115V/230V, 50/60Hz
> Consumption: <35W
> Dimensions: 430 × 300 × 80mm; incl. feet 94mm
> Shipping dimensions: 530 × 400 × 180mm
> Weight: 10kg
--
