[🎶SG] TOPPING E2x2 High Performance USB Audio Interface

Load image into Gallery viewer, [🎶SG] TOPPING E2x2 High Performance USB Audio Interface

[🎶SG] TOPPING E2x2 High Performance USB Audio Interface

Vendor: TOPPING
Regular price: $208.39
Sale price: $208.39
Regular price: ~~$229.00~~
Unit price: per

🔥 Smart Clearance – Dynamic Prices, Smarter Deals!

Ready stock. Get this as quickly as today*!

Express (Same Day / Next Day) or Normal Shipping (2-3 days) available for addresses in Singapore.

Express Upgrade - Purchase above S$200 to qualify for Free Next Day Delivery upgrade, or above S$100 for Same Day Delivery ($9.99).

International address (outside SG) will generally be delivered within 3-5 days by DHL.

Select shipping method during checkout. For more info, please refer Shipping Rate

Variation

Quantity must be 1 or more

🎵 OFFICIAL TOPPING DEALER - 1 Year Local Warranty & Aftersales Support

📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084

📧 Email us @ sales@samaudiosg.com

🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), S(338729) - Demo units available

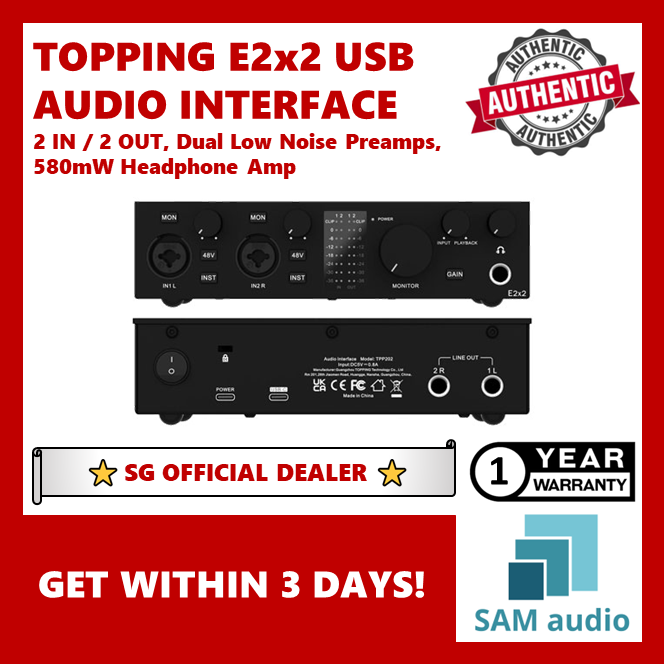

TOPPING E2x2 OTG USB AUDIO INTERFACE

> Ultra-linear Mic Pre Modules

> Multiple OS Support

> Three Simultaneous Mixes

> NFCA-LE Headphone Amp Modules

> Zero Latency Monitoring

> 192kHz/24bit High Sample Rate Support

> 4*Loopback

> TwoType-C Ports

> Aluminum Alloy Housing

Descriptions:

> Ultra-linear microphone preamp module

The E2x2 is equipped with a self-developed Ultra-linear microphone preamp module with an EIN as low as -130.5dBu. Even at the maximum volume setting, the E2x2 can maintain extremely low background noise, ensuring that every detail in your recording is perfectly captured. This ultra-linear design ensures that the audio signal is transmitted precisely enough to record clear, transparent sound.

> Directly connect the condenser microphone

> Equipped with 48V phantom power switch, E2x2 is perfectly compatible with condenser and dynamic microphones.

> Low noise reference voltage module

> TOPPING's unique LNRD module provides reference-level stable power supply for the ADIDA chip, further unleashing the chip's performance limit to ensure the purity of audio transmission.

> Powerful performance, Self Developed headphone amplifier

> With only 0.9µVrms of noise floor and 1 ohm output impedance,

the NFCA-LE headphone amplifier module frees the monitoring of high-sensitivity headphones from distortion and noise.

> The E2x2 offers two gain adjustments, a high gain of up to +17dBu, and a powerful output of 580mW x 2@RL=32 Ohm. The combination of high gain and powerful output capability allows the E2x2 to easily drive professional headphones with impedances up to 600 ohms.

> Zero-latency hardware monitoring system

The zero-latency design allows you to monitor audio effects in real time during recording or mixing.

> Freeing dynamic range with analogue volume control

> Line Out analogue dynamic range: 127dB

> Phone Out analogue dynamic range: 132dB

> The volume control knob of the Line Out and the headphone amplifier uses an analog Potentiometer, allowing you to control the volume more accurately.

> Independent mixer control

> Equipped with three 8-channel input mixers, the E2x2 allows you to easily adjust and control audio effects for precise audio management. In addition, its 6 DAW channels and 4 LoopBack channels are designed to meet your diverse creative needs for recording, mixing and playback.

> High-resolution production experience

> E2x2 adopts the excellent XMOS chip and is fully compatible with Windows, M@c, i0S, Android and other operating systems. It supports high-specification audio recording and playback from 44.1 kHz/24bit to 192kHz/24bit, which brings you more diversified ways to create music.

> Dual Type-C ports

Using Type-C for transmission and power supply.

It is recommended to connect the auxiliary power connector if the E2x2 is frequently fixed to a desktop or if 48V phantom power is required to further avoid signal interference.

Specifications:

> Measured | 18.7cm x 12.9cm x 5.0cm

> Weight | 530g

> Power input | USB TypeC port (DC5V/0.8A)

> USB protocol | TypeC: USB2.0(HS)

> Microphone input | 2x Combo connector

> Instrument input | 2x Combo connector

> Line input | 2x Combo connector

> Line outputs | 2x

> Headphone output | 1x

> Zero-latency direct monitoring | Yes (Equipped with monitor mix knob)

> Input meter | Yes (2x8 LED indicators)

> Output meter | Yes (2x8 LED indicators)

> Mic pre modules | Ultra-linear

> Headphone amp modules | NFCA-LE

> Supported sampling rates | TypeC: 24bit/44.1 kHz-24bit/192kHz

> Software Control | Yes (TOPPING Professional Control Center)

> DAW channels | 6x

> Loopback channels | 4x

> OS support | M@c/Win/i0S/Android

> Power switch | Yes

1. Microphone Input

> Equivalent Input Noise @A-wt,150 Ohm | -130.5dBu

> THD+N @A-wt | -110dB (0.0003%)

> Dynamic Range @A-wt | 115dB

> SNR @A-wt | 115dB

> Crosstalk @1kHz | -140dB

> Frequency Response | 20Hz-40kHz (+-0.2dB)

> Maximum Input Level | 8.6dBu

> Input Impedance | 1.5k Ohms

> Available Gain | 58dB + 20dB (20dB digital gain)

> Phantom Power | 48V

> Connector Type | XLR connector of the combo socket

2. Line Input

> THD+N @A-wt | -107dB (0.00045%)

> Dynamic Range @A-wt | 115dB

> SNR @A-wt | 115dB

> Crosstalk @1kHz | -140dB

> Frequency Response | 20Hz-40kHz (#0.1dB)

> Maximum Input Level | 23.9dBu

> Input Impedance | 6k Ohms

> Available Gain | 58dB + 20dB (20dB digital gain)

> Connector Type | TRS connector of the combo socket

3. Instrument Input

> THD+N @A-wt | -108dB (0.0004%)

> Dynamic Range @A-wt | 118dB

> SNR @A-wt | 115dB

> Crosstalk @1kHz | -140dB

> Frequency Response | 20Hz-40kHz (#0.3dB)

> Maximum Input Level | 14.8dBu

> Input Impedance | 1M Ohms

> Available Gain | 58dB + 20dB (20dB digital gain)

> Connector Type | TS connector of the combo socket

4. Line Outputs

> THD+N @A-wt | -100dB (0.001%)

> Dynamic Range @A-wt | 115dB

> Analogue Dynamic Range @A-wt, -40dB attenuation | 127dB

> SNR @A-wt | 115dB

> Crosstalk @1kHz | -128dB

> Frequency Response | 20Hz-40kHz (+-0.3dB)

> Maximum Input Level | 14dBu

> Noise @A-wt | 1.8uVrms

> Output Impedance | 100 Ohms

> Connector Type | 6.35mm TRS balanced jack

5. Headphone Output

> THD+N @A-wt | -100dB (0.001%)

> Dynamic Range @A-wt | 115dB

> Analogue Dynamic Range @A-wt, -40dB attenuation | 132dB

> SNR @A-wt | 115dB

> Crosstalk @1kHz | -120dB

> Frequency Response | 20Hz-40kHz (#0.3dB)

> Maximum Output Level | OdBu @ Gain=L, 17dBu @ Gain=H

> Noise @A-wt | 1 uVrms

> Output Impedance | 1 Ohms

> Connector Type | 6.35mm stereo headphone jack

> Output Power | 580mW x 2@32 Ohms THD+N<1%

380mW x 2@64 Ohms THD+N<1%

198mW x 2 @150 Ohms THD+N<1%

105mW x 2 @300 Ohms THD+N<1%

55mW x 2 @600 Ohms THD+N<1%

*Note: The above data is the result of the test in TOPPING laboratory.
