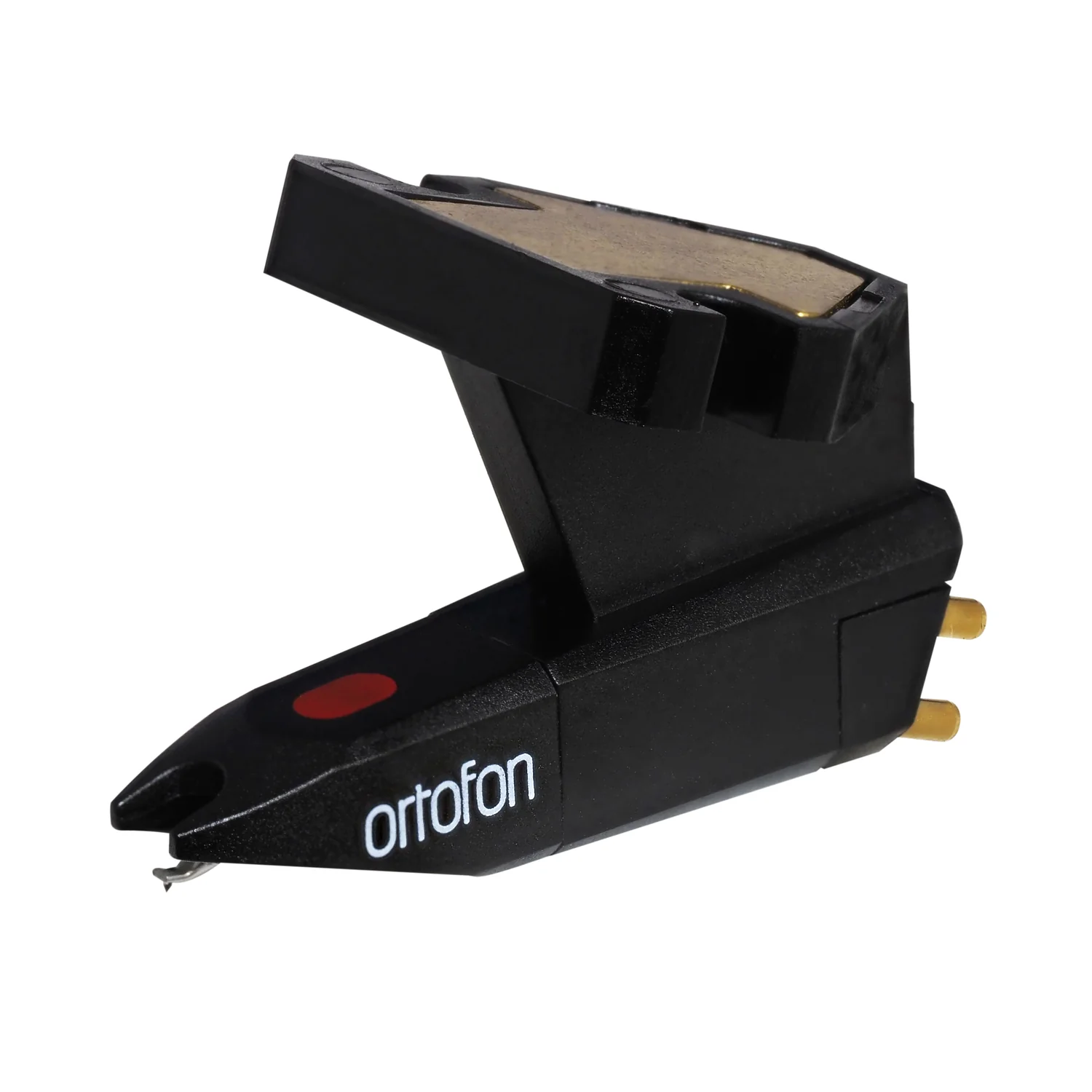

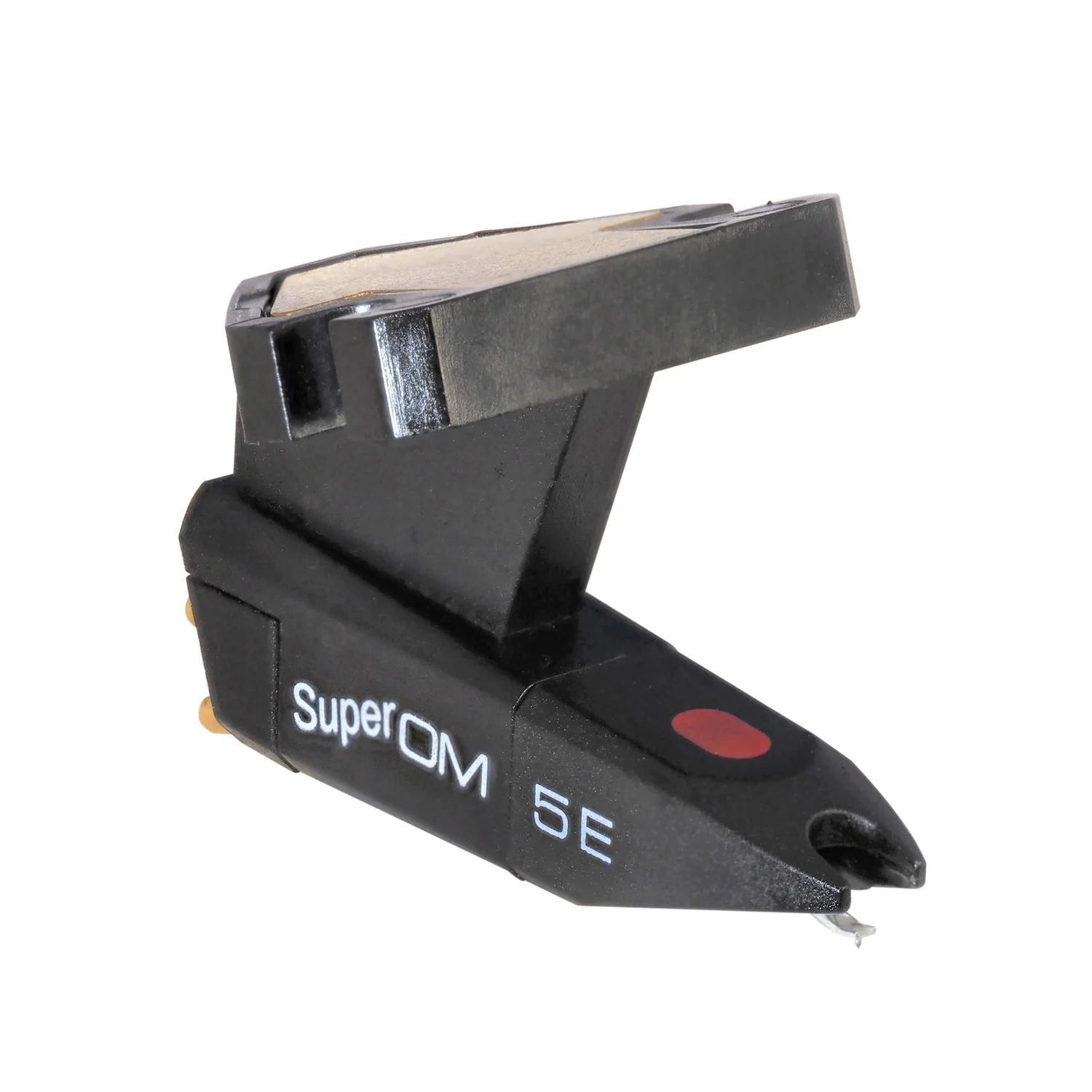

ORTOFON OM 5E SUPER
Optimal Fit and Sound Reproduction

> The Super OM 5E features improved lineraty, higher channel seperation, and an Elliptical stylus that provides balanced and distortion-free playback. The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

--
Descriptions:

> Optimal fit and sound reproduction

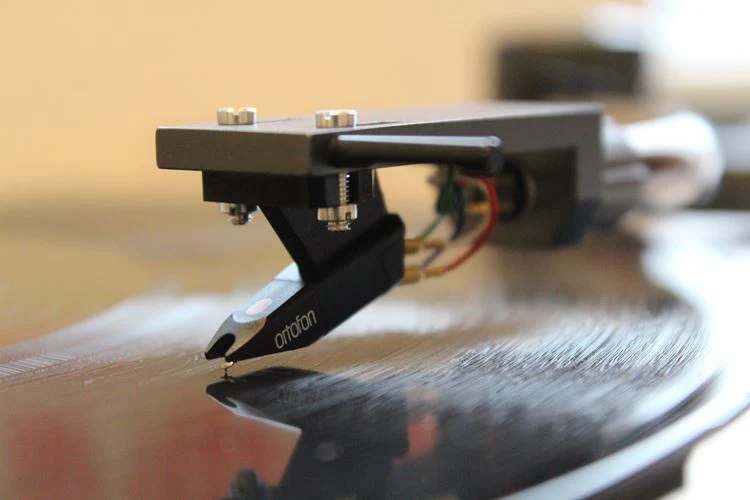

> If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

> Styli types and interchangeability
The OM 5s features a Spherical diamond. Spherical diamonds are the simplest and most robust diamonds. The OM 5E and Super OM 5E feature an Elliptical diamond.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

> The OM 5 Series
The Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

> The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
> The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
>The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

> The Super OM 5E major improvements:
> By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation, and reduced distortion.

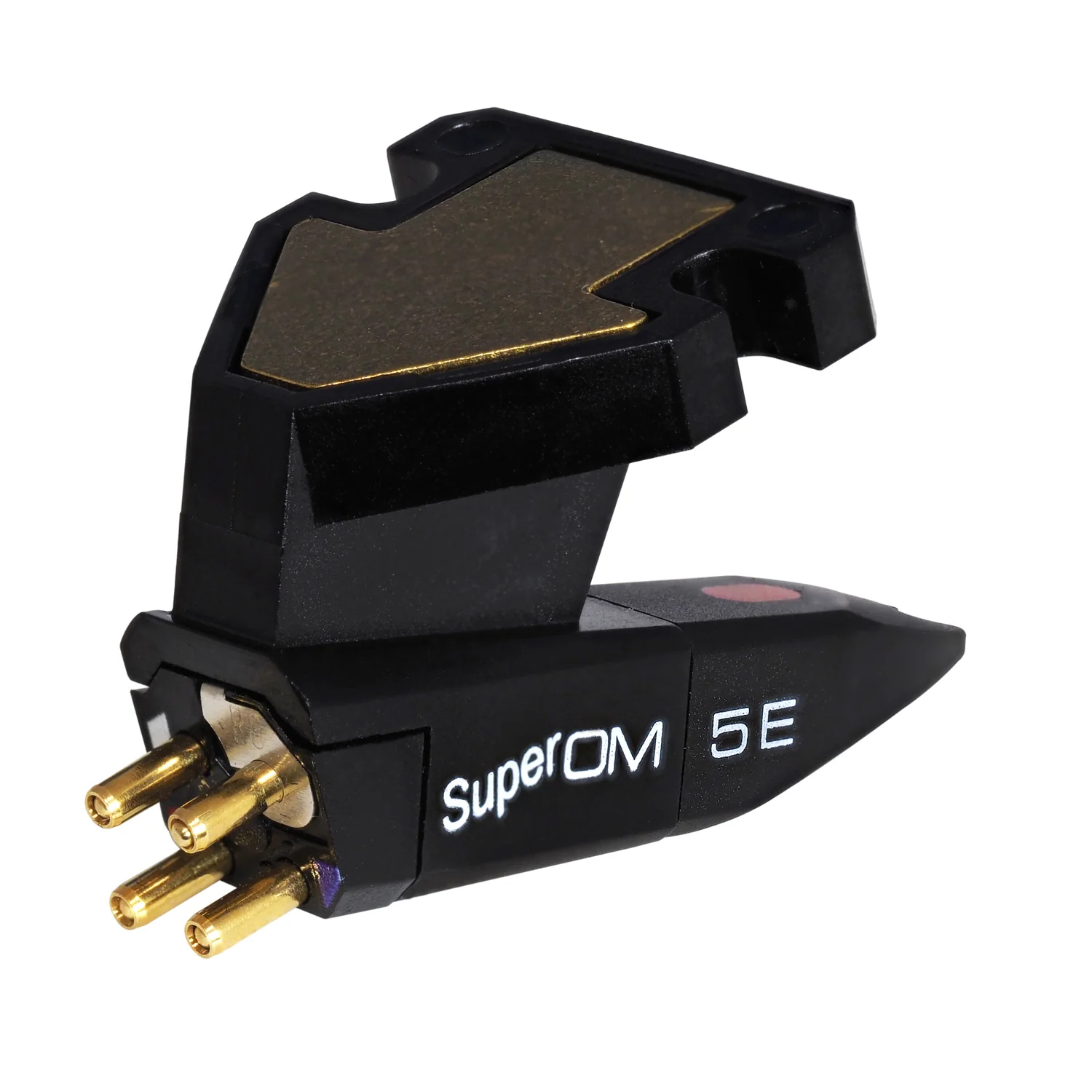

> OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.

> The OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound), which ensures high rigidity and freedom from resonances.

--
Specifications:

> Channel balance at 1 kHz: 1.5 dB

> Output voltage at 1 kHz, 5cm/sec: 4 mV

> Channel seperation at 1 kHz: 22 dB

> Channel seperation at 15 kHz: 15 dB

> Frequency response 20 Hz - 20 kHz: 20-22.000 Hz +3/-3

> Tracking ability at 315Hz at recommended tracking force: 60 µm

> Compliance, dynamic, lateral: 20 µm/mN

> Stylus type: Elliptical

> Stylus tip radius: r/R 8/18 µm

> Tracking force range: 1.5-2.0g (15-20 mN)

> Tracking force, recommended: 1.75g (17.5 mN)

> Tracking angle: 20°

> Internal impedance, DC resistance: 1 kOhm

> Cartridge colour: Black/Black

> Cartridge weight: incl. extra weight 5g, excl. extra weight 2.5g

> Recommended load resistance: 47 kOhm

> Internal inductance: 580 mH

> Recommended load capacitance: 200-500 pF

--
