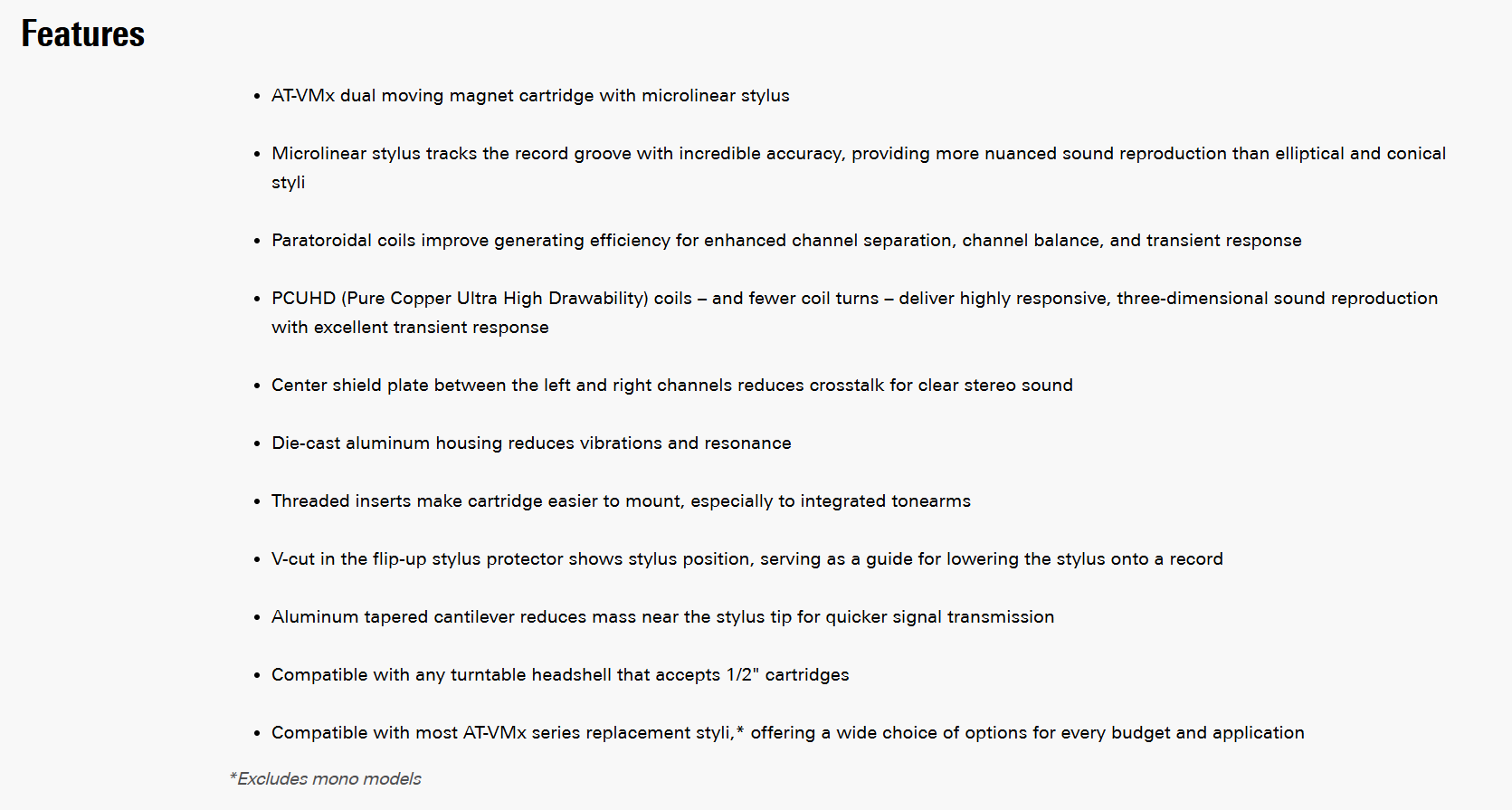

KEY BENEFITS:

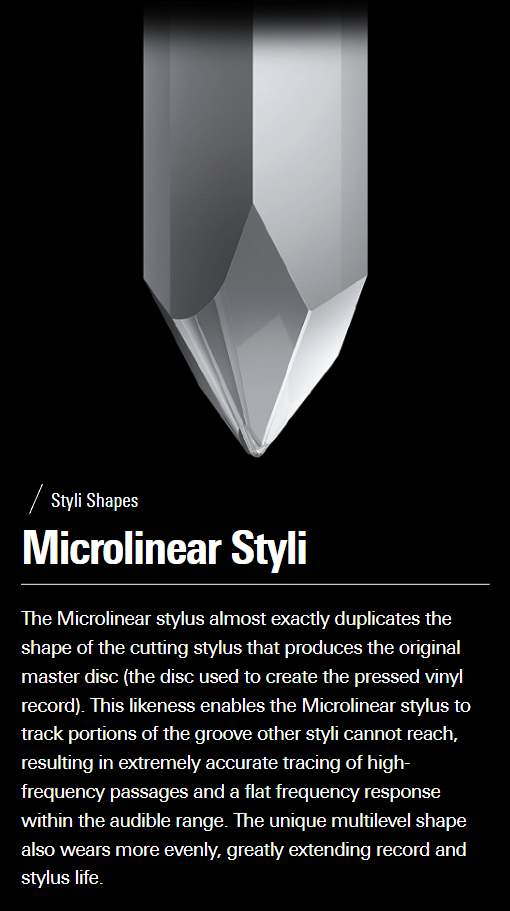

- Microlinear stylus for enhanced tracking accuracy and sound detail.
- Paratoroidal coils for improved channel separation and transient response.
- Easy installation with threaded inserts for versatile compatibility.

--
DESCRIPTIONS:

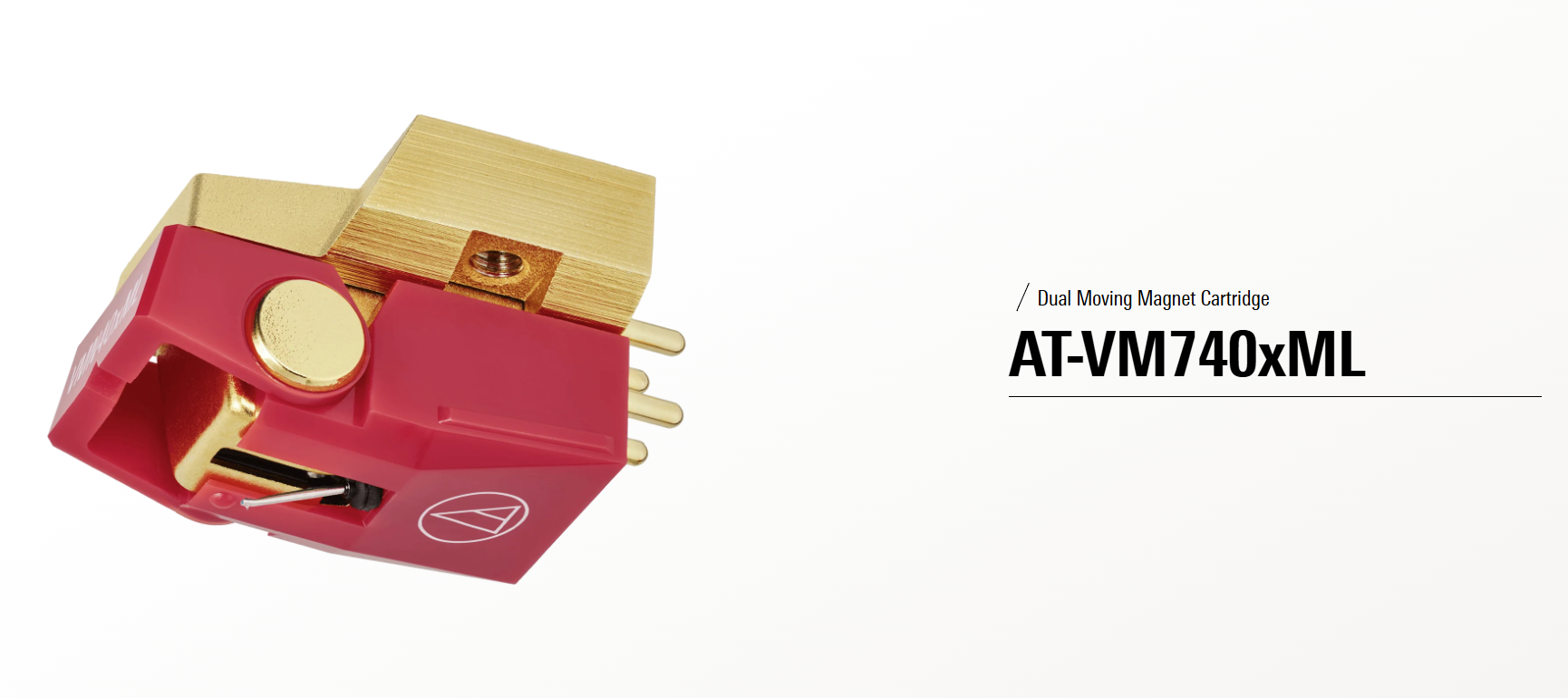

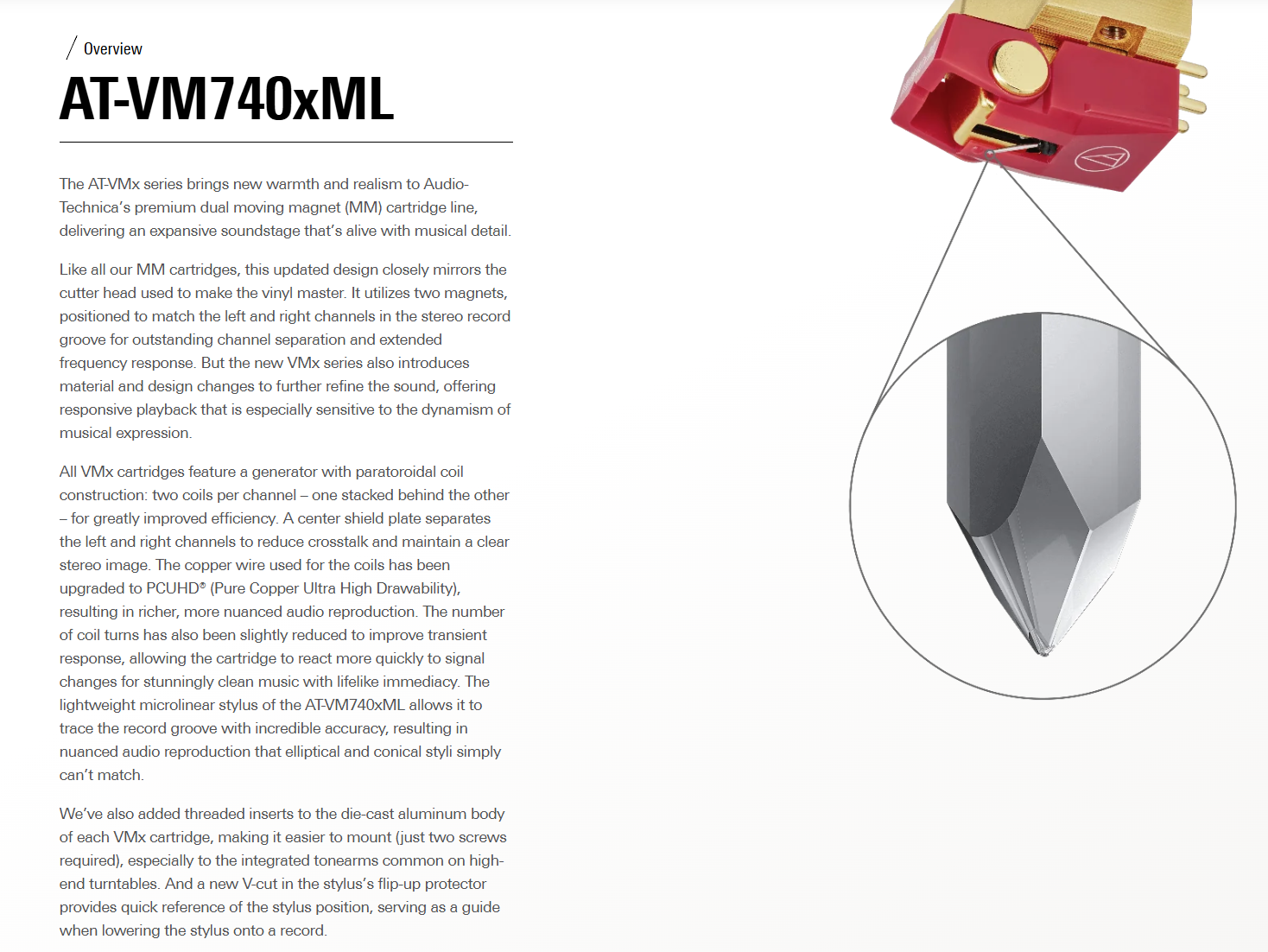

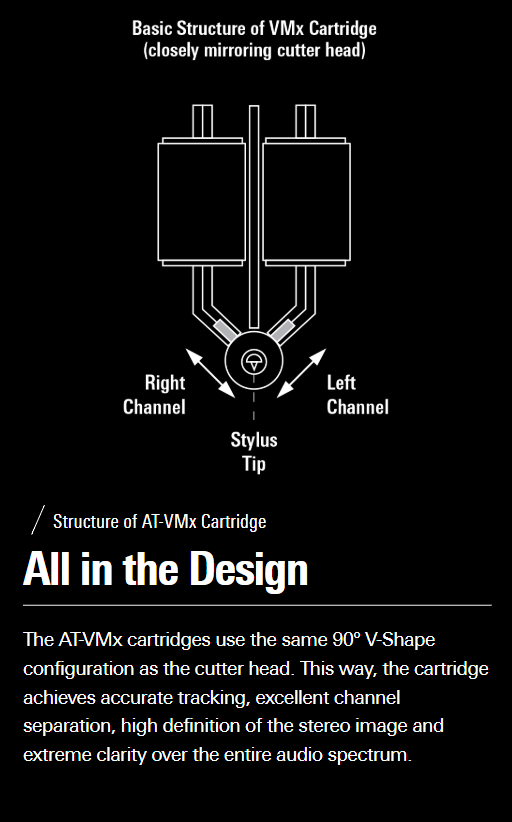

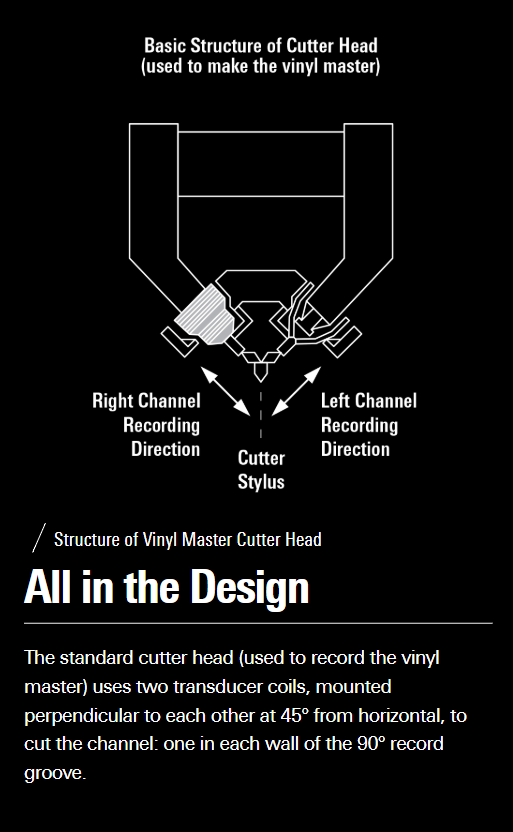

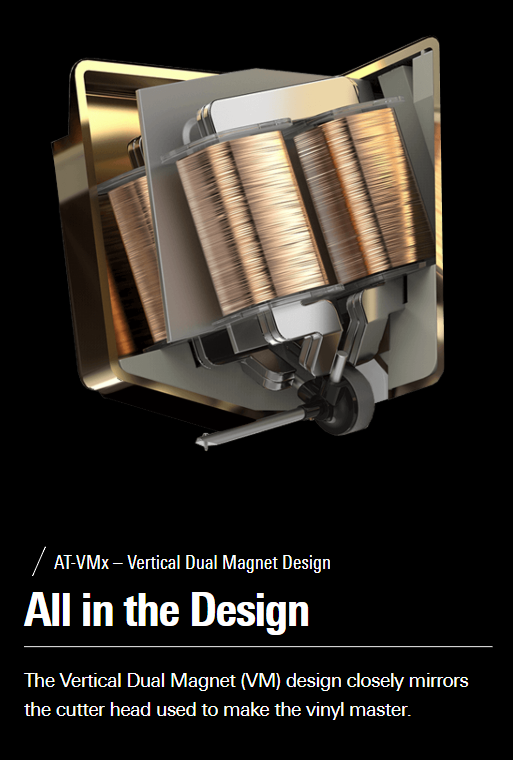

The AT-VM740xML is a dual moving magnet cartridge that embodies high-end audio engineering. Designed to mirror the vinyl master’s cutter head, the AT-VM740xML achieves superb tracking and sound fidelity, making it an excellent choice for vinyl enthusiasts. The innovative Microlinear stylus tracks grooves with precision, reproducing intricate sound details that lesser stylus types may miss. This component is essential for extracting the nuances of today’s modern recordings.

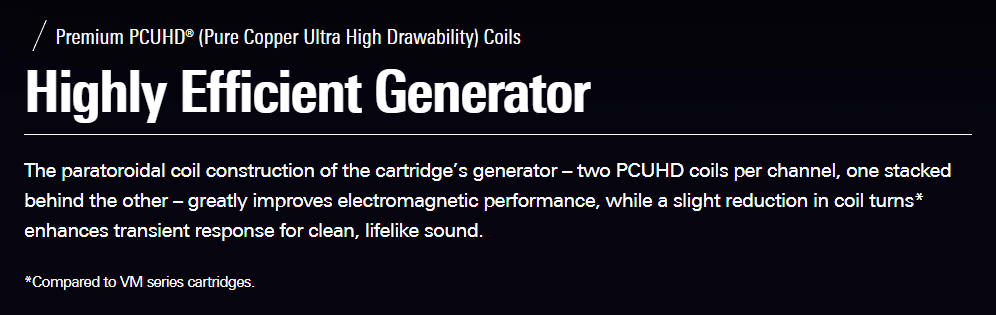

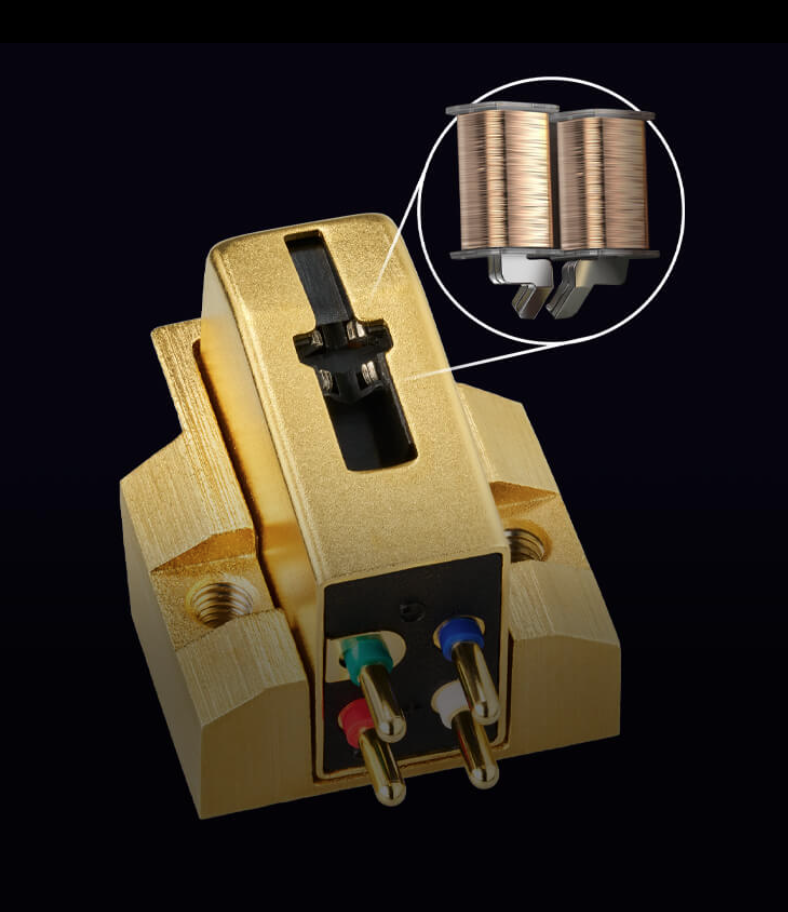

Constructed with advanced features such as paratoroidal coils, the AT-VM740xML ensures high efficiency and exceptional channel separation for an unparalleled stereo imaging experience. The unique coil design minimizes internal impedance, leading to quicker transient response times and a clear, dynamic sound. The cartridge's lightweight microlinear stylus allows for accurate tracing of high-frequency passages, bringing life to vinyl records like never before.

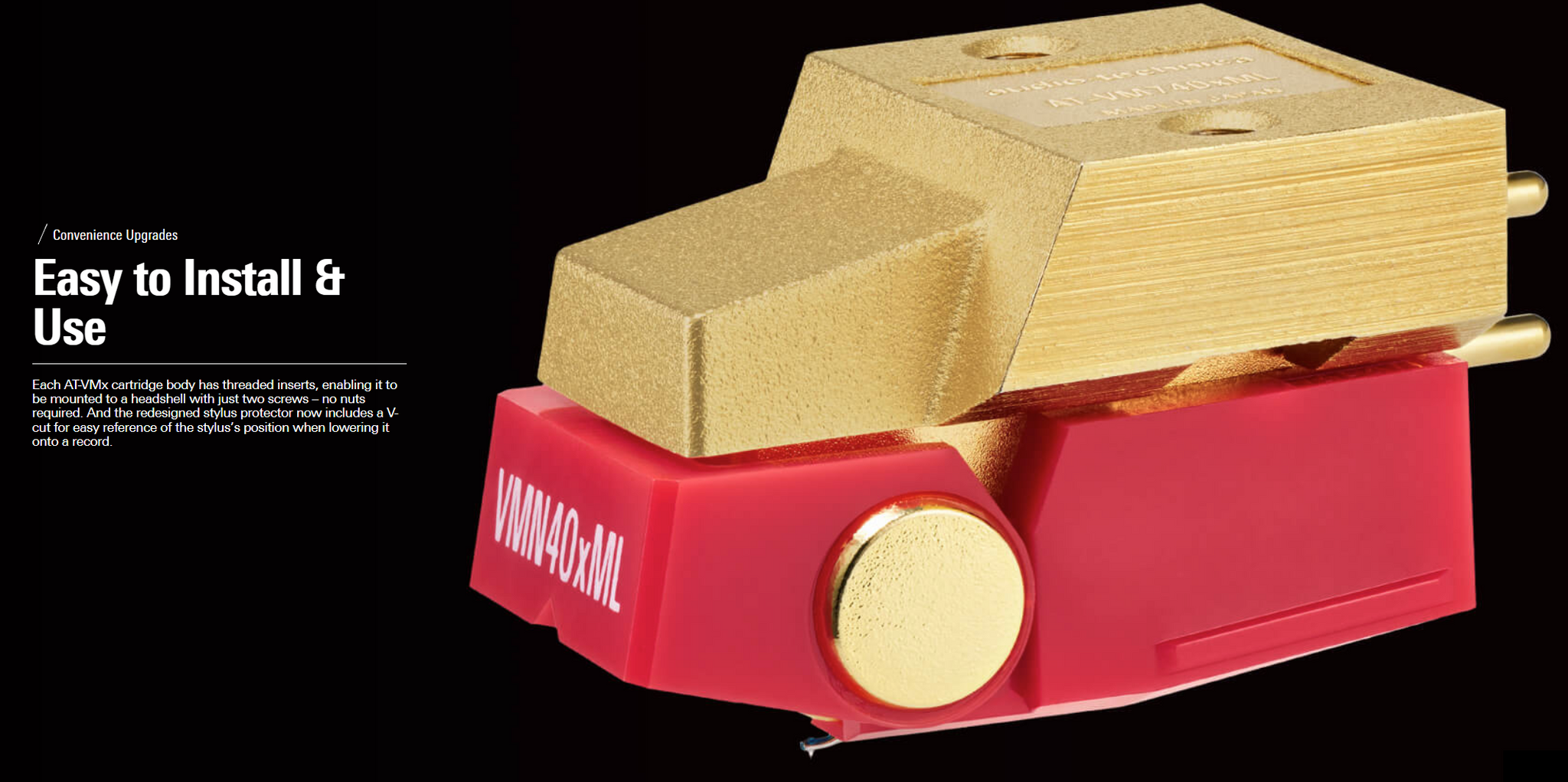

Installation is simple, thanks to threaded inserts in the aluminium body that facilitate mounting to a headshell using just two screws. A redesigned stylus protector offers an easy reference point for aligning the stylus when lowering it onto records. This combination of convenience and performance is ideal for both experienced audiophiles and newcomers alike.

--

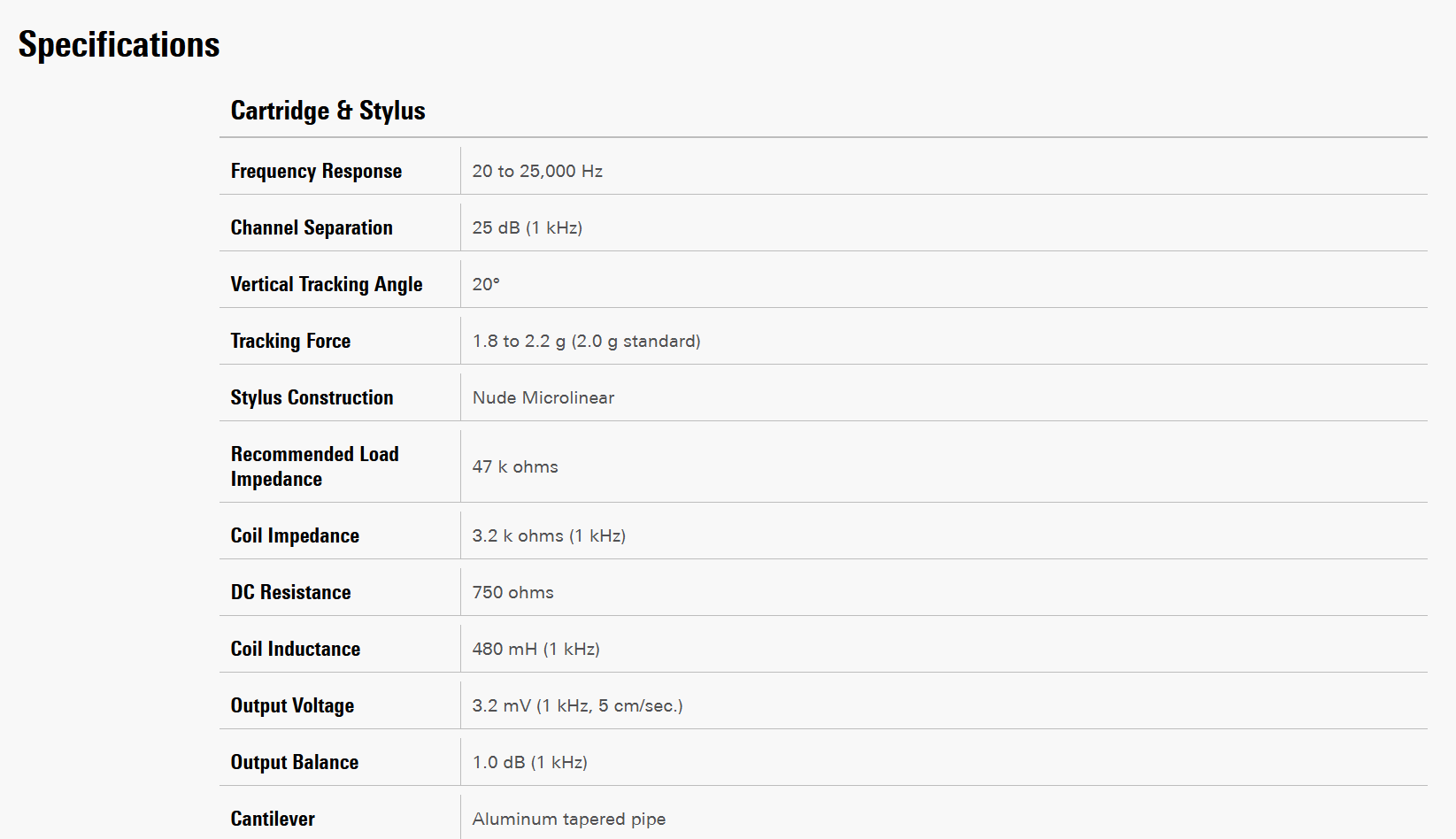

SPECIFICATIONS:

Frequency Response: 20 to 25,000 Hz
Channel Separation: 25 dB (1 kHz)
Vertical Tracking Angle: 20°
Tracking Force: 1.8 to 2.2 g (2.0 g standard)
Stylus Construction: Nude Microlinear
Recommended Load Impedance: 47 k ohms
Coil Impedance: 3.2 k ohms (1 kHz)
DC Resistance: 750 ohms
Coil Inductance: 480 mH (1 kHz)
Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
Output Balance: 1.0 dB (1 kHz)
Cantilever: Aluminum tapered pipe

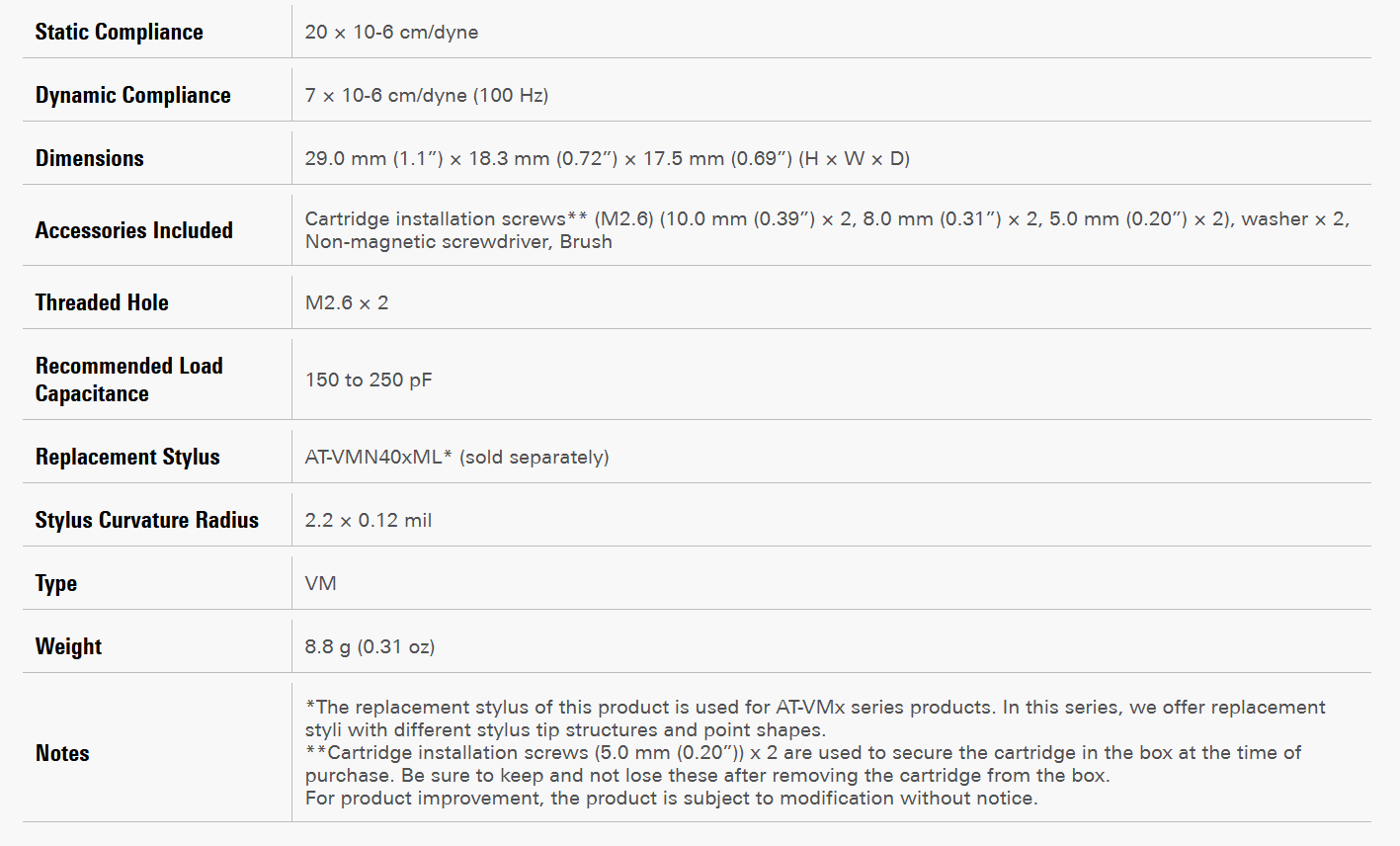

Static Compliance: 20 x 10^-6 cm/dyne
Dynamic Compliance: 7 x 10^-6 cm/dyne (100 Hz)
Dimensions: 29.0 mm (1.1") x 18.3 mm (0.72") x 17.5 mm (0.69") (H x W x D)
Accessories Included: Cartridge installation screws (M2.6) (10.0 mm (0.39") x 2, 8.0 mm (0.31") x 2, 5.0 mm (0.20") x 2), non-magnetic screwdriver, brush
Threaded Hole: M2.6 x 2
Recommended Load Capacitance: 150 to 250 pF

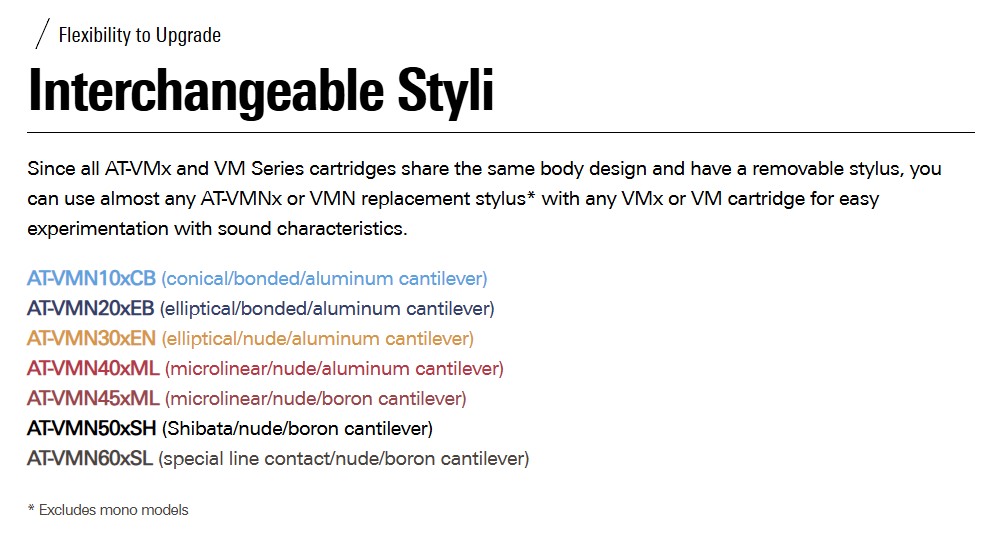

Replacement Stylus: AT-VMN40xML* (sold separately)
Stylus Curvature Radius: 2.2 x 0.12 mil
Type: VM
Weight: 8.8 g (0.31 oz)

--
