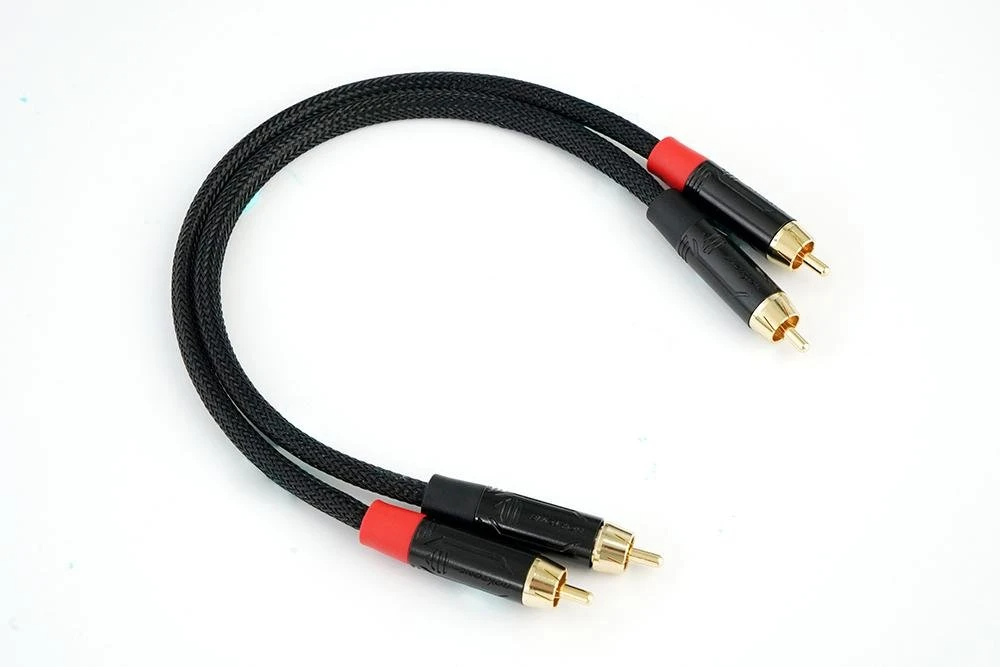

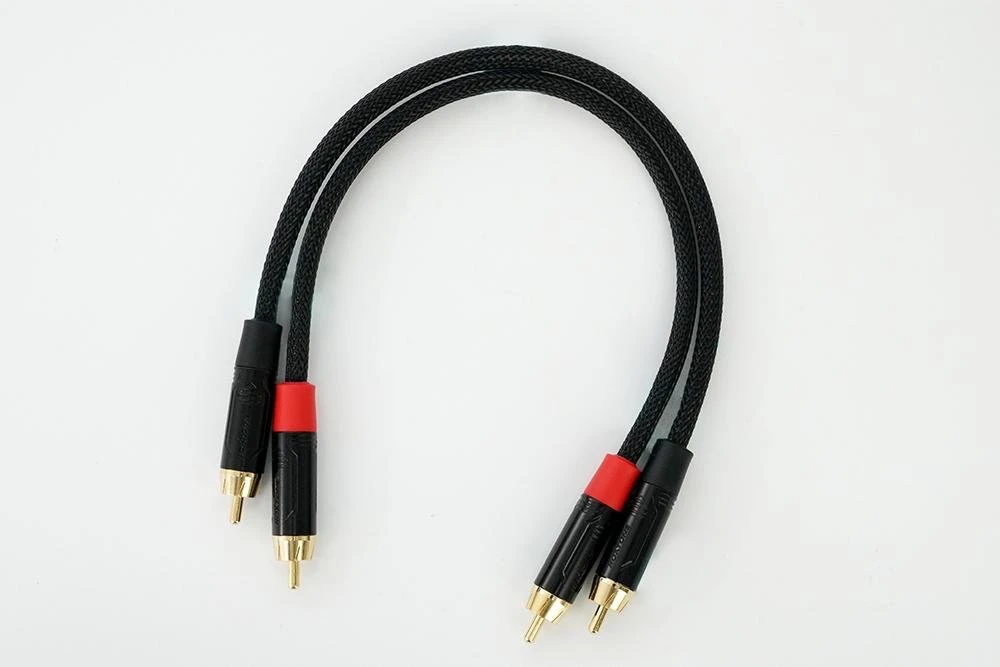

##Fanmusic C003 Audiophile RCA audio cable 25cm##
Audiophile HiFi grade RCA cable that combos well with our DACs and Amps!
Highlights
=======
1. The line base adopts pure copper audio cable imported from Japan, the sound is warm and strong, and the density and extension are wide;
2. 2 core single channel audio cable braided shielded wire diameter 5mm;
3 .Tinned copper twisted twist shield + high density aluminum foil paper shield. Effectively shield electromagnetic noise
4. Each wire is composed of 12, especially fine 0.18mm copper wire high conductivity toughened copper, which has good durability;
5. The sheath is made of particularly flexible and durable polyvinyl chloride (brittleness temperature -49°C);
6. Polyethylene with radiation-treated insulation;
7. Insulation voltage 500V AC/min without damage;

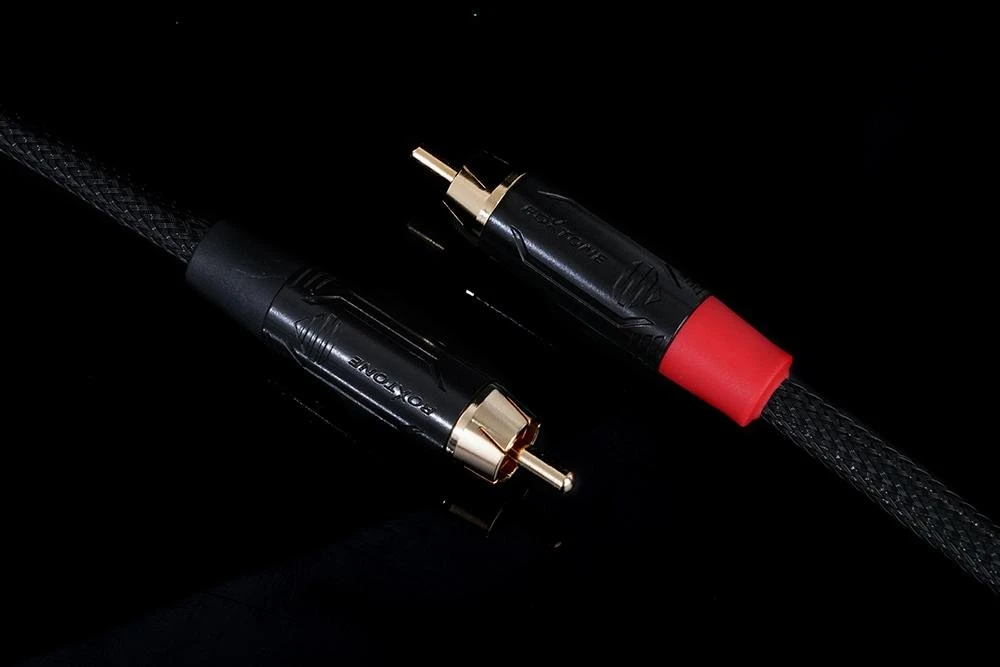

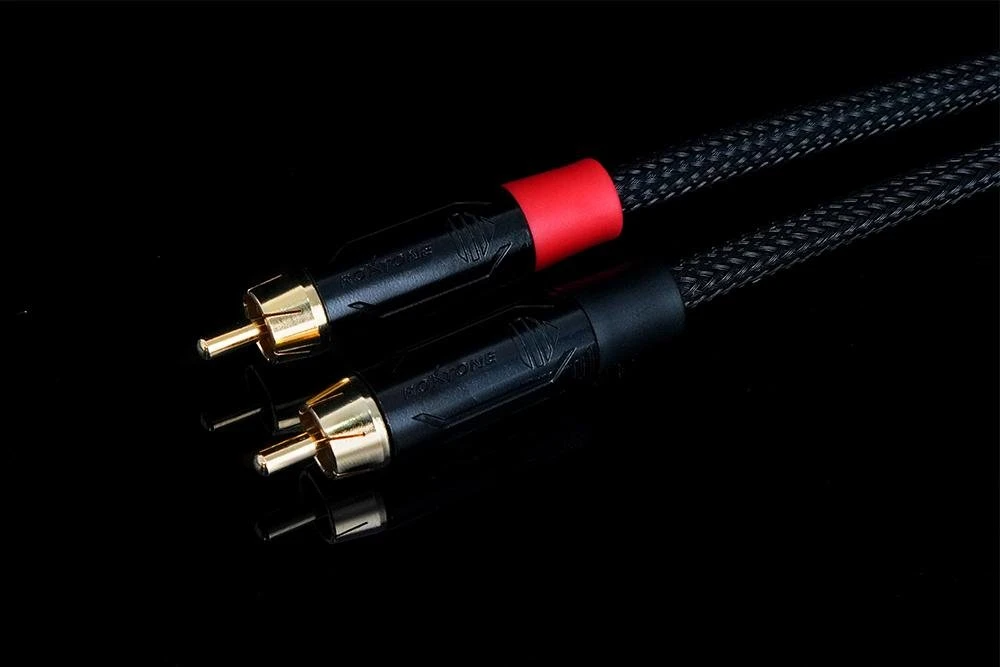

8. The lotus head uses ROXTONE black gold-plated RF2C-BG male plug, black-plated shell, and gold-plated connectors to ensure the minimum distortion of sound transmission;
9. Ceramic isolation design to minimize the conduction loss;
10. The welding groove design of the hot end makes the spot welding operation simpler and easier to transmit;
11. The tooth mouth design at the end makes the shielding wire and plug connection more stable and difficult to pull out;
12. Sleek and ergonomic design-valuable and easy to operate
13. Rugged zinc die-cast housing, long life and high reliability
14. The inside of the shell is threaded to effectively prevent any damage and ensure that the transmission impedance is reduced while also ensuring the consistency of the sound; The red and black tail sets distinguish between left (negative) and right (positive) connection lines;
15. Imported solder, dot matrix soldering technology, so that the wire welding is strong without any false soldering, and also ensures that the impedance is minimized. The heat shrinkable tube protective cover and the black shock absorber screen all shield the interference of external signals to maximize the optimization of information Purity transmission;
Specifications:
==========
Model: C003
Material: ROXTONE black gold-plated lotus RF2C-BG male plug
CANARE two-core audio cable L-2E5AT
Number of conductors: 2
Standard wire diameter: 5mm+0.5
Conductor cross-sectional area: 0.31mm/23AWG
Number of conductor copper wires: 12
Conductor copper wire diameter: 0.18mm
Torque: 30mm
Core DC resistance: 6.2Ω/100m
Insulation voltage: 500V AC/min
Conductor insulation: XLPE polyethylene
Shield: tinned copper twisted twist shield + high-density aluminum foil paper shield
Jacket material: soft PVC / neoprene composite material
Cord length: 25cm
Plug: use ROXTONE's RCA male plug, black-plated shell, gold-plated connector. The product conforms to the ergonomic design of zinc alloy shell, 24K gold-plated connectors and good surface treatment of pins, effective resistance to oxidation, high-fidelity transmission, and unique appearance design style.
Ergonomically designed zinc alloy housing
Ground before the signal touches, disconnect the signal before grounding
No noise interference, will not damage the speaker tray
Extra PVC cable sheath provides excellent cable bending protection
Contact: Brass
Contact plating: gold
