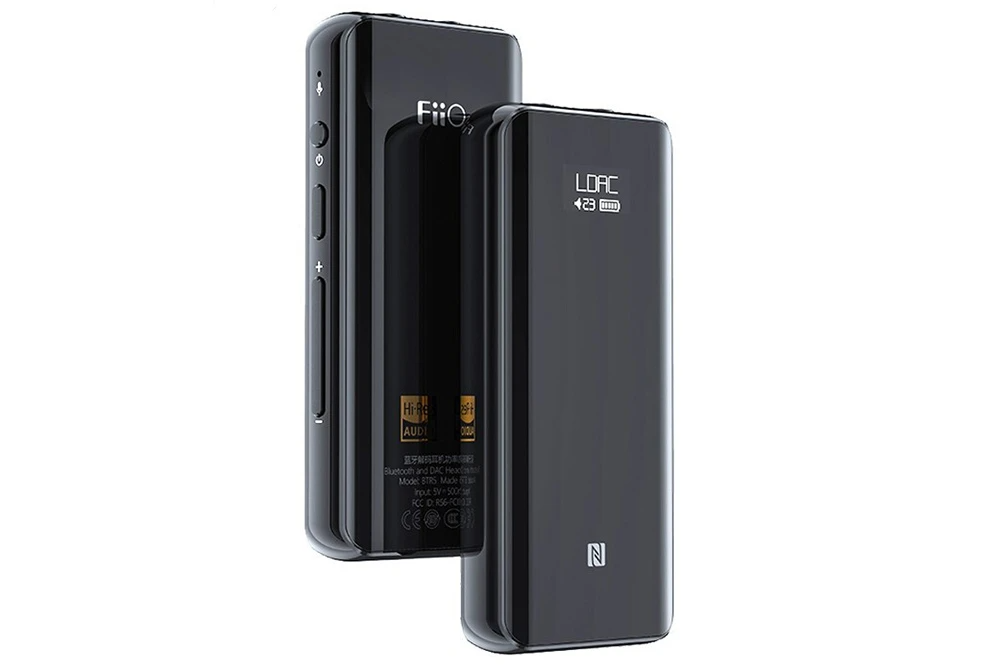

FiiO BTR5 (2021)

High-Performance Dual DAC setup, featuring ES9218P DAC chip
Dual Output ports. 3.5mm Unbalanced & 2.5mm Balanced Output
3.5mm SE 80mW @ 32Ω, 2.5mm BAL 240mW @ 32Ω
Bluetooth 5.0, SBC, AAC aptX, aptX HD, aptX LL, and LDAC
Native DSD decoding (DSD256)
Control Chip XMOS XUF208
CSR8675 Flagship Bluetooth chip from Qualcomm
550mAh battery offering 7-9 hours of battery life
Built-In NFC
Built in Microphone cVc 8.0 noise cancellation
Fiio Music app, L/R balance, custom EQ, voice call / music custom volume control, DAC filter control

--

Highlights:

>The FiiO BTR5 2021 is a compact, portable headphone amplifier, offering excellent design quality and versatility for enhanced listening at home or on the go.

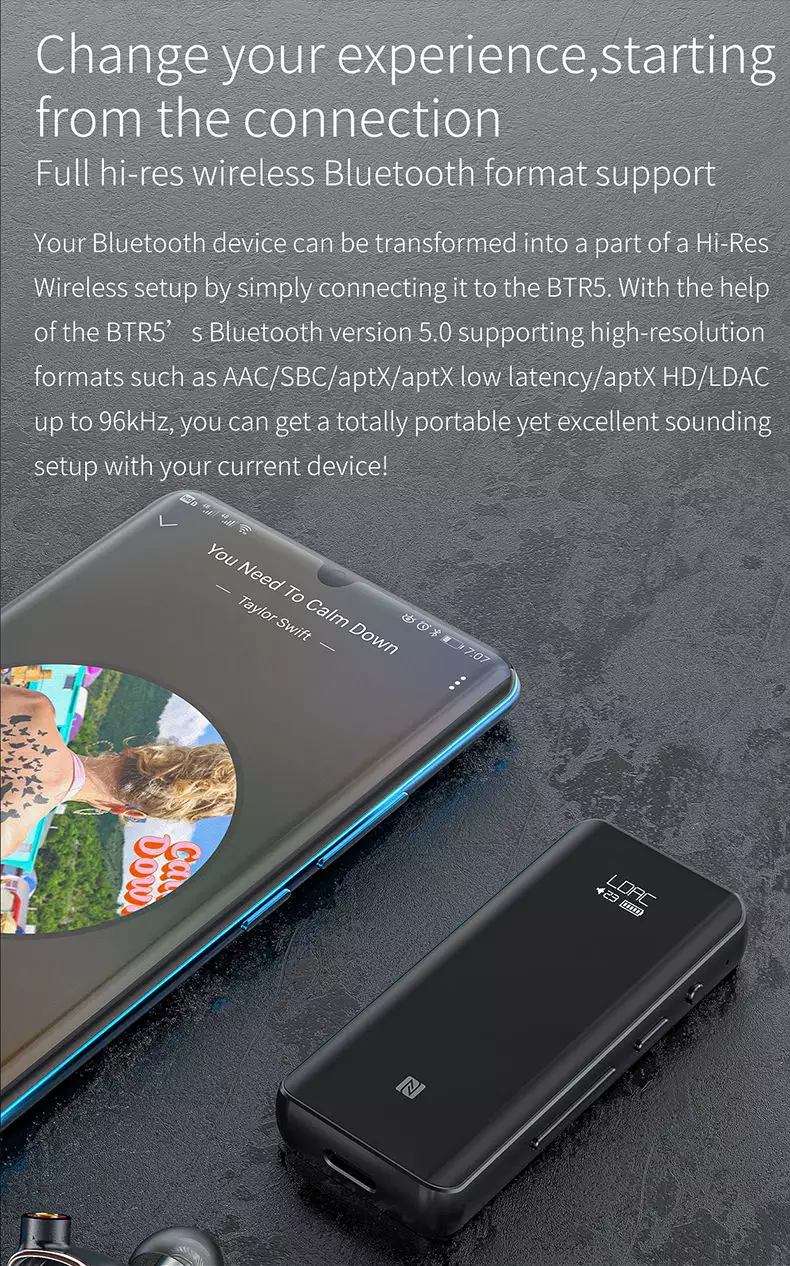

>A Bluetooth device, such as your smartphone, can be turned into a wireless Hi-Res system by simply connecting it to the BTR5. With support for Bluetooth version 5.0 and codecs such as aptX, aptX HD, aptX LL and LDAC, the wireless amplifier ensures high quality sound reproduction.

>This Bluetooth connectivity is provided by a Qualcomm CSR8675 chip with advanced audio capabilities such as 24-bit audio stream processing or the presence of a 120MHz DSP. Whether you use the BTR5 to watch videos, play games or listen to music, this Bluetooth chip provides excellent sound quality.

>The digital-to-analog conversion stage is based on a pair of ESS ES9218P DAC, allowing efficient decoding of audio signals from your playback device. An FPGA is associated to these DACs, allowing the reception of signals but also the management of clocks in order to reduce jitter.

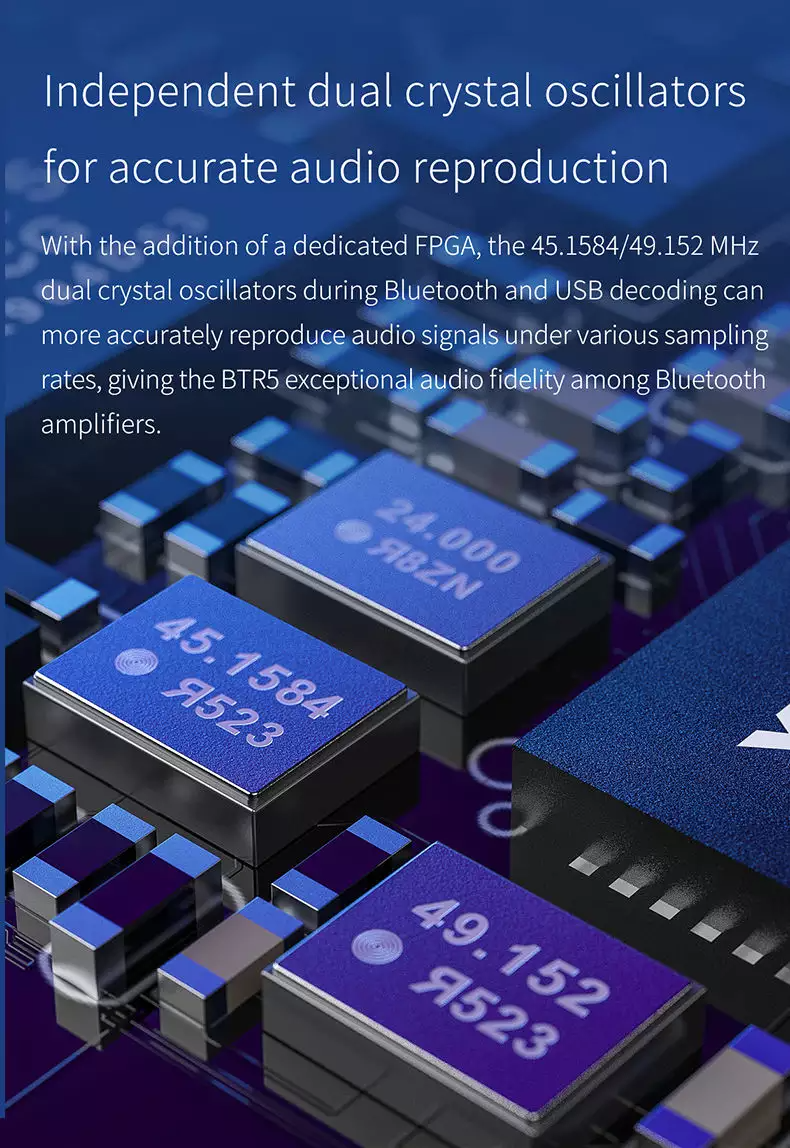

>The FPGA is associated with two oscillators 45.1584MHz and 49.152MHz allowing an important jitter reduction and a precise reproduction of the audio signals, whatever the sampling rate of the played file.

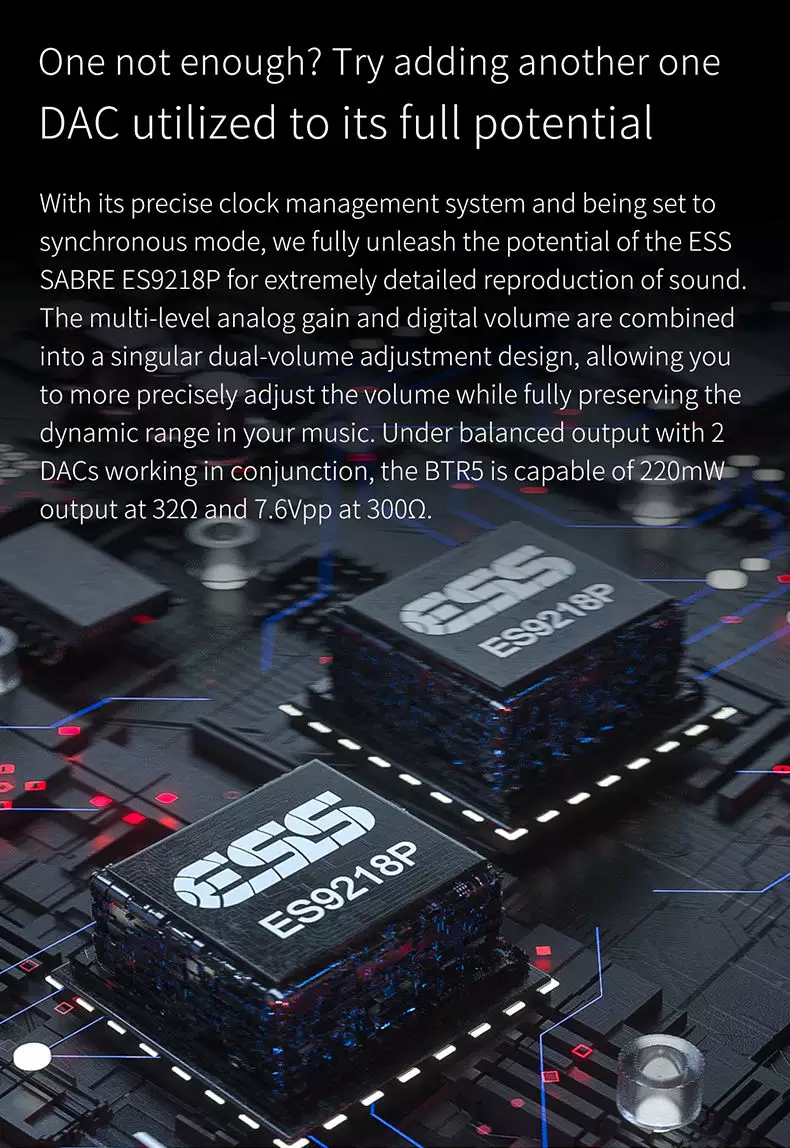

>With its precise clock management system and synchronous mode, the BTR5 takes advantage of the full potential of the DAC ESS Sabre ES9219P for incredibly accurate and faithful playback. The digital volume control combined with the adjustable gain level allows for precise volume control and preserves the dynamic range of your music. In balanced mode, the BTR5 is capable of delivering 2x220mW at 32Ω and 7.6Vpp at 32Ω.

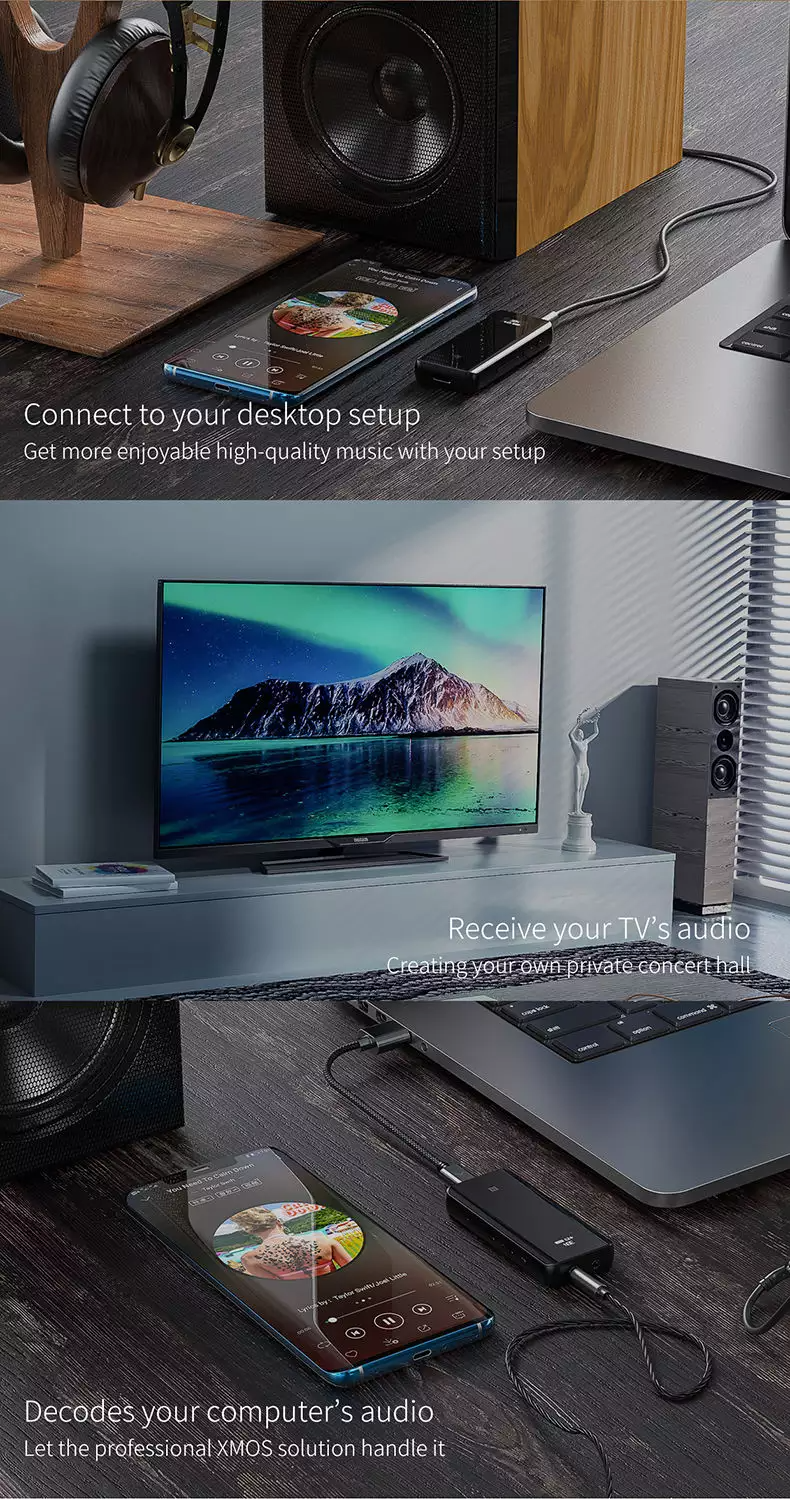

>The USB interface is managed by an XMOS XUF208 chip, which decodes the audio streams passing through this connection. The BTR5 can also be connected in USB DAC mode via its USB-C connector. It is then able to decode PCM streams up to 32bit 384kHz and DSD streams up to the native DSD516.

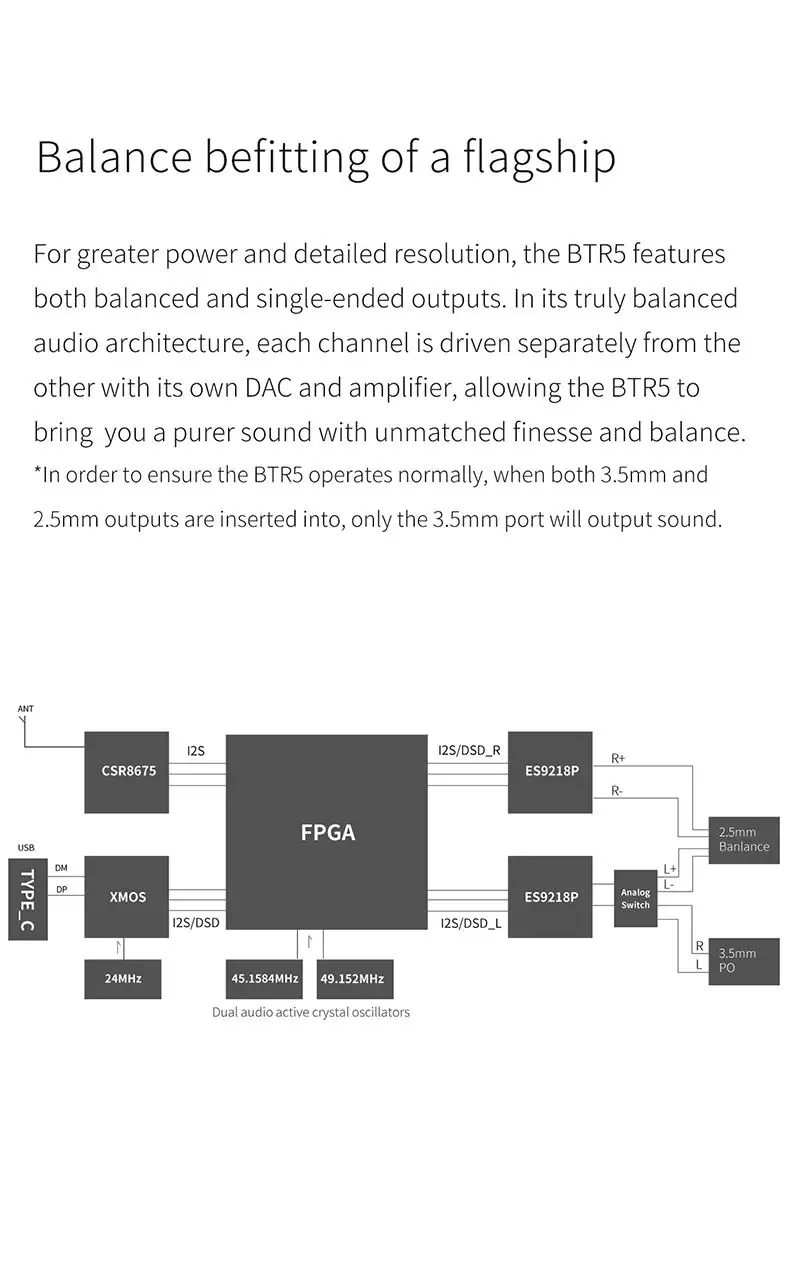

>The BTR5 offers both an unbalanced output on 3.5mm jack and a balanced output on 2.5mm jack. It also benefits from a balanced architecture, each channel being managed independently with its own DAC and amplifier for a pure and rich sound.

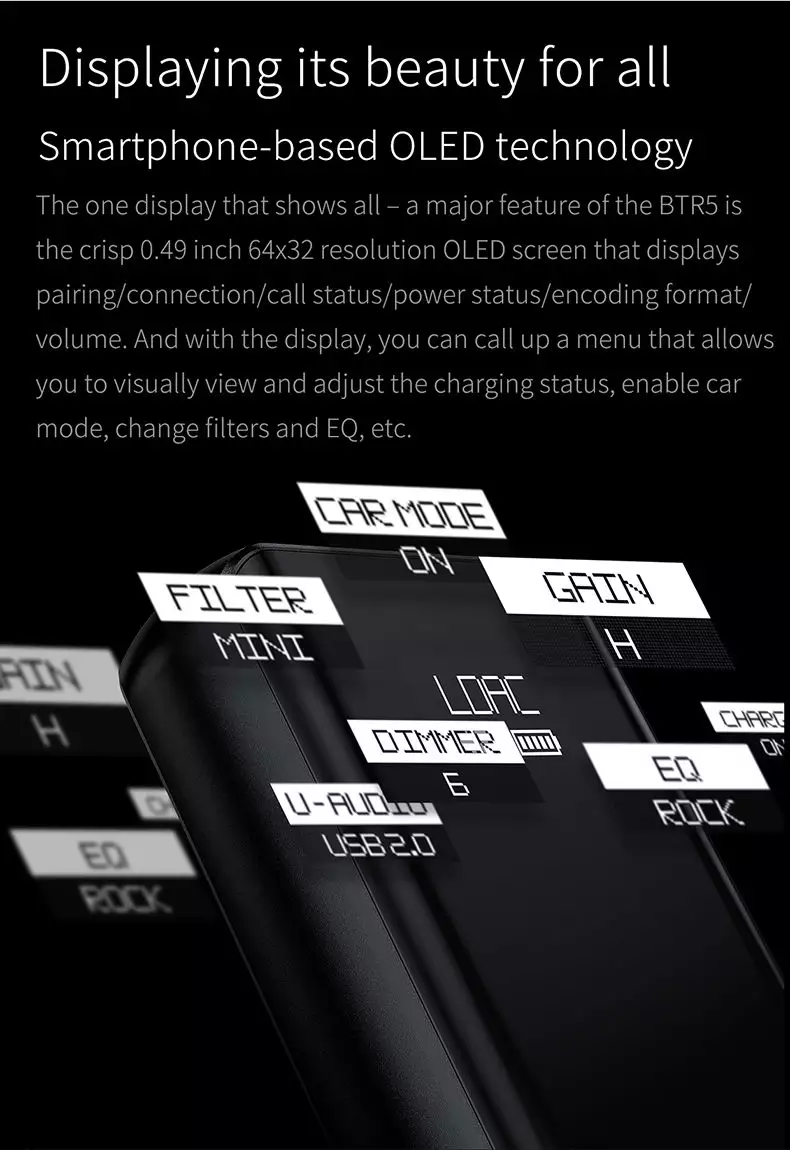

>The BTR5's front panel features a 0.49" monochrome OLED display with 64 x 32px resolution that displays pairing mode, current connection, call status, battery level, encoding format and current volume level. This screen also allows you to view and adjust the charging status, activate the car mode, change filters and equalizers, etc.

>The BTR5 features a high-sensitivity omnidirectional microphone and also allows the use of a headset microphone via its 3.5mm CTIA jack. When you connect this type of headset, the BTR5 automatically understands that you want to use this headset and switches the microphone. What's more, no matter which microphone you use, you benefit from cVc 8.0 noise cancellation technology, which intelligently and automatically adjusts the microphone gain while suppressing background noise.

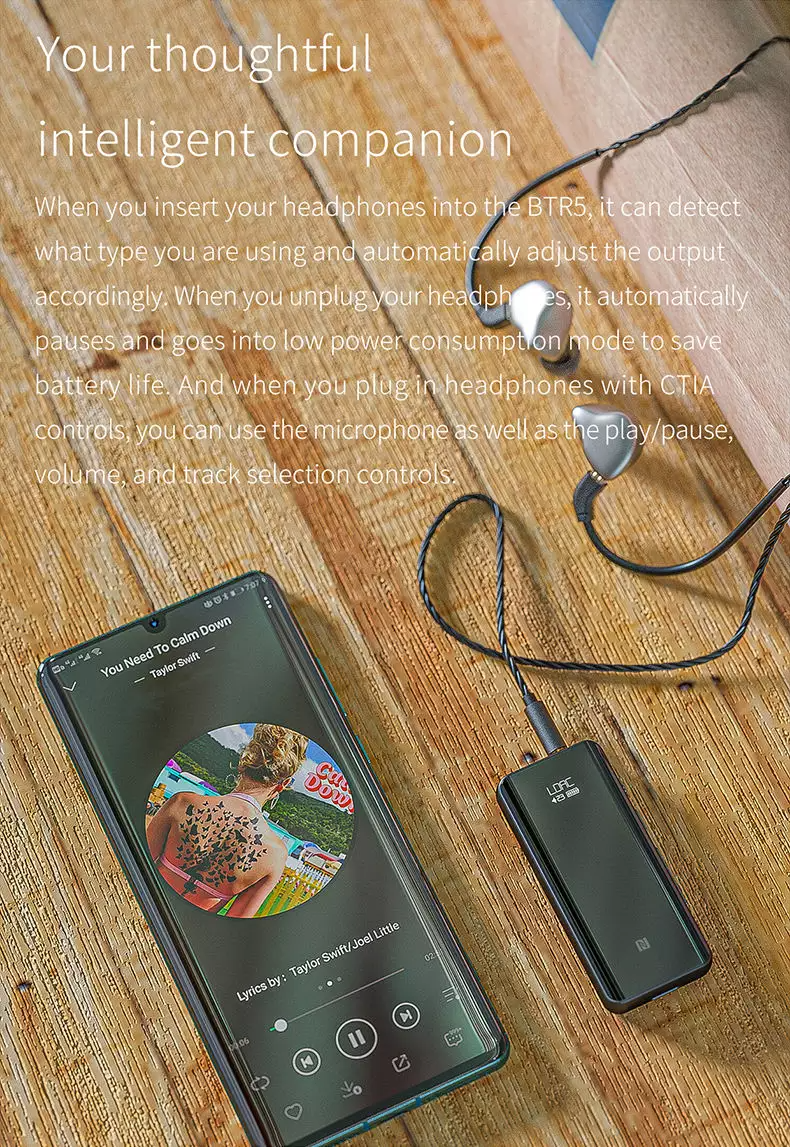

>When you connect your headphones to the BTR5, the BTR5 automatically detects your headphone type and automatically adjusts the output level. When you unplug your headphones, playback is paused and the unit switches to low-power mode to maintain maximum battery life.

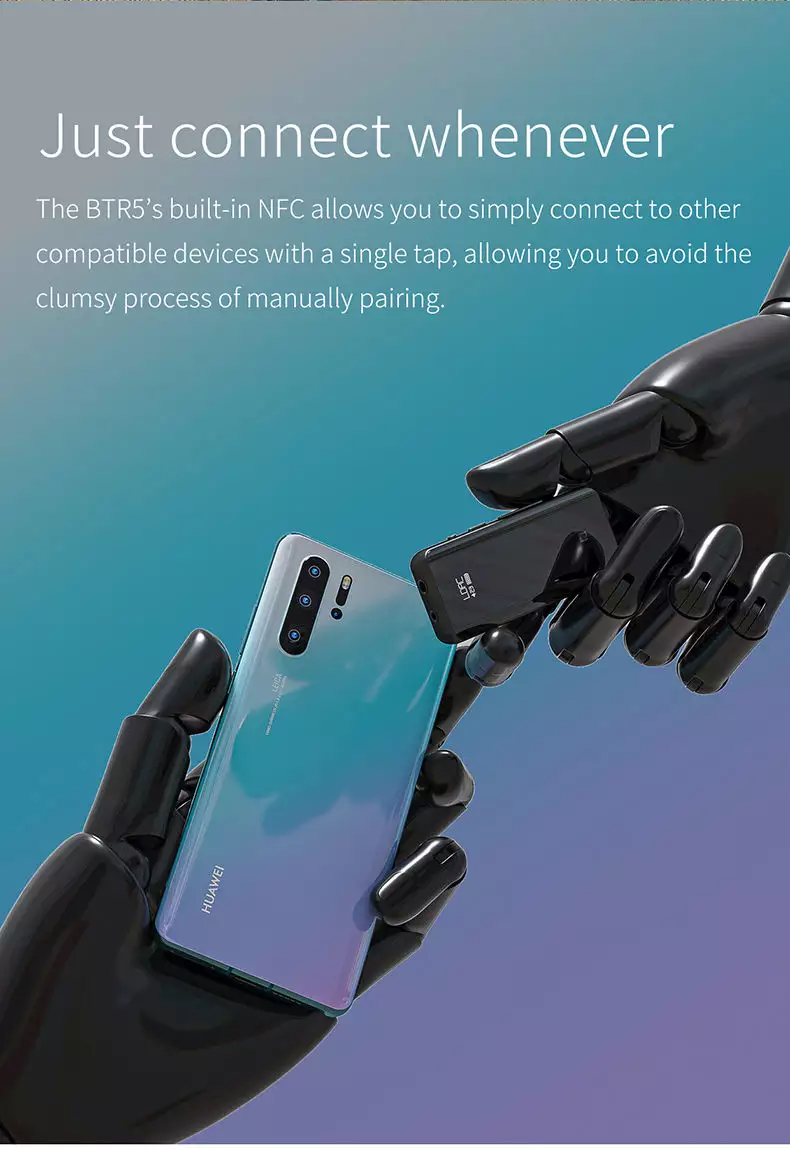

>The BTR5 incorporates an NFC chip allowing you to simply connect a compatible device by approaching it to the BTR5, thus avoiding the manual pairing process.

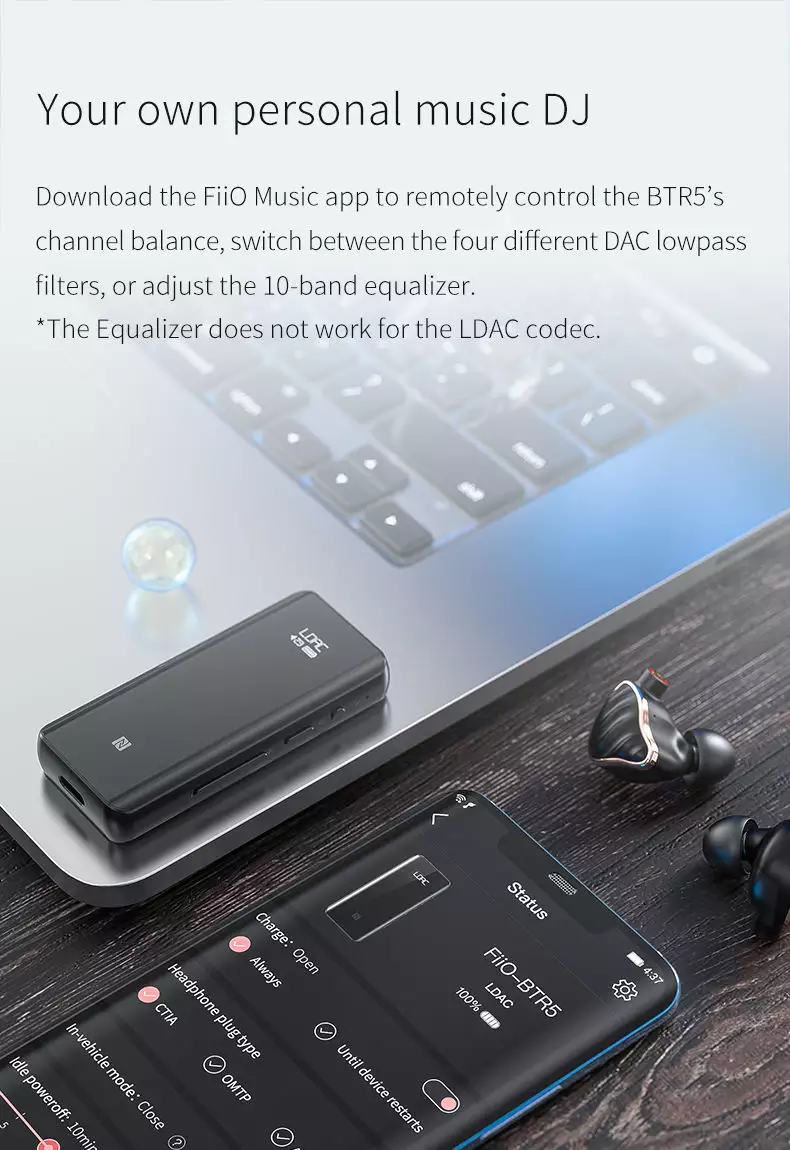

>FiiO offers its dedicated application FiiO Music, allowing you to control the BTR5 from your smartphone, the channel balance, the selection of a low-pass filter or the adjustment of the 10-band EQ.

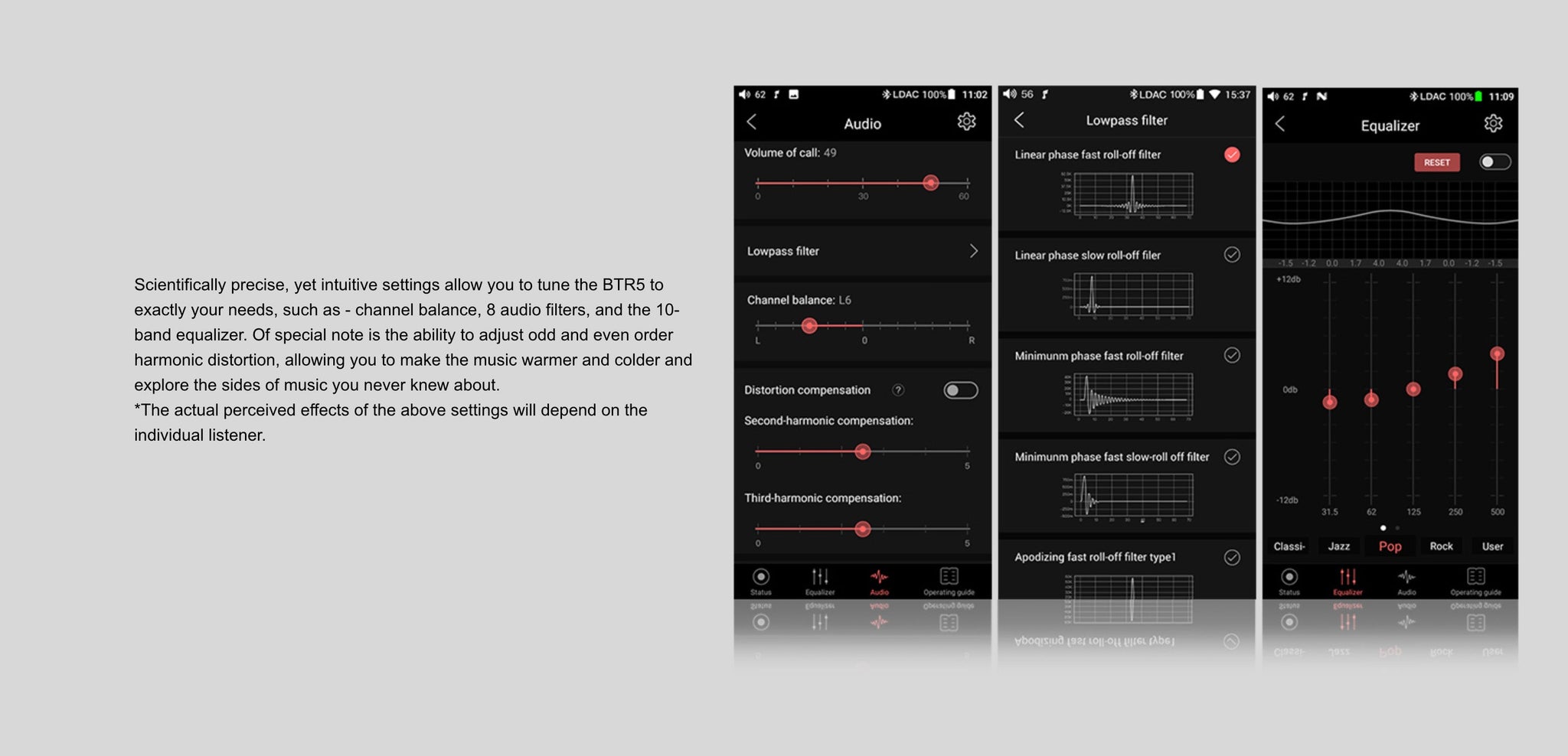

>The FiiO Music application allows you to access many settings to adjust the sound reproduction to your listening and headphones. These settings include channel balance, 8 audio filters and a 10-band equalizer. It is also possible to adjust the harmonic distortion for a cooler or warmer sound.

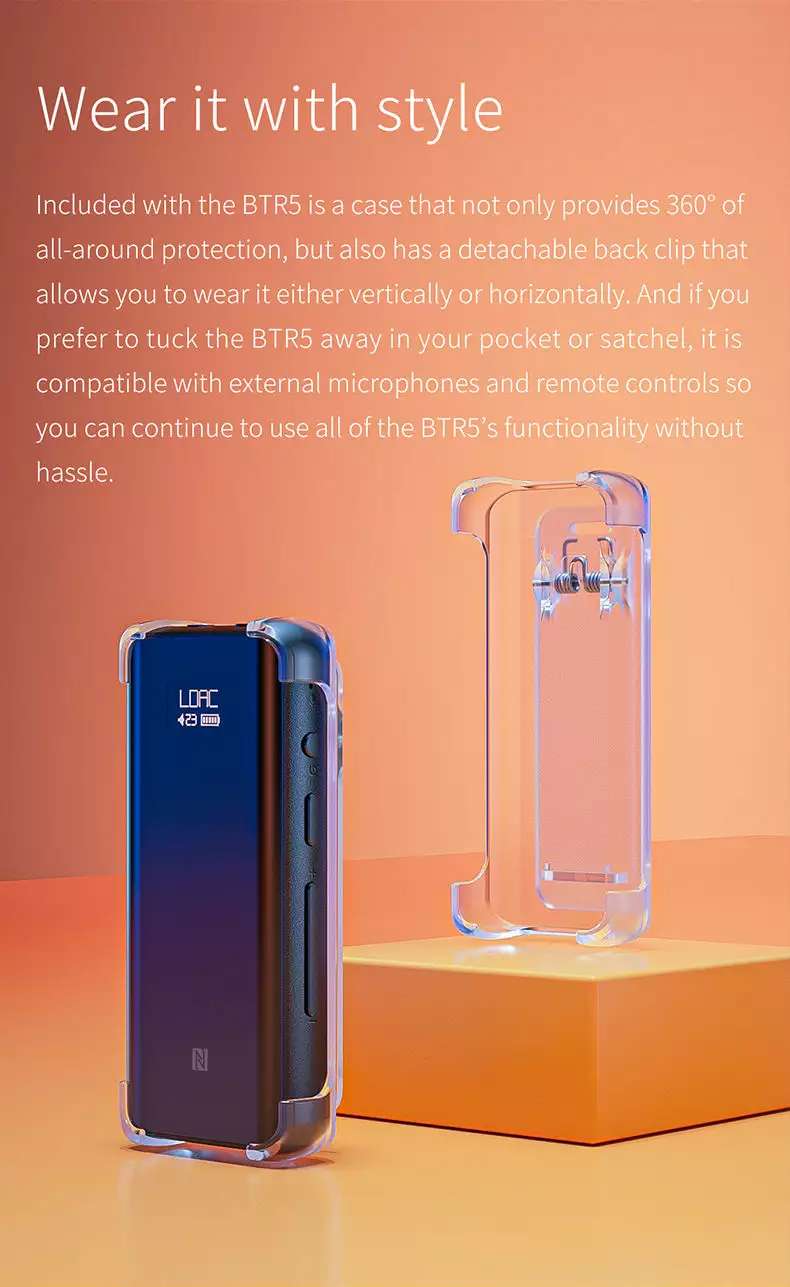

>The BTR5 is delivered with a 360° shell that protects the BTR5 but also allows for easy transport thanks to a detachable clip. In addition, the BTR5 is compatible with external microphones and remote controls, so you can continue to use it even when it's in your pocket.
