Experience unparalleled audio fidelity with the Audalytic DR80/DR80N, featuring cutting-edge R2R technology and versatile connectivity.

- Proprietary 26-bit complementary R-2R conversion for exceptional sound quality.

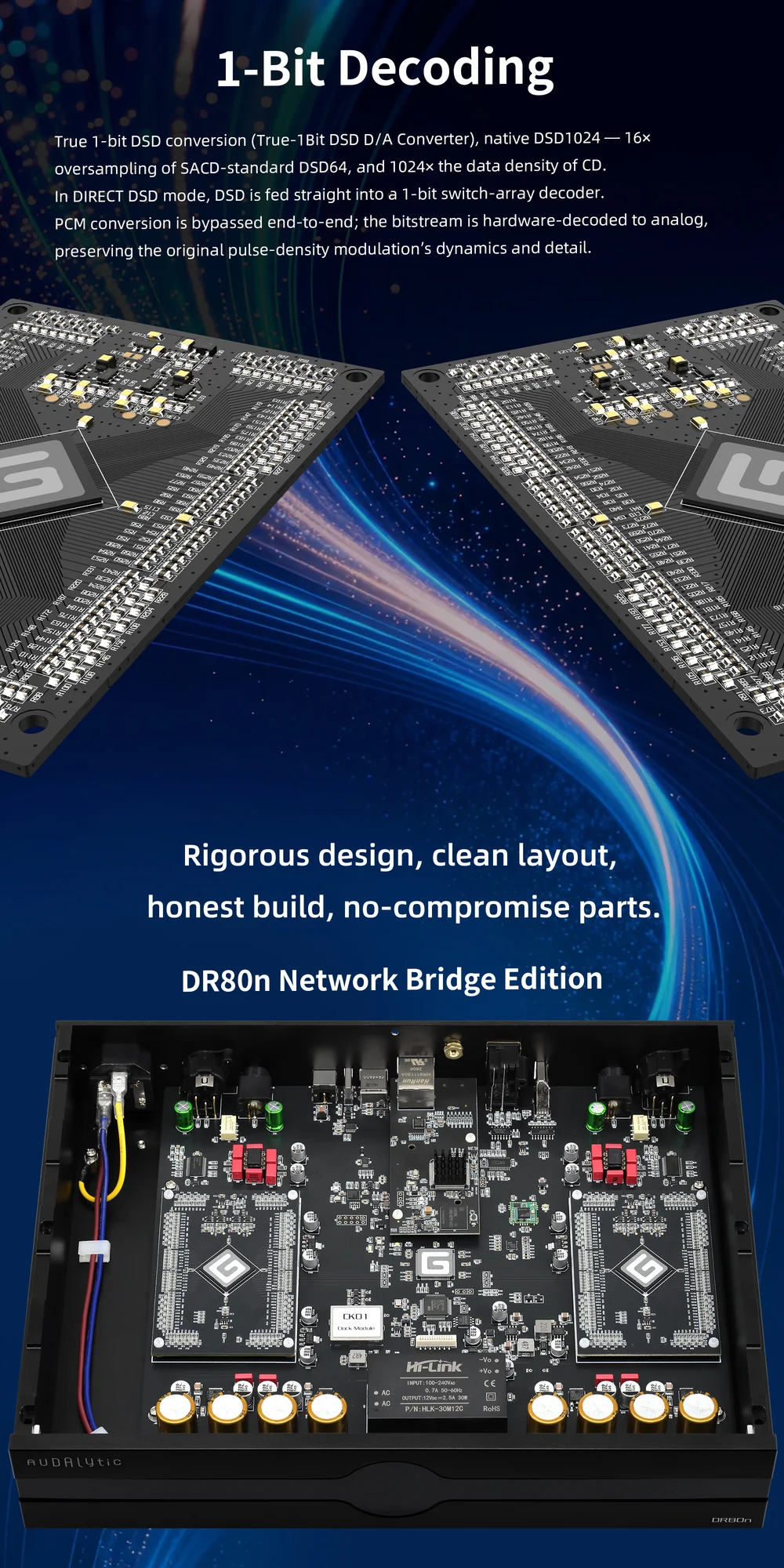

- Native 1-bit DSD decoding for audiophile-grade playback.
- Integrated Bluetooth 5.1 and extensive digital input options for seamless streaming.

--
DESCRIPTIONS:

The AUDALYTIC DR80 and DR80N DACs represent the zenith of digital audio conversion, harnessing proprietary 26-bit complementary R-2R conversion technology. This innovative architecture ensures that every note played through your speakers retains its original richness and clarity. With support for 1-bit DSD decoding, the DR80 and DR80N deliver a dedicated path for high-resolution audio, making them ideal choices for audiophiles seeking the highest fidelity in their digital collections. The DR80’s versatile nature allows for easy integration with existing digital sources, while the DR80N enhances these capabilities with an integrated CelWare network bridge.

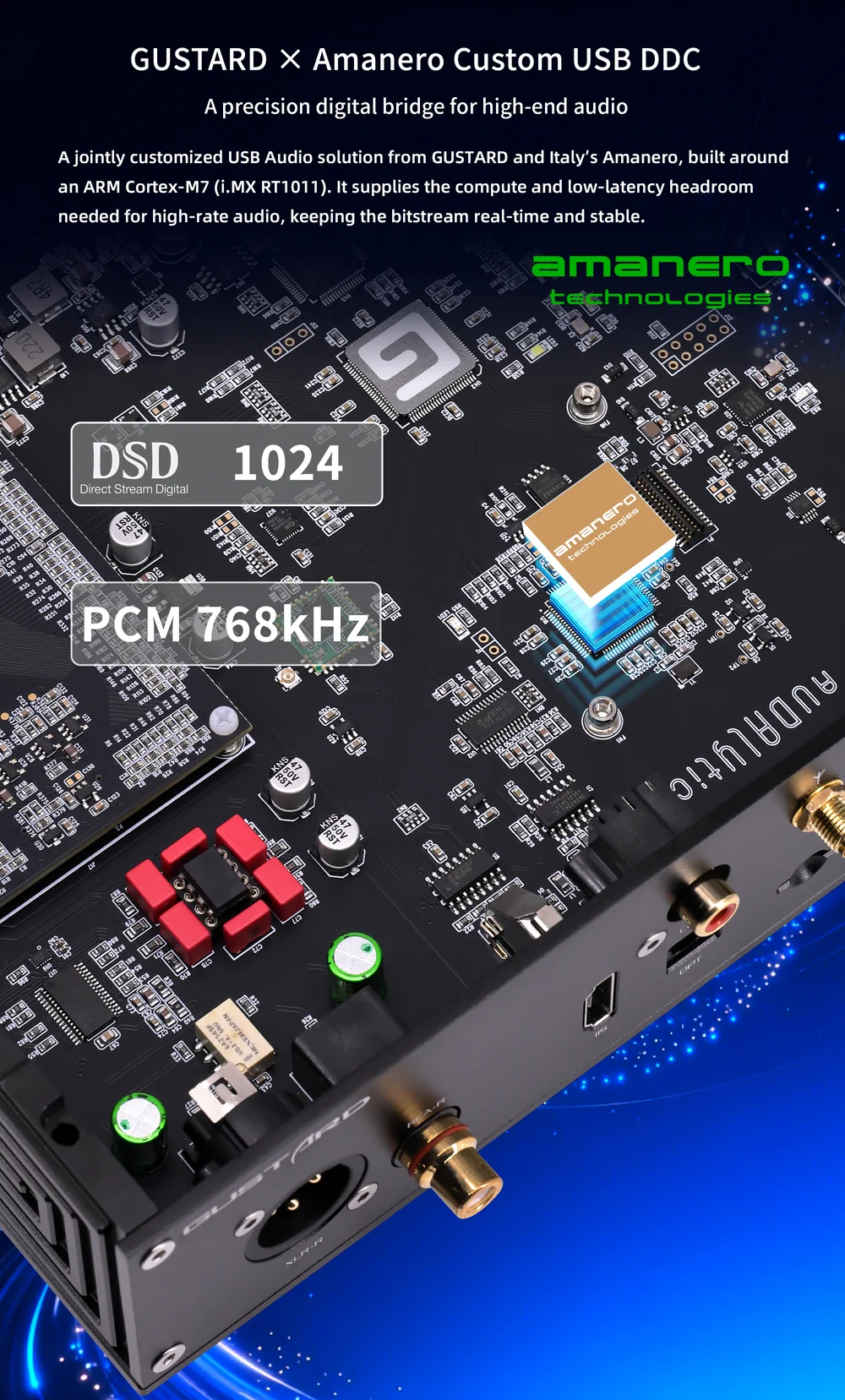

Both models come equipped with an advanced USB audio interface developed in partnership with Gustard and Amanero. Its ARM Cortex-M7 processor optimizes high-resolution playback through USB, coaxial, optical, and I²S connections. Bluetooth 5.1 is supported, courtesy of a Qualcomm QCC5125 chipset, enabling seamless wireless streaming with extensive codec support, including LDAC and aptX HD. This flexibility in connectivity ensures that the listening experience is both versatile and top-quality.

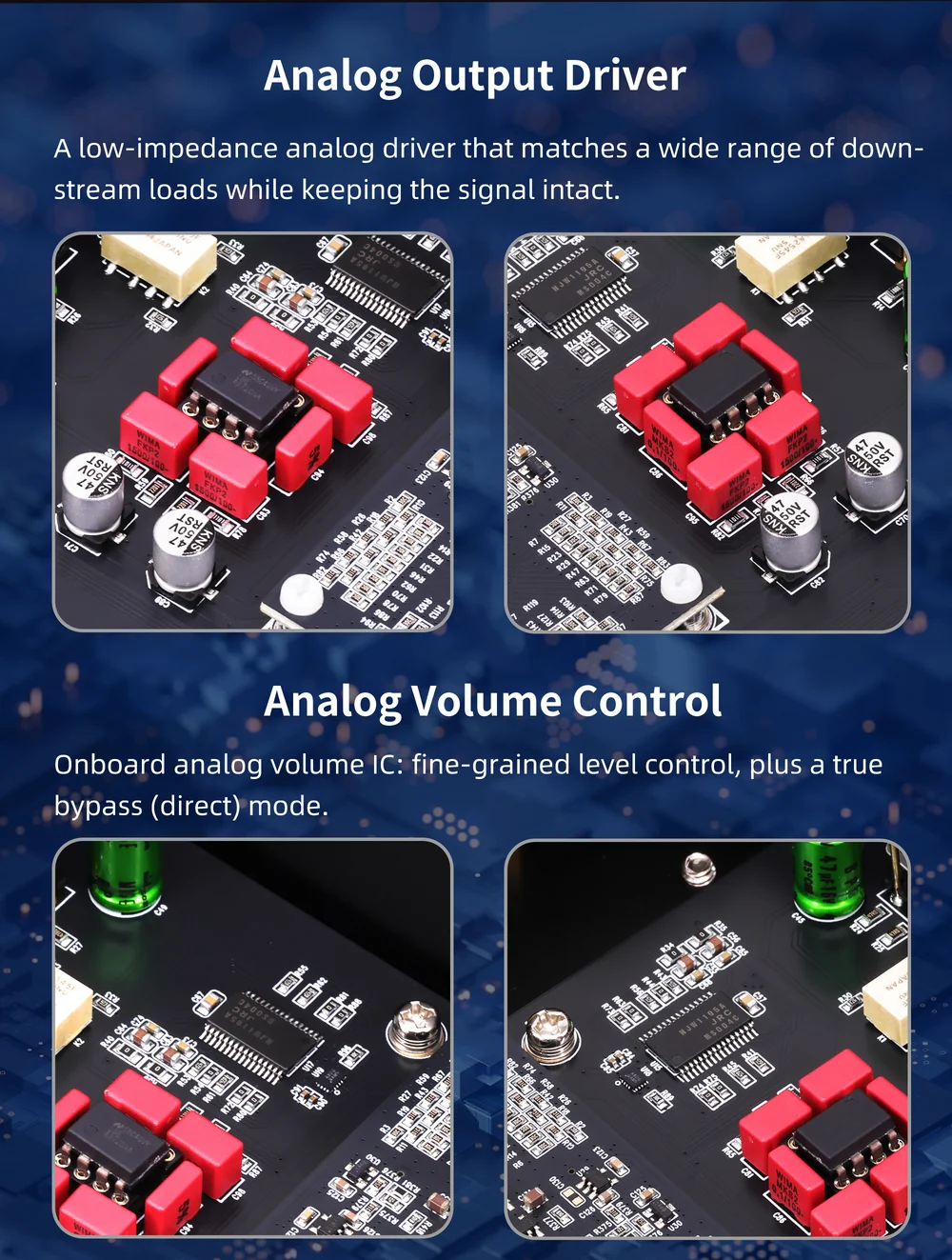

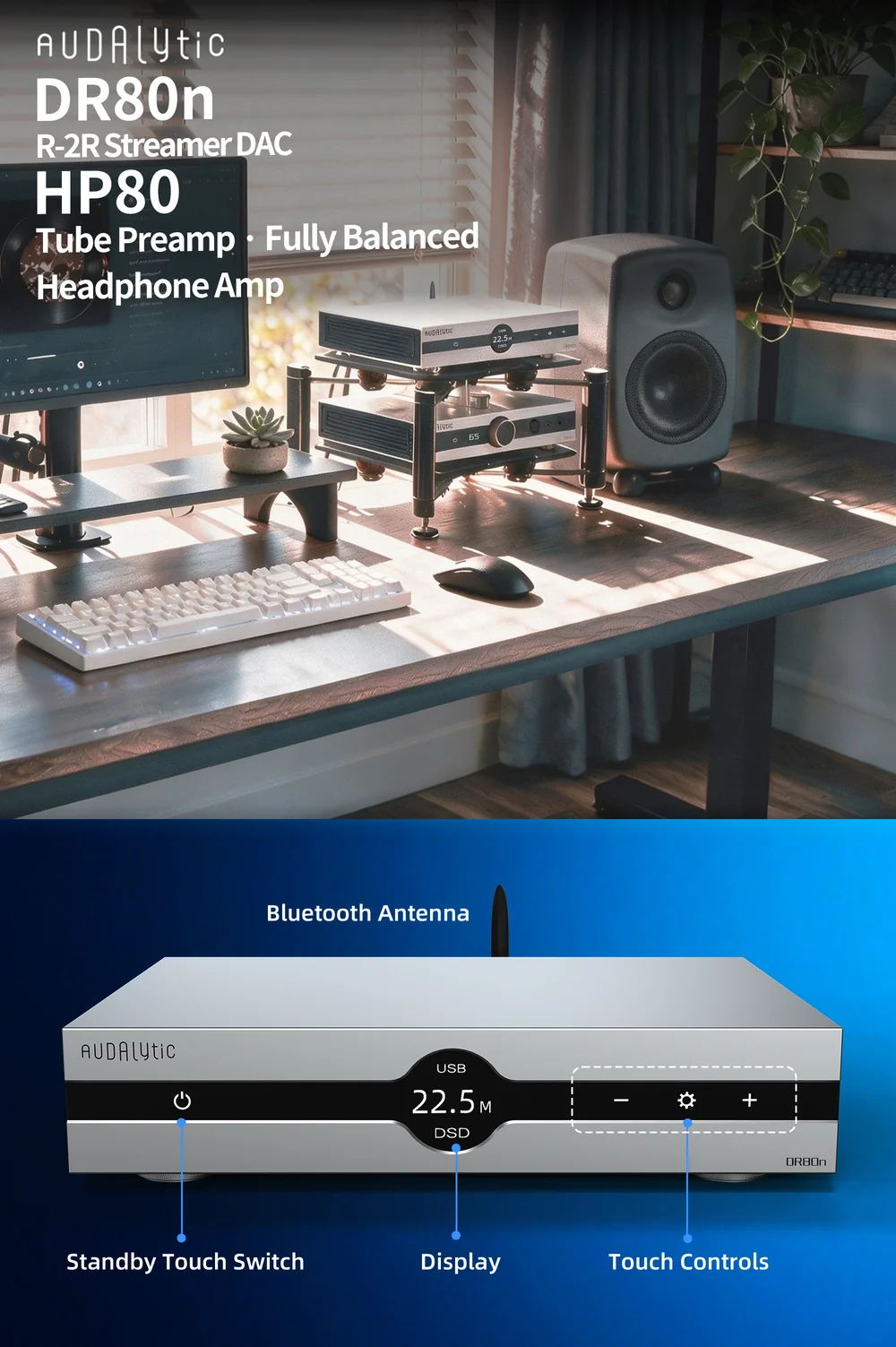

Dedicated analog controls provide precise volume adjustment for various amplifier configurations, while the balanced XLR and single-ended RCA outputs cater to a wide range of downstream equipment. With easy-to-use front-panel controls and customizable display settings, the user-friendly design complements the technical prowess of the DR80 and DR80N, making them a perfect choice for any discerning audio setup.

--
SPECIFICATIONS:

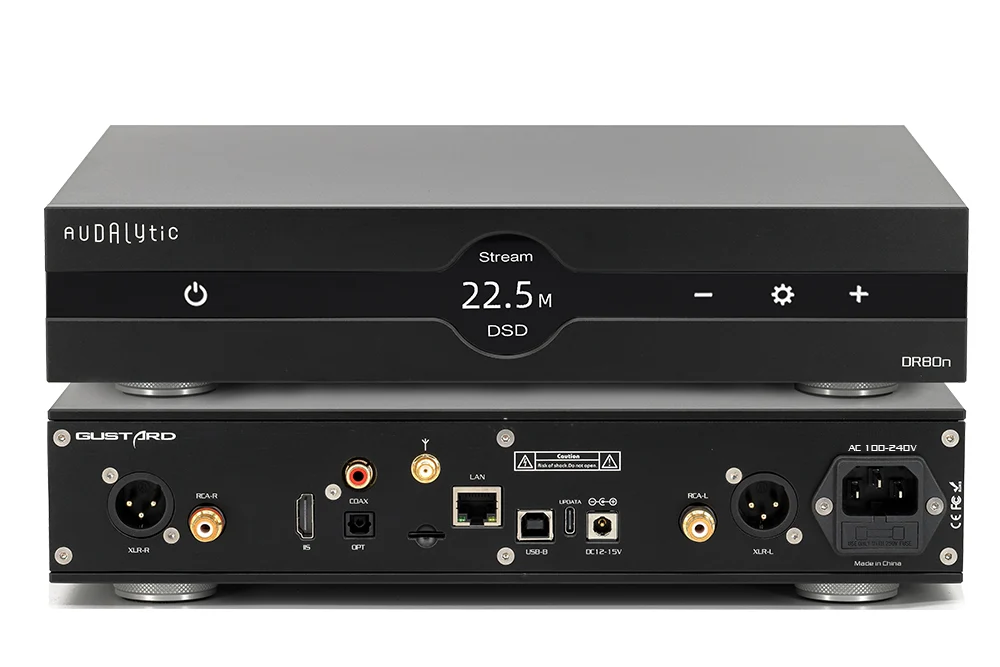

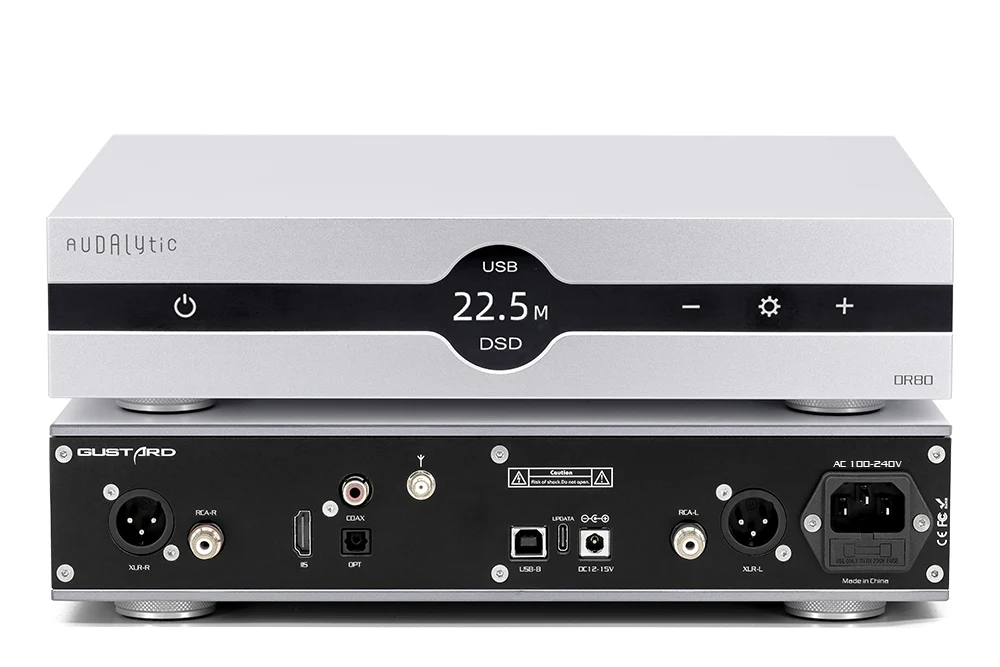

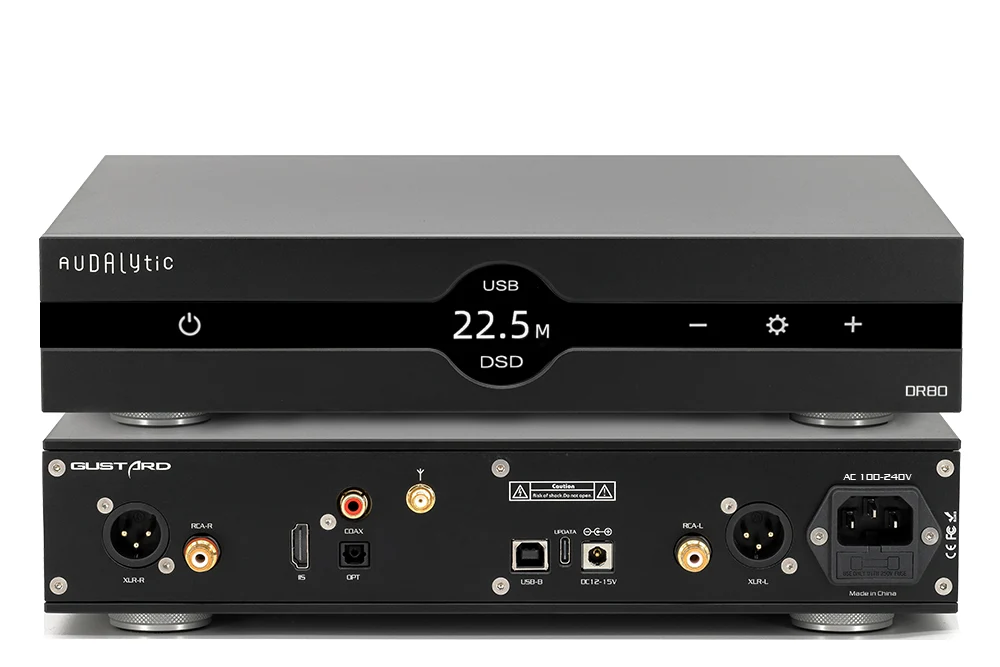

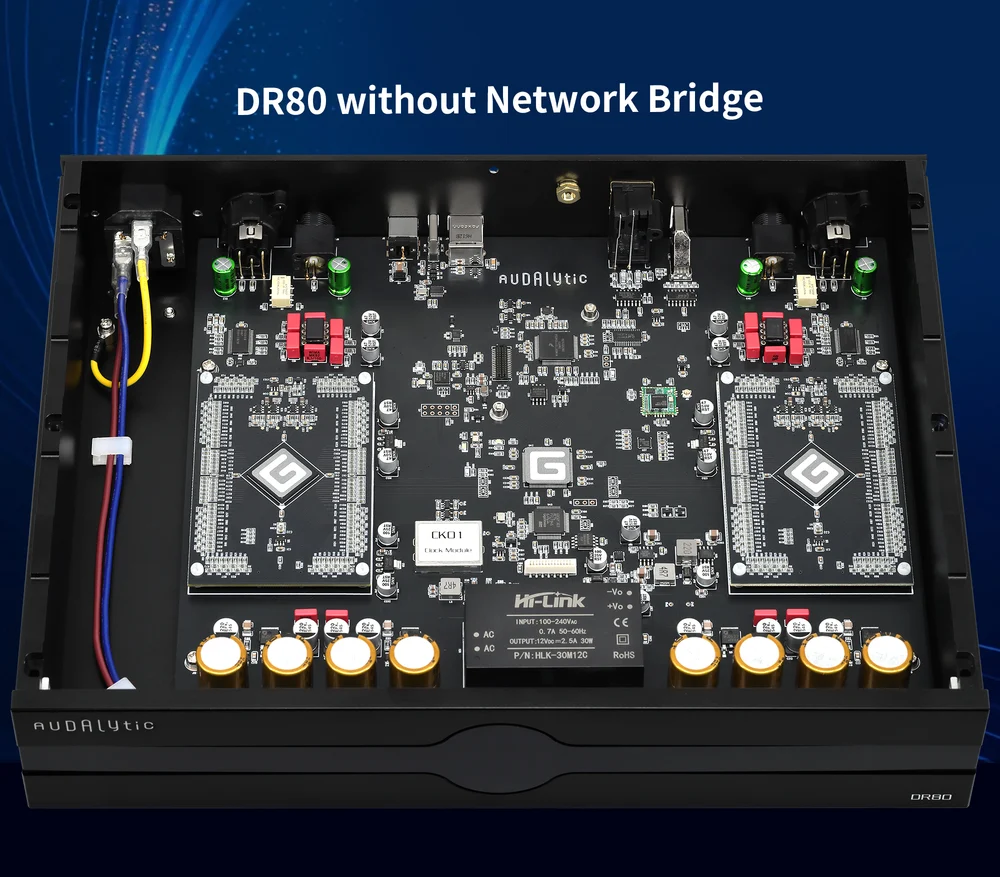

Models: DR80 without network bridge, DR80n with network bridge

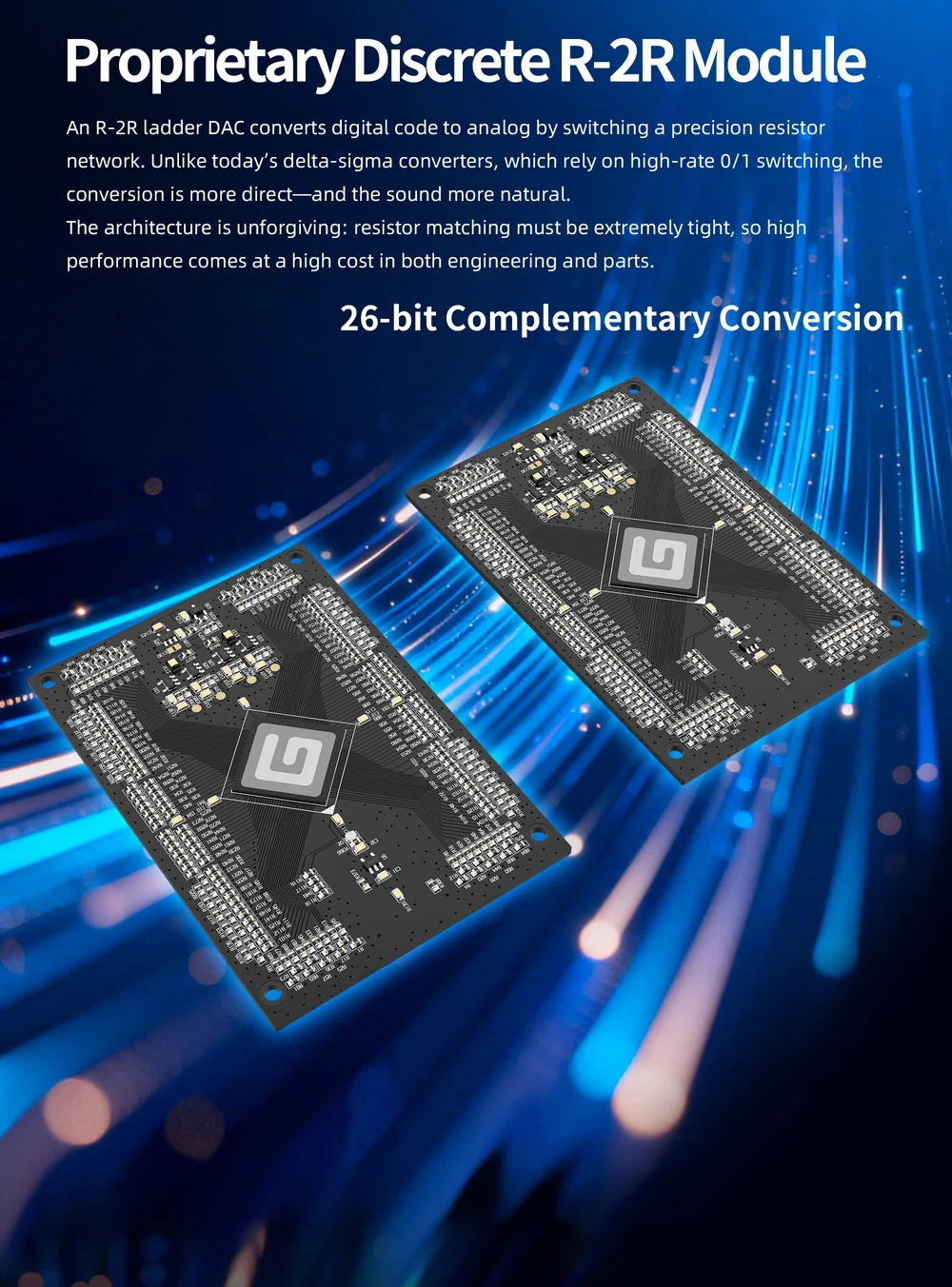

Conversion: Discrete R-2R, 26-bit complementary conversion, native 1-bit DSD

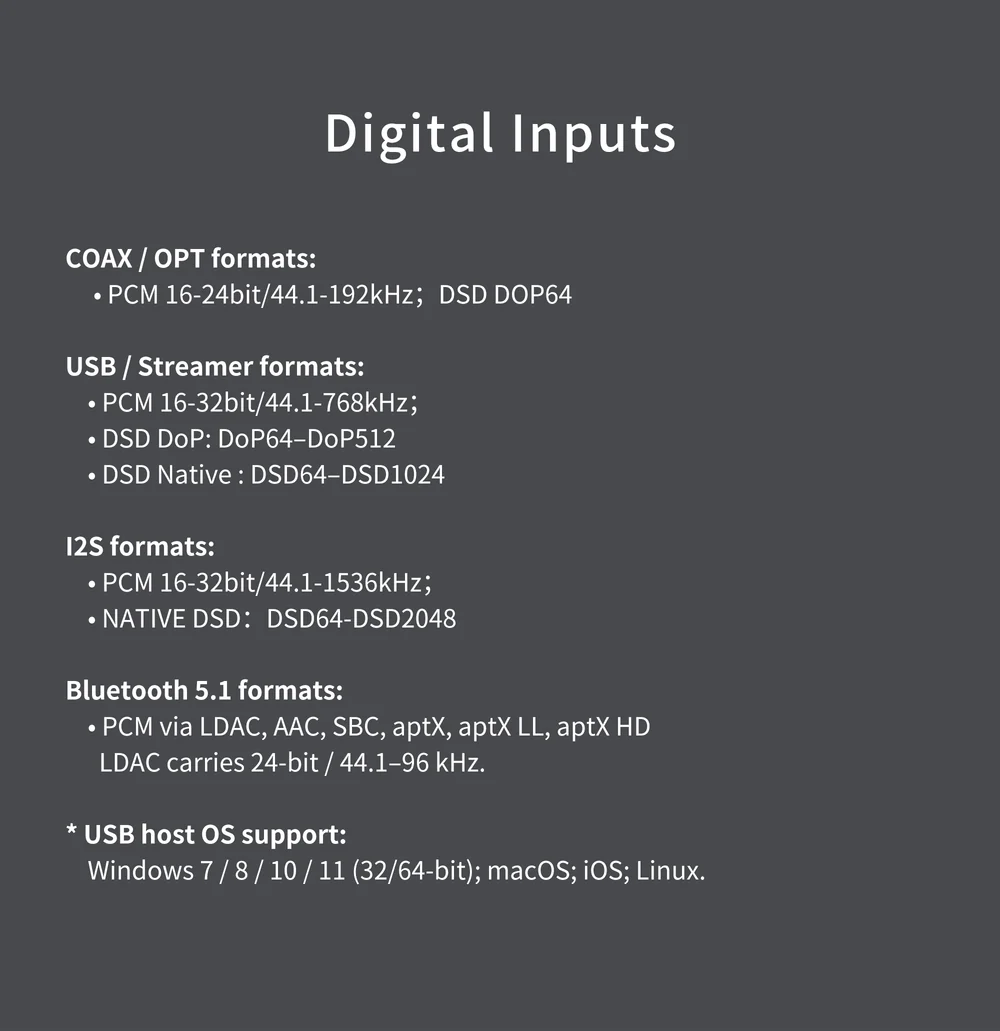

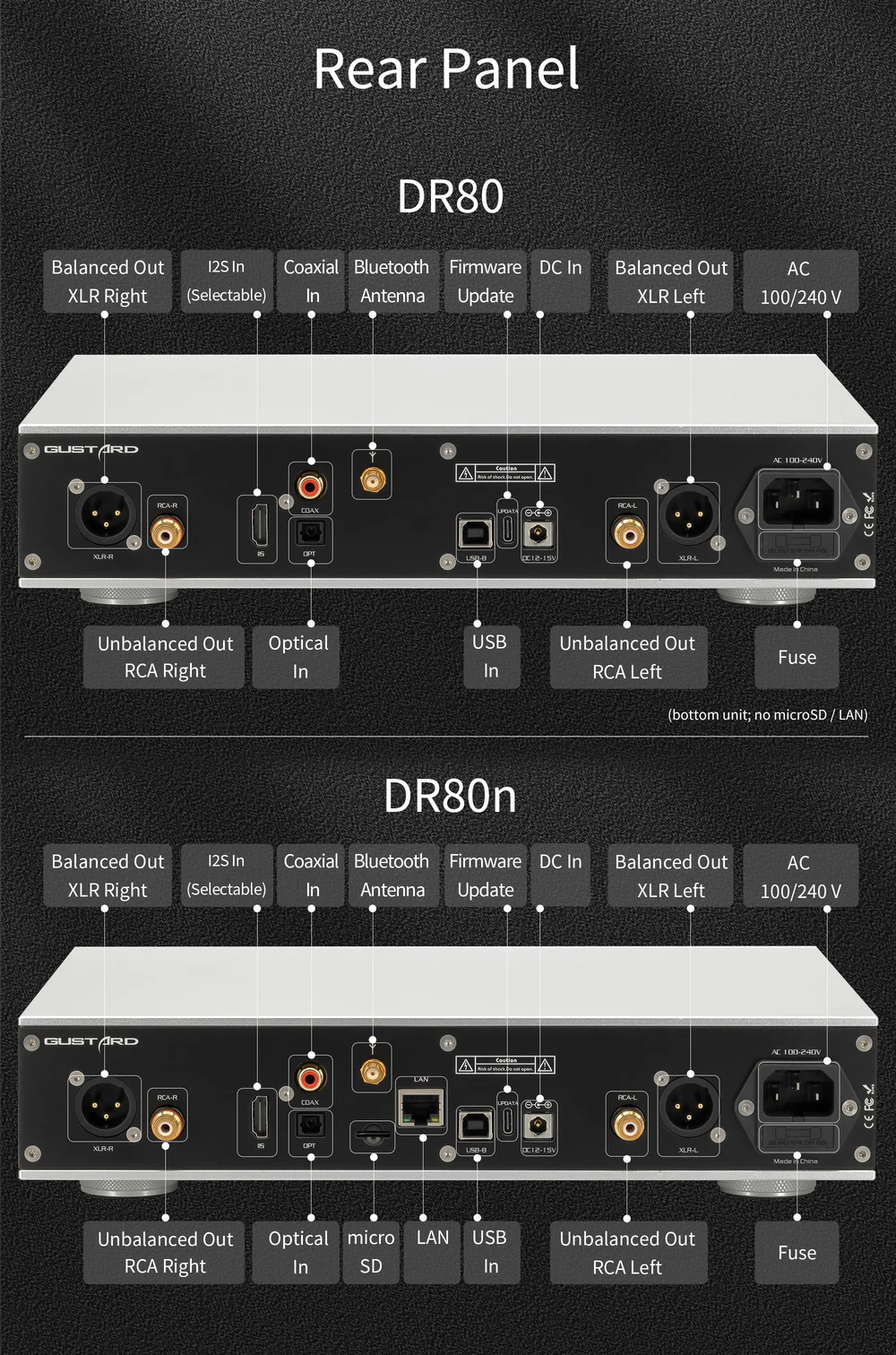

Digital inputs: USB-B, coaxial, optical, I2S, Bluetooth
DR80n additional connections: LAN, microSD slot

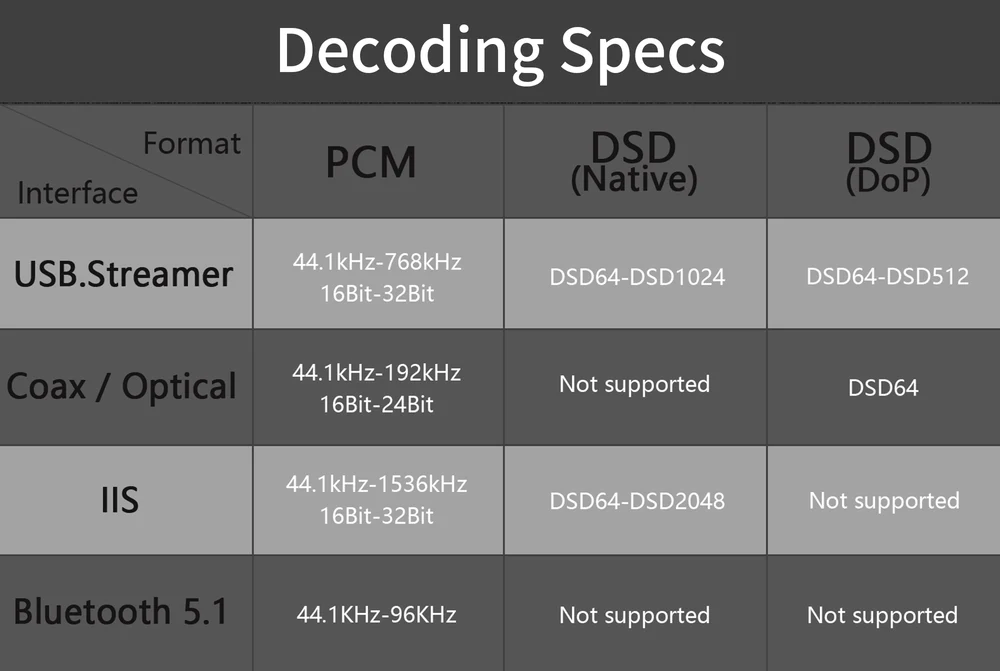

USB and streamer native DSD support: DSD64–DSD1024
USB and streamer DoP support: DSD64–DSD512
Coaxial and optical PCM support: 16–24-bit, 44.1–192kHz
I2S native DSD support: DSD64–DSD2048

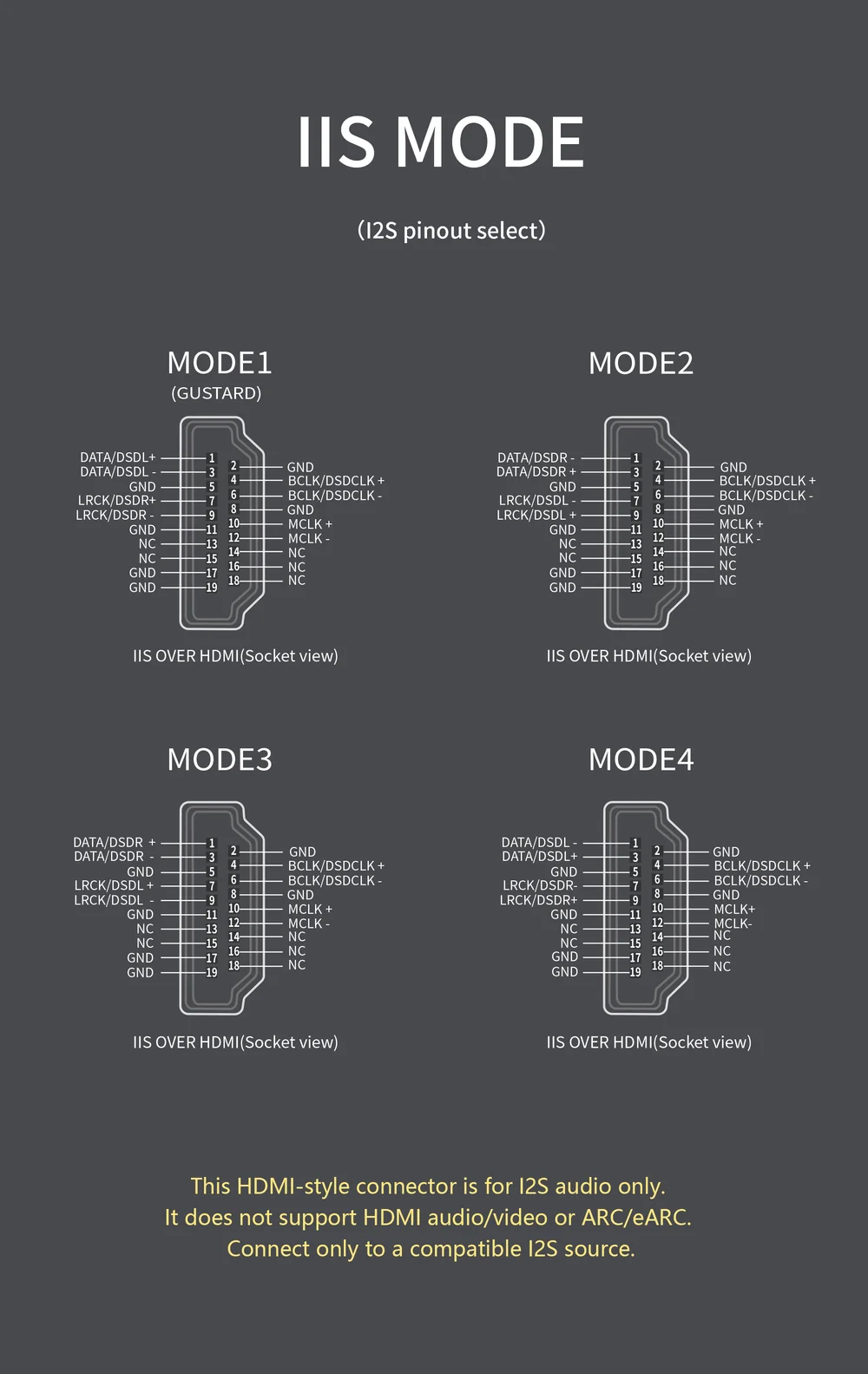

I2S pinout options: Four selectable modes
I2S connector: HDMI-style connector for compatible I2S audio sources only—HDMI audio/video and ARC/eARC are unsupported

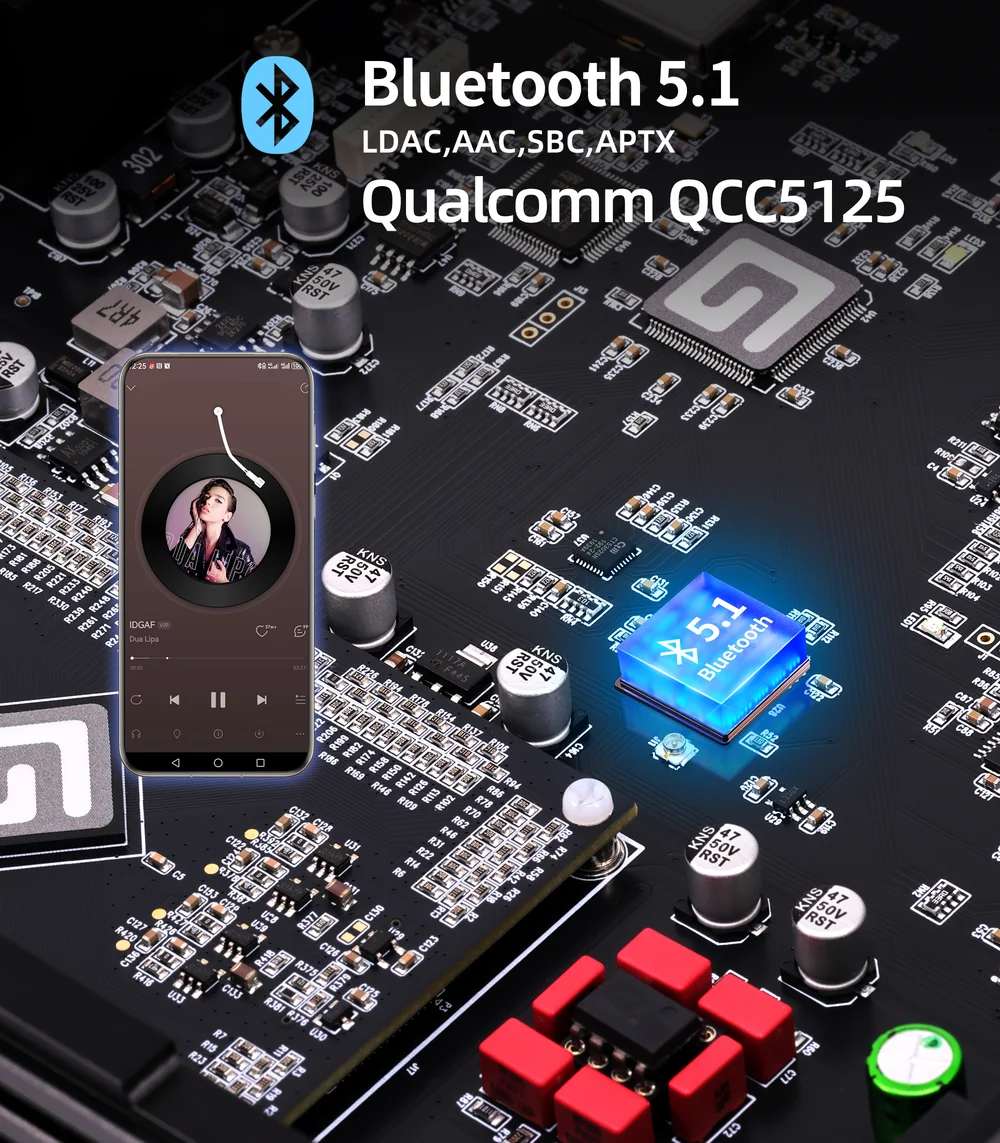

Bluetooth: Version 5.1, Qualcomm QCC5125
Bluetooth codecs supported: LDAC, AAC, SBC, aptX, aptX LL, and aptX HD

USB host operating systems: Windows 7/8/10/11, 32-bit and 64-bit, macOS, iOS, Linux

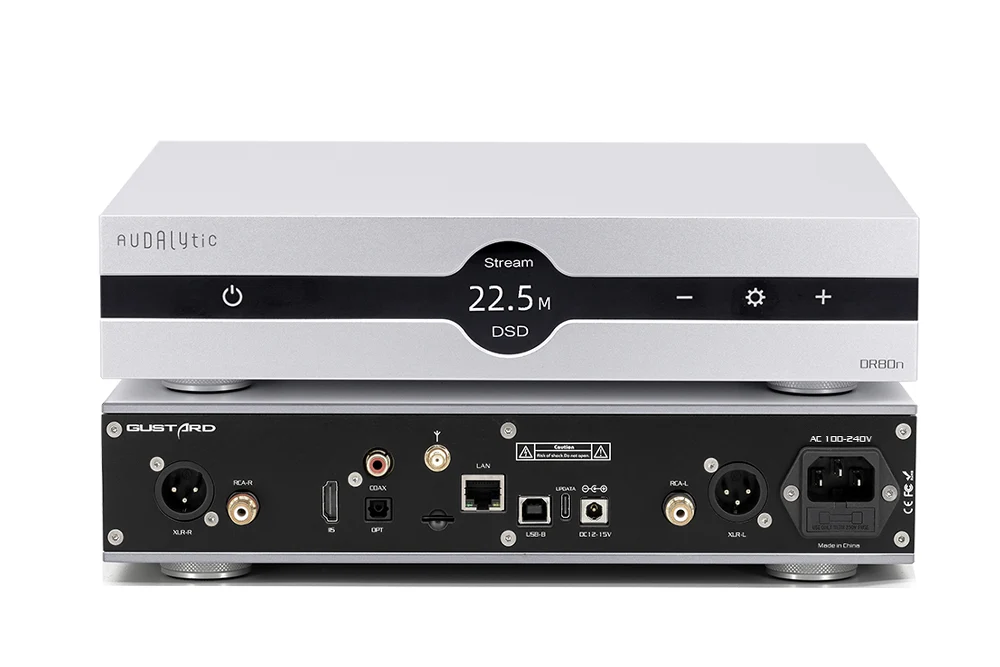

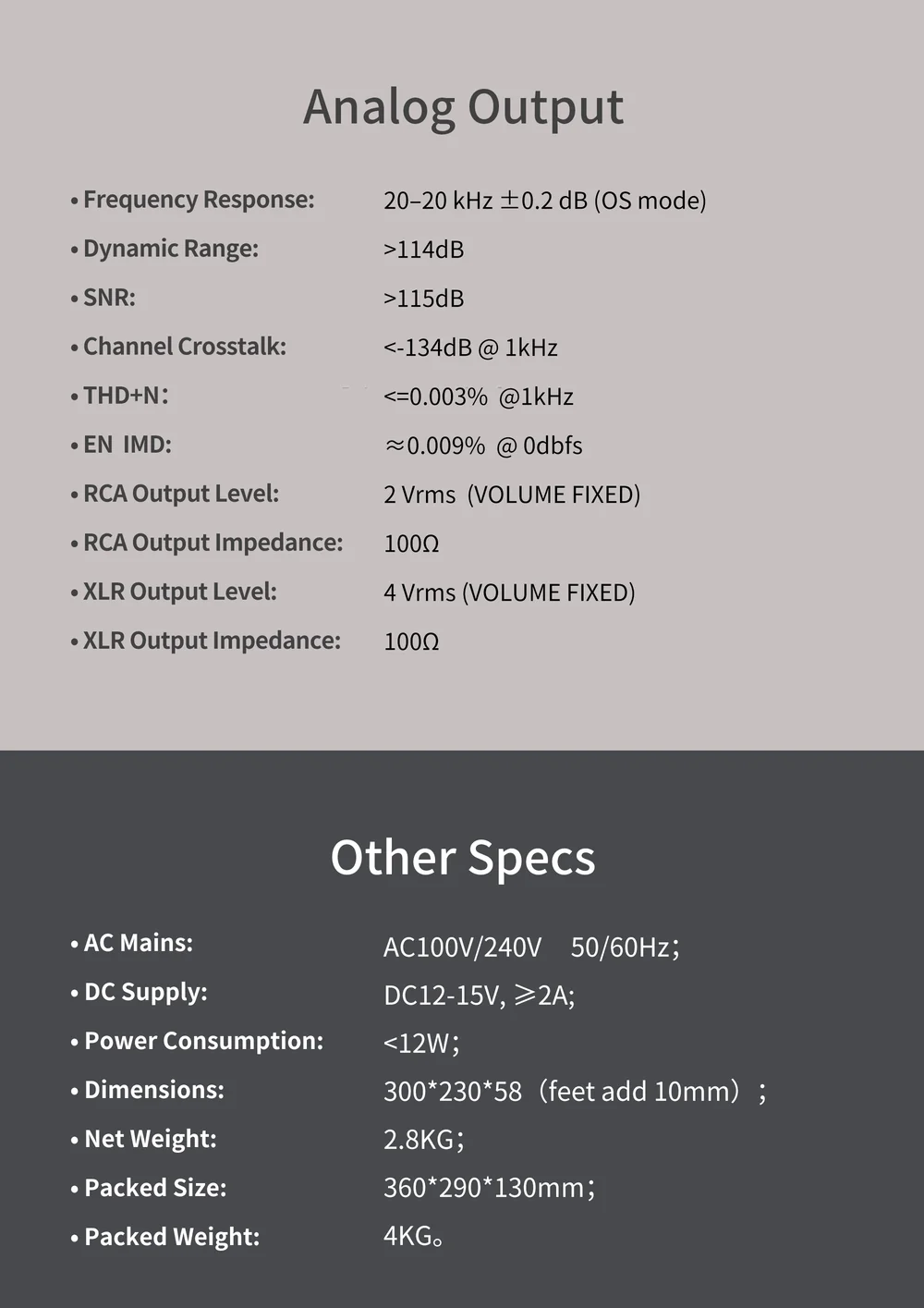

Analog outputs: Stereo balanced XLR and single-ended RCA, simultaneous operation supported
RCA output level: 2Vrms with volume fixed
XLR output level: 4Vrms with volume fixed
RCA output impedance: 100Ω
XLR output impedance: 100Ω

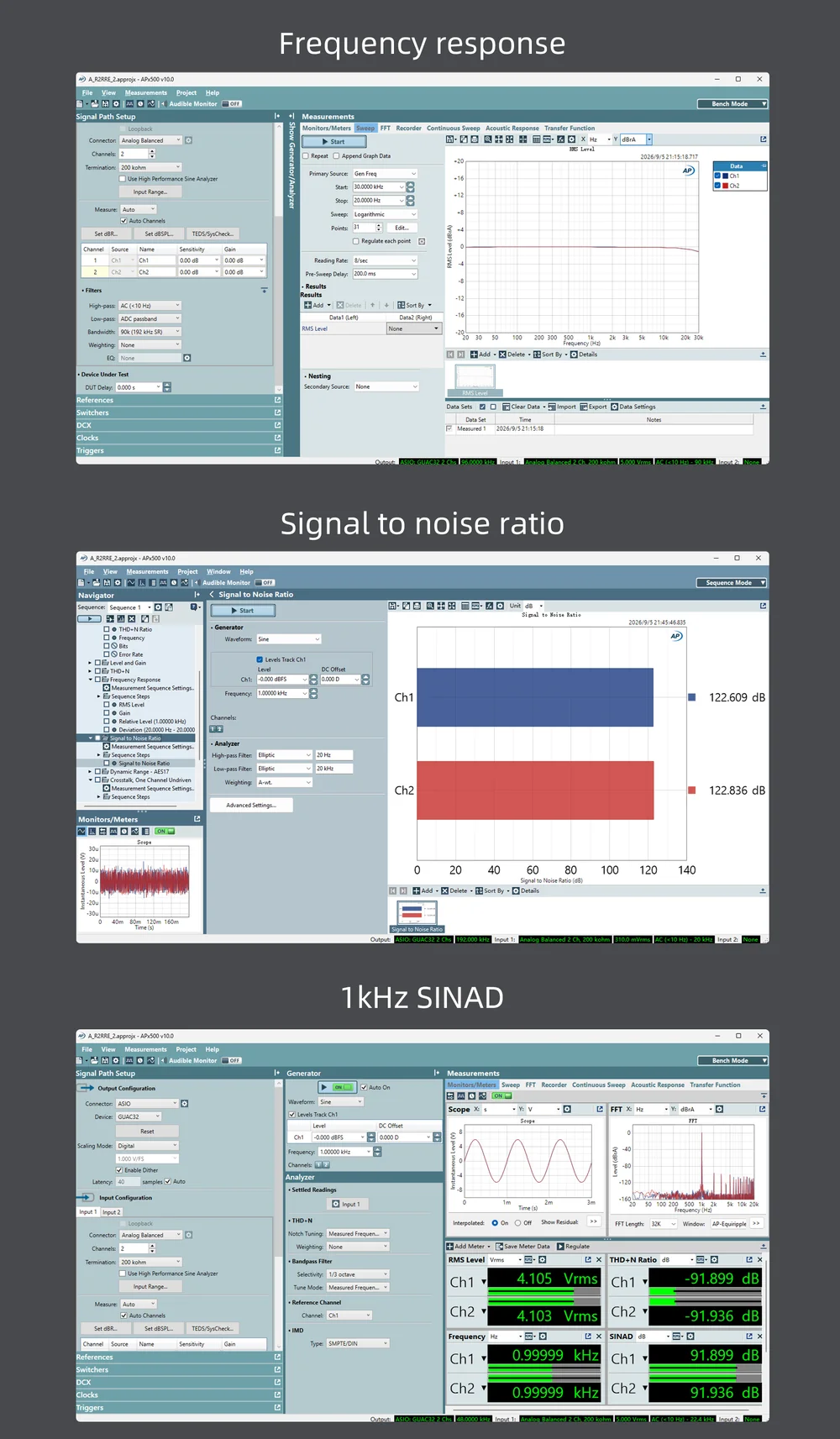

Frequency response: 20Hz–20kHz ±0.2dB in OS mode

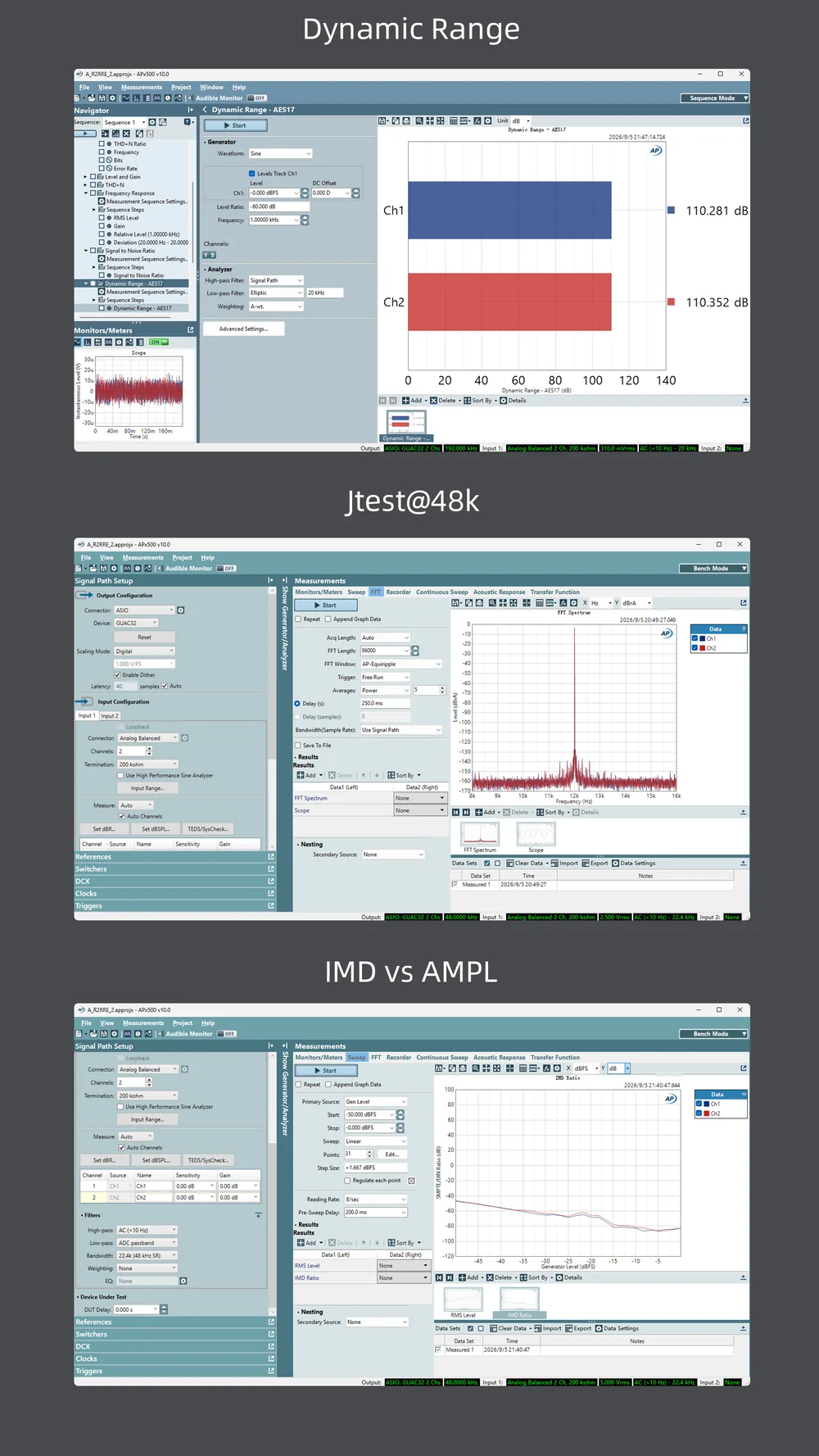

Published dynamic range: >114dB
Published SNR: >115dB
Published channel crosstalk: <–134dB at 1kHz
THD+N: ≤0.003% at 1kHz
EN IMD: Approximately 0.009% at 0dBFS
AC power: 100/240V, 50/60Hz
External DC supply requirement: 12–15V, ≤2A
Power consumption: <12W

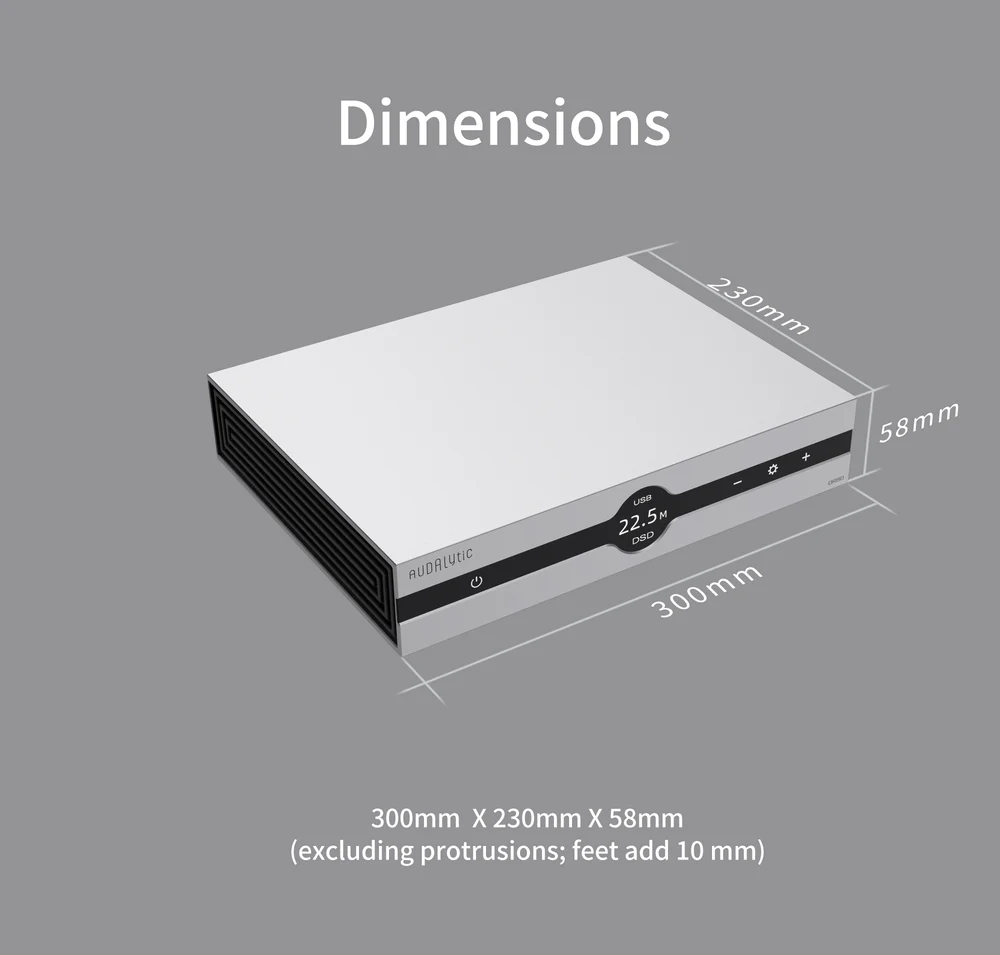

Dimensions excluding protrusions: 300 x 230 × 58mm
Additional height from feet: 10mm
Net weight: 2.8kg

WARRANTY / SUPPORT: 1 Year Singapore Warranty
