[🎶SG] MARANTZ MODEL 50 Pure Analog Stereo Integrated Amplifier

🎵 OFFICIAL MARANTZ DEALER - 1 Year Local Warranty & Aftersales Support

Contact Us:
📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084
📧 Email us @ sales@samaudiosg.com
🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), S(338729)

--

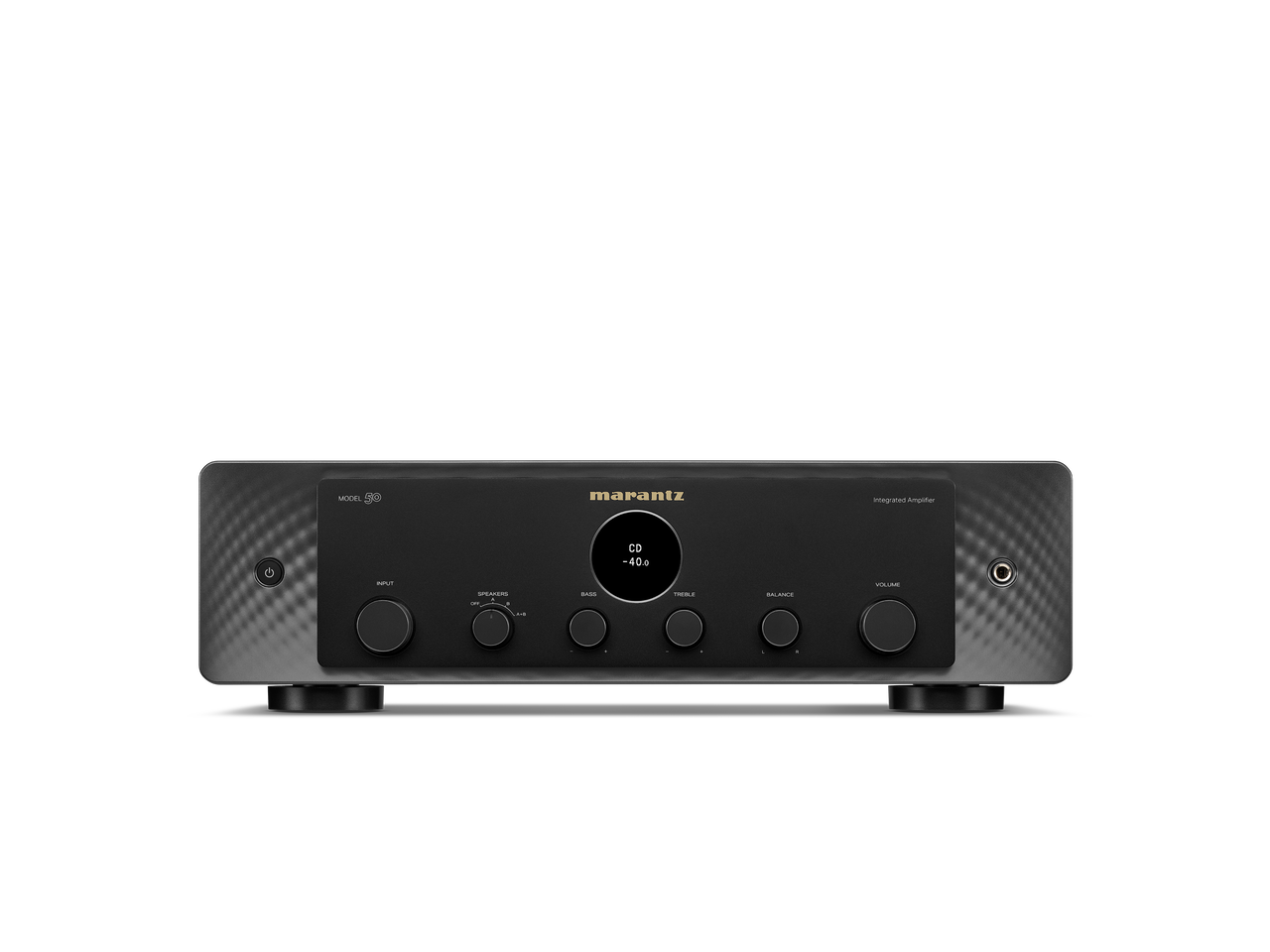

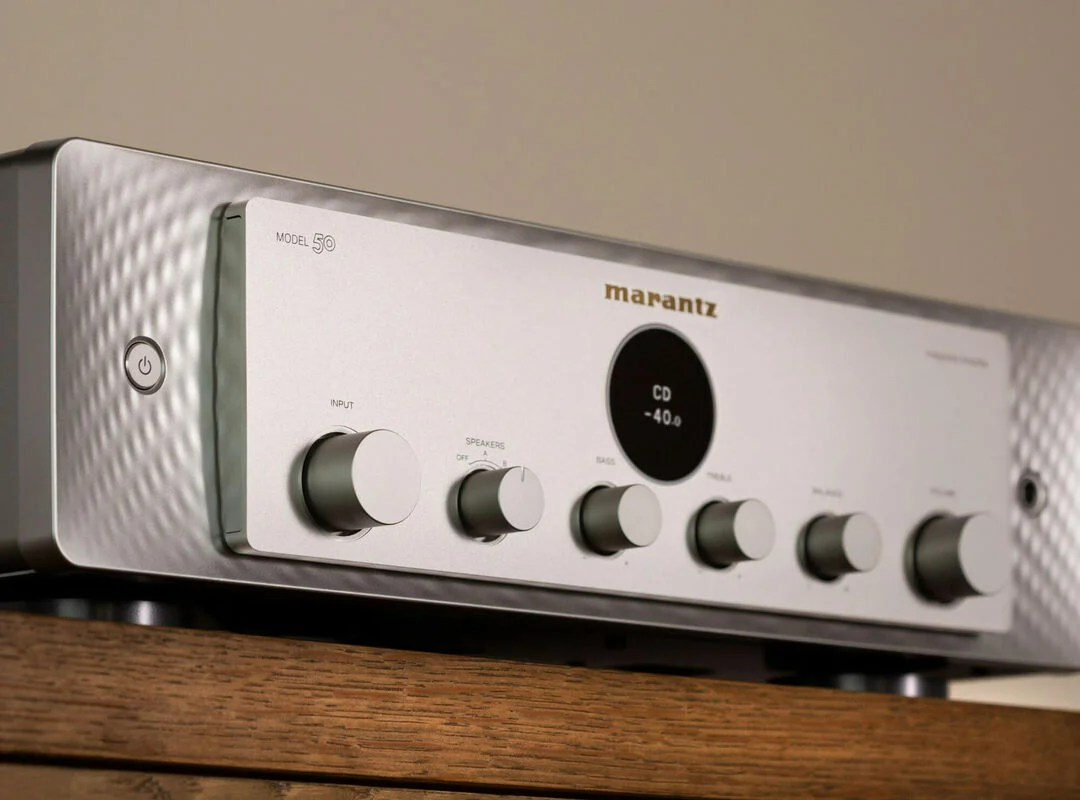

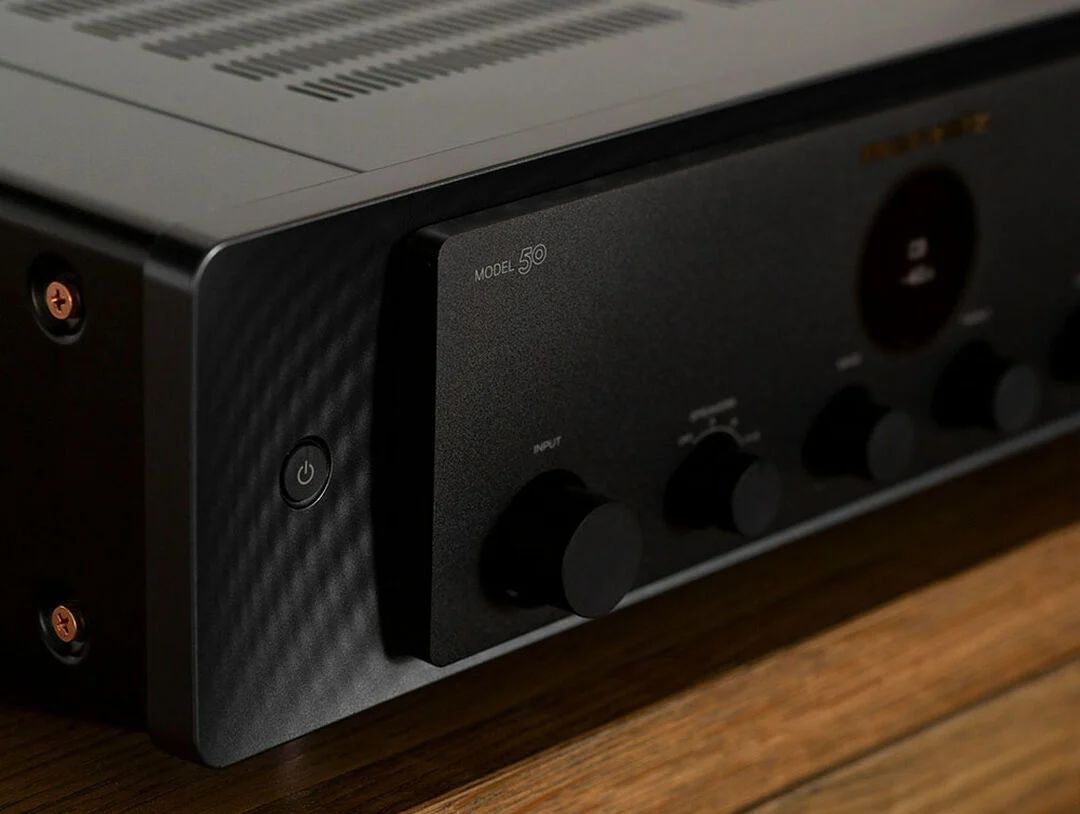

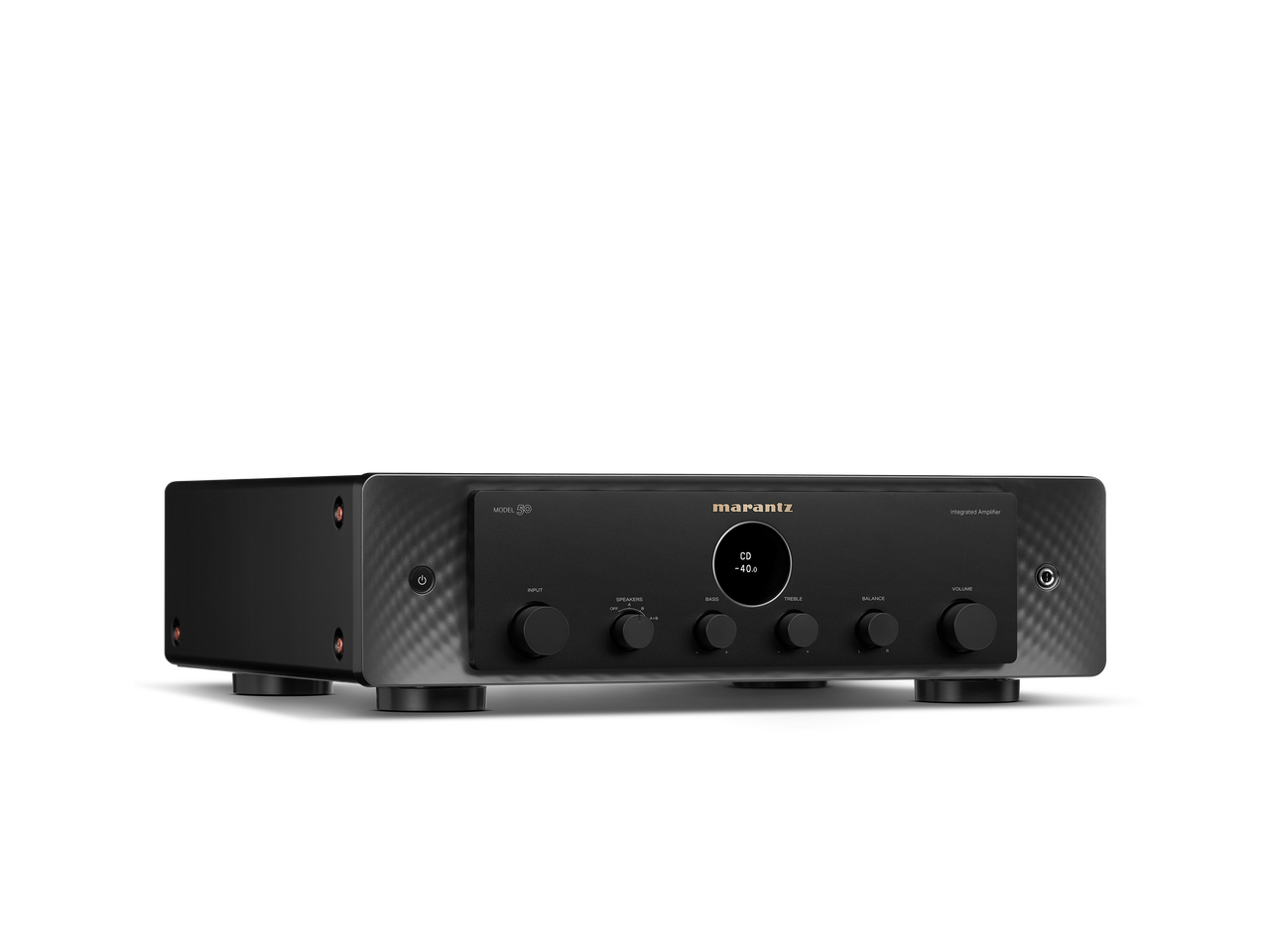

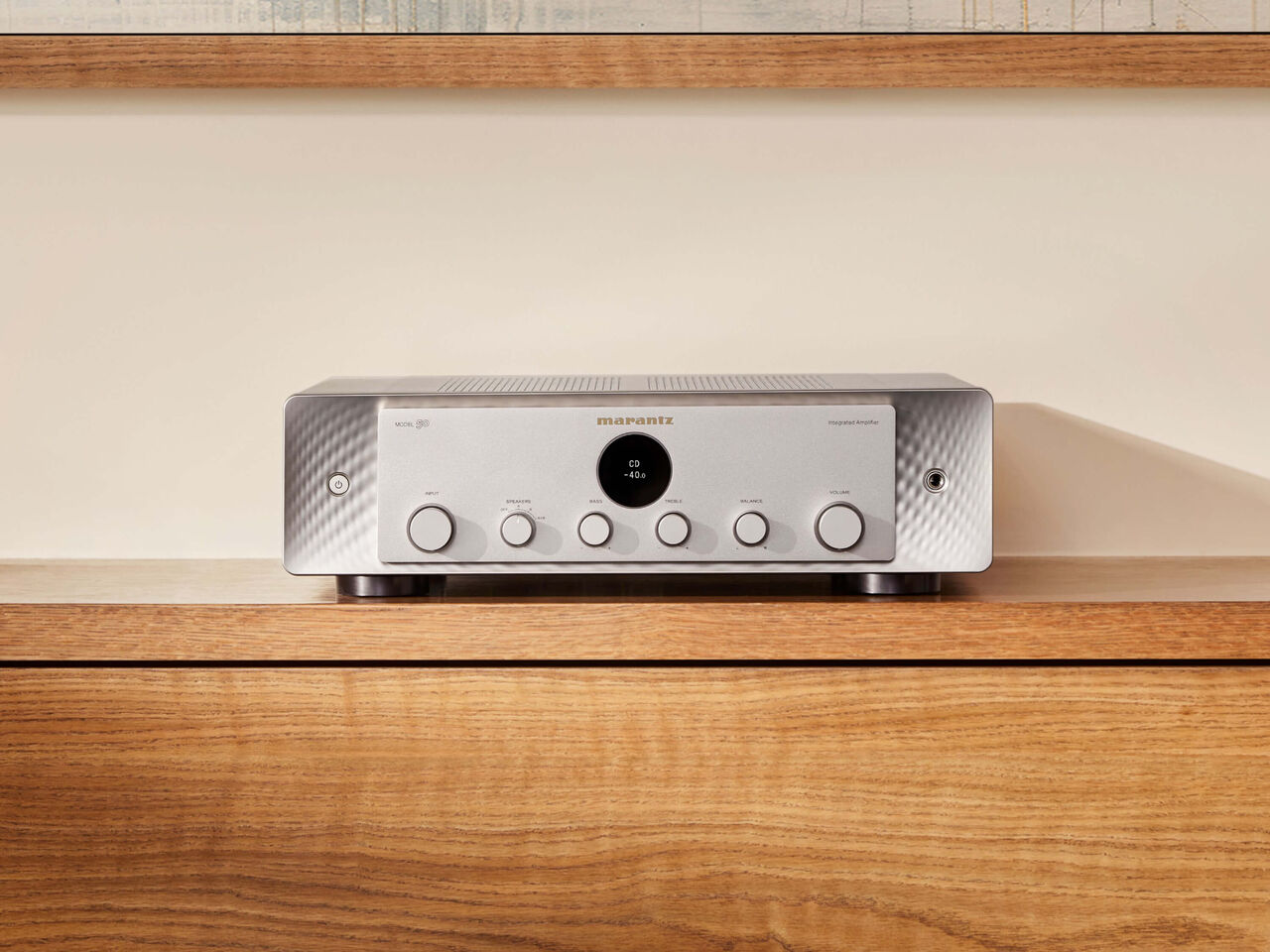

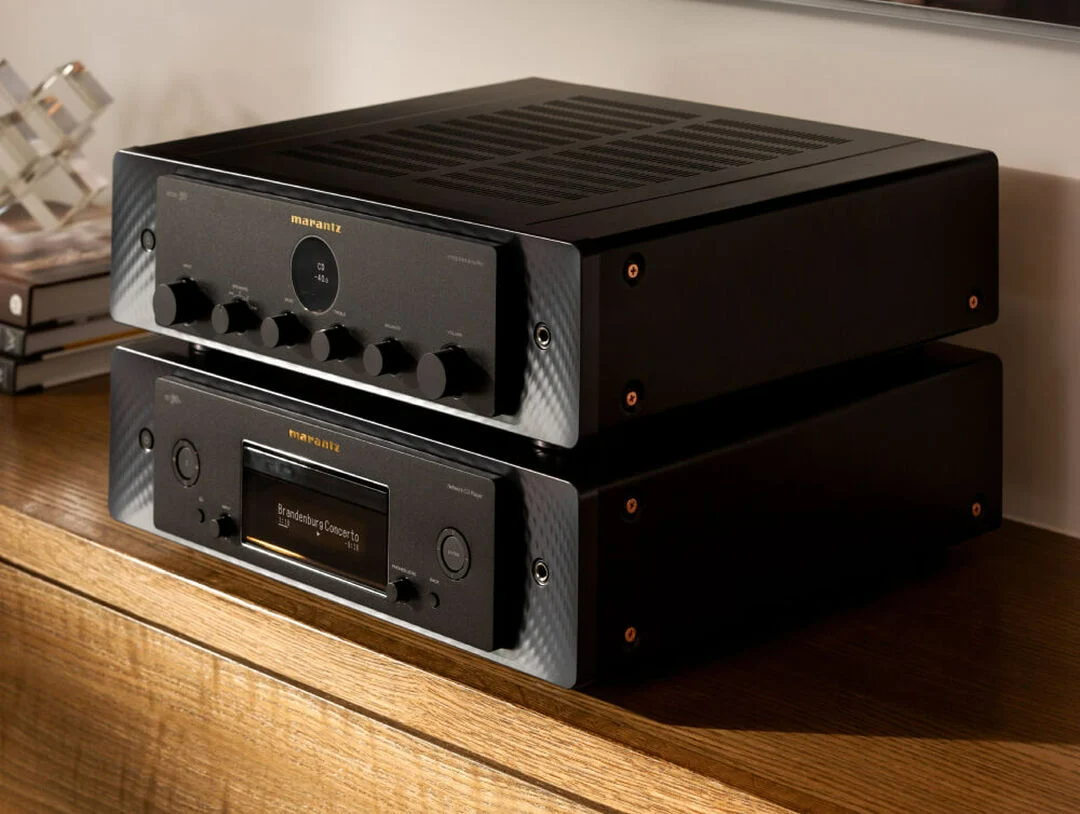

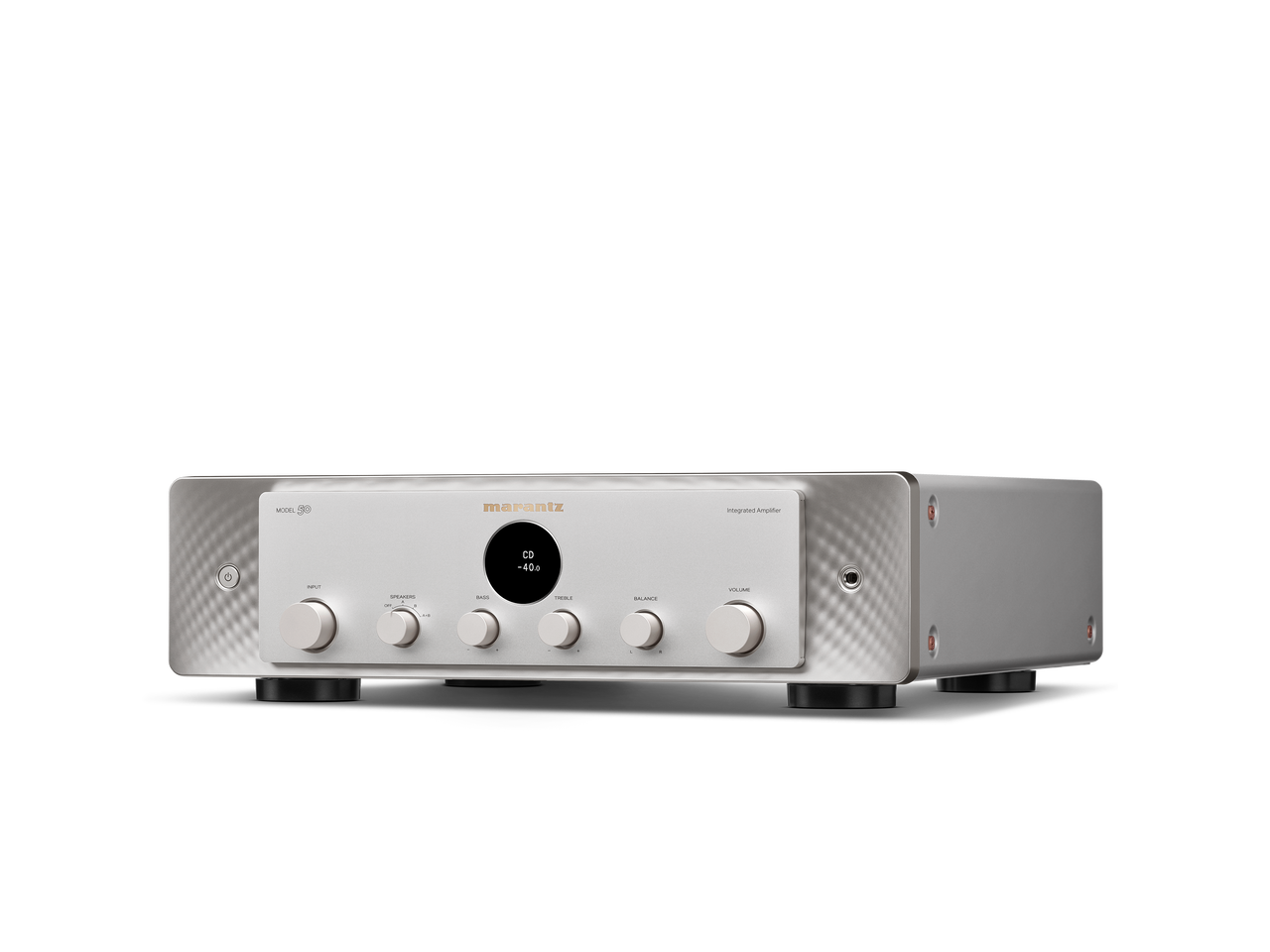

MARANTZ MODEL 50 Pure Analong Stereo Integrated Amplifier

> Artisinal Design
> 2.2 Channels
> A Full Suite Of Inputs And Outputs For Your Sources, Subwoofer, And Even An Extra Power Amplifier
> 70 Watts Per Channel And Current Feedback Class A/B Amplification Maximizes Speaker Capability
> Unique HDAM SA-3 Discrete Amplifier Circurity Outperforms ICs Used In Competing Amplifiers
> No Digital Audio Circuitry Simplifies Use And Reduces Audible Interference
> Hear Details In Your Vinyl Records Like Never Before Using The MARANTZ Musical Phono EQ Gain Stage.
> Iconic MARANTZ Porthole Display Is Used For Setup And To Easily See Your Volume Level
> Meticulously Crafted And Robustly Built, MODEL 50 Design And Style Matches The Most Musical Sound

> MODEL 50 was designed and engineered to be thoroughly modern, yet timeless. Engineered with Marantz proprietary technologies, this integrated amplifier pushes the boundaries of audio equipment design to reveal the musicality in all your stereo source components.

--
Descriptions:

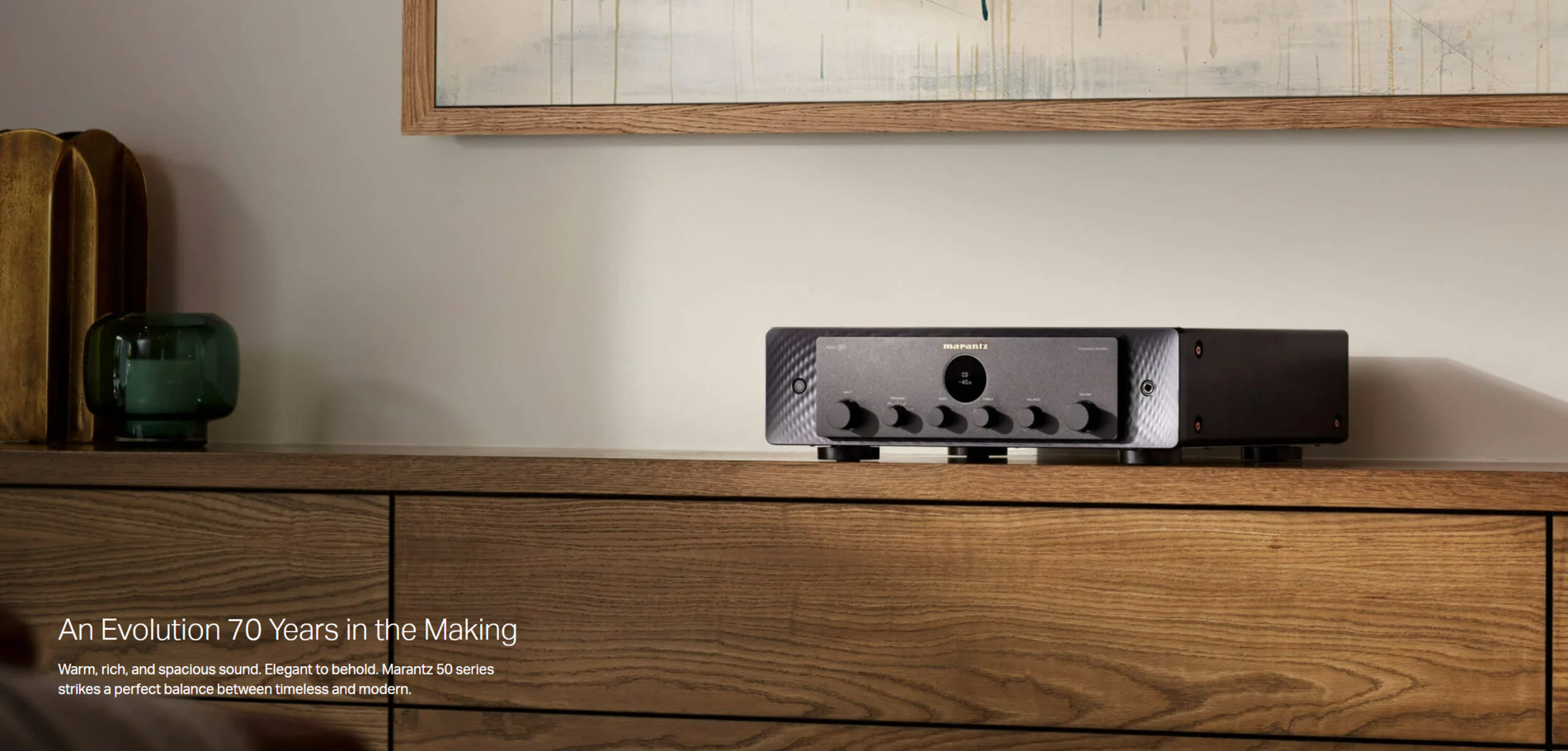

> An Evolution 70 Years In The Making
> Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.

> Exquisite Style
> We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.

> Powerful Yet Precise
> With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.

> Sound Master Tuned
> The Marantz Sound Master meticulously tuned MODEL 50 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

> Moving Magnet Phono
> The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.

> Stereo Preamp Out
> MODEL 50's stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theather, or multiply listening zones - the possibilities are endless.

--
Specifications:

> Channels: 2
> Current Feedback Topology: Yes
> Phono EQ: Marantz Musical
> HDAM Version: SA3, SA2
> Power Transformer: Toroidal
> High Grade Audio Components: Yes
> Customised Components: Yes
> Symmetric PCB Layout: Yes
> Aluminium Extrusion Heat Sink: Yes
> Adjustment: Balance / Bass / Treble

> Linear Drive Power Supply: Yes
> Linear Volume Control: Yes
> Schottky Diodes: Yes
> Solid Heat Sinks: Yes
> Bottom Plate: Triple
> Low Noise OLED Display: Yes
> Source Direct: Yes
> Power Amp Direct: Yes

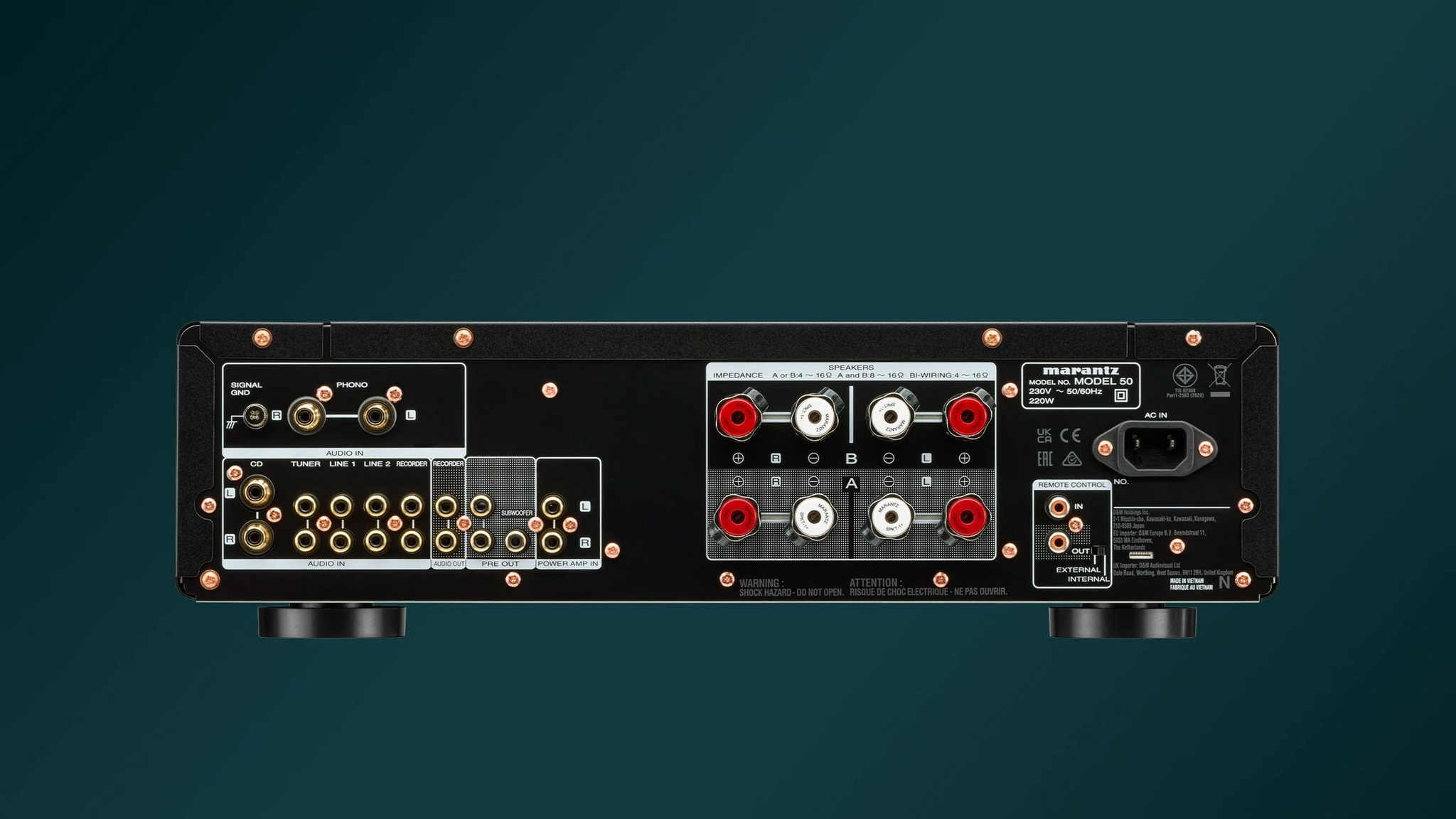

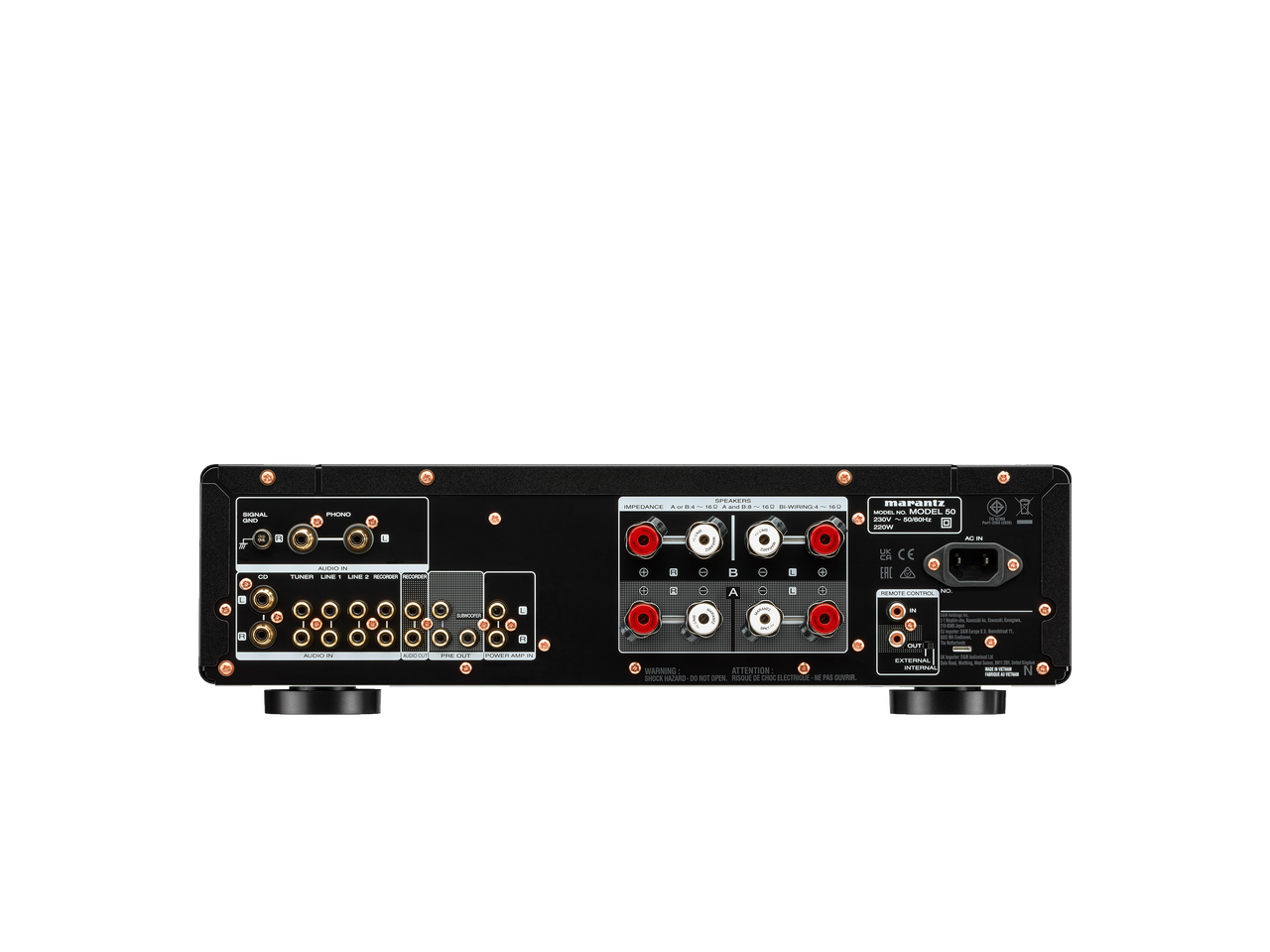

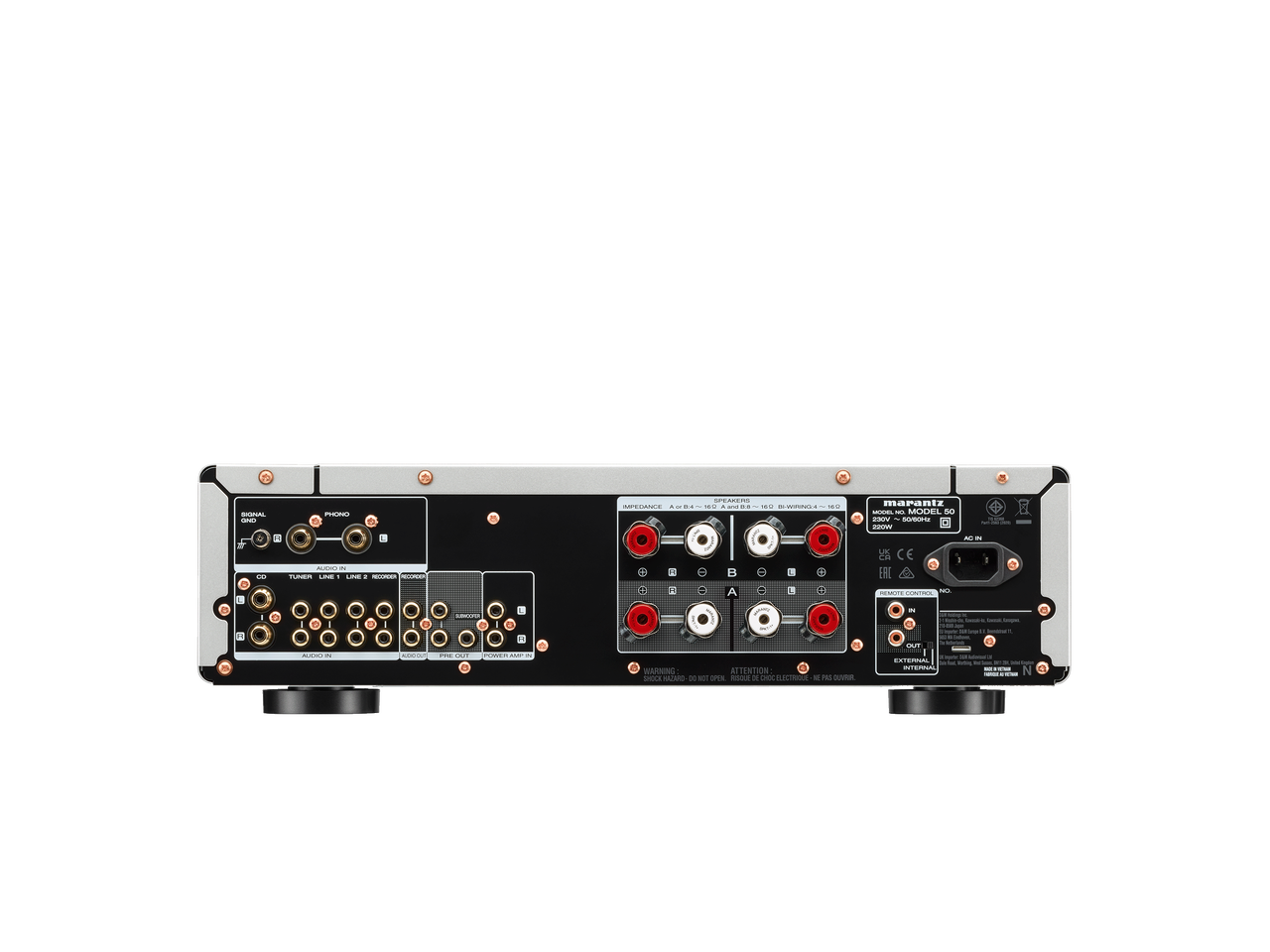

> Audio Inputs: 6
> Phono Input: MM
> Audio Outputs: 1
> Pre-Out: Yes + Subwoofer
> Power Amp Direct In: Yes
> Gold Plated Cinch: Yes

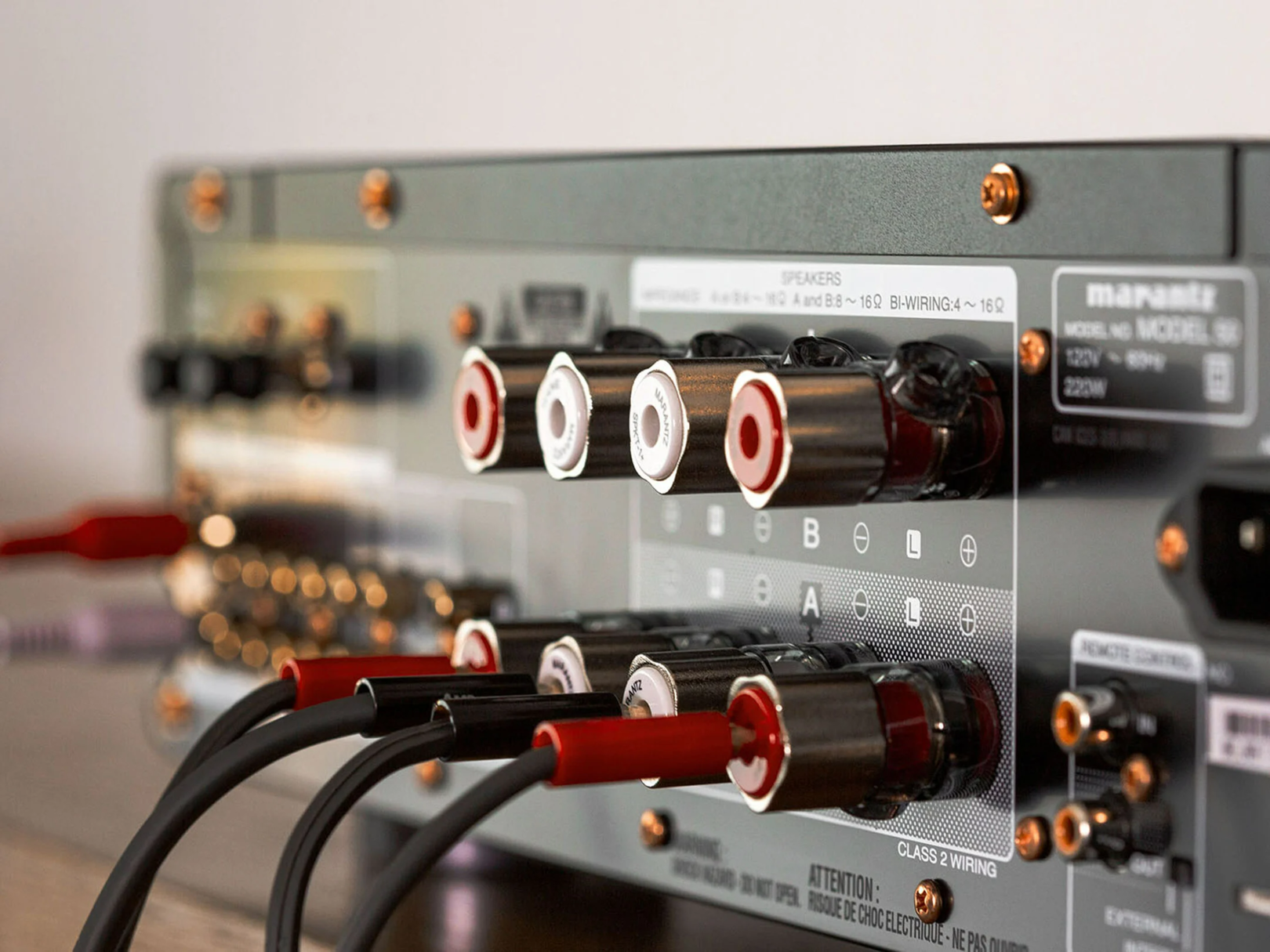

> Speaker A/B: Yes
> Speaker Terminals: Marantz SPKT-1+
> Number Of Terminals: 4
> D-Bus: Yes
> Headphone Out: Yes

> Power Output(4/8 Ohms RMS): 100W/70W
> Frequency Response: 5Hz-100kHz
> Total Harmonic Distortion: 0.02%
> Damping Factor: 100
> Input Sensitivity (Phono MM): 1.4mV / 47kΩ
> Singal to Noise Ration (Phono MM): 87dB
> Input Sensitivity (High Level): 185mV / 16kΩ
> Signal to Noise Ratio (High Level): 116dB (2V Input)
> Input Sensitivity (Power Amp Direct IN): 1.5V / 15kΩ
> Singal to Noise Ratio (Power Amp Direct IN): 125dB
> Treble Control: ± 10dB @ 15kHz
> Bass Control: ± 10dB @ 50Hz

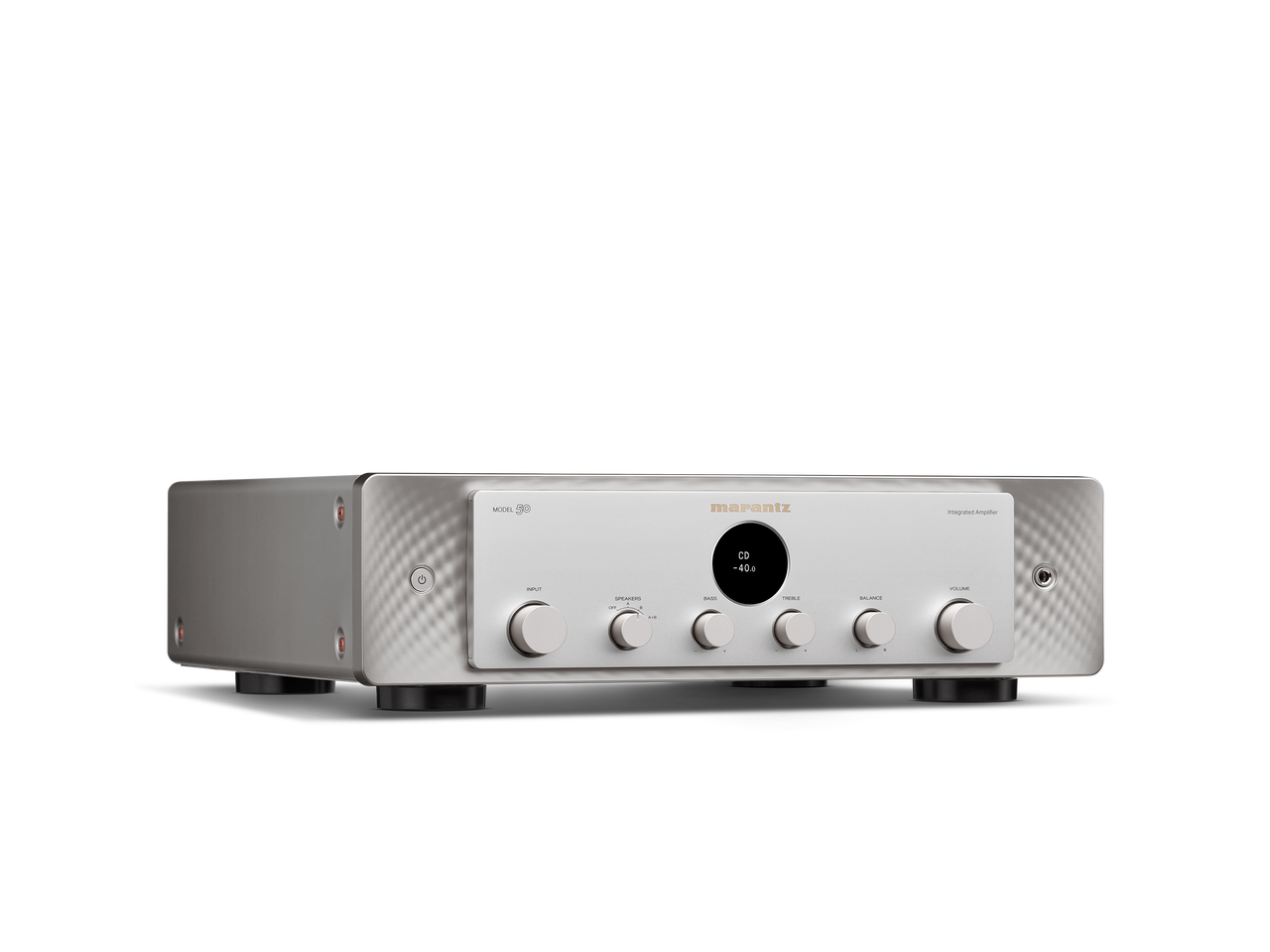

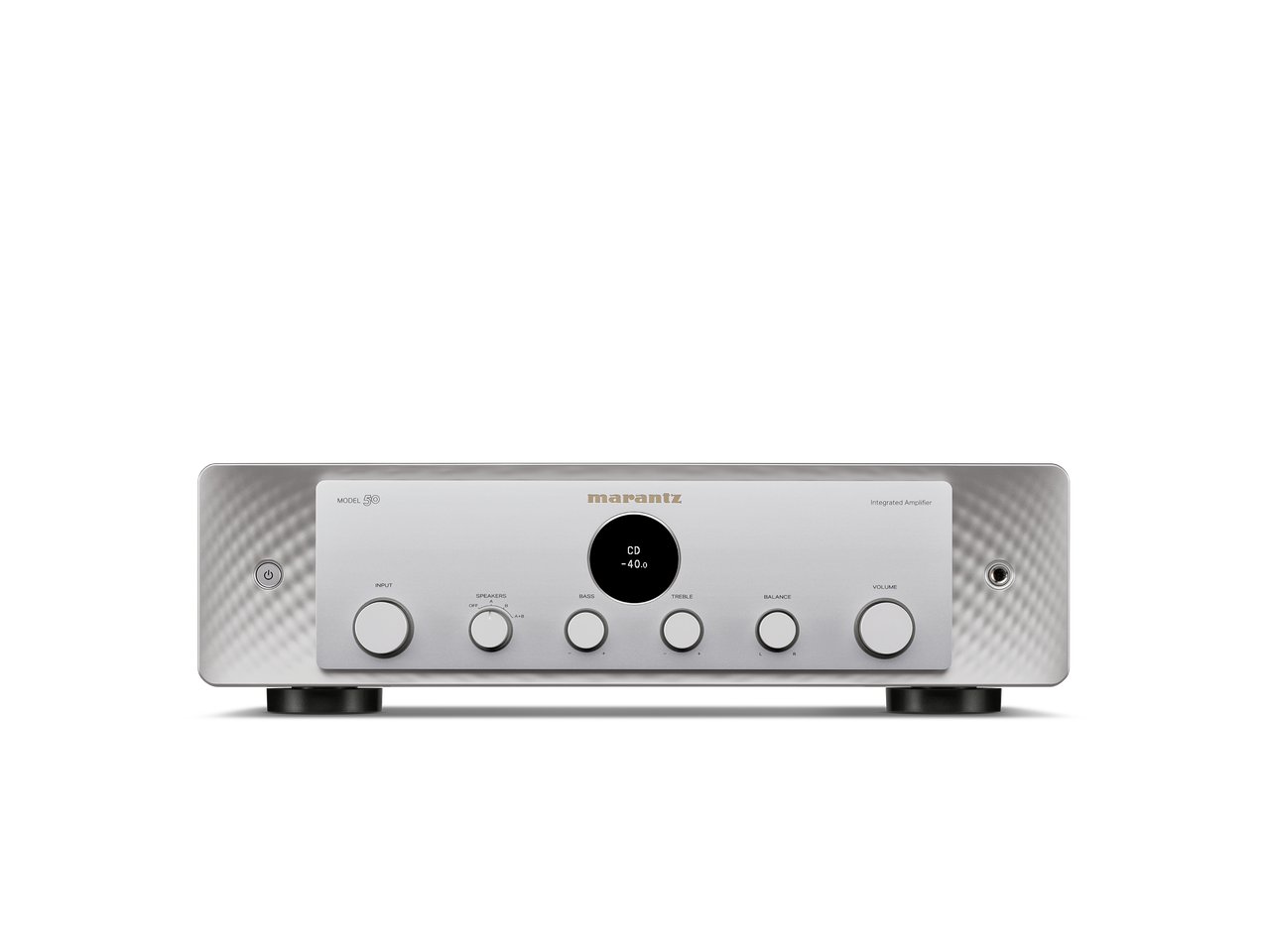

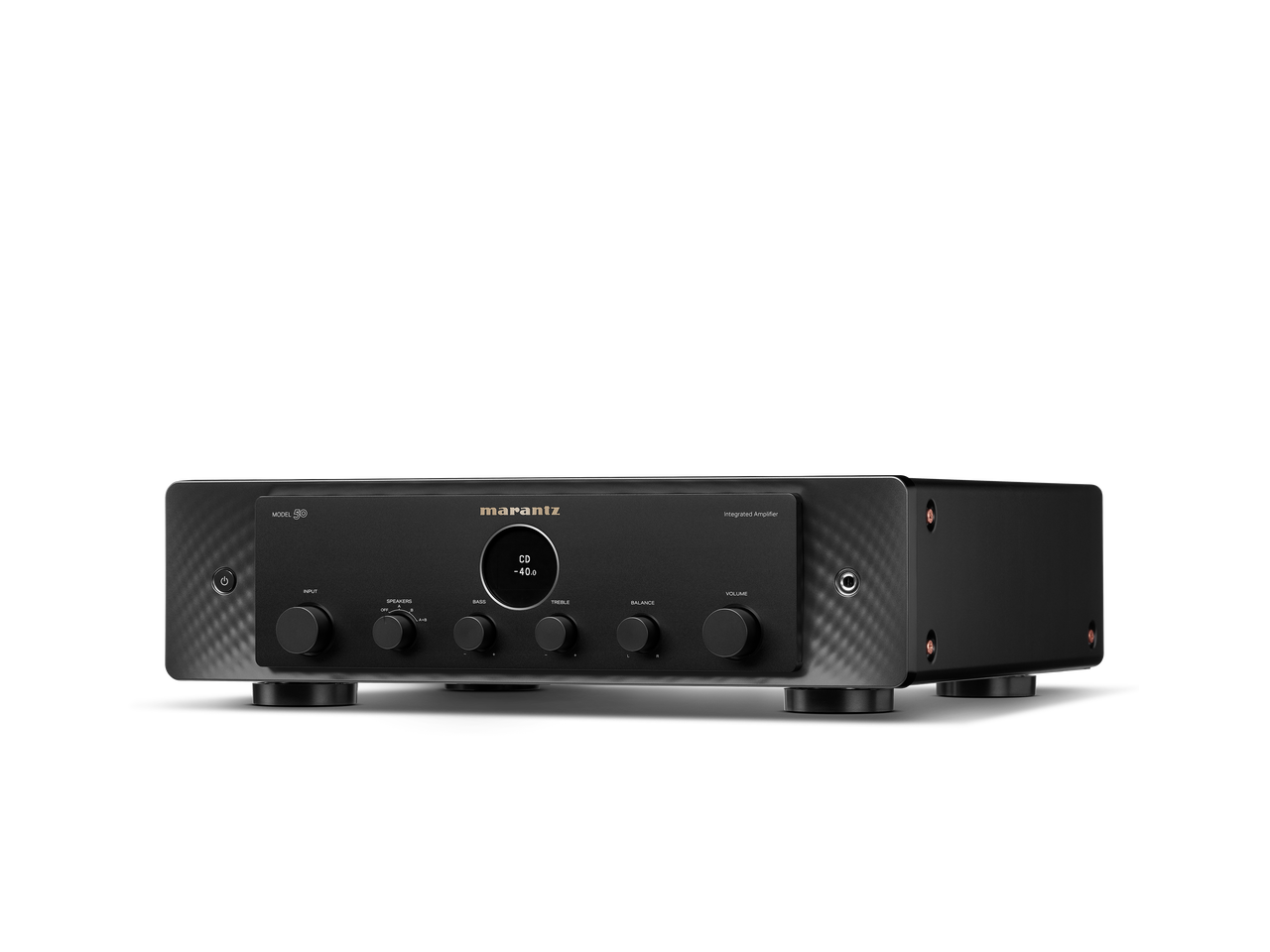

> Available Colors: Black / Silver-Gold
> Metal Front Panel: Yes
> Power Consumption: 220W
> Standby Consumption: 0.3W
> Auto Power Off: Yes
> Detachable Power Cable: Yes
> Remote Control: RC003PMND
> System Remote Function: Yes
> Maximum Dimensions (W x D x H): 442 x 431 x 130 mm
> Weight: 14.2kg
> Carton Maximum Dimensions (W x D x H): 527 x 517 x 255 mm
> Carton Weight (inc. product): 17.5kg

--
