MOONDROP DAWN PRO 2

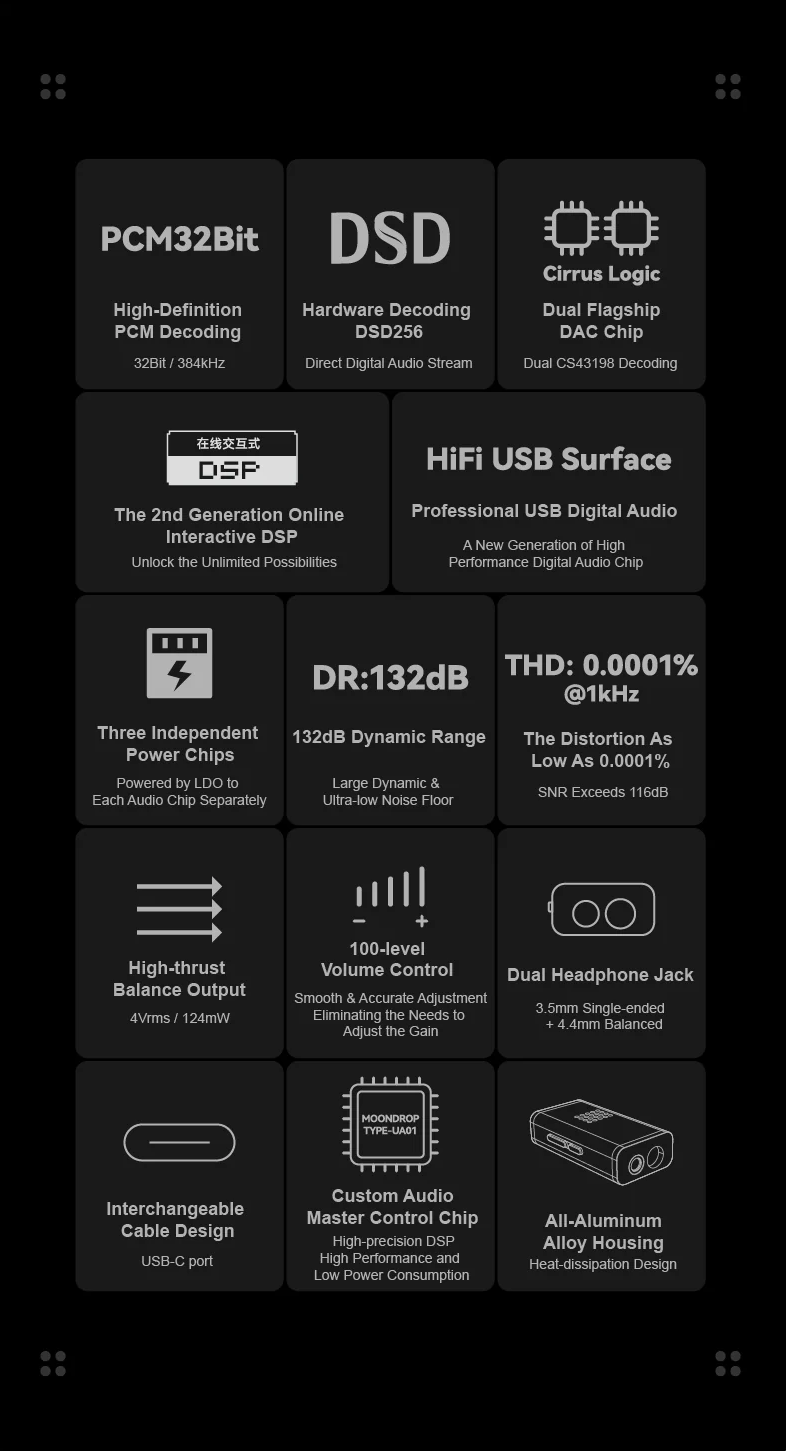

> PCM 32Bit/384kHz High-definition PCM Decoding
> Hardware Decoding DSD256 Direct Digitial Audio Stream.
> Dual Flagship DAC Chip Cirrus Logic CS43198 Decoding
> The 2nd Generation Online Interactive DSP
> Three Independent Power Chips Powered BY LDO To Each Audio Chip Separately

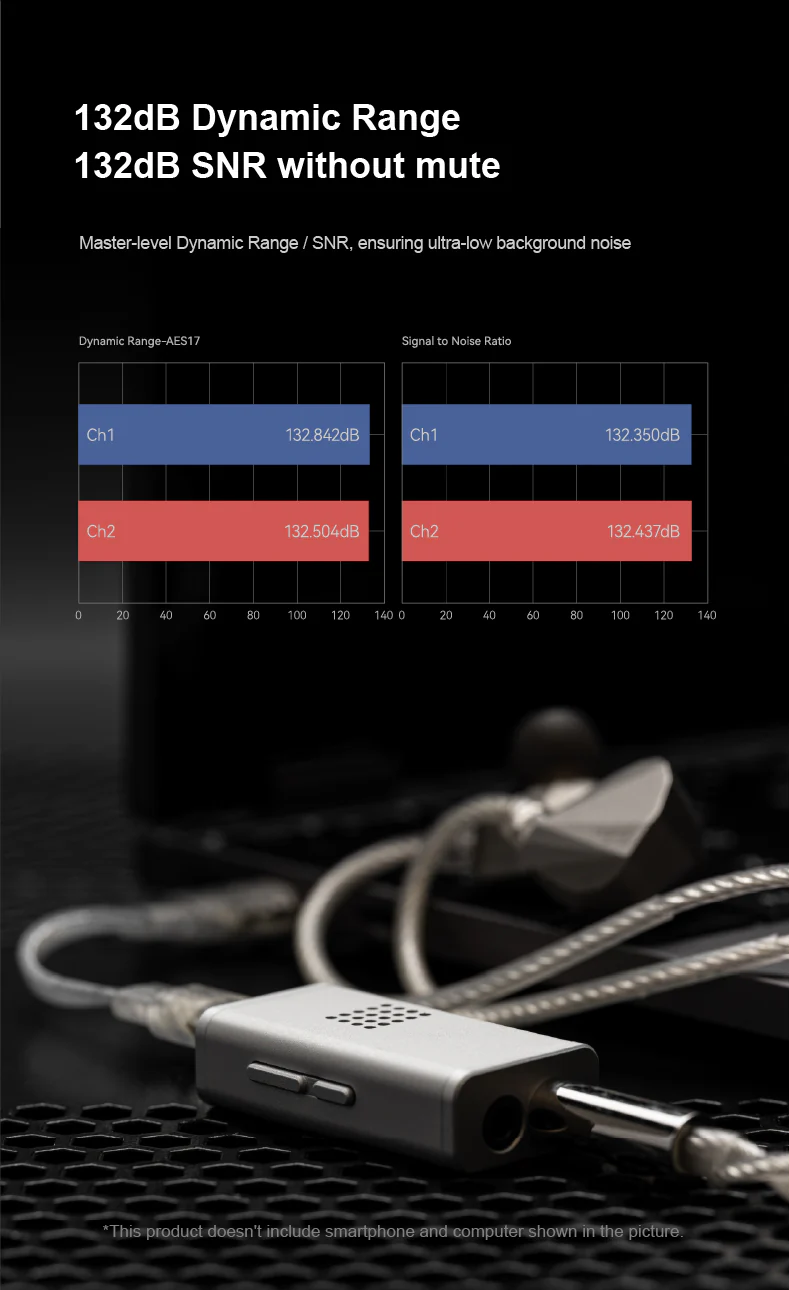

> 132dB Dynamic Range Large Dynamic & Ultra-low Noise Floor
> THD: 0.0001% @ 1kHz
> SNR Exceeds 116dB
> High-thrust Balance Output 4Vrms/124mW
> 100-level Volume Control Smooth & Accurate Adjustment Eliminating The Need To Adjust The Gain

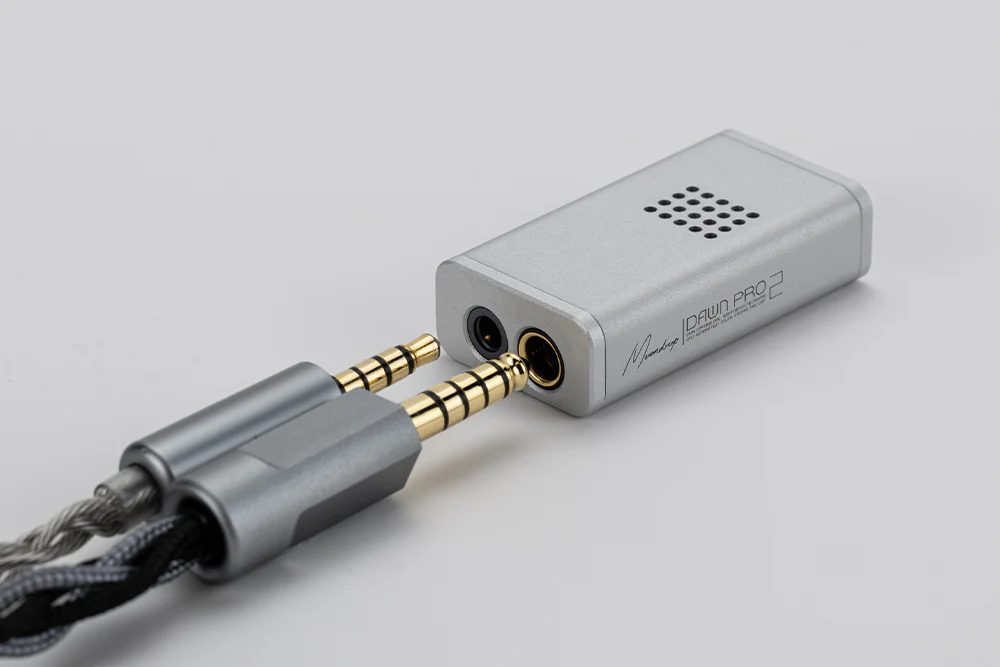

> Dual Headphone Jack 3.5mm Single-End + 4.4mm Balanced

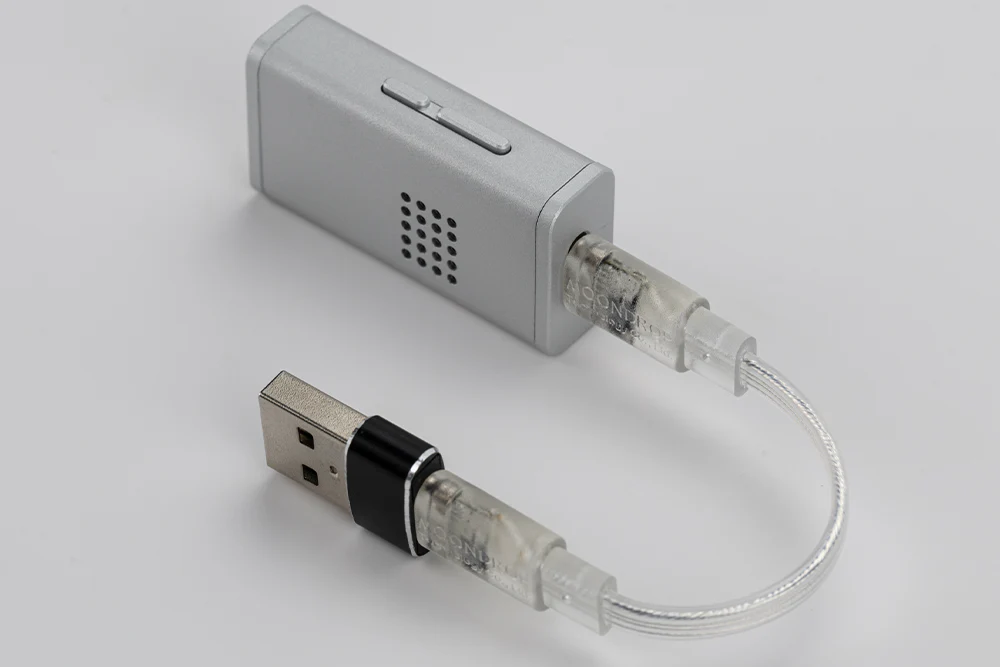

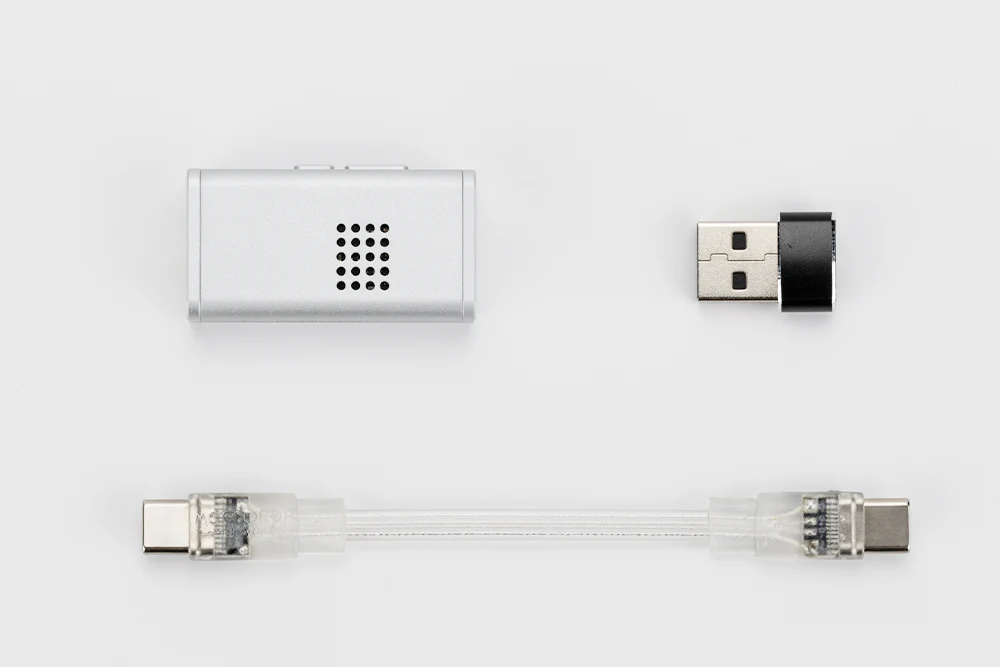

> Interchangeable Cable Design USB-C Port
> Custom Audio Master Control Chip High-precision DSP High Perfromance And Low Power Consumption
> All-Aluminum Alloy Housing Heat-dissipation Design

--
Descriptions:

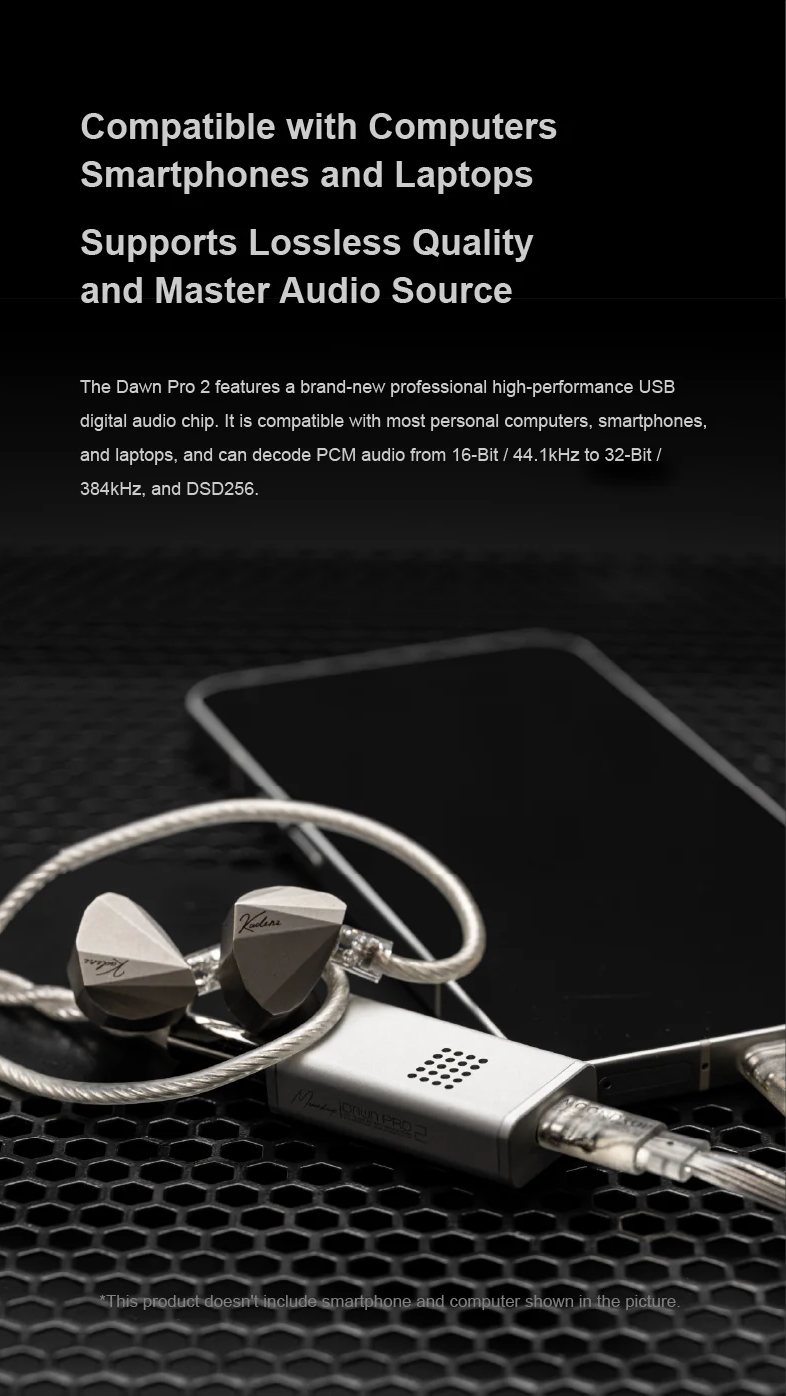

> Compatible With Computers Smartphones And Laptopps
> Support Lossless Quality And Master Audio Source
> The Dawn Pro 2 features a brand-new professional high-performance USB digital audio chip. It is compatible with most personal computers, smartphones, and laptops, and can decode PCM audio from 16-Bit/44.1kHz to 32-Bit/384kHz, and DSD256.

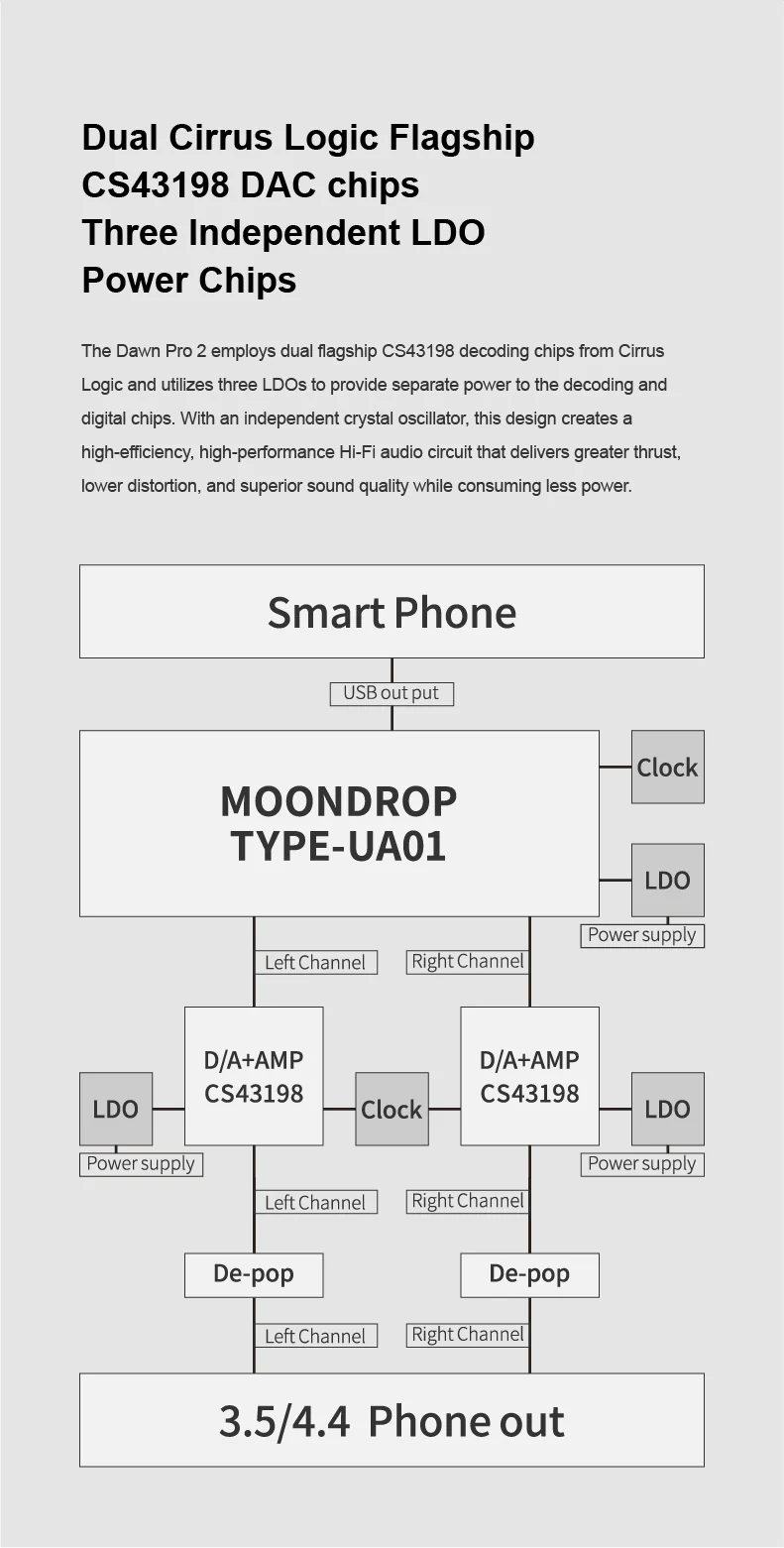

> Dual Cirrus Logic Flagship CS43198 DAC Chips
> Three Independent LDO Power Chips
> The Dawn Pro 2 employs dual flagship CS43198 decoding chips from Cirrus Logic and utilizes three LDOs to provide separate power to the decoding and digital chips. With an independent crystal oscillator, this design creates a high-effiecency, high-performance Hi-Fi audio circuit that delivers greater thrust, lower distortion, and superior sound quality while consuming less power.

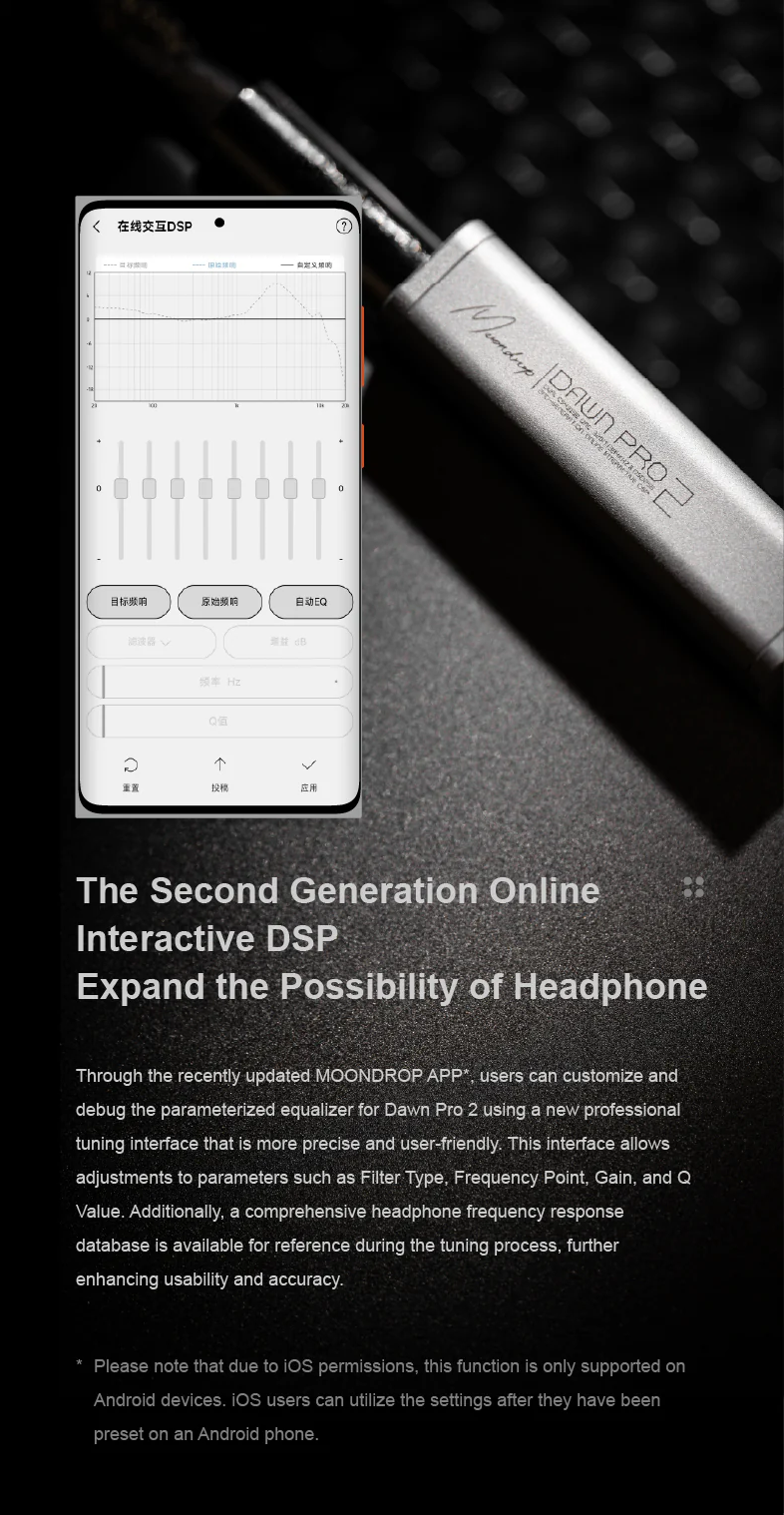

> The Second Generation Online Interactive DSP Expand The Possibility Of Headphone
> Through the recently updated MOONDROP APP, users can customize and debug the parameterized equalizer for Dawn Pro 2 using a new professional tuning interface that is more precise and user-friendly. This interface allows adjsutments to parameters such as Filter Type, Frequency Point, Gain, and Q Value. Additionally, a comprehensive headphone frequency response database is available for reference during the tuning process, further enhancing usability and accuracy.

* Please note that due to i-OS permissions, this function is only supported on Andriod devices. i-OS users utilize the settings after they have been preset on an Andriod phone.

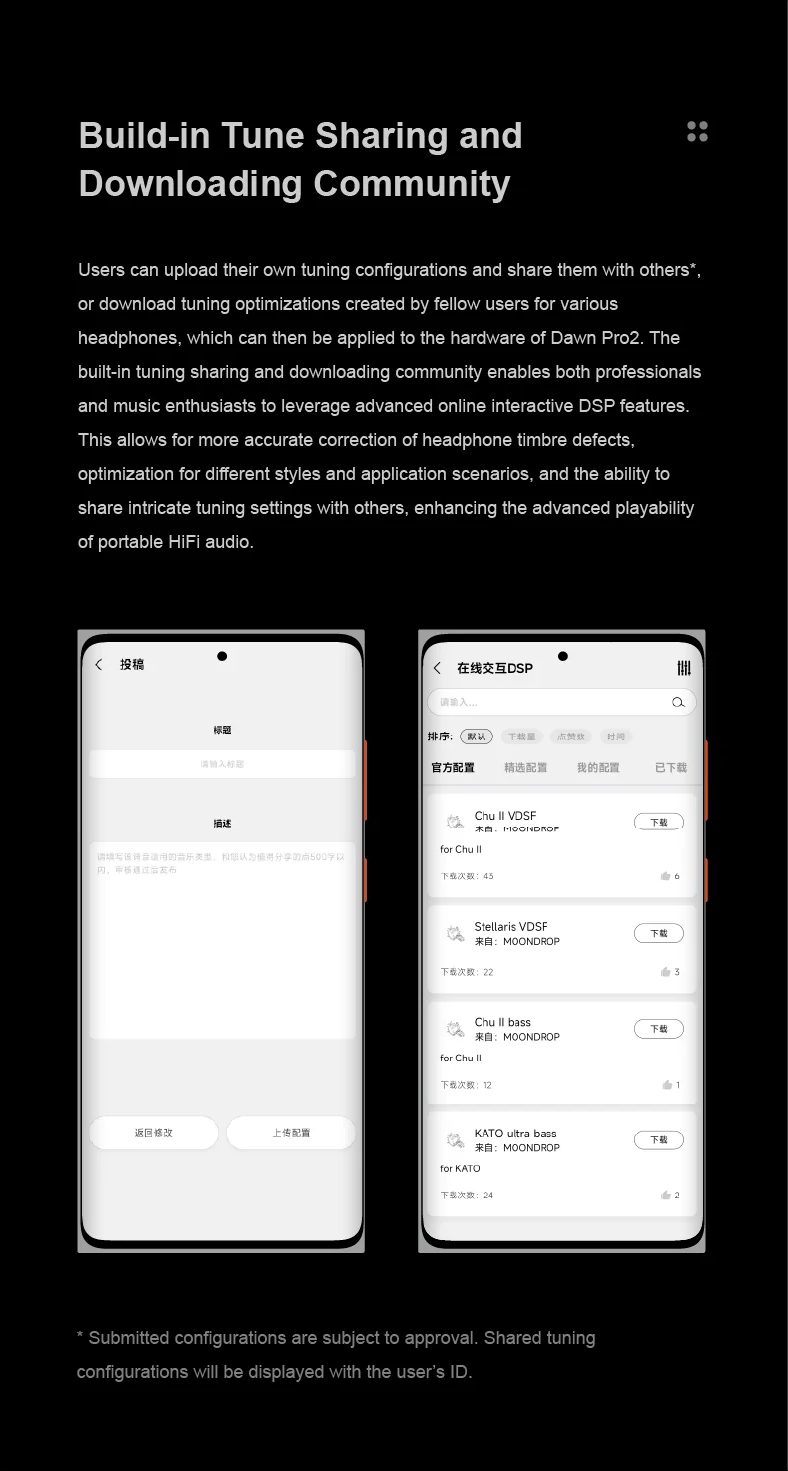

> Build-in Tune Sharing And Downloading Community
> Users can upload their own tuning configurations and share them with others, or download tuning optimizations created by fellow users for various headphone, which can then be applied to the hardware of Dawn Pro 2. The built-in tuning sharing and downloading community enables both professionals and music enthusiasts to leverage advance online interactive DSP features. This allows for more accurate correction of headphone timbre defects, optimization for different styles and application scenarios, and the ability to share intricate tuning settings with others, enhancing the advanced playability of portable HiFi audio.

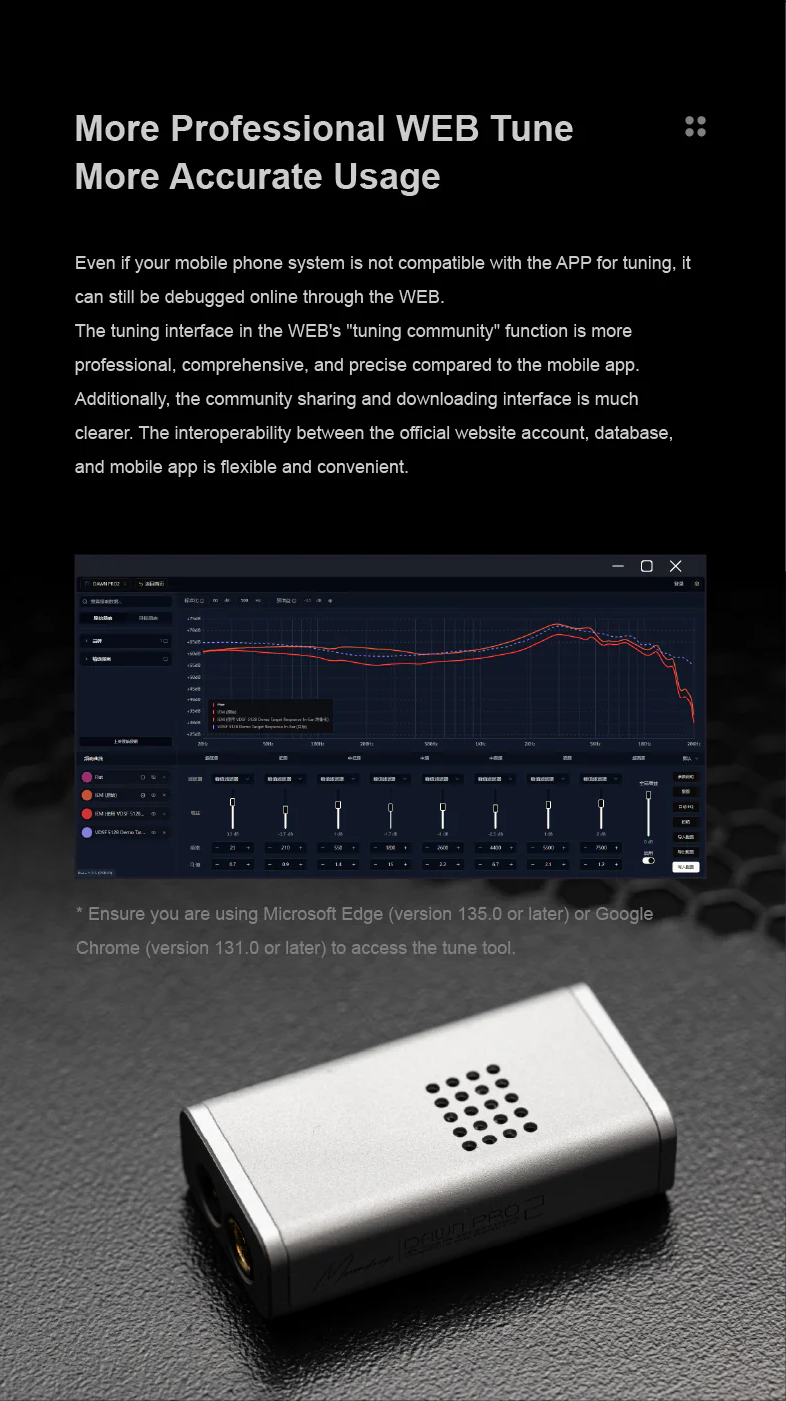

> More Professional WEB Tune
> More Accurate Usage
> Even if your mobile phone system is not compatible with the APP for tuning, it can still be debugged online through the WEB.
> The tuning interface in the WEB's 'tuning community' function is more professional, comprehensive, and precise compared to the mobile app. Additionally, the community sharing and downloading interface is much clearer. The interoperability between the official website account, database, and mobile app is flexible and convenient.

*Ensure you are using Microsoft Edge (Version 135.0 or later) or Google Chrome (Version 131.0 or later) to access the tune tool.

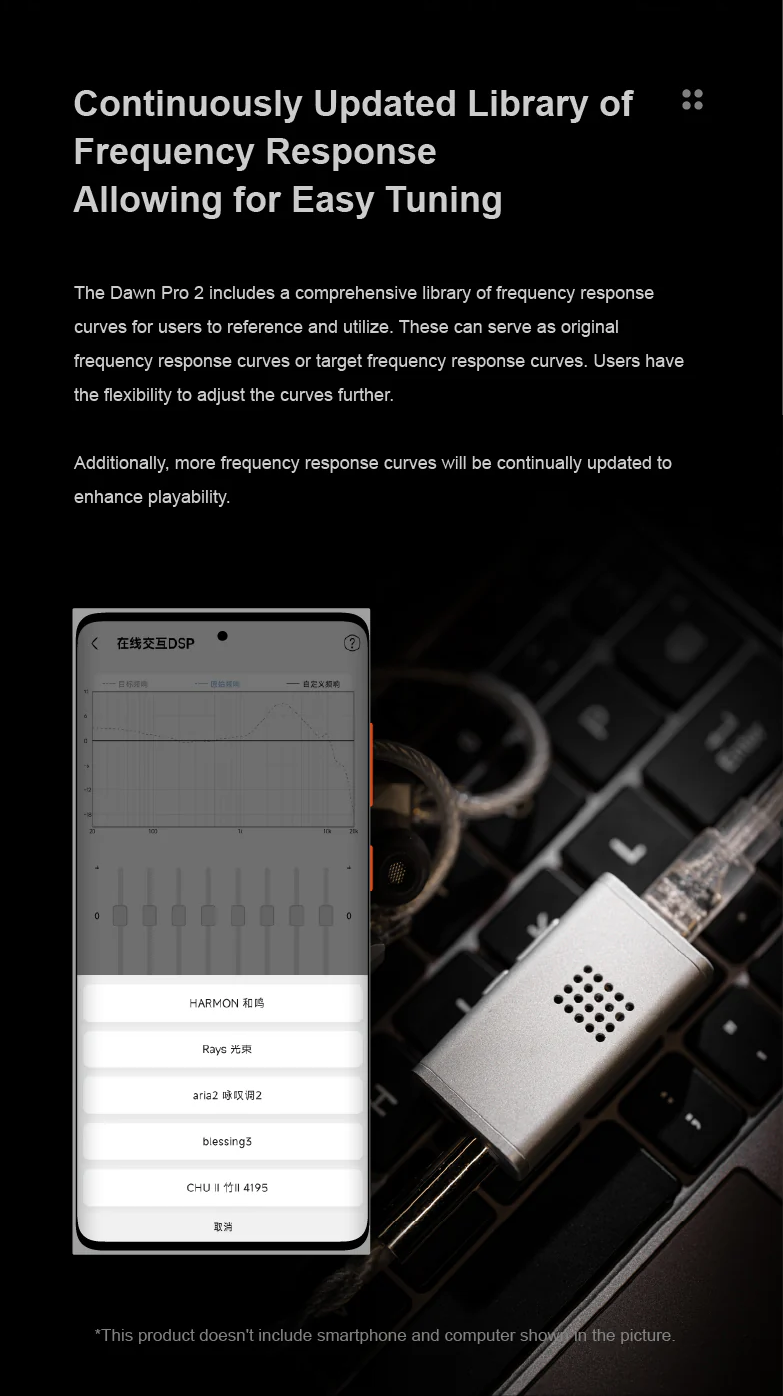

> Continously Updated Library Of Frequency Response Allowing For Easy Tuning
> The Dawn Pro 2 includes a comprehensive library of frequency response curves for users to reference and utilize. These can serve as original frequency response curves or target frequency response curves. Users have the flexibility to adjust the curves further.
> Addditionally, more frequency resposne curves will be continually updated to enhance playability.

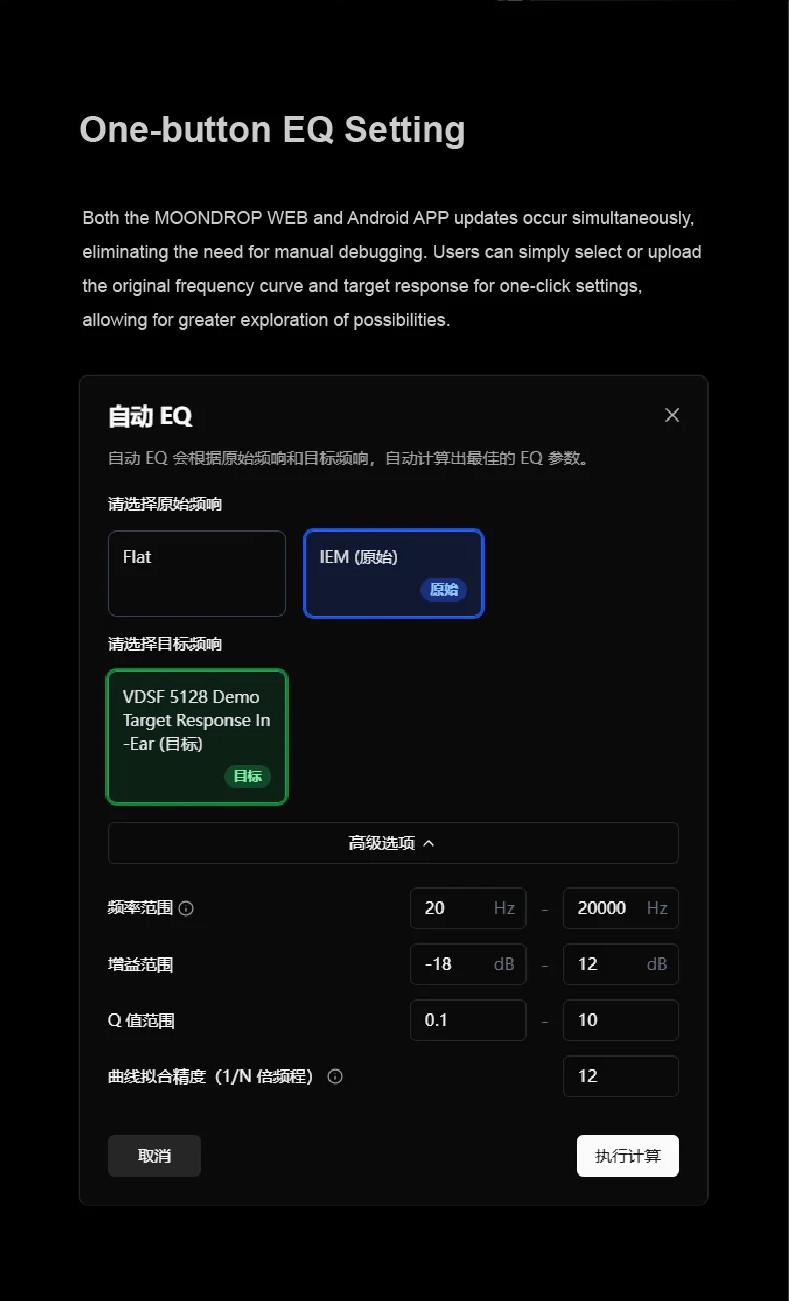

> One-button EQ Setting
> Both the MOONDROP WEB and Andriod APP updates occur simultaneously, eliminating the need for manual debugging. Users can simply select or upload the original frequency curve and target response for one-click settings, allowing for greater exploration of possibilities.

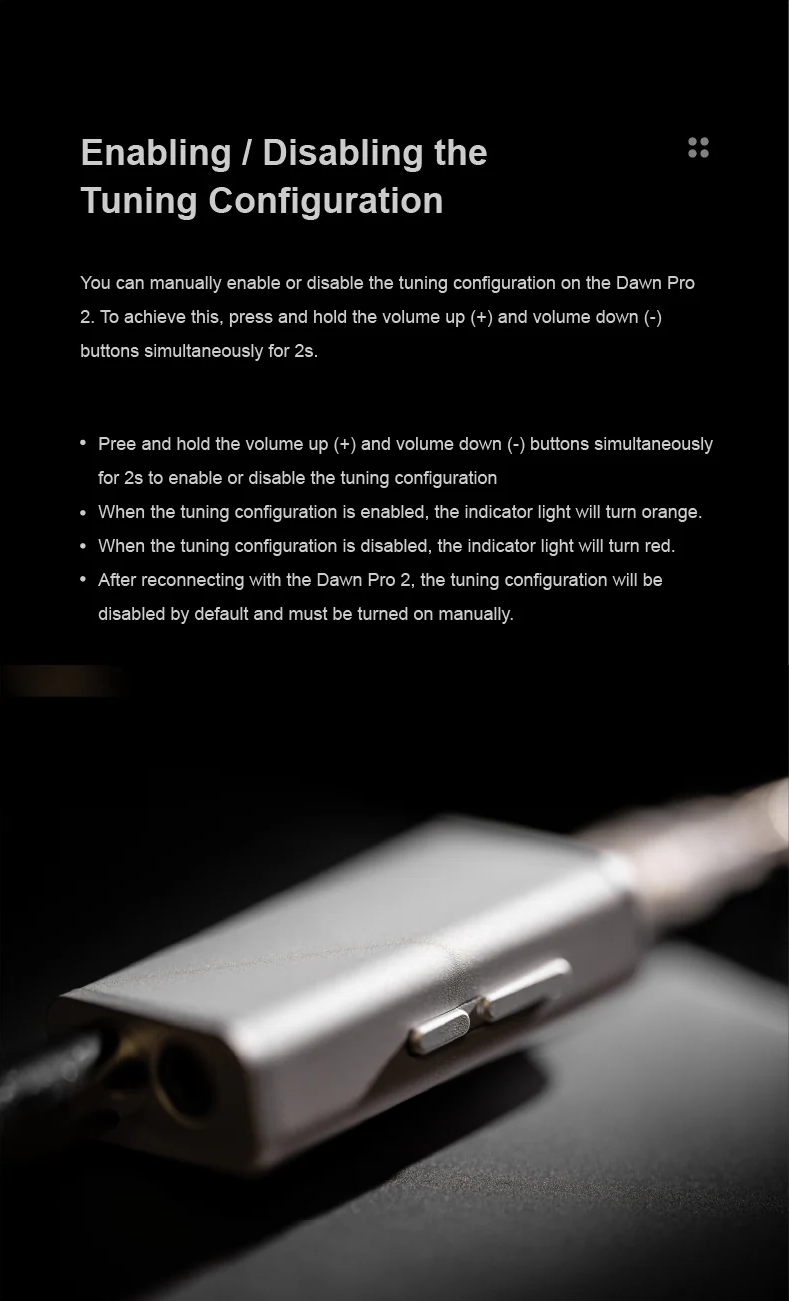

> Enabling / Disabling The Tuning Configuration

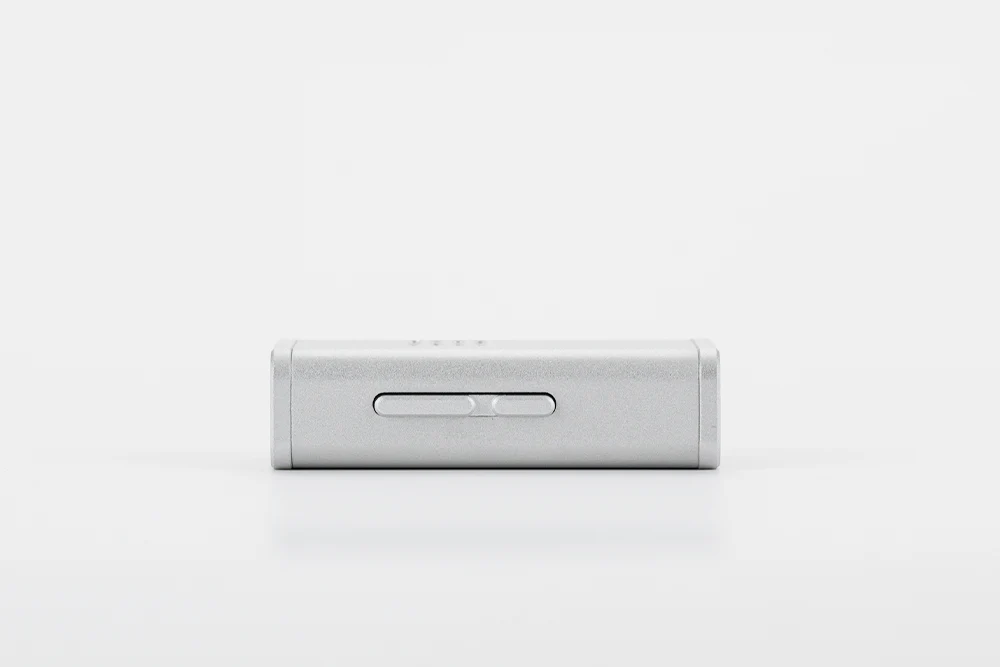

> You can manually enable or disable the tuning configuration on the Dawn Pro 2. To achieve this, press and hold the volume up (+) and volume down (-) buttons simultaneously for 2s.

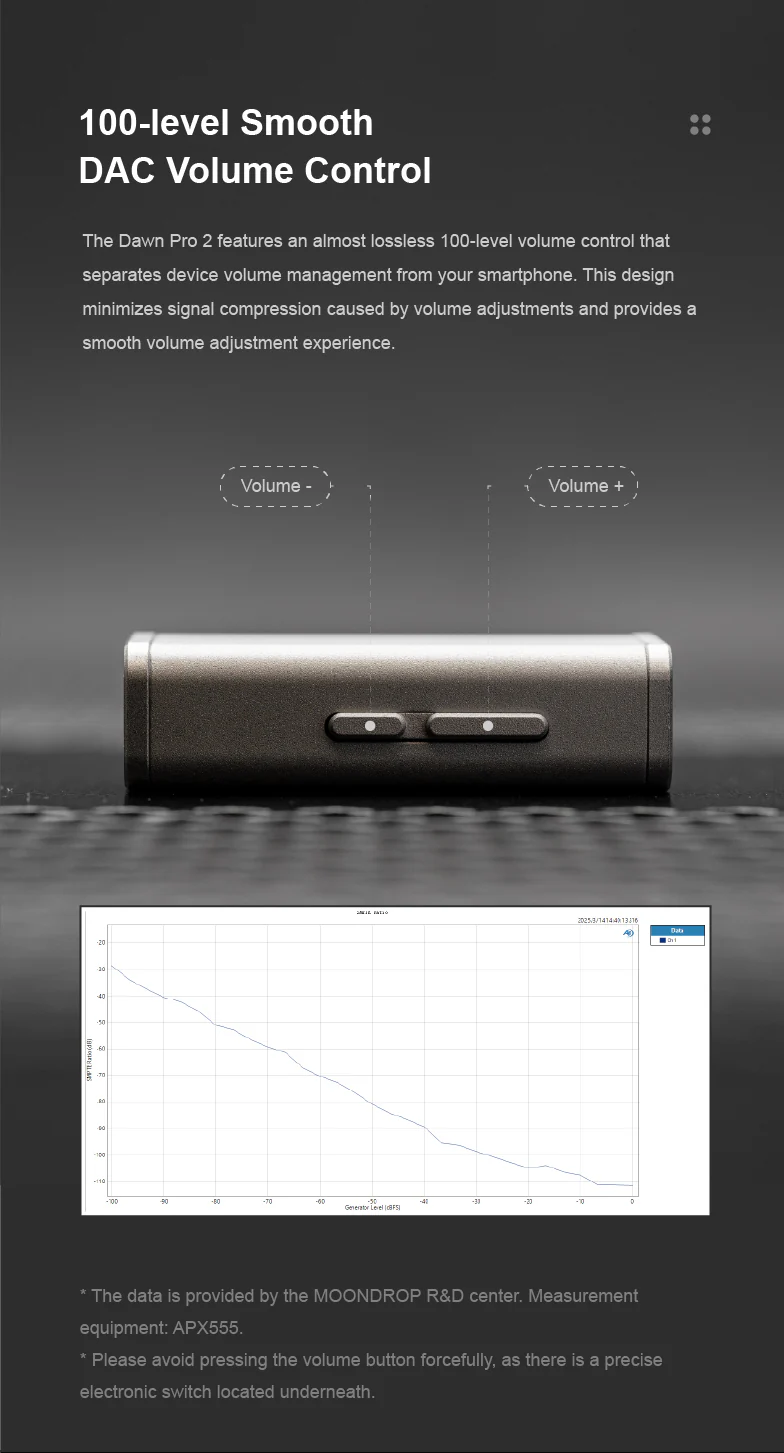

> 100-level Smooth DAC Volume Control
> The Dawn Pro 2 features an almost lossless 100-level volume control that seprates device volume management from your smartphone. This design minimizes signal compression caused by volume adjustments and provides a smooth adjustment experience.

> A Leader In Portable Miniature DAC/AMP
> The Dawn Pro 2 has achieved remarkable performance in portable amplifiers through a straightforward and efficient audio design that incoporates the latest technologies and measurement benchmarks. Whether driving headpones or functioning as a Line Out, it delivers clean and detailed sound.

> The Total Harmonic Distortion Is As Low As 0.0001% With The SNR Exceeding 116dB.
> A delicate and natural sound, faithfully delivering Hi-Fi reproduction.

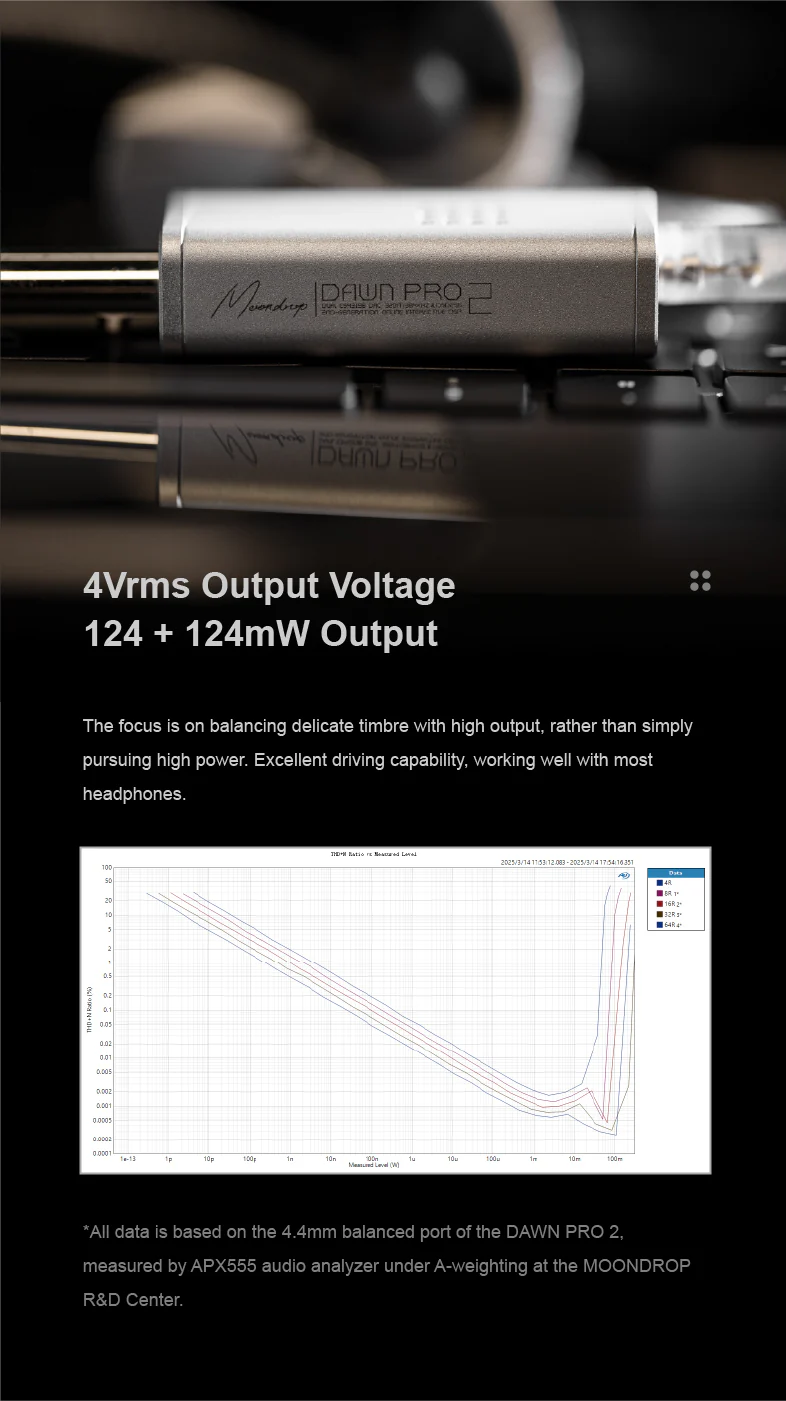

> 4Vrms Output Voltage
> 124 + 124MW Output
> The focus is on balancing delicate timbre with high output, rather than simply pursuing high power. Excellent driving capability, working well with most headphones.

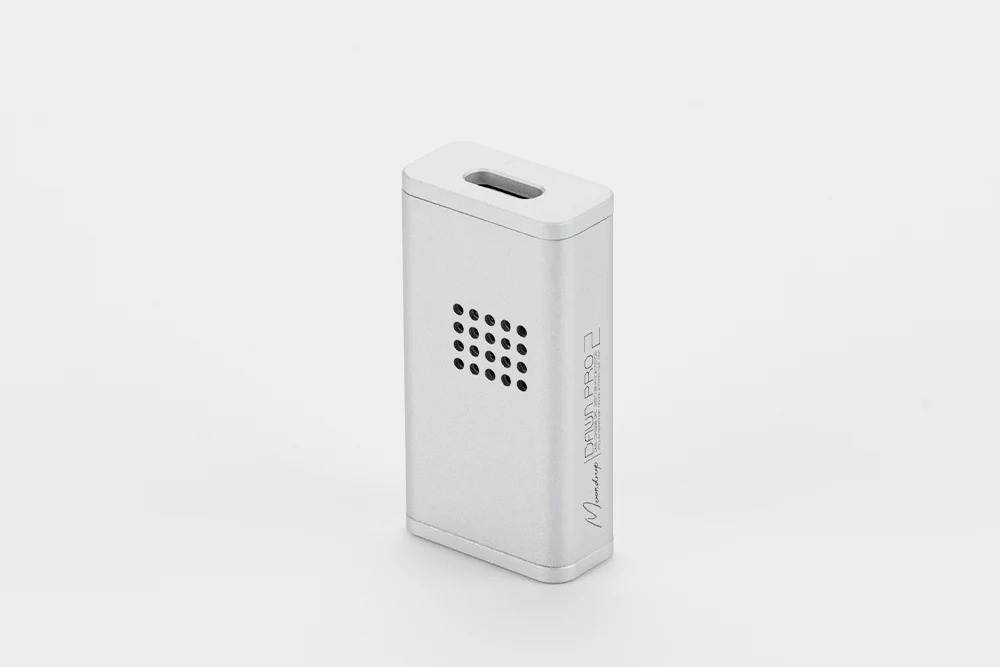

> Aluminum Alloy Housing
> Heat Dissipation Design

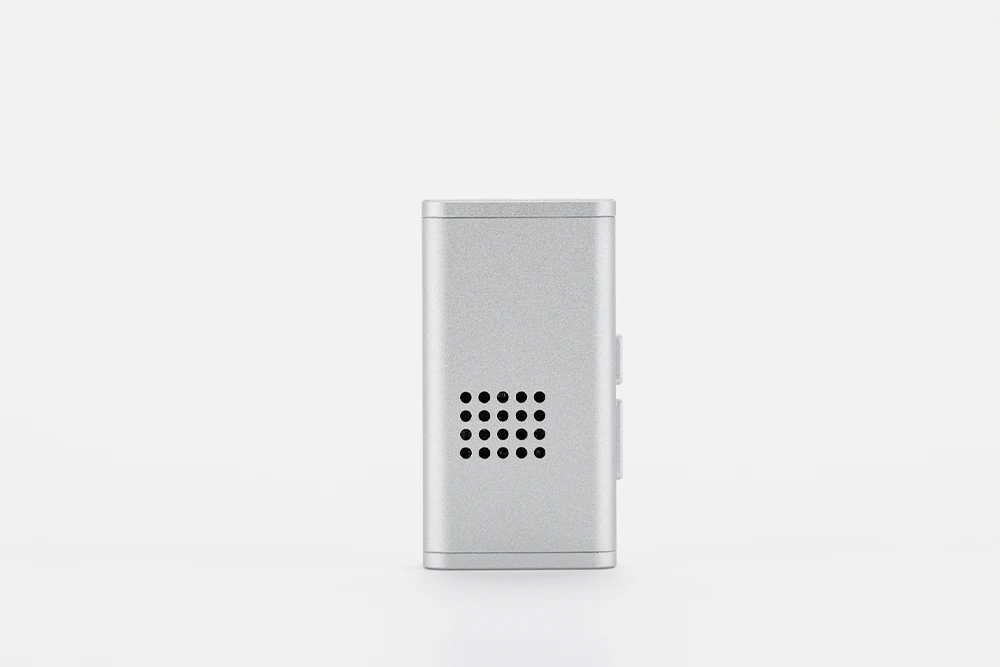

> The housing of the Dawn Pro 2 is crafted from aviation-grade aluminum alloy, using CNC techniques and mold forming. The surface treatment involves anodizing, which enhances both texture and durability. For heat dissipation, the design is inspired by desktop HiFi devices. The vents are strategically placed above the chips that generate more heat, significantly improving heat dissipation efficiency.

--
Specifications:

> Earphone Jack: 3.5mm Single-ended / 4.4mm Balanced Jack
> Dynamic Range (A-wt): 132dB @ 1kHz
> THD+N: 0.00014% @ 1kHz
> Output Magnitude: 4.1Vrms @ 0dBFS
> Output Power: 124 + 124 mW @ 16Ω THD+N<1%

--
