[🎶SG] MoonDrop Illumination, Reference class IEM, 1DD 11mm diaphragm, 1.6 Tesla Neodymium magnet, CNC Titanium Shell, 25Ω

🎵 AUTHORIZED DEALER - Local warranty & after sales support


Contact Us:
📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084
📧 Email us @ sales@samaudiosg.com
🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), S(338729) - Demo units available
Note : some promotions are not stackable

--
MoonDrop Illumination, Reference class IEM, 1DD LCP diaphragm, N52 Neodymium magnet, CNC Titanium Shell, 25Ω

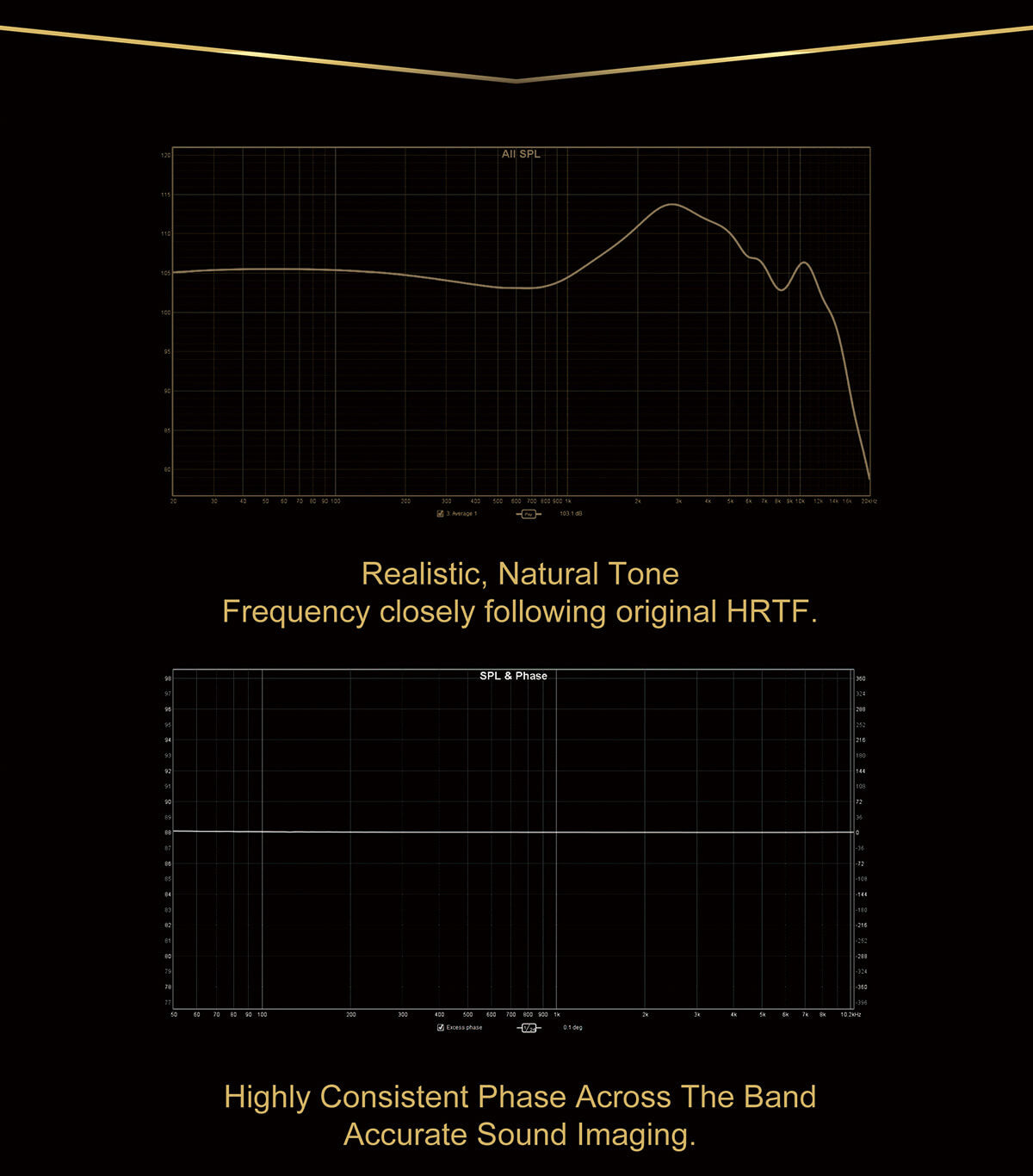

Moondrop Illumination is the flagship reference grade single dynamic driver IEM from the brand. It is a superbly crafted pair with a golden luster and anti-scratch tin plating on the earpieces. Equipped with a powerful high-fidelity dynamic driver unit, the pair produces a crisp reference-grade sound quality output which follows the neutral curve of most ears (natural HRTF response).

--

Features:

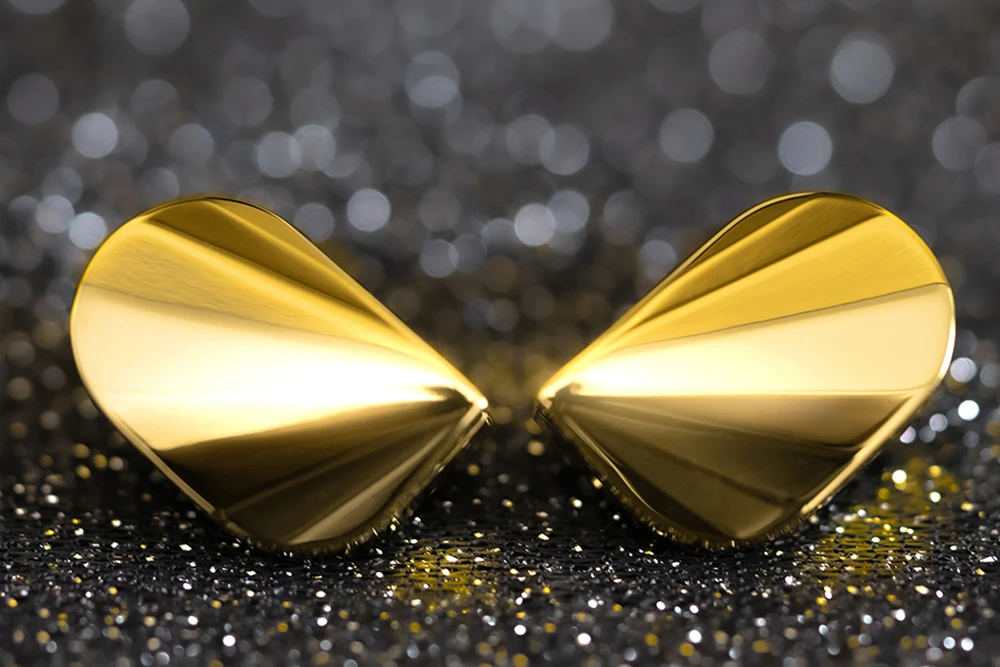

>5 AXIS CNC MILLED TITANIUM ALLOY Shell, ANTI SCRATCHING TIN PLATING. Extremely sturdy golden surface keeps the earphone nice and shiny. It barely leaves a trace even when scratched with a knife.

>LIQUID CRYSTAL POLYMER 11mm Diaphragm +PEEK HIGH DAMPING FACTOR SUSPENSION :The frequency response dives down to 10Hz in the bass and 50kHz in treble (Measured under 1/4Inch Free Field Mic).

>1.6T flux N52 Neodymium magnet architecture, CNC milled high flux conducting magnetic circuit. Coaxial 7 vents and independent brass back chamber design accurately control resonant frequency. Japan imported 0.035mm CCAW coil, lightweight suspension design. Independent copper support frame significantly reduces magnet leakage.

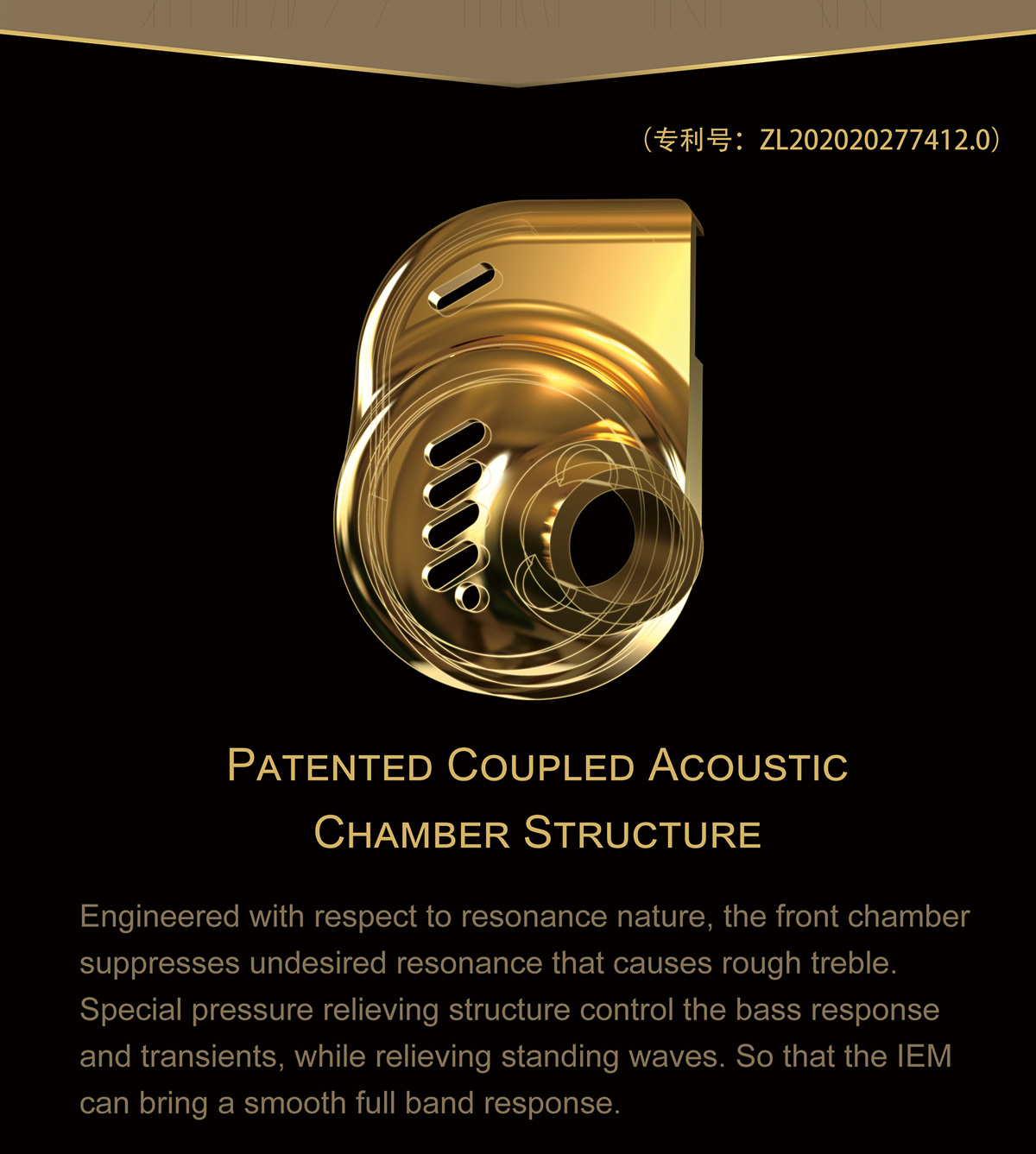

>PATENTED ACOUSTIC CHAMBER STRUCTURE: Engineered with respect to resonance nature, the front chamber suppresses undesired resonance that causes rough treble. Special pressure relieving structure control the bass response and transients, while relieving standing waves. So that the 1EM.

>OCC COPPER WIRE AND SPC SHIELDING : Illumination comes with low impedance coaxial structure cable with 6n OCC wire and SPC shielding to bring you clear, clean sound.

>Ultra low distortion output. THD+N:≤0.3%

>Technical Specifications:
Frequency Response: 20-20000Hz (IEC60318-4), 10-50000Hz (1/4Inch Free field Mic)
Impedance: 25.9 @1kHz
Sensitivity: 124dB/V rms @1kHz
Housing Material: 5 axis CNC milled TC4 titanium alloy with tin plating
Damper: Patented coupled acoustic chamber structure
Socket: 0.78 2pin
Cable: OCC copper with SPC shielding, swappable plugs 2.5mm/4.4mm balanced + 3.5mm SE
