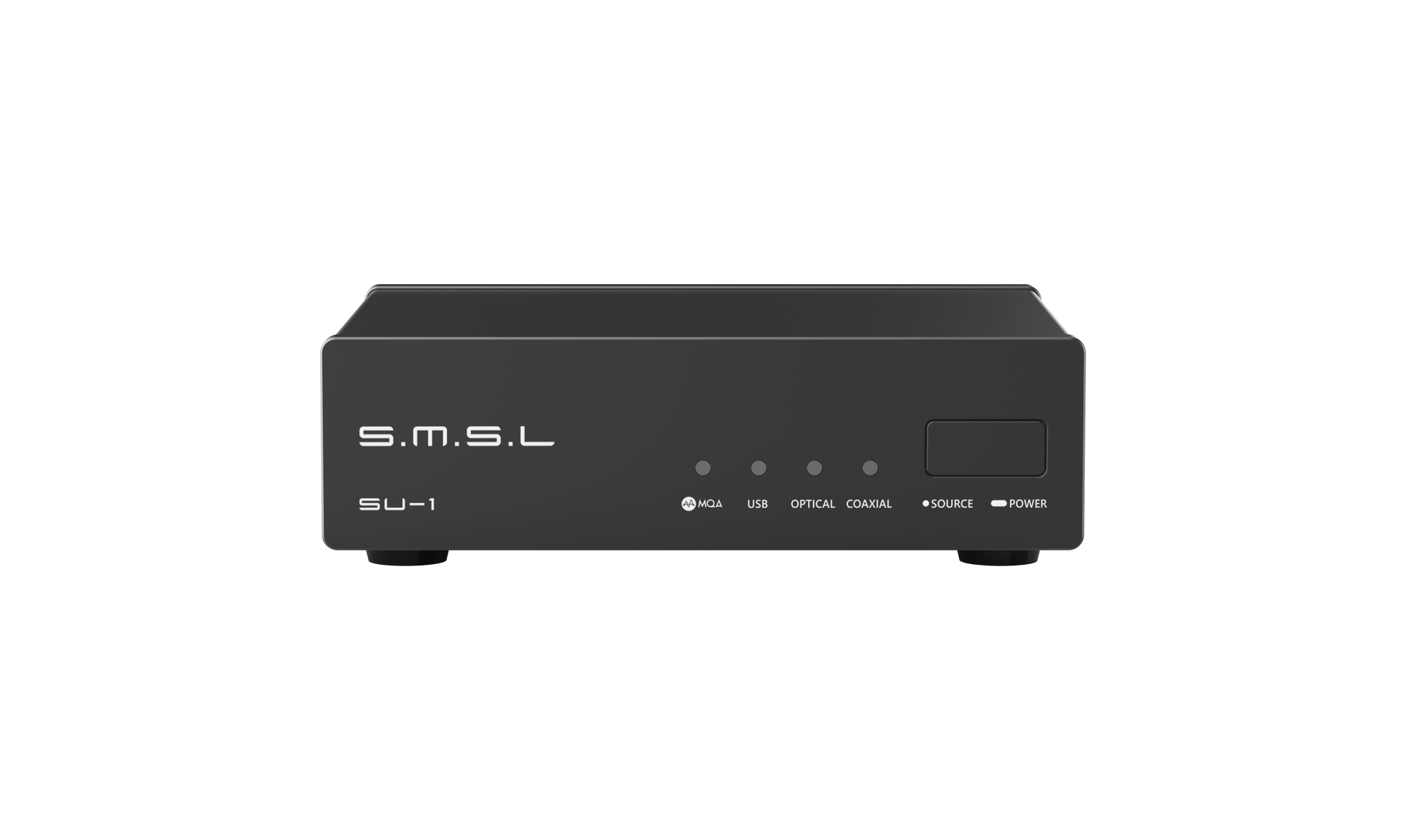

SMSL SU-1 MQA Audio AK4493S DAC

> Hi-Res Audio and MQA support
> XMOS XU-316 chipset
> AKM AK4493S DAC
> PCM 32-bit/768kHz and DSD512 support
> CNC aluminum alloy housing
> Single-ended line out

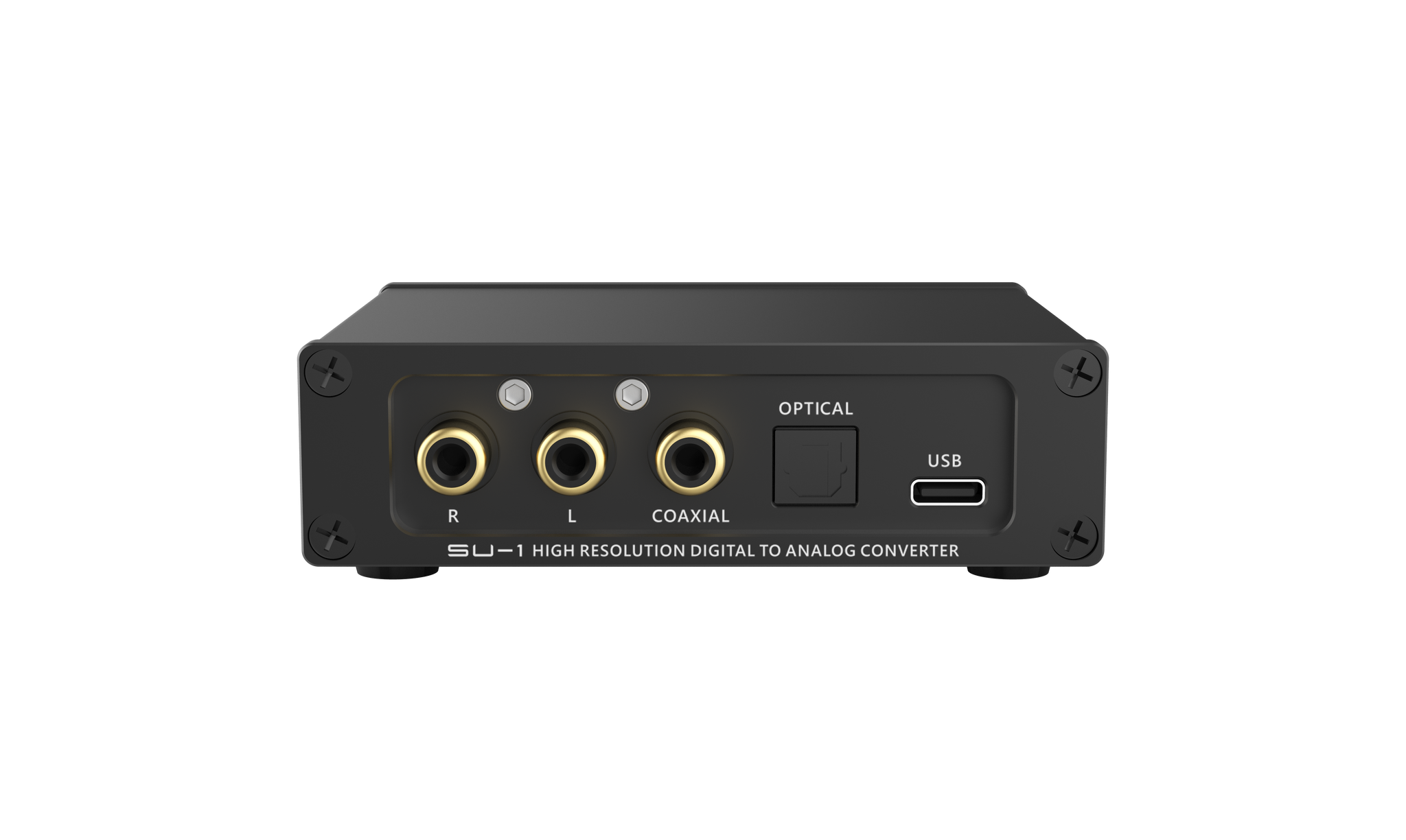

> Coaxial, optical, and USB inputs
> Full-functioning remote control
> Ultra mini design
> 121dB dynamic range
> 121dB SNR

--
Descriptions:

> Introducing the budget king
> Introducing the SMSL SU-1 MQA Audio DAC, a compact and powerful digital-to-analog converter (DAC) that offers high-resolution audio, MQA technology, and a wide range of connectivity options for an immersive listening experience.

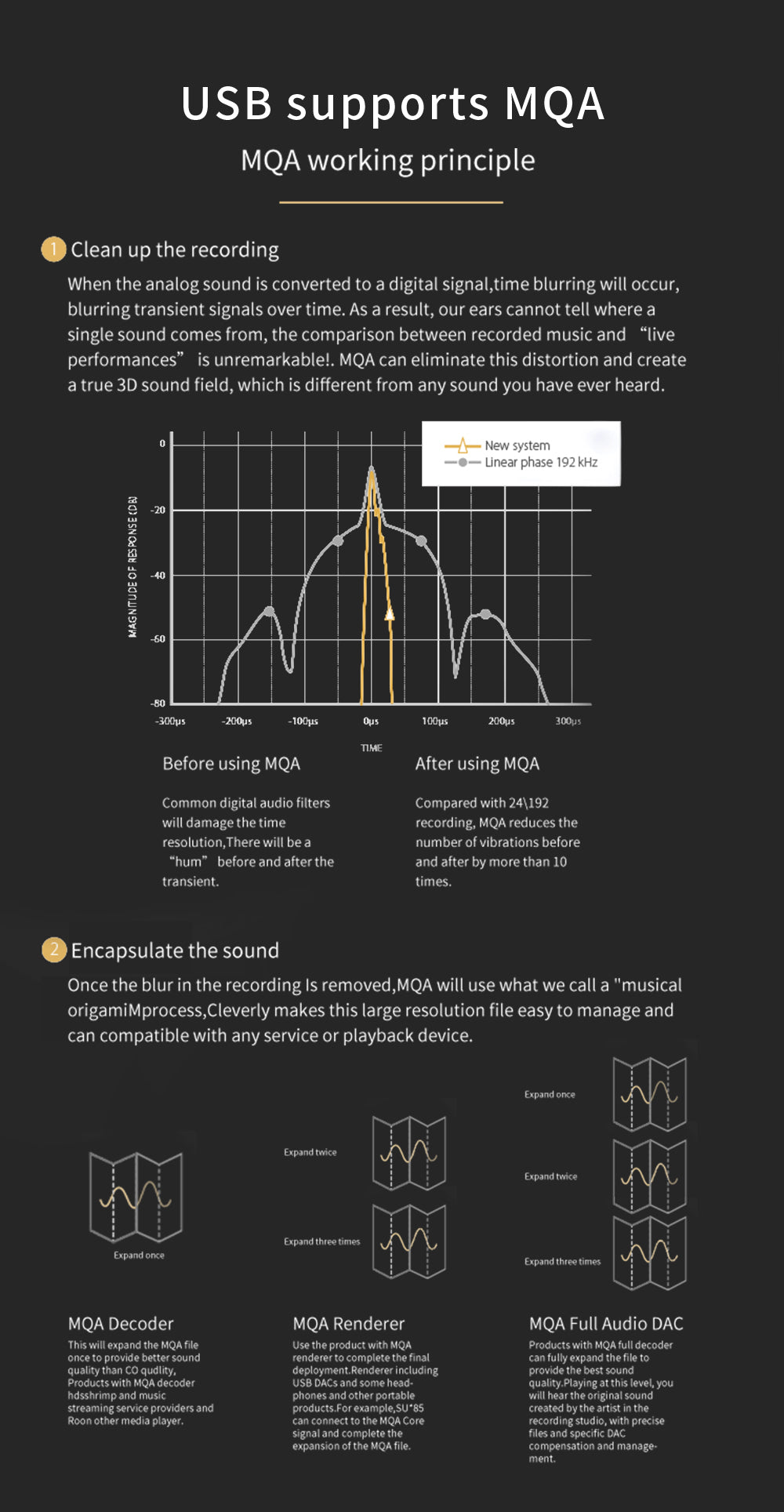

> Hi-Res audio and MQA

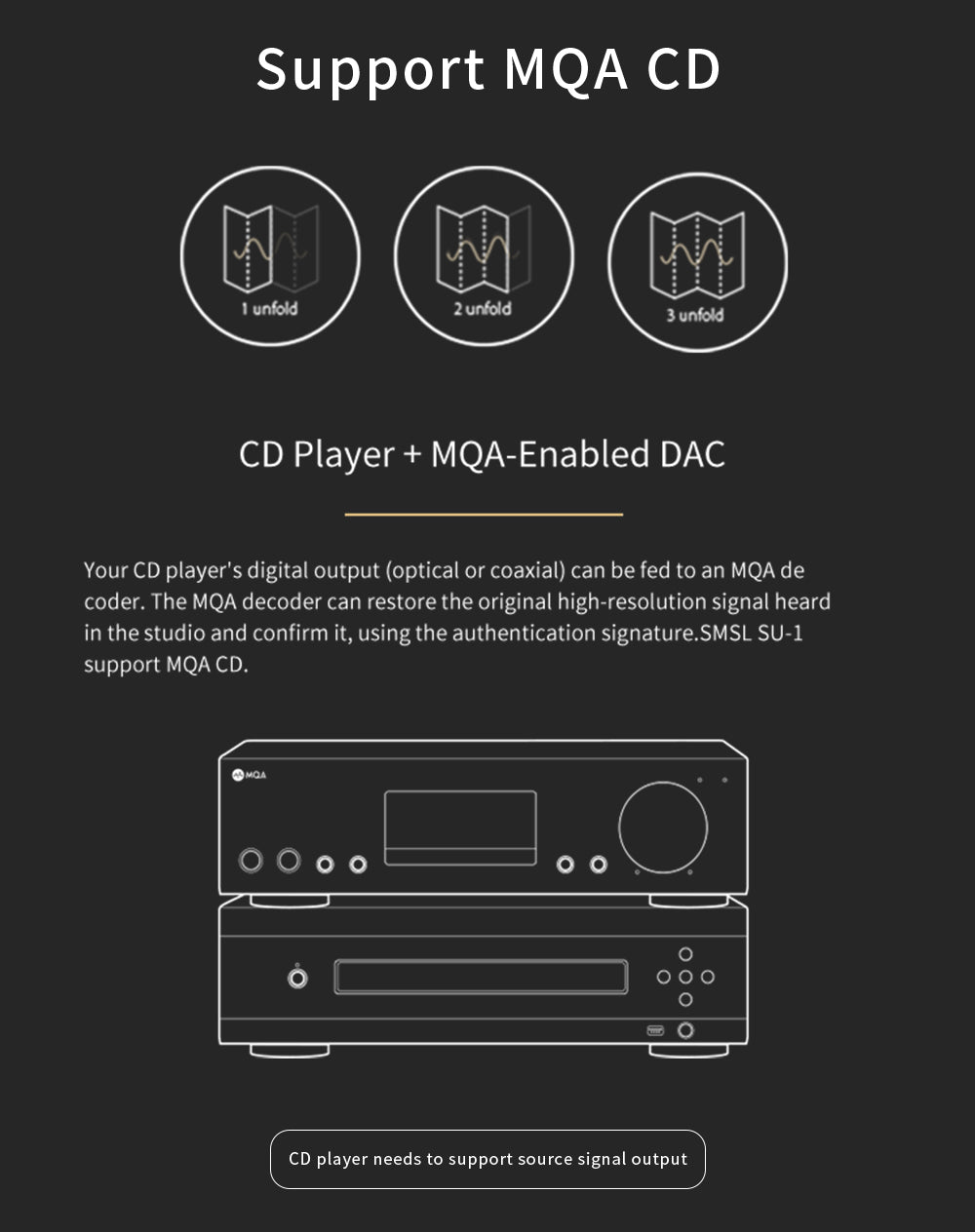

> The SMSL SU-1 supports Hi-Res Audio, featuring the latest MQA technology, and MQA CD playback. With its advanced decoding capabilities, it ensures the highest quality audio reproduction, perfect for audiophiles seeking true-to-life sound.

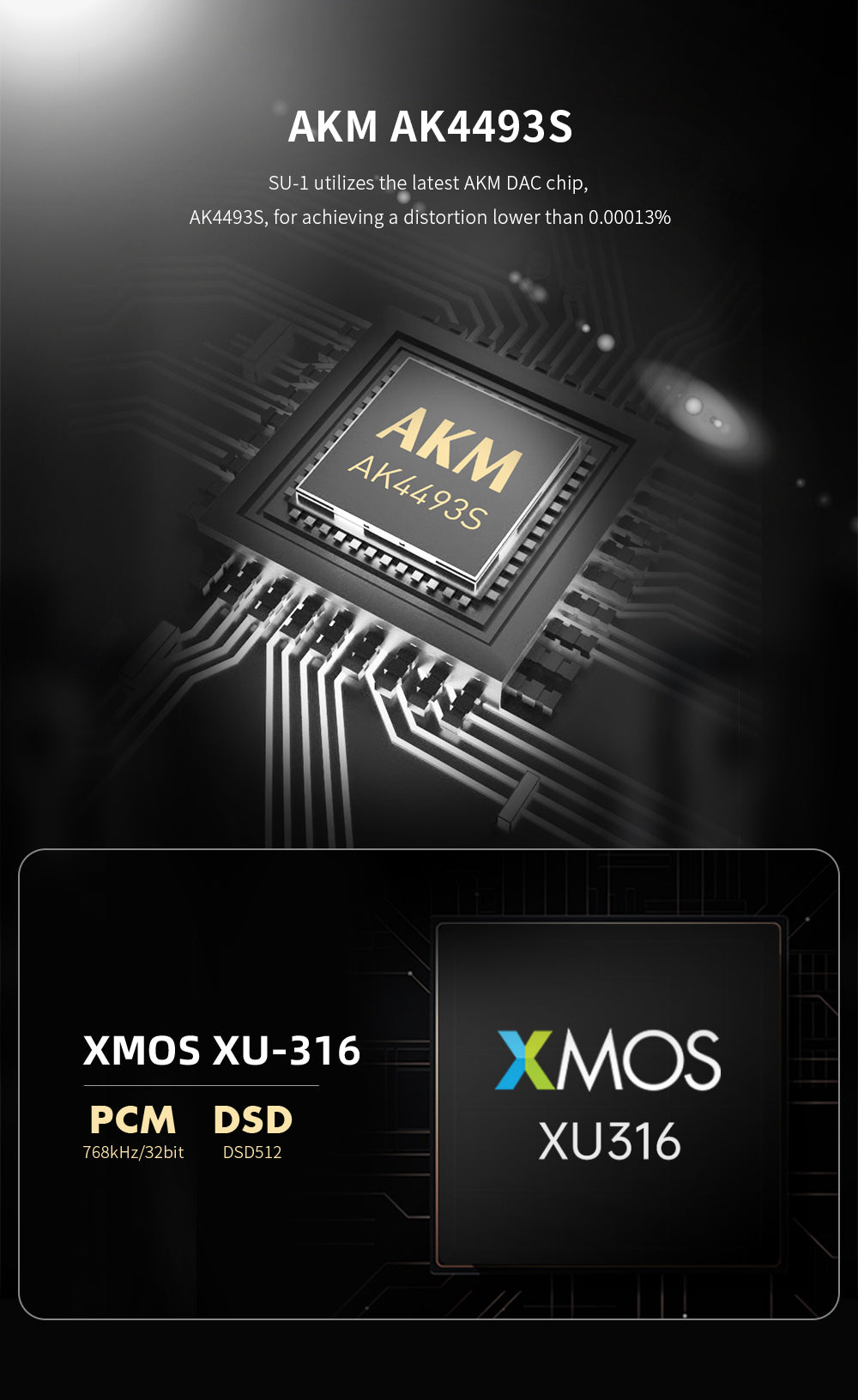

> XMOS XU-316 and AKM AK4493S
> Equipped with the XMOS XU-316 chipset and AKM AK4493S DAC, the SU-1 delivers PCM 32-bit/768kHz and DSD512 support, resulting in exceptional sound quality, detail, and accuracy.

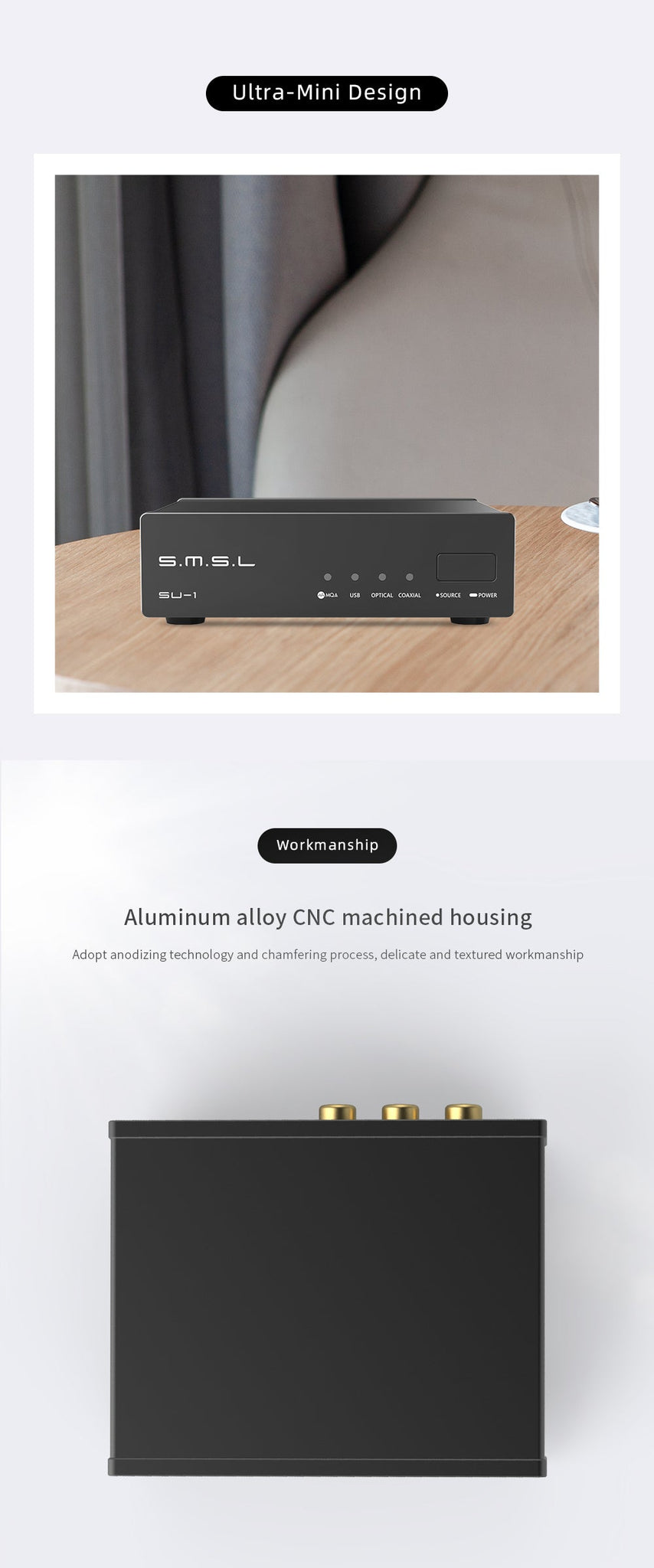

> CNC aluminum alloy housing
> The SU-1 features a CNC aluminum alloy housing, ensuring durability and excellent heat dissipation. This compact design is perfect for those seeking a high-quality DAC without taking up too much space.

> Versatile connectivity
> With a variety of inputs, including coaxial, optical, and USB, the SU-1 provides flexible connectivity options to suit your audio setup. The single-ended line out allows for easy integration with your existing audio equipment.


--

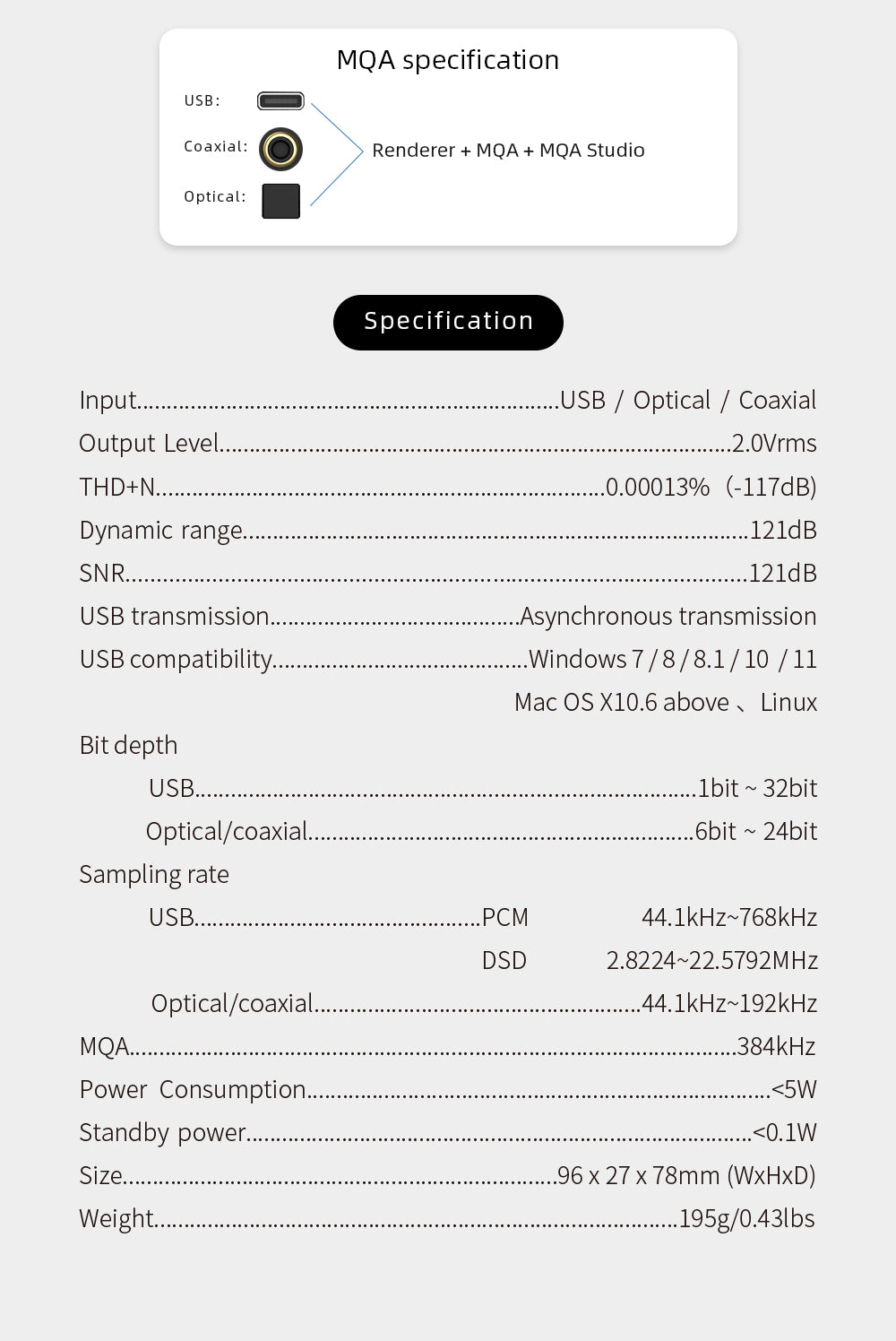

Specifications:

> Inputs: USB, optical, coaxial
> Output level: 2.0Vrms
> THD+N: 0.00013%

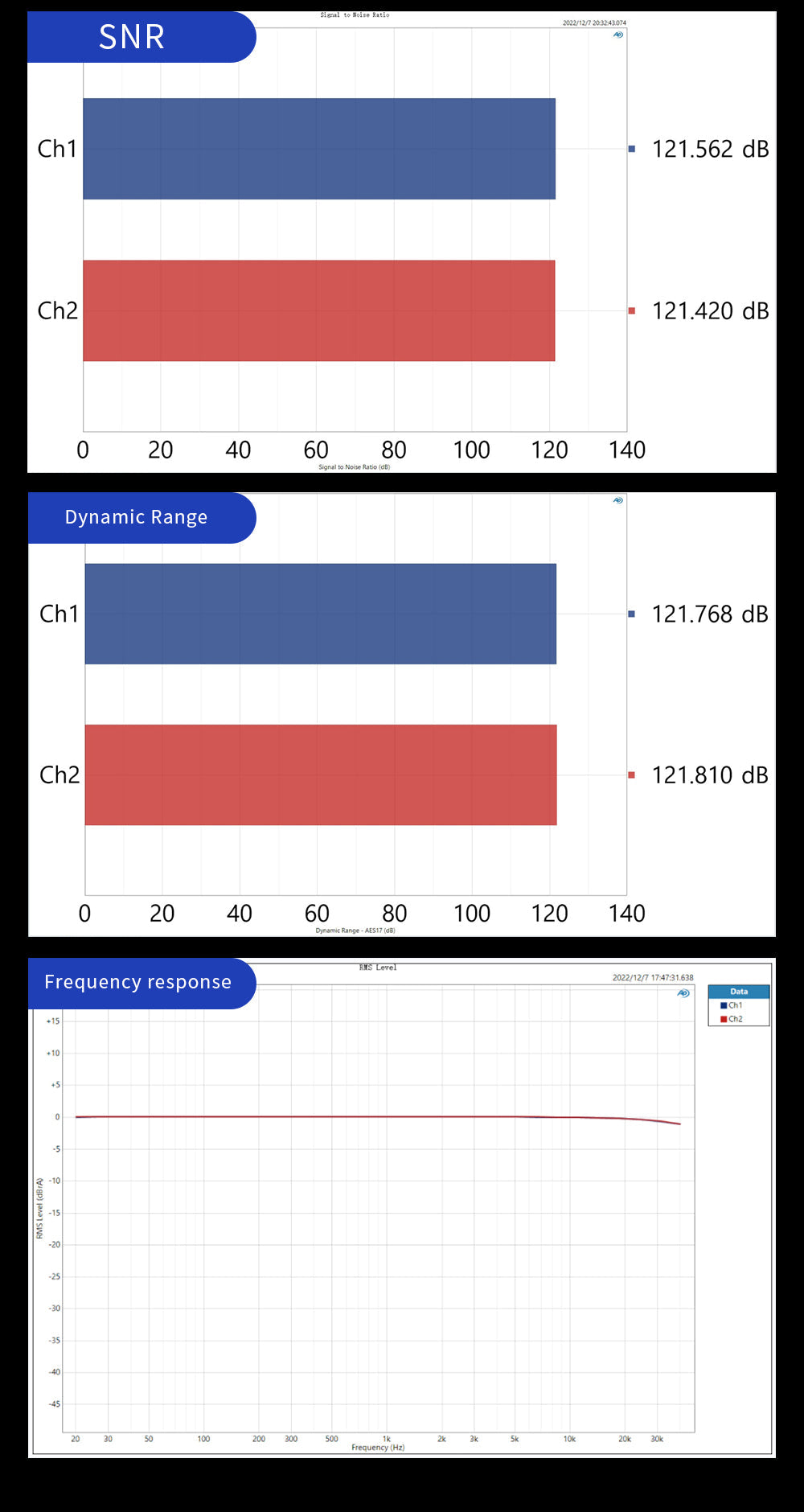

> Dynamic range: 121dB
> SNR: 121dB
> USB transmission: Asynchronous transmission

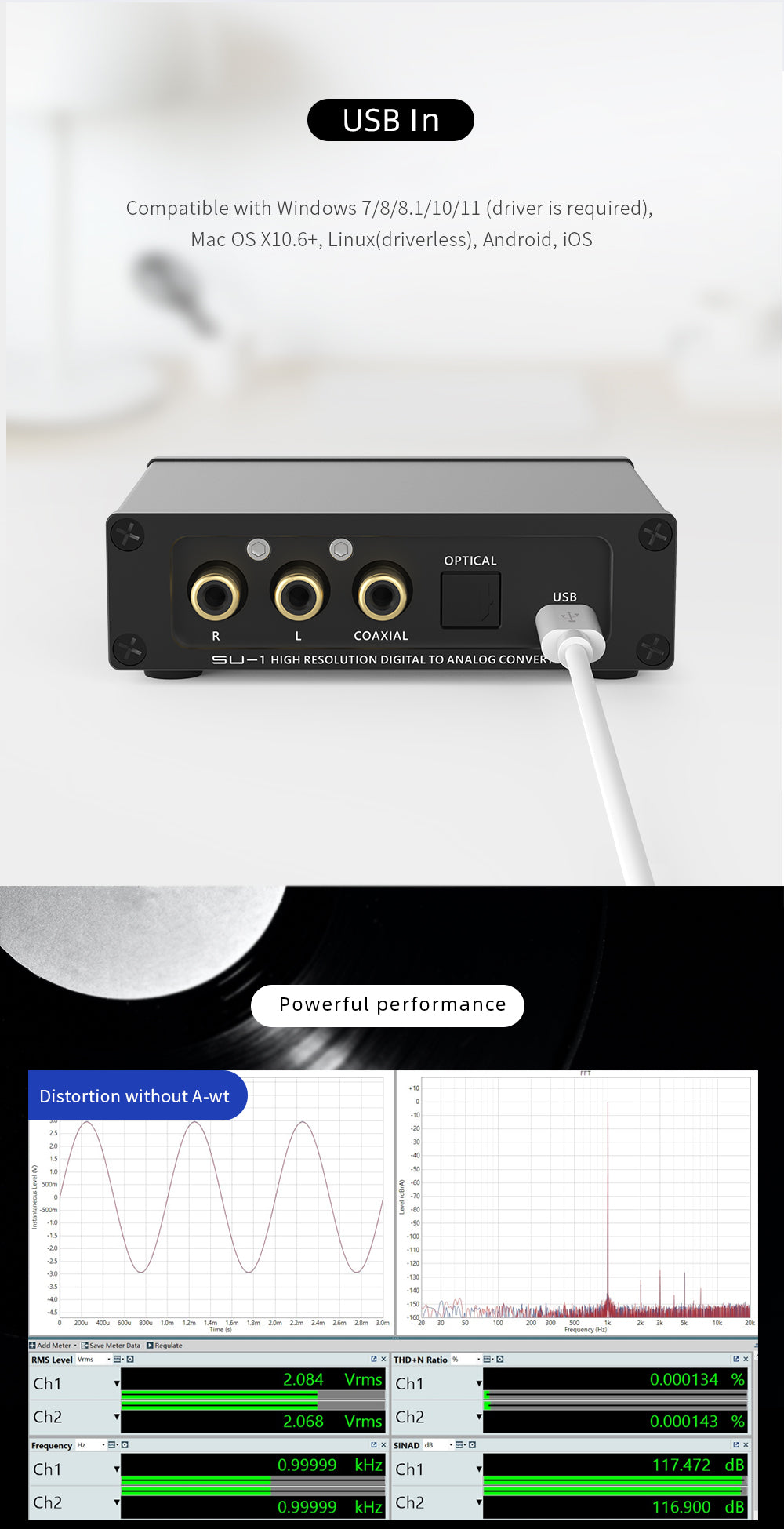

> USB compatibility: Windows 7/8/8.1/10/11, Mac OS X10.6 and above, Linux
> Max bit depth and sampling rate: 32bit/768kHz PCM USBM, 22MHz DSD USB, > 24bit/192kHz Optical/Coaxial
> MQA: 384kHz
> Power consumption: <5W
> Standby power: <0.1W
> Weight: 195g

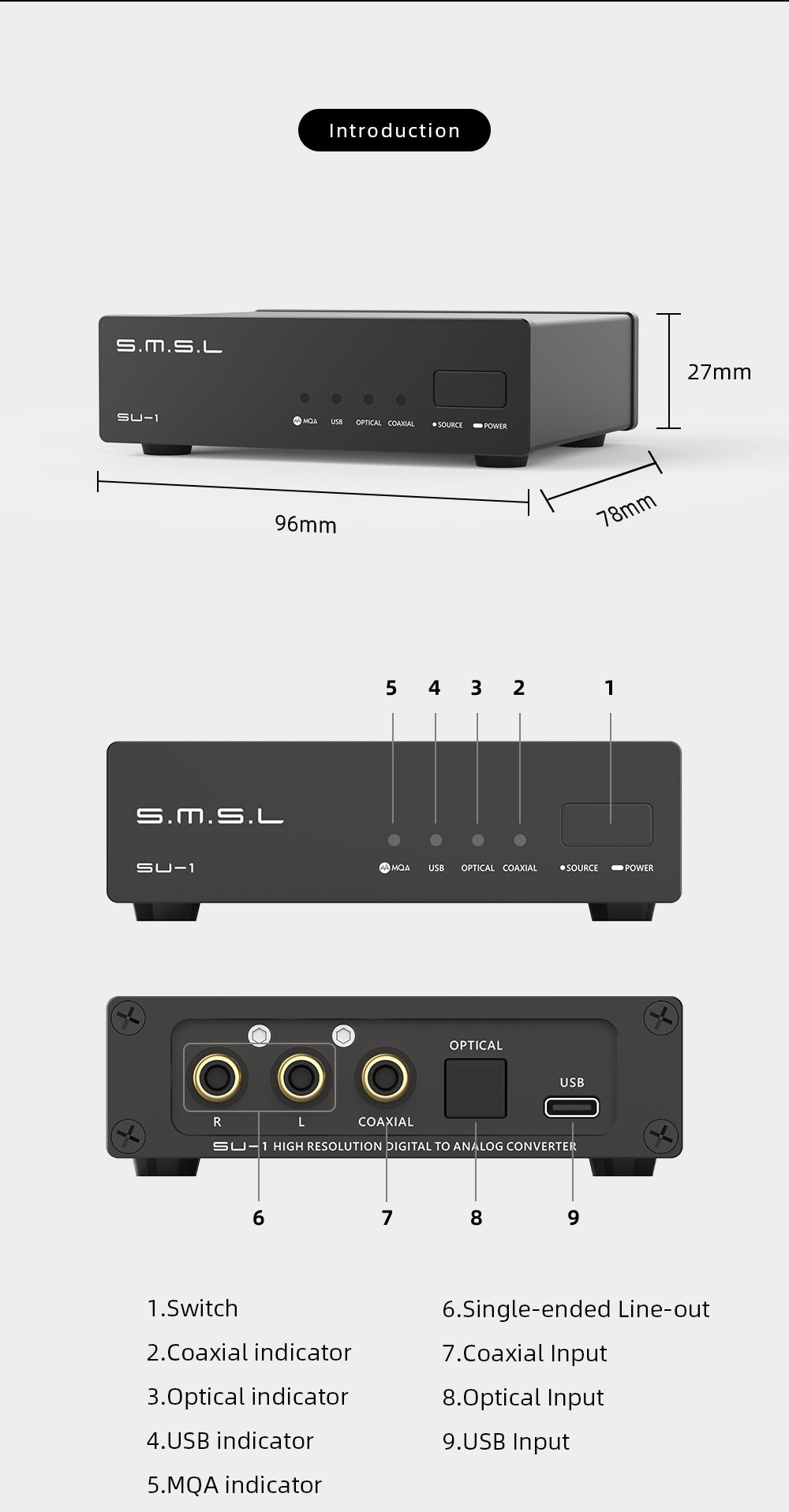

> Size: 96 x 27 x 78mm
