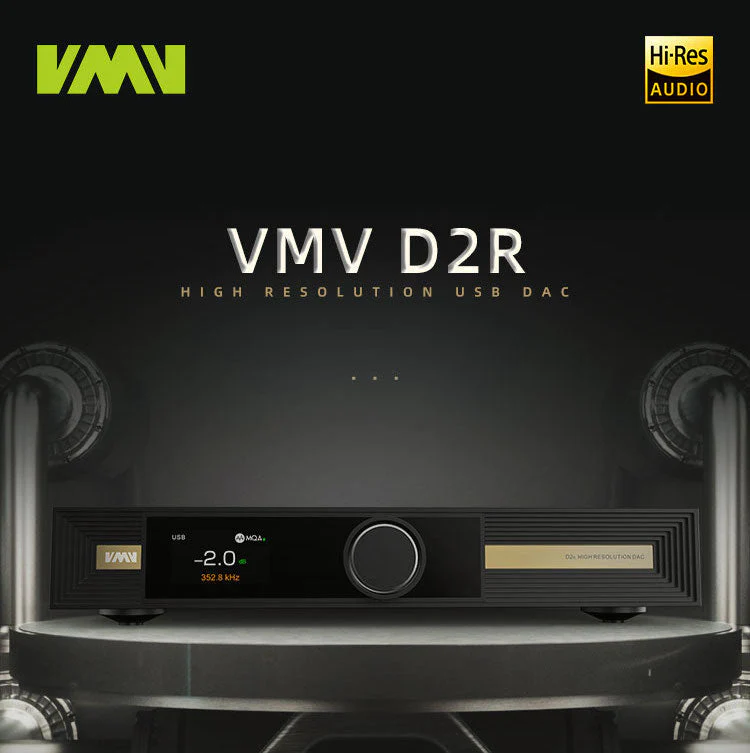

SMSL VMV D2R High Resolution ROHM BD34301EKV Desktop DAC
> JAS HI-Res certified

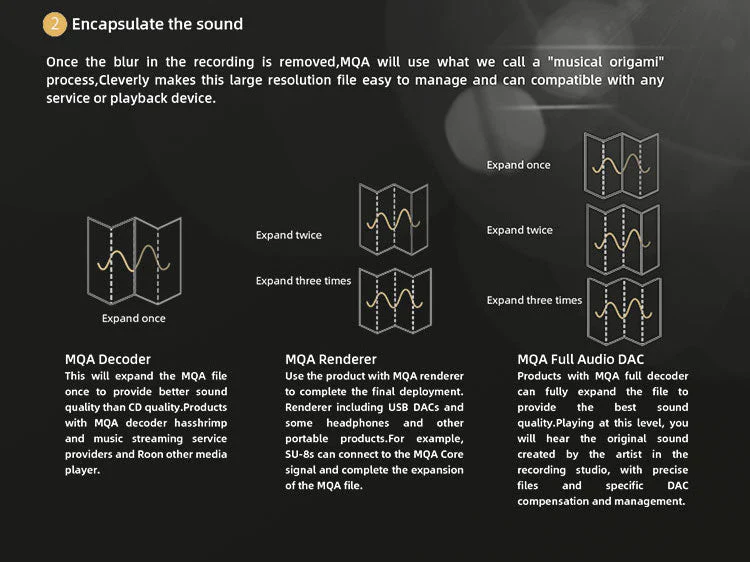

> MQA and MQA-CD certified
> ROHM BD34301 EKV DAC chip
> Custom low noise porcupine power supplies

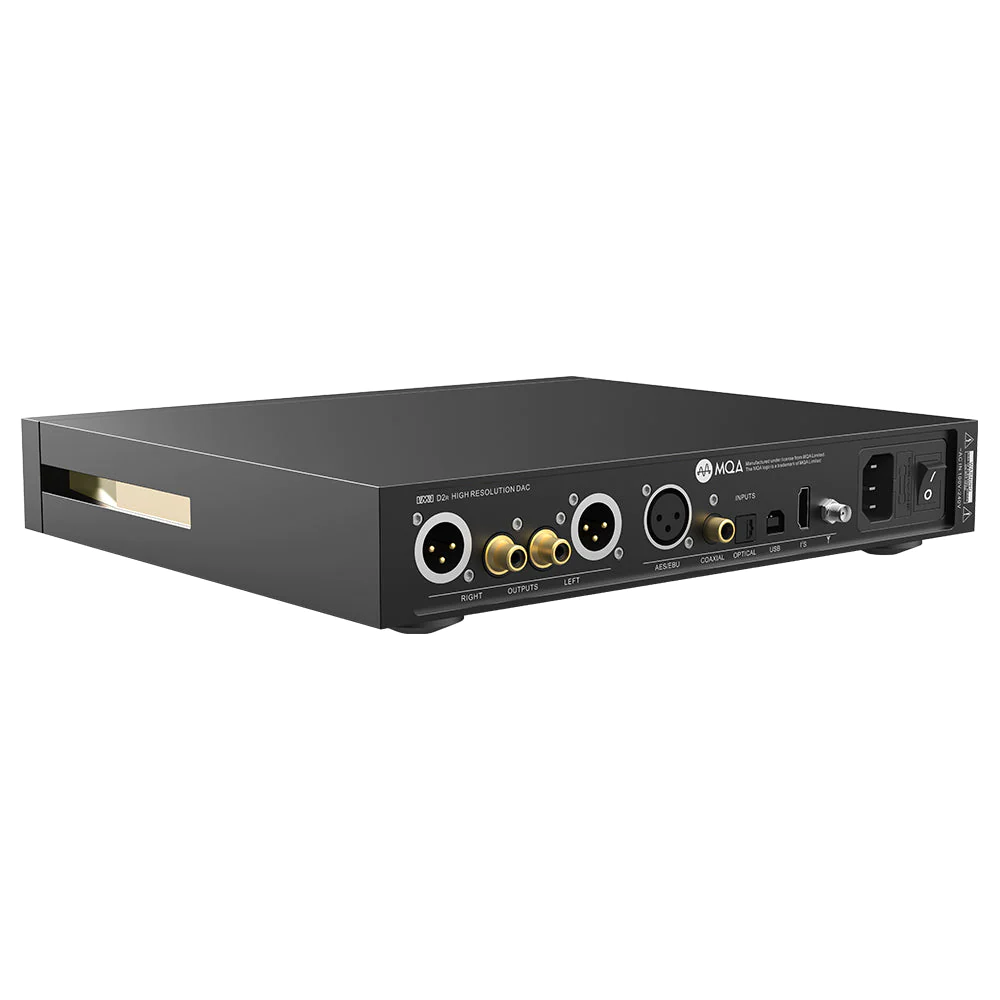

> Multiple input and output options including USB, Optical, Coaxial, I2S, Bluetooth, AES
> High-quality gold-plated connection terminals

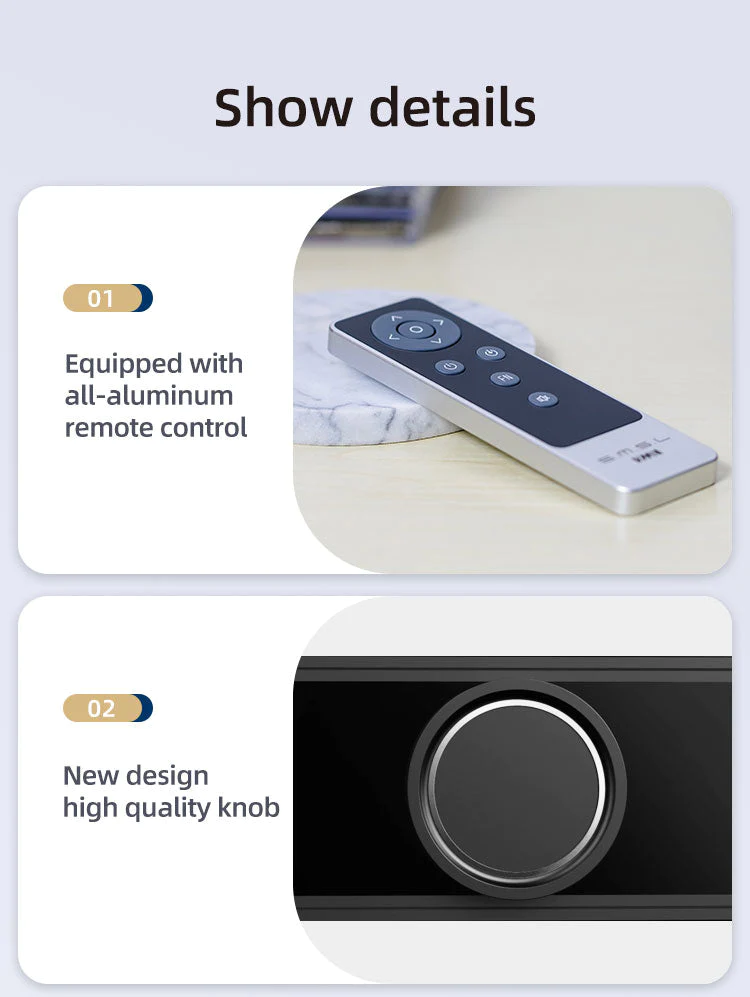

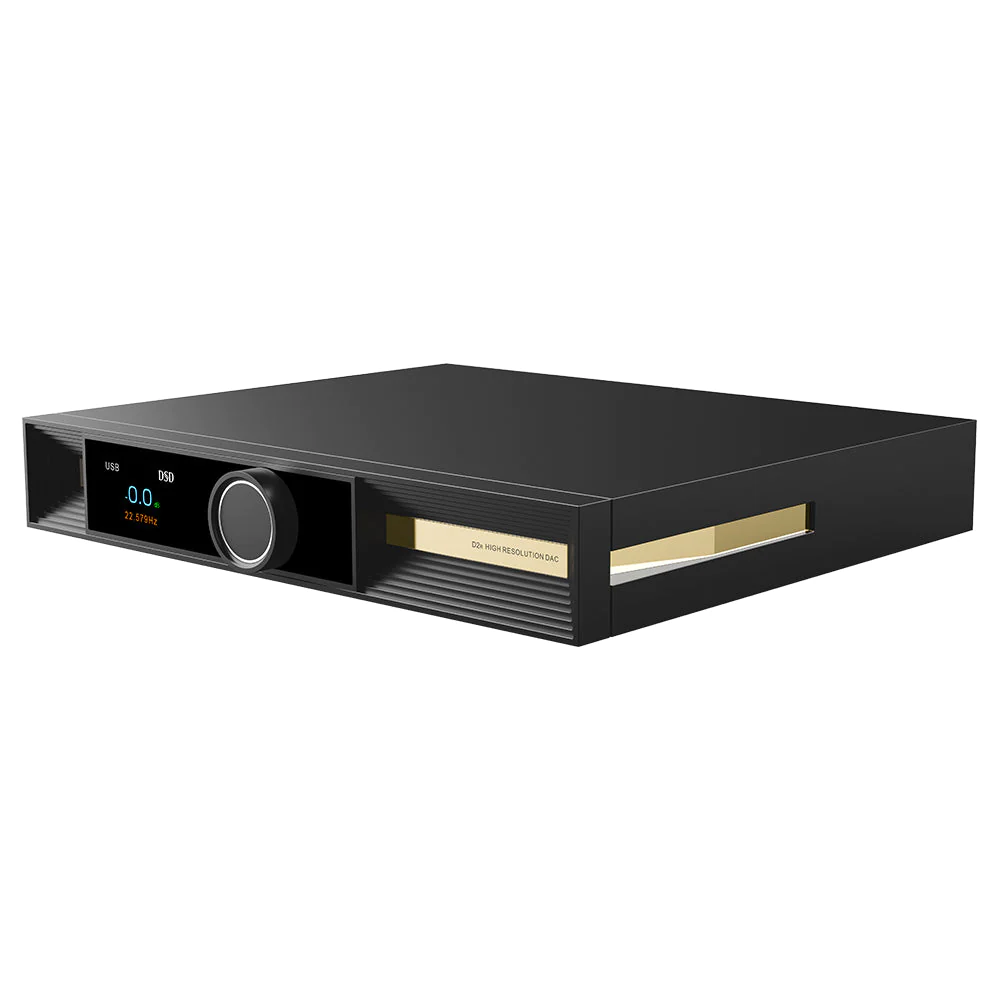

> New high-quality knob and tempered glass display panel
> Setting the sound stage
> Welcome to the VMV D2R High Resolution Desktop DAC, a JAS HI-Res and MQA certified powerhouse. In an age where audio quality is often sacrificed for convenience, the VMV D2R strikes a harmonious balance. With specs like THD+N of 0.00014% and an impressive set of inputs and outputs, it stands out as an incredibly versatile component in any audio setup.
> Certified sound quality
> Achieving JAS HI-Res and MQA certifications isn't easy. These badges of quality ensure that you're not just getting another DAC, but one that meets strict standards for audio performance. So whether you’re deciphering every note of a complex jazz melody or catching subtleties in a symphonic performance, you can trust the fidelity of this device.

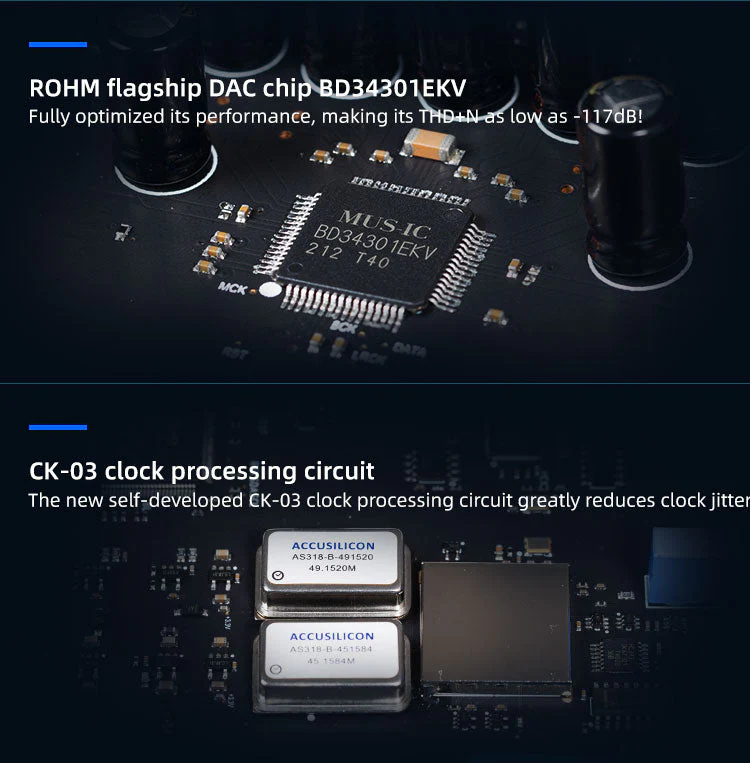

> ROHM’s HIFI chip wonder
> The VMV D2R is powered by the ROHM BD34301EKV DAC chip, a part of ROHM’s prestigious MUS-IC™ series. With built-in original sound quality design technology, this chip allows for in-depth audio quality checks at the signal processing level. As for performance metrics, expect class-leading low noise and distortion with a 130dB SN ratio and -115dB THD+N.
> A new standard in precision
> The newly developed CK-03 clock processing circuit does the heavy lifting when it comes to reducing clock jitter. The result? Your audio streams are tight and precisely timed, ensuring that the character of your favorite acoustic guitar or the rhythm of that thumping bass is perfectly preserved.

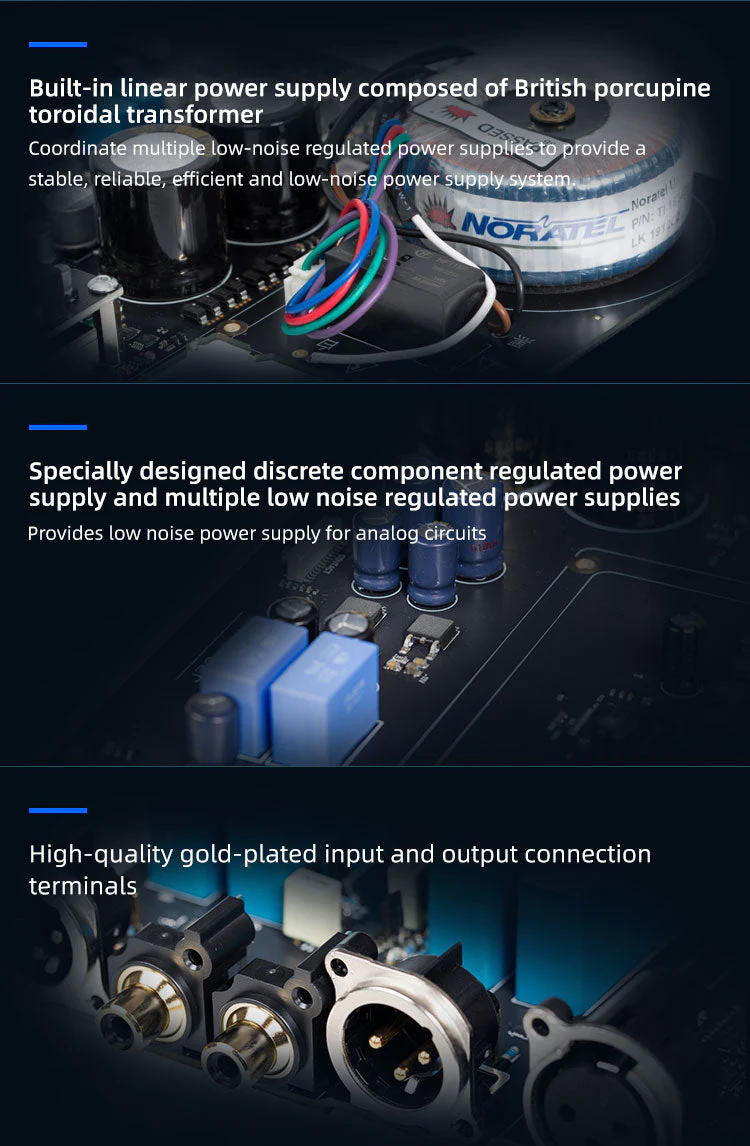

> Robust power supplies
> The built-in linear power supply is composed of a British porcupine toroidal transformer. Add in the custom low noise porcupine power supplies, and what you get is a power system that's efficient, reliable, and keeps noise at bay. Imagine it as your personal audio power station, always reliable, never missing a beat.

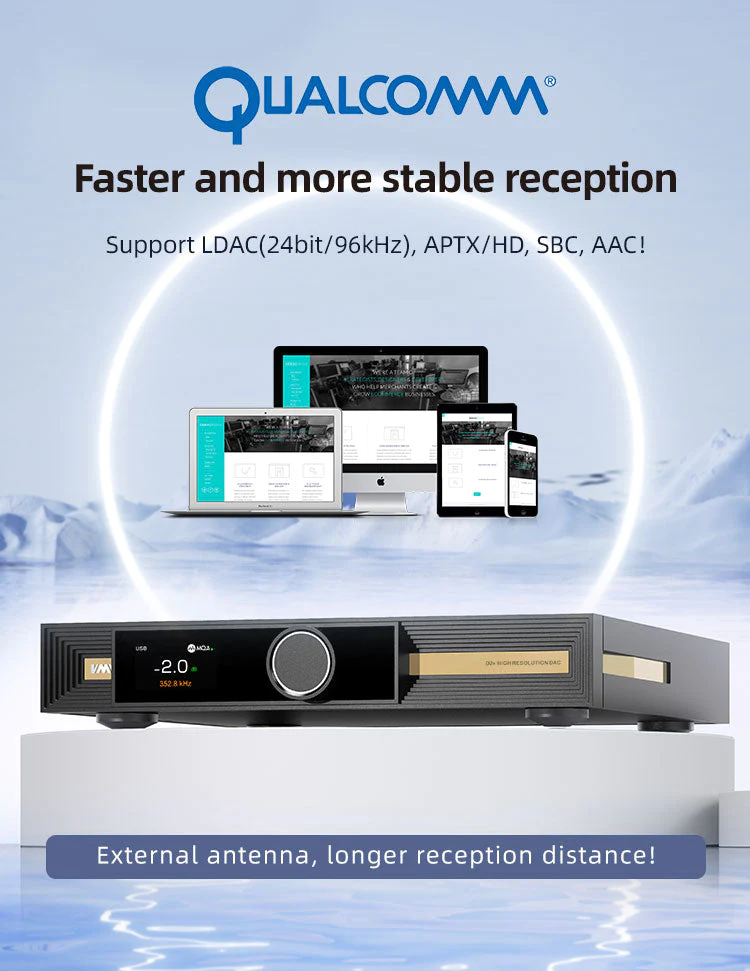

> Qualcomm’s Bluetooth brilliance
> Bluetooth is more than just a checkbox feature here. With support for LDAC, APTX/HD, SBC, and AAC, your wireless connections are faster and more stable. Your phone can now be the ultimate jukebox, delivering crystal-clear tracks right to your speaker setup.

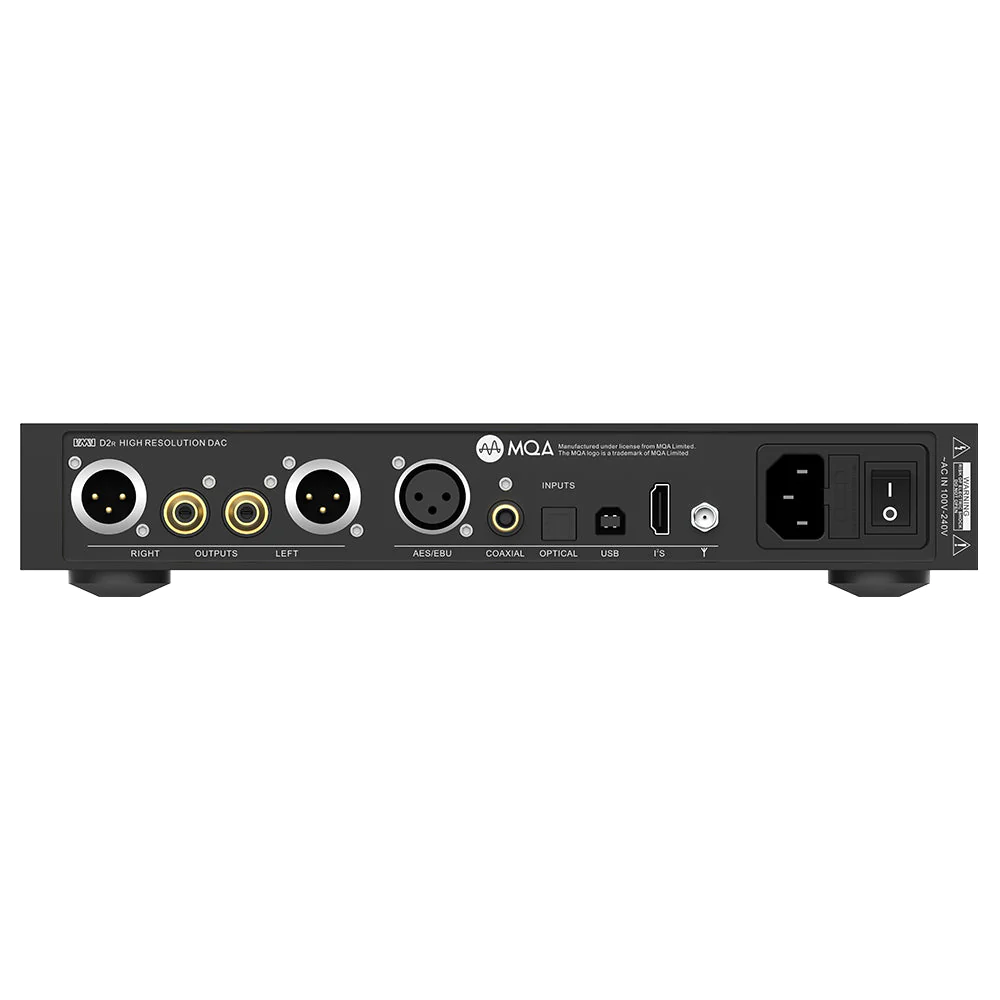

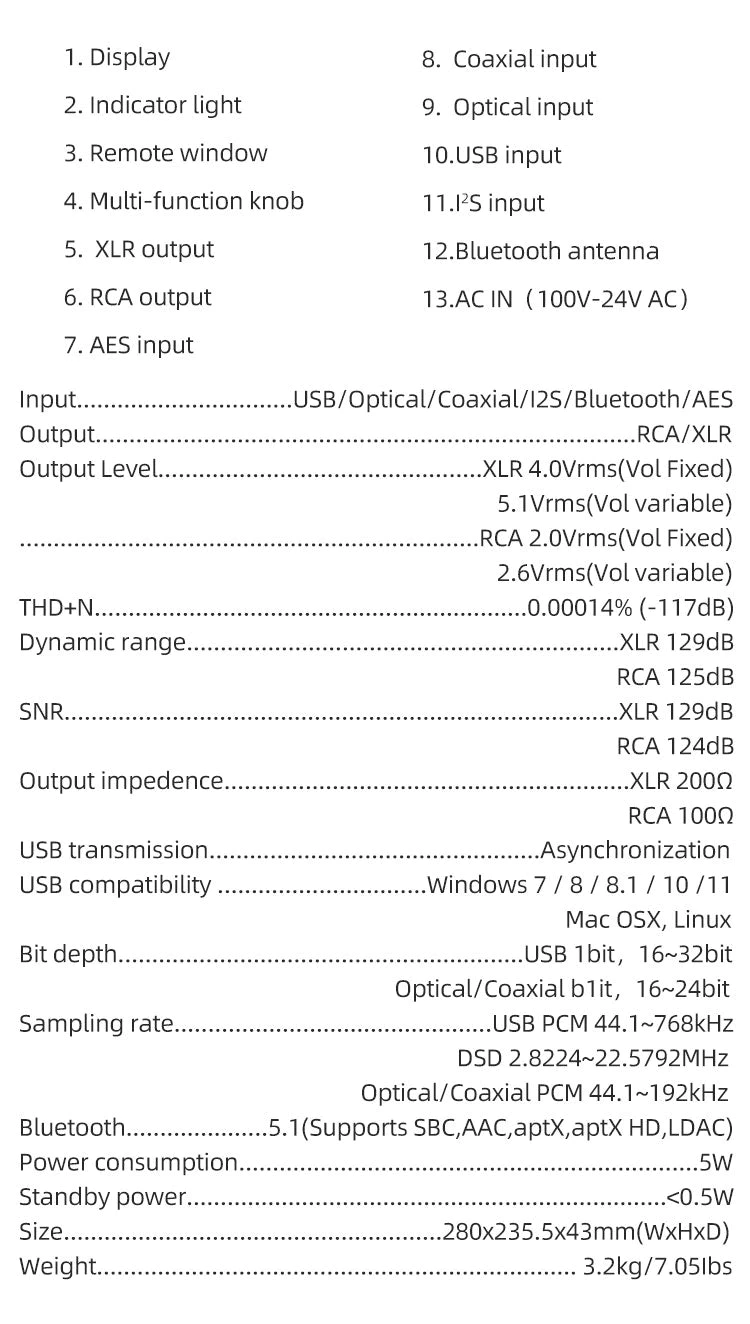

> Inputs: USB, Optical, Coaxial, I2S, Bluetooth, AES
> Outputs: RCA, XLR
> Output levels: XLR 4.0Vrms (vol fixed), 5.1Vrms (vol variable); RCA 2.0Vrms (vol fixed), 2.6Vrms (vol variable)

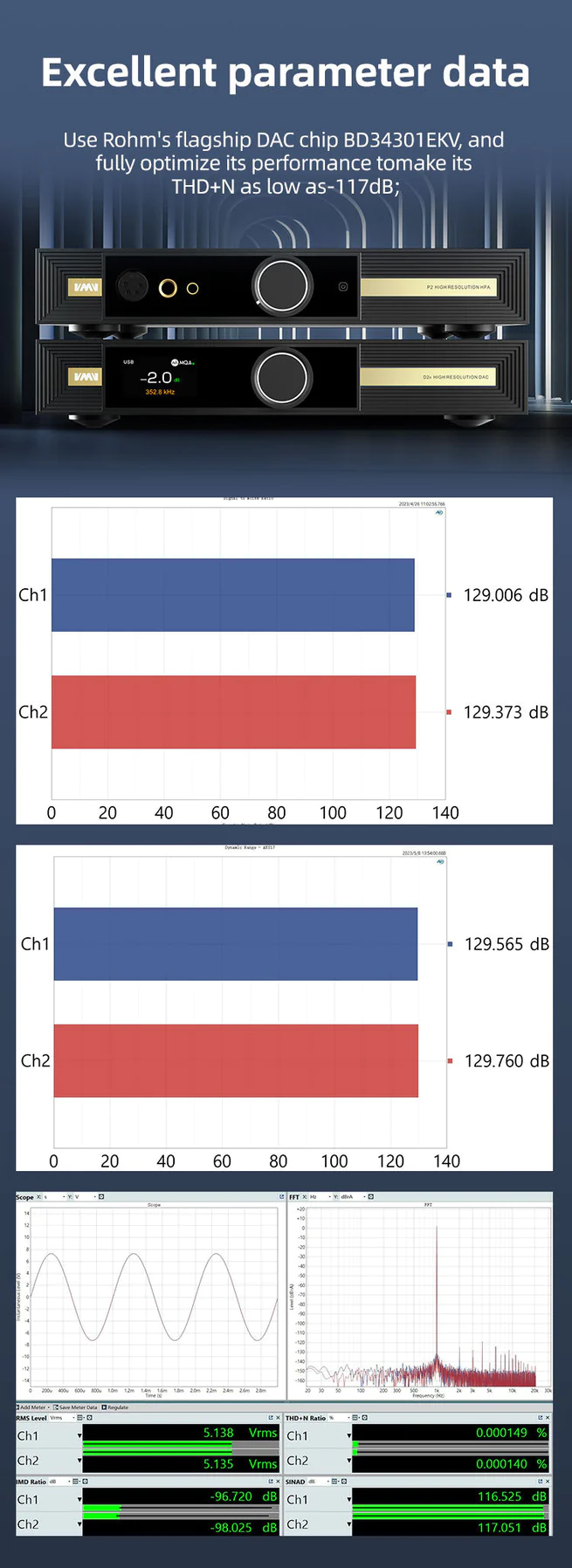

> THD+N: 0.00014% (-117dB)
> Dynamic range: XLR 129dB, RCA 125dB
> SNR: XLR 129dB, RCA 124dB
> Output impedance: XLR 200Ω, RCA 100Ω
> USB compatibility: Windows 7/8/8.1/10/11, Mac OSX, Linux
> Sampling rate: USB PCM 44.1-768kHz, DSD 2.8224-22.5792MHz, Optical/Coaxial PCM 44.1-192kHz
> Bluetooth: 5.1 (Supports, SBC, AAC, aptX, aptX HD, LDAC)
> Power consumption: 5W, Standby power: <0.5W
> Size: 280mm x 235.5mm x 43mm
> Weight: 7.05lbs (3.20kg)
