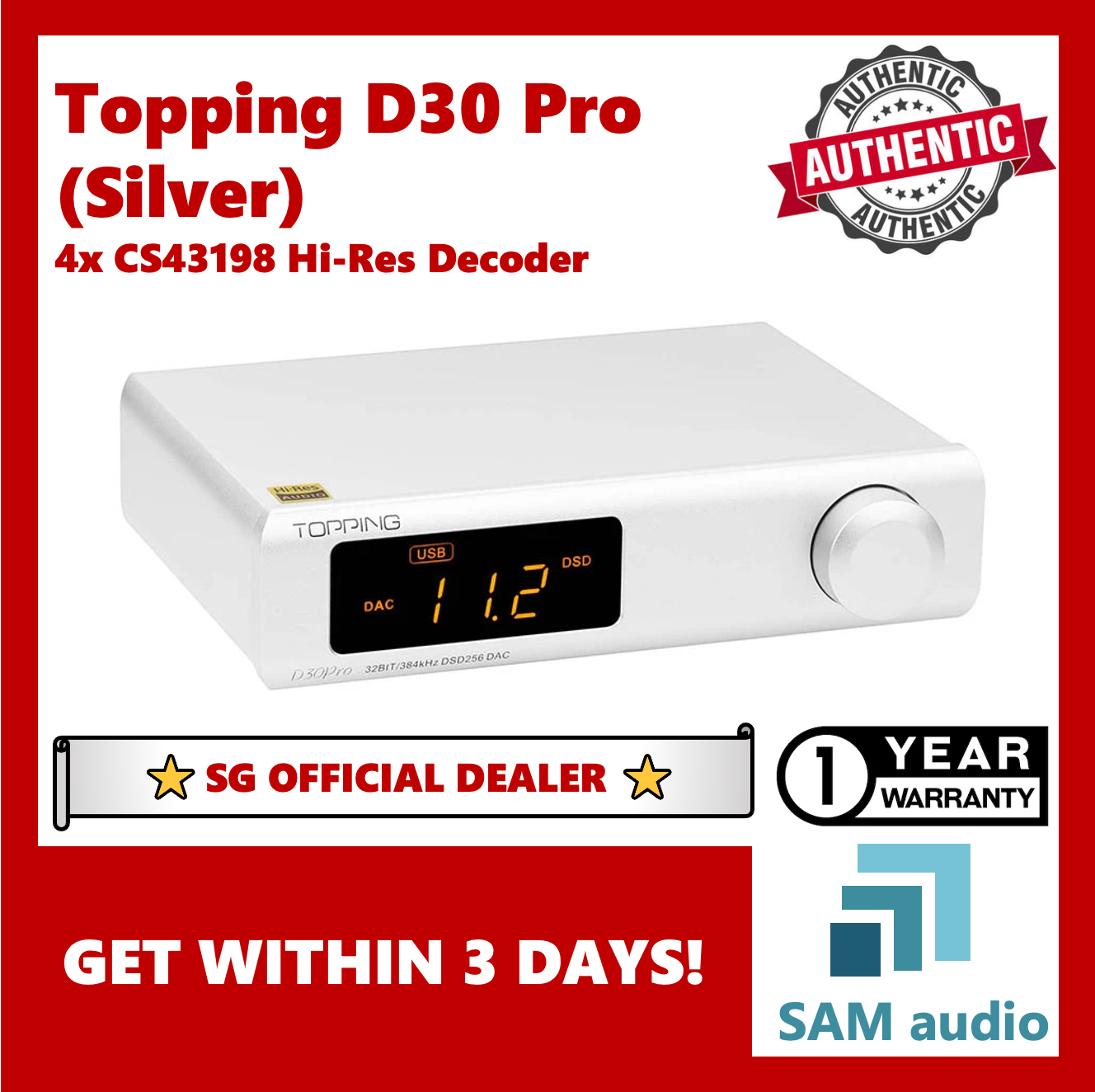

Topping D30 Pro Balanced DAC 4x CS43198 Hi-Res Decoder
!! Free FANMUSIC XLR Interconnect cable (WORTH $89.90) when purchased together with A30 Pro!!
>Powerful and compact balanced DAC, the digital-to-analog conversion stage of the Topping D30 Pro is based on no less than four Cirrus Logic CS43198 chips. These enable it to support high sample rates up to 32bit 384kHz PCM and DSD256, while offering incredible performance in terms of distortion level, THD+N and dynamics.
>Quad DAC CS43198 - The use of four Cirrus Logic CS43198 digital-to-analog conversion chips provides a total of 8 balanced channels. This special design provides the DAC with greater output capacity while improving overall sound quality and measured performance.
>XMOS USB Interface -
The D30 Pro uses an 8-core XMOS XU208 chip for its USB interface. This supports high resolution files up to 32bit 384kHz PCM and DSD256. Additionally, the D30 Pro uses a custom Thesycon driver for optimal performance.
>Complete connections - The D30 Pro will adapt to any system, with a complete range of inputs: USB-B, Toslink Optical, Coaxial and RCA stereo. It offers both unbalanced stereo RCA and balanced XLR outputs.
>High quality components - The Topping D30 Pro benefits from careful design in every respect. It uses an Altera PLC for clock signal processing and eight independent LDOs to provide a clean and stable power supply for the audio circuit.
>Technical specifications -
- 1x USB-B
- 1x Optical Toslink
- 1x Coaxial
- 1x Stereo RCA
- 1x Single-ended stereo RCA
- 1x Balanced stereo XLR
DAC Chips: 4x Cirrus Logic CS43198
- PCM up to 32bit 384kHz
- Native DSD up to DSD256, DSD DoP up to DSD128
Coaxial / Optical :
- PCM up to 24bit 192kHz, DSD64 (DoP)
THD+N @ A-Weighting - RCA : < 0.0001% @ 1kHz, XLR : < 0.00009% @ 1kHz
THD @ No-Weighting 45kBw - RCA : < 0.0004% @ 20Hz-20kHz, XLR : < 0.0004% @ 20Hz-20kHz
SNR @ A-Weighting - RCA : 127dB @ 1kHz, XLR : 132dB @ 1kHz
Dynamic range @ A-Weighting - RCA : 127dB @ 1kHz, XLR : 132dB @ 1kHz
Frequency response - RCA : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB), XLR : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB)
Voltage output - RCA : 2Vrms @ 0dBFS, XLR : 4Vrms @ 0dBFS
Noise @ A-Weighting - RCA : < 0.9µVrms, XLR : < 1.1µVrms
Crosstalk - RCA : -116dB @ 1kHz, XLR : -145dB @ 1kHz
Output impedance - RCA : 20Ω, XLR : 40Ω
