[🎶SG] TOPPING D90SE MQA DAC ES9038PRO

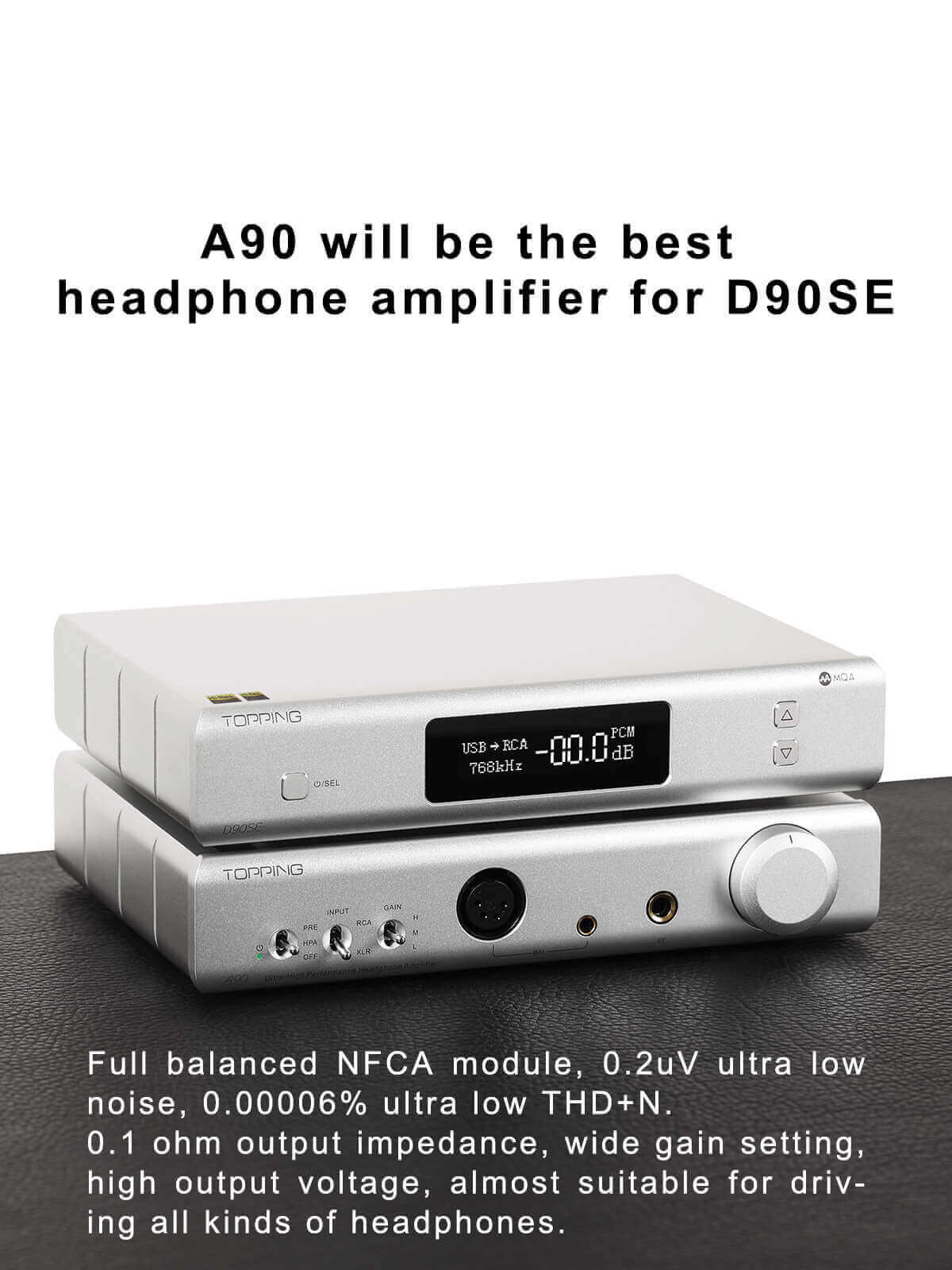

!! Free FANMUSIC XLR Interconnect cable (WORTH $89.90) when purchased together with TOPPING A90!!
Bluetooth 5.0 LDAC
Switchable output level
Note: D90SE is the new 2021 model replacing the older D90

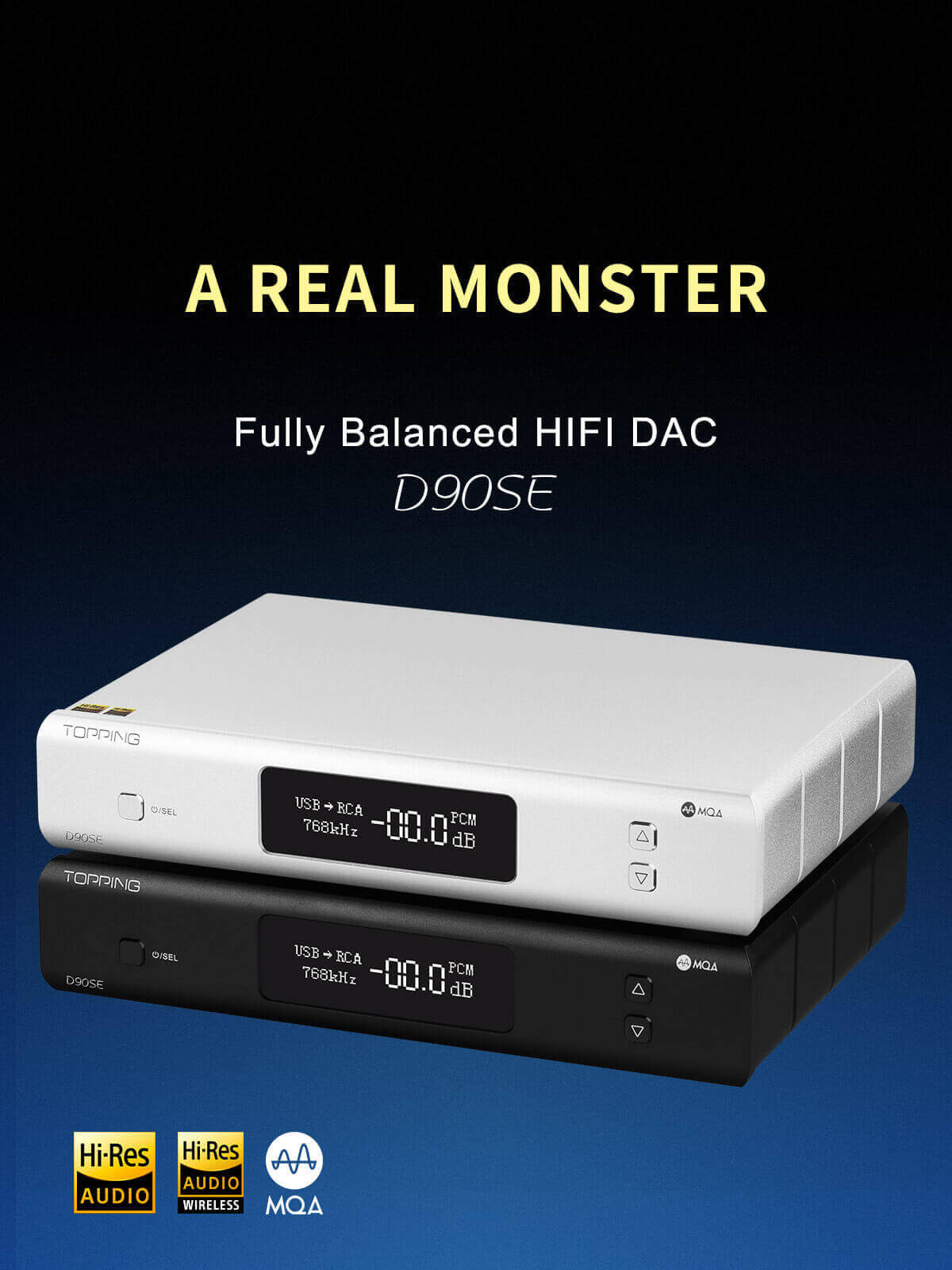

The Topping D90SE is a high-end DAC, benefiting from an intelligent and careful design for high performance. It features an ESS ES9038Pro conversion chip, an XMOS interface and an Altera Max II CPLD. The D90SE is also versatile, with a complete connectivity and an integrated Bluetooth receiver.
" It is not every day that every barrier we have seen in DACs gets shattered to new levels. We are seeing extreme attention to every aspect of this design to squeeze this much performance out of this ESS DAC. Just when we though the race was over, here comes one more over achiever! " - audiosciencereview
> ES9038Pro DAC

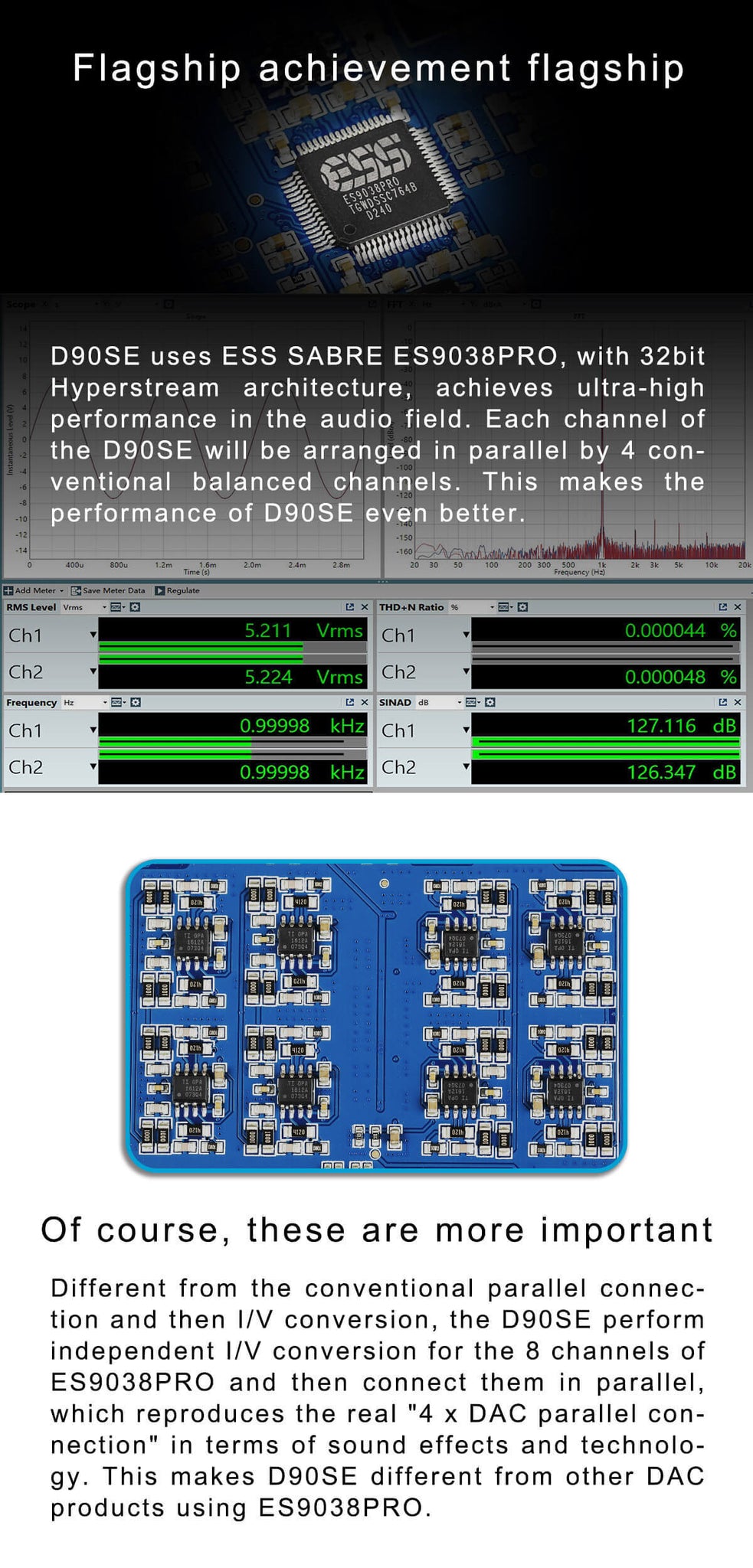

The D90SE features an ESS Sabre ES9038Pro DAC chip, using the 32-bit HyperStream architecture to achieve an extremely high level of performance for incredibly accurate and transparent sound reproduction.
The D90SE performs independent I/V (current/voltage) conversion for the 8 channels of the ES9038Pro and then connects them in parallel. This technique allows for an ever increasing level of performance.

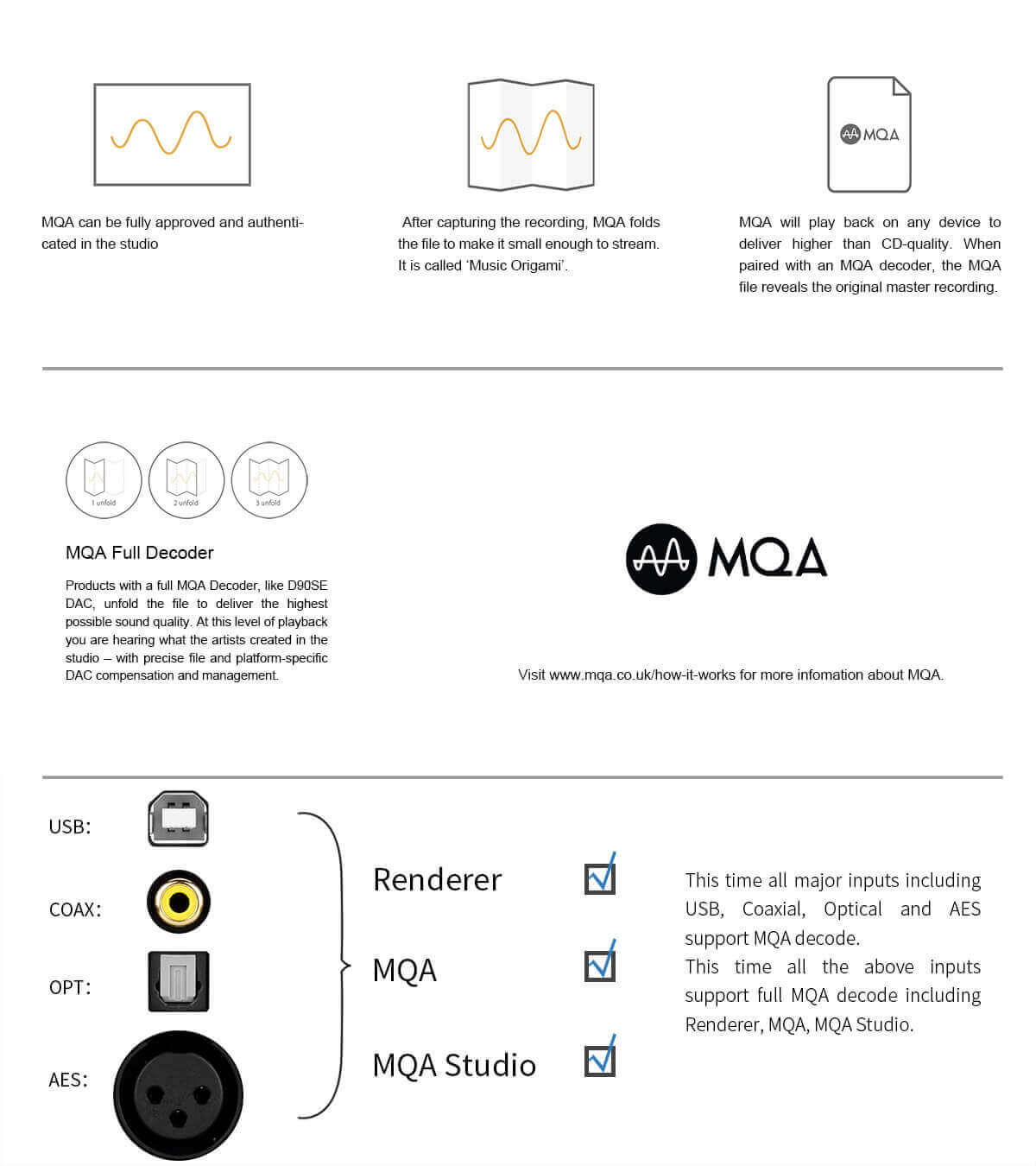

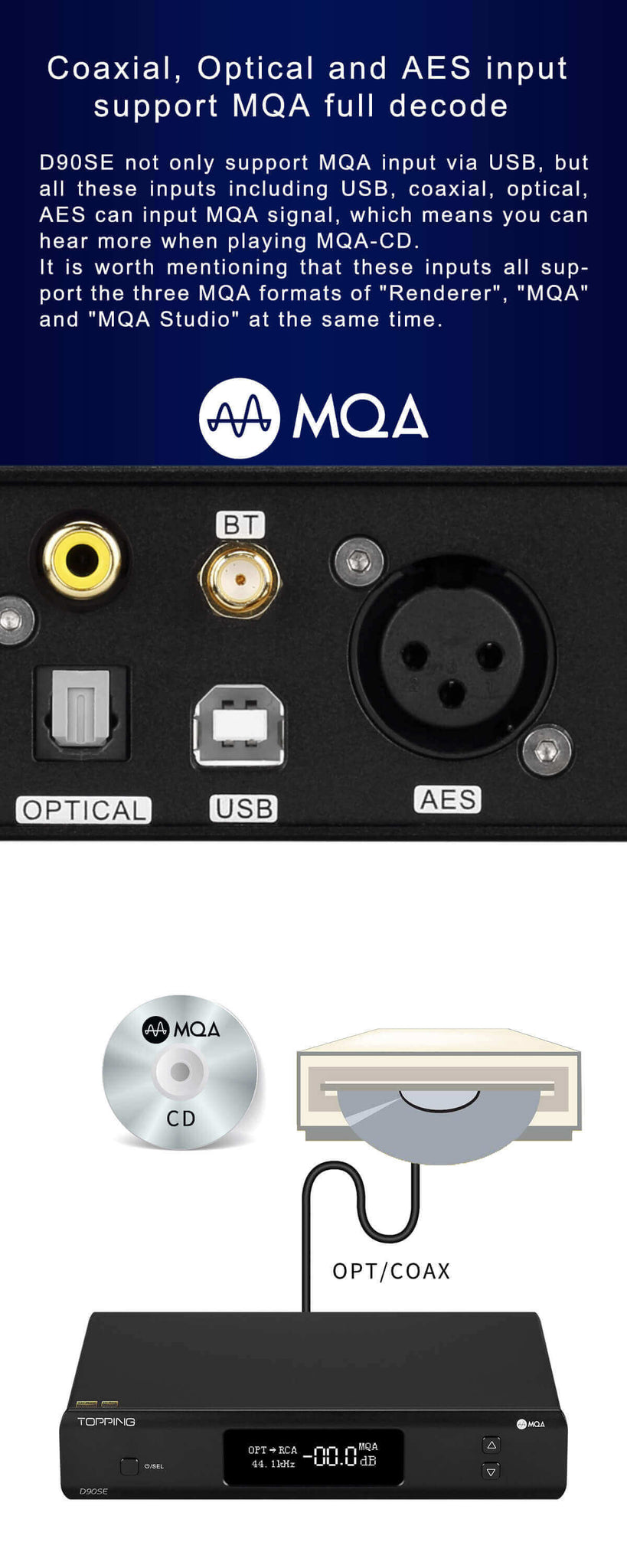

The D90SE supports the MQA (Master Quality Authenticated) format on its USB input, but also on its Coaxial, Optical and AES inputs. This format allows you to enjoy a quality as close as possible to the original recording of your music.
Equipped with a Qualcomm CSR8675 chip, the D90SE offers Bluetooth 5.0 reception, convenient for remote music streaming directly from your smartphone. In addition, this chip supports the codecs aptX, aptX HD, aptX LL and LDAC, allowing to achieve a high quality sound in wireless.

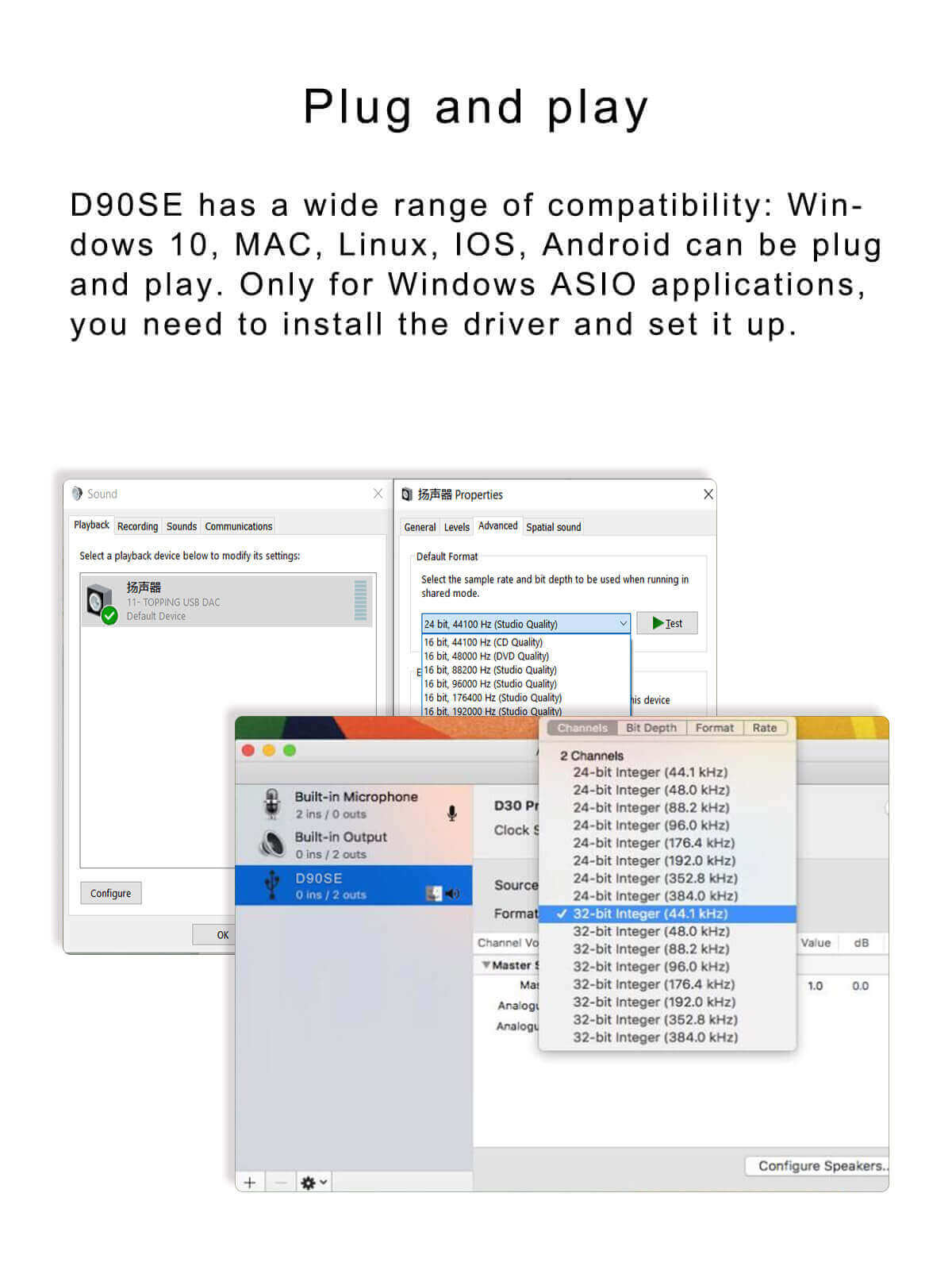

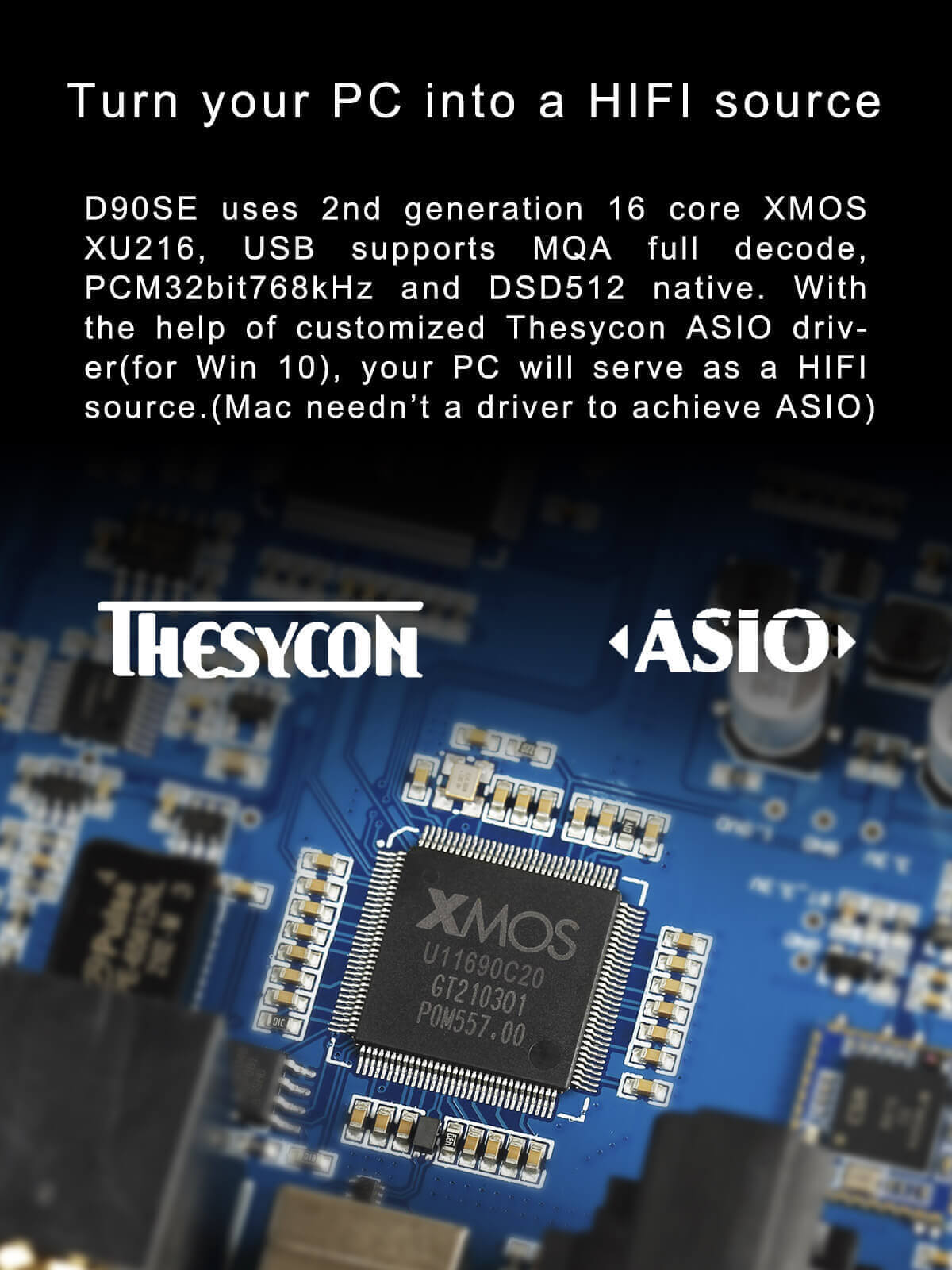

The USB input of the D90SE uses a 2nd generation XMOS XU2013 16-core chip. This chip supports high sampling rates, up to 32bit 768kHz PCM and DSD512, as well as MQA. This chip is associated with a custom Thesycon driver.

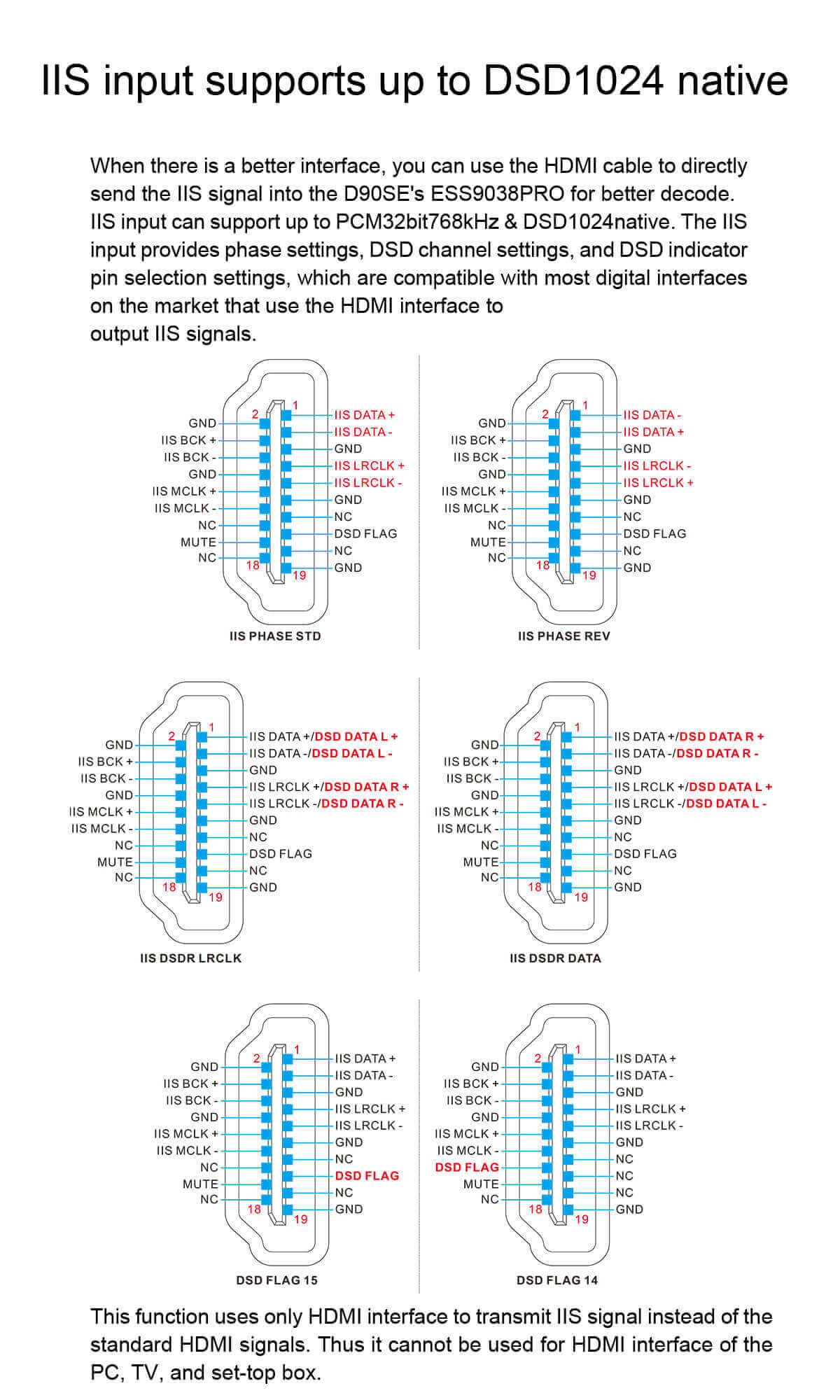

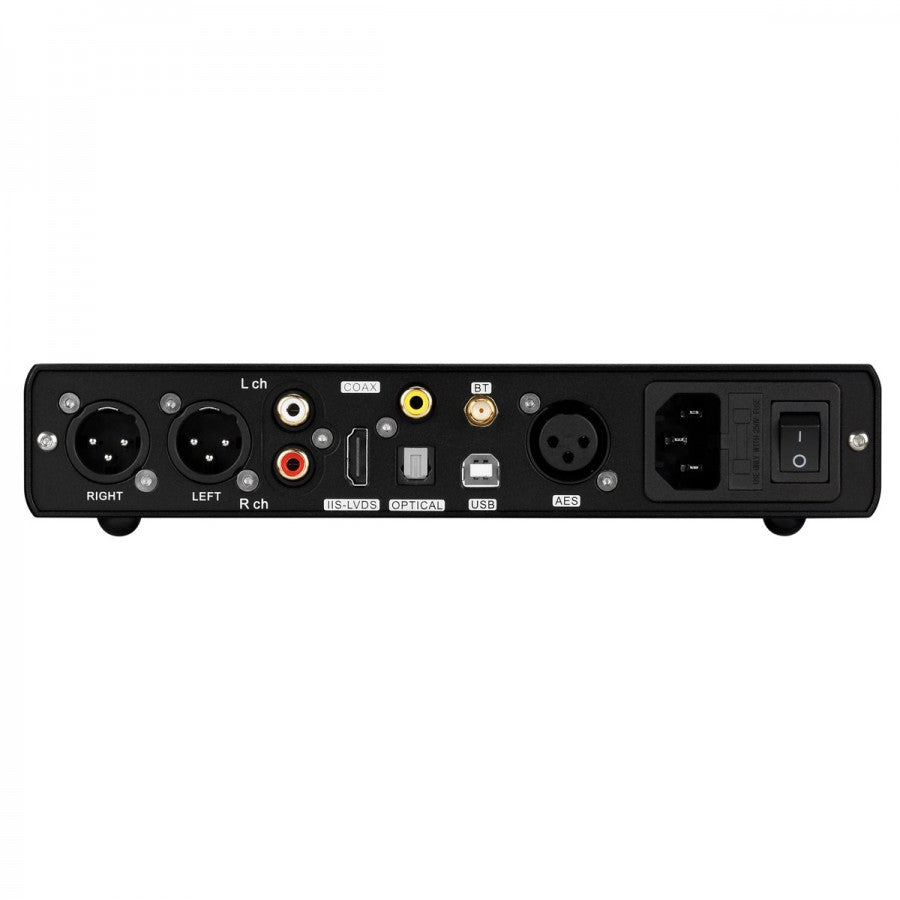

The D90SE benefits from a complete range of connectivity to adapt to all systems. We can find AES, USB-B, Optical, Coaxial, I2S LVDS via HDMI as well as Bluetooth 5.0 connectivity. For its outputs, the D90SE offers single-ended RCA and balanced XLR.

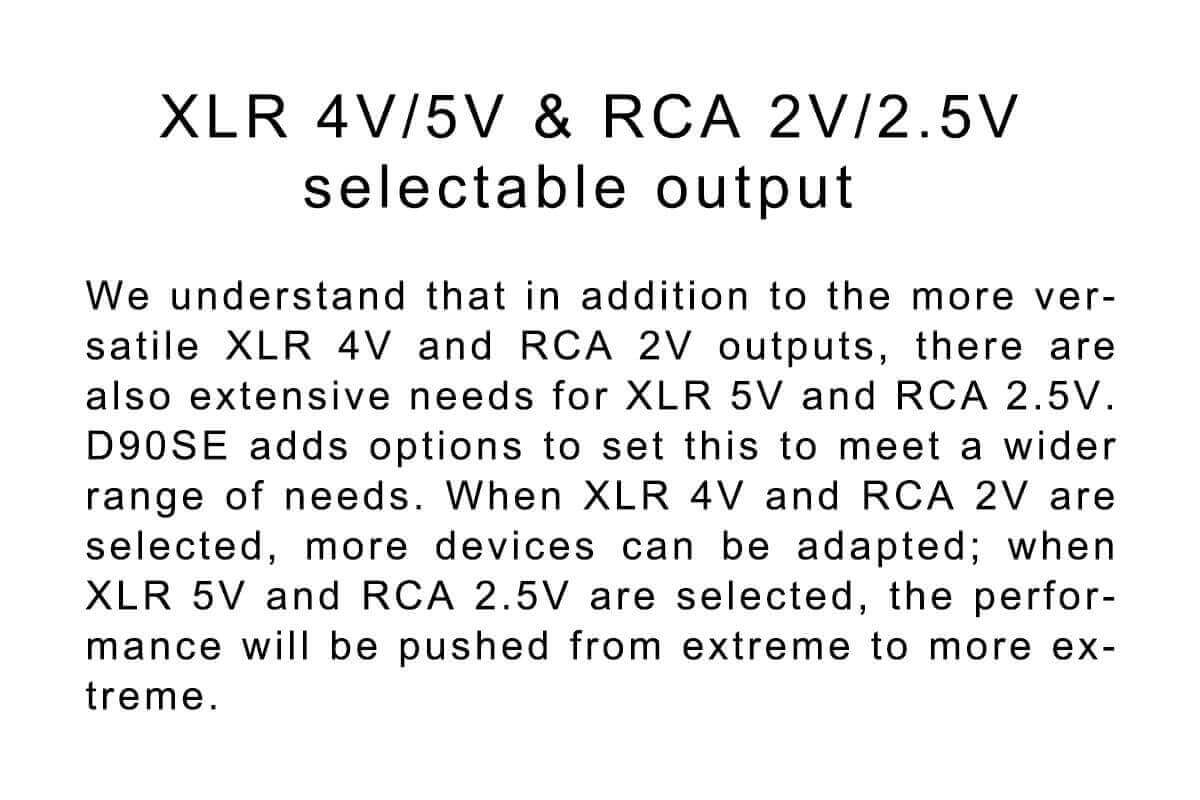

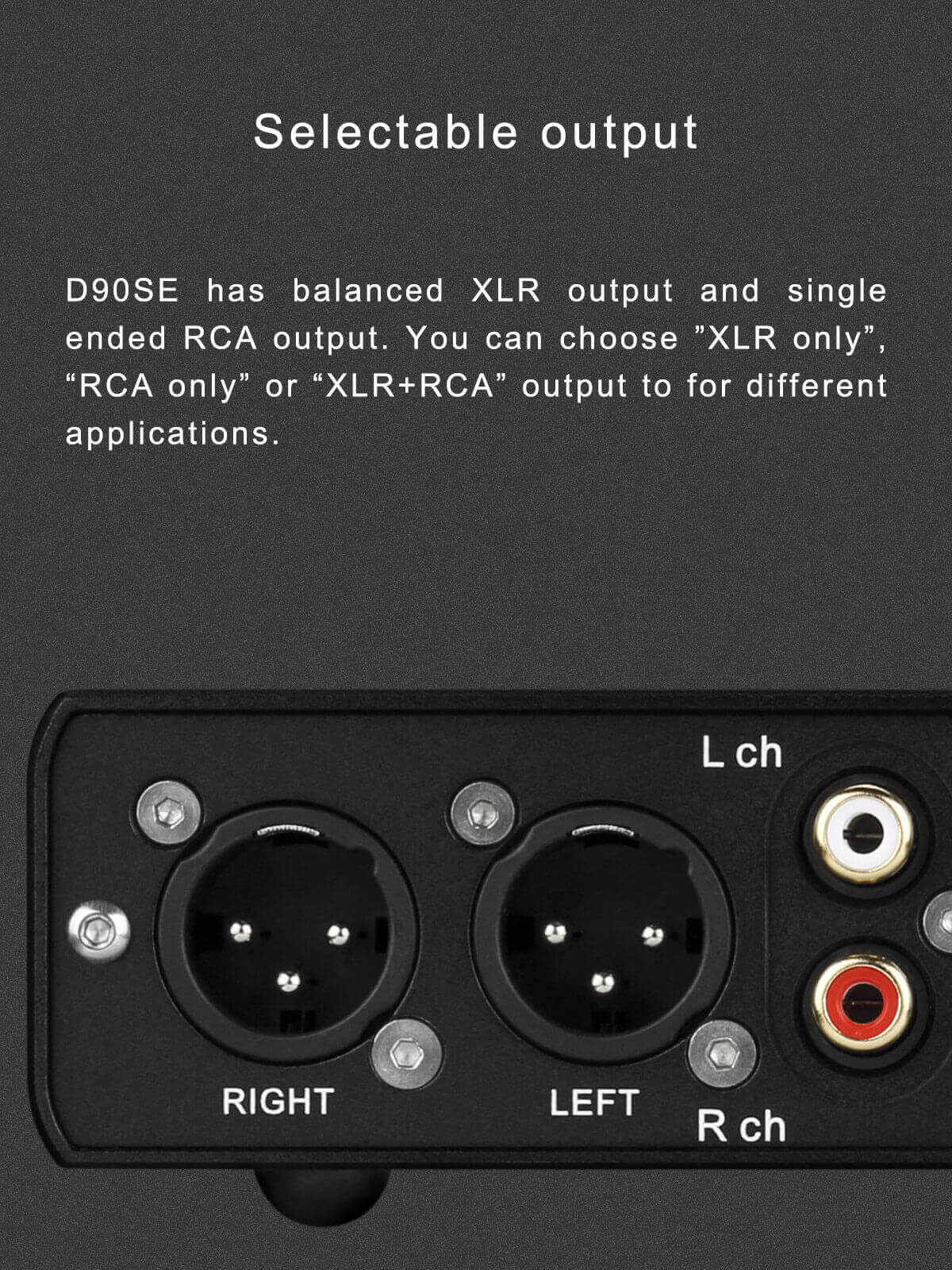

The D90SE offers a selectable output system. The audio stream can be routed to the XLR output, the RCA output or both. Moreover, it also allows to choose an output level. Thus, the XLR output can work in 4V or 5V and the RCA output in 2V or 2.5V.

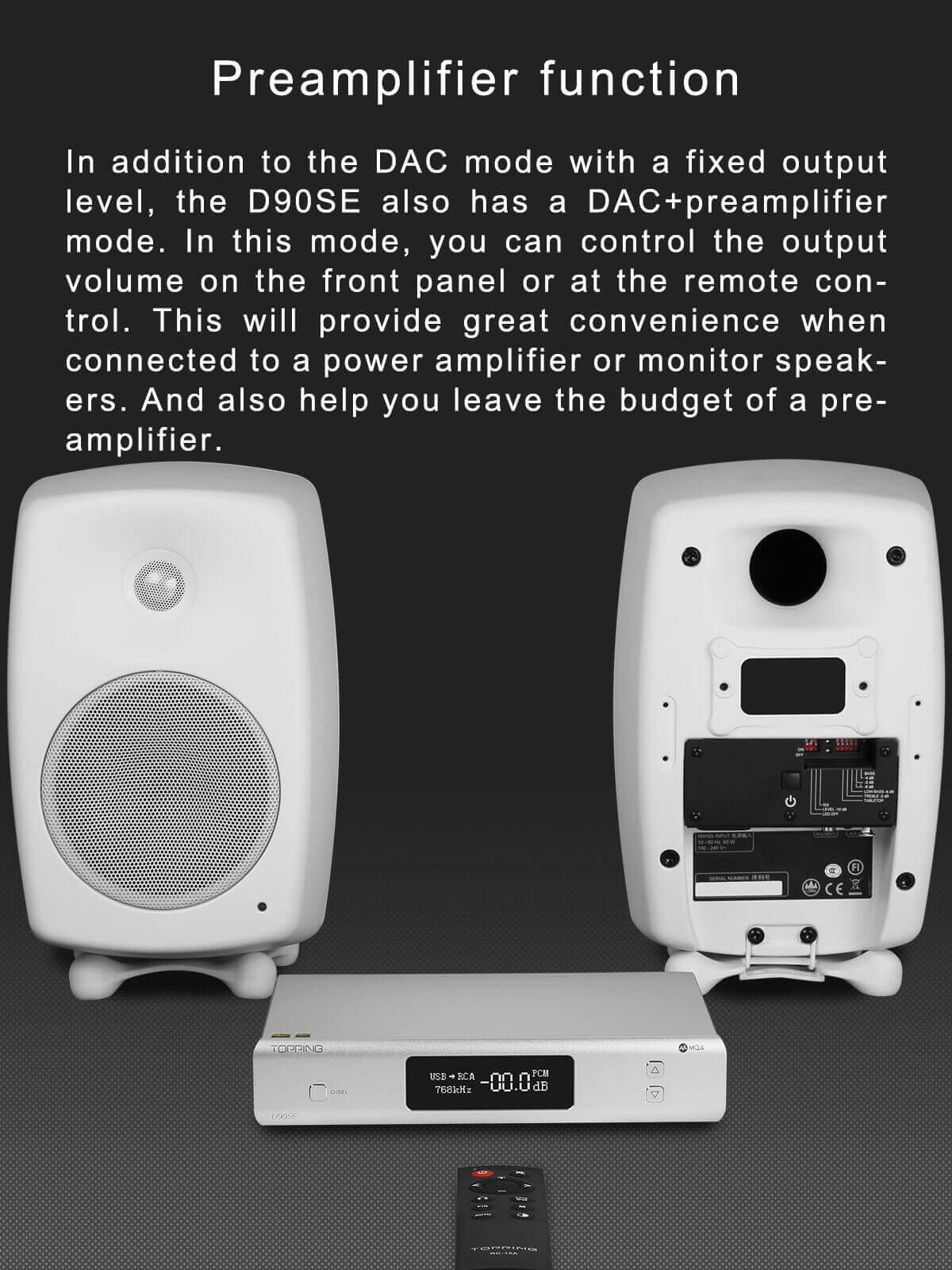

In addition to the DAC mode with a fixed output level, the D90SE offers a DAC + preamplifier mode. In this mode, you can control the volume level. Thus, the D90SE can be directly associated with a power amplifier or active speakers.

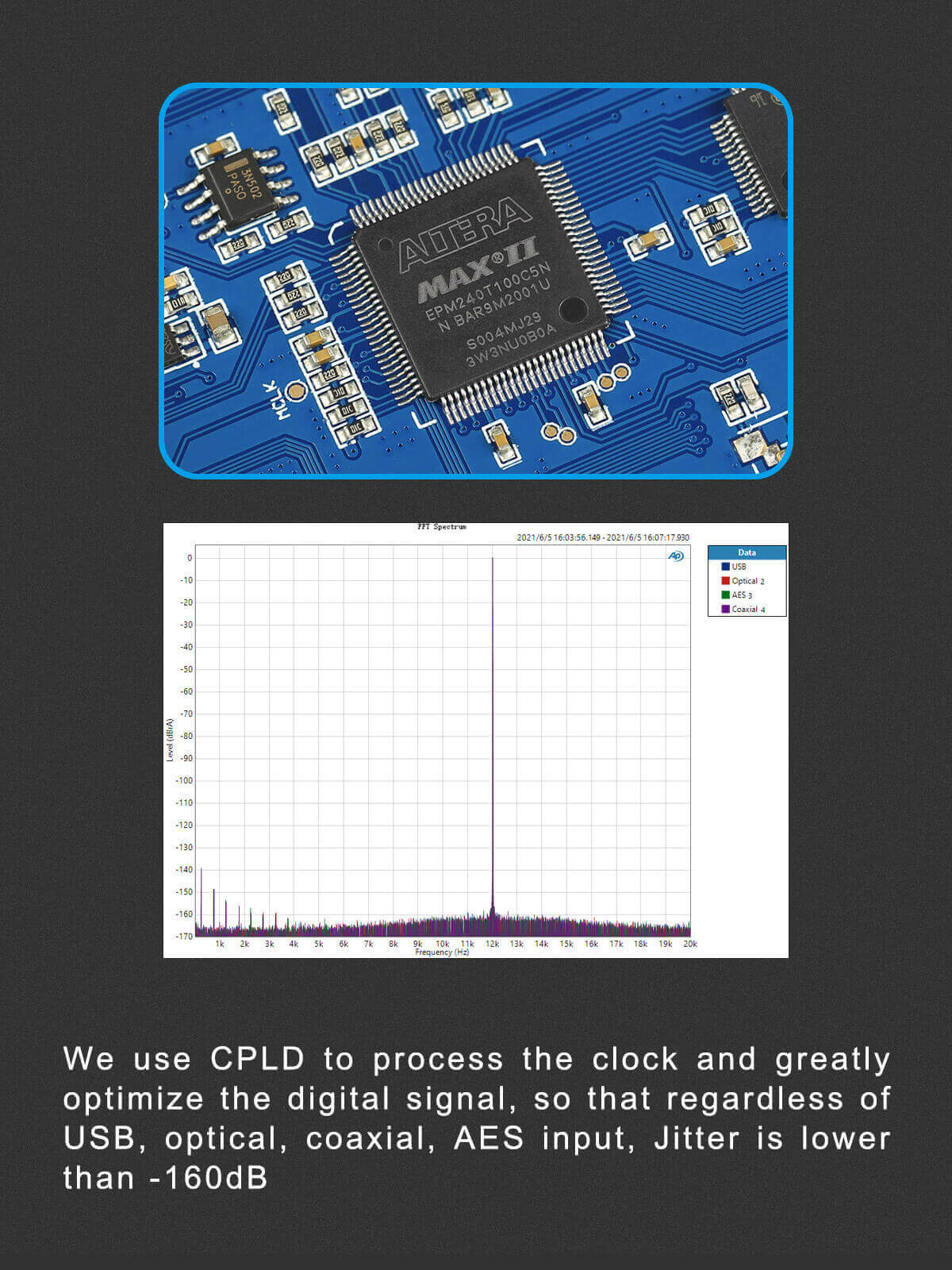

>CPLD Alter Max II
The Topping D90SE uses an Altera Max II CPLD to process the clock signal and thus optimize the quality of digital signals, significantly reducing jitter.
USB IN, Coax/ Opt/ AES IN
MQA: Renderer, MQA, MQA Studio
Bluetooth: AAC / SBC / APTX / APTX LL / APTX HD / LDAC

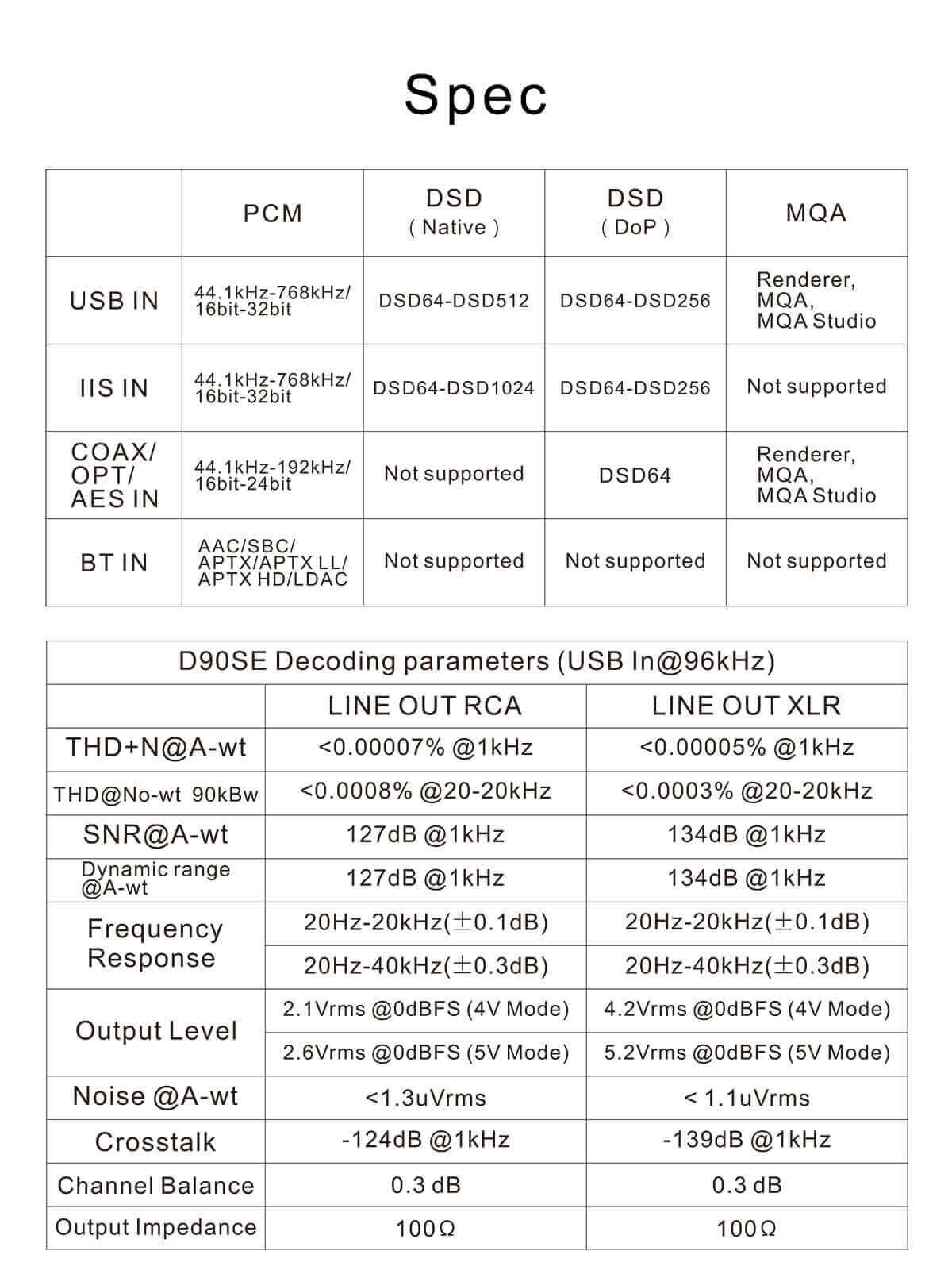

Line out RCA decoding parameters (USB IN @96kHz)
2.1Vrms @0dBFS (4V Mode)
2.6Vrms @0dBFS (5V Mode)
