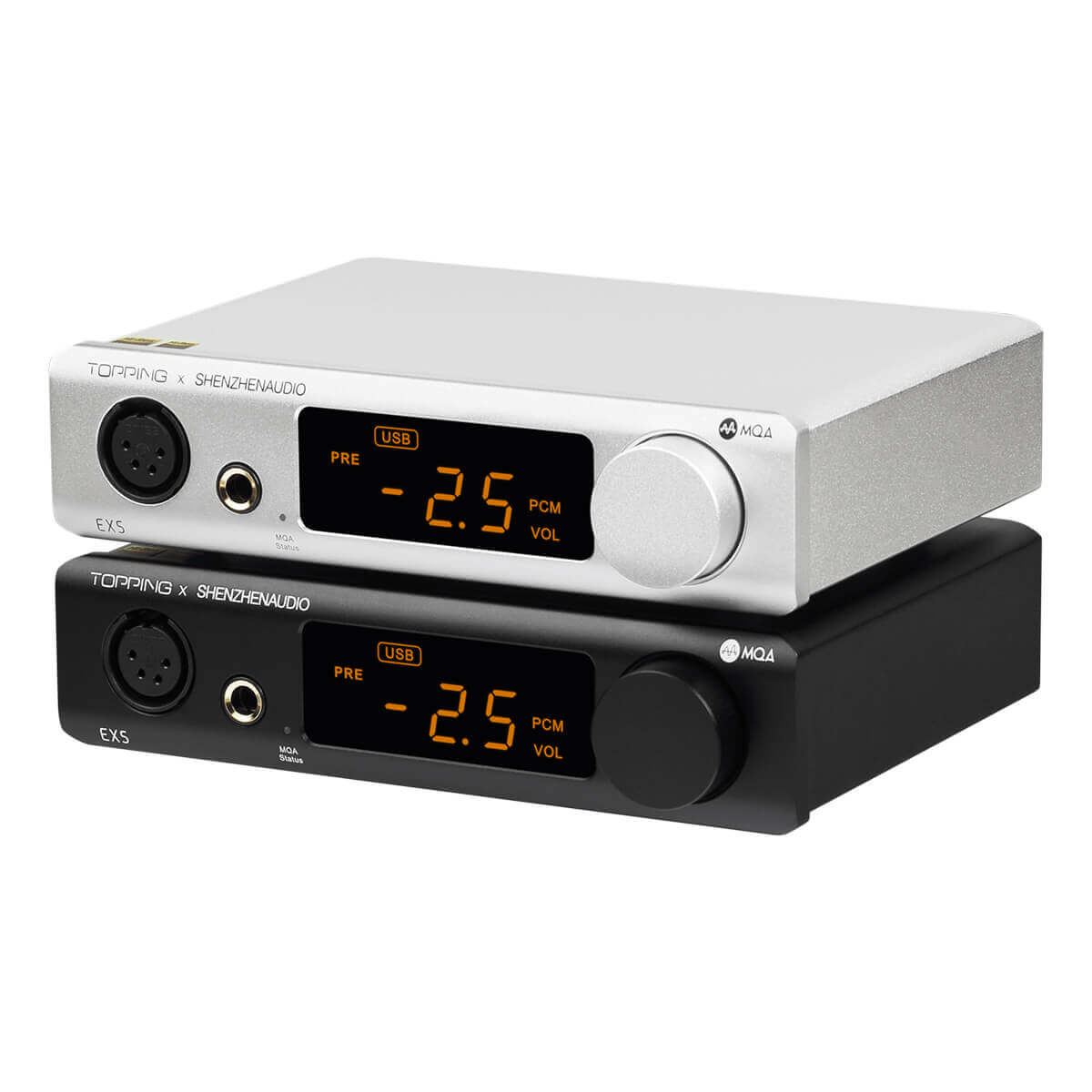

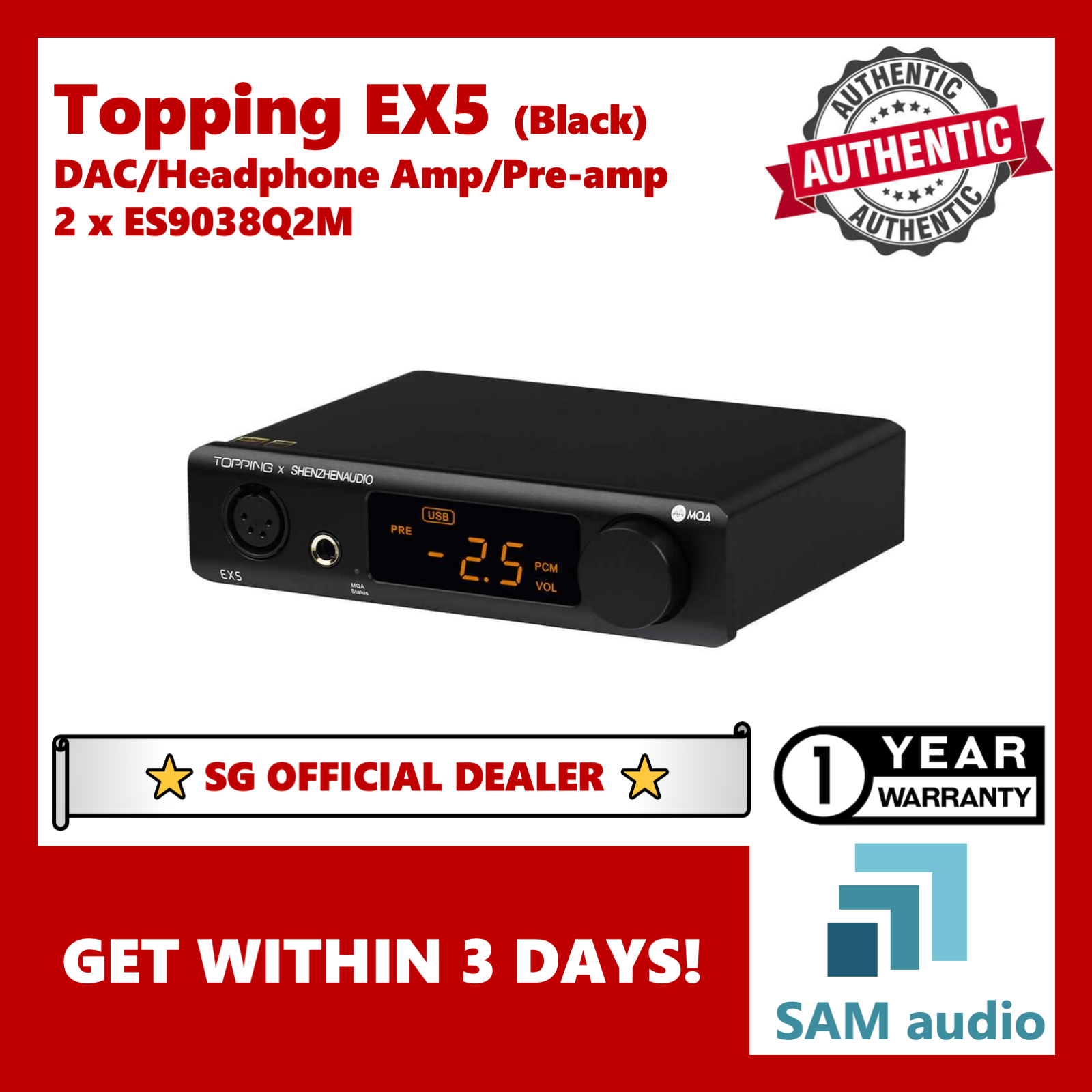

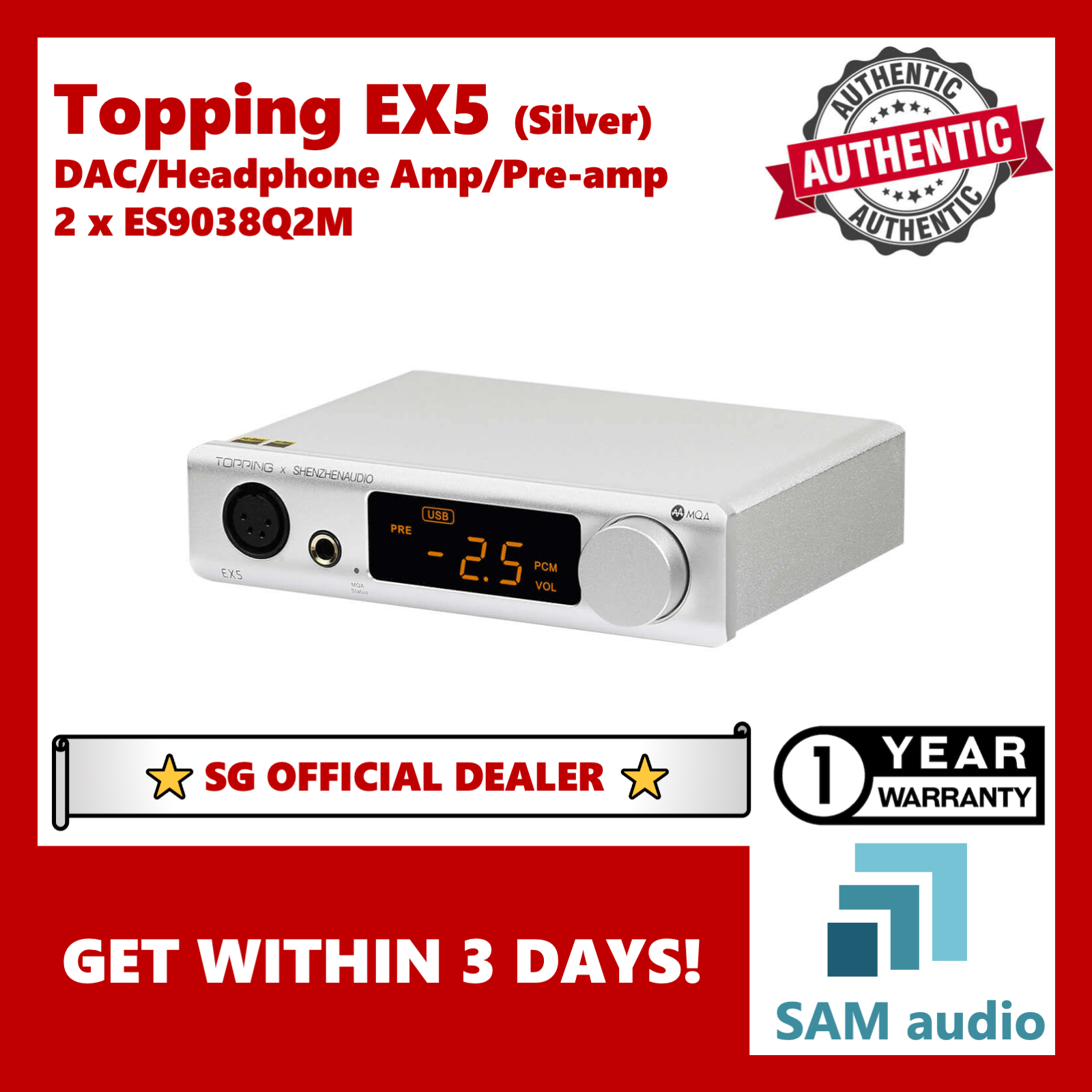

Topping EX5 DAC/Headphone Amp/Pre-amp with ES9038Q2M chip

>Topping offers with its EX5 an extremely powerful DAC and headphone amplifier combo. Its conversion stage is indeed based on two ES908Q2M DAC chips and allows the reading of high resolution audio streams, while ensuring an incredible precision and sound richness.

Features:
>Dual ESS ES9038Q2M SABRE DAC Chips
>Support DSD512 Native and PCM 768kHz

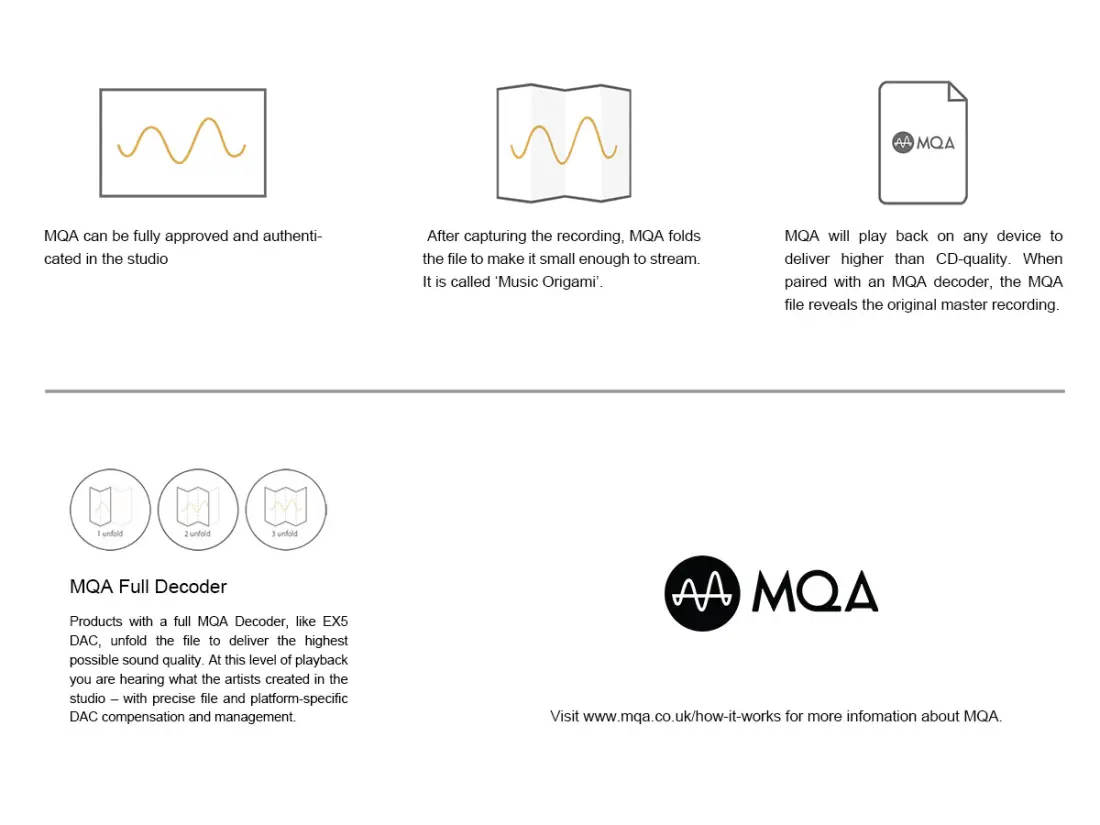

>MQA Full Decoding via USB
>2nd Generation 16 Core XMOS XU216
>Bluetooth 5.0 LDAC transmission
>4-PIN-XLR and 6.35mm Headphone Output
>1300mW X2 Output Power
>Less than 0.1 ohm Output Impedance
--
Descriptions:
>Topping offers with its EX5 an extremely powerful DAC and headphone amplifier combo. Its conversion stage is indeed based on two ES908Q2M DAC chips and allows the reading of high resolution audio streams, while ensuring an incredible precision and sound richness. Versatile, the EX5 has a complete connectivity as well as a Bluetooth 5.0 connectivity. Its amplification stage, using an NFCA circuit, allows it to deliver a comfortable power to accompany the majority of the headphones of the market while ensuring a perfect audio transparency.

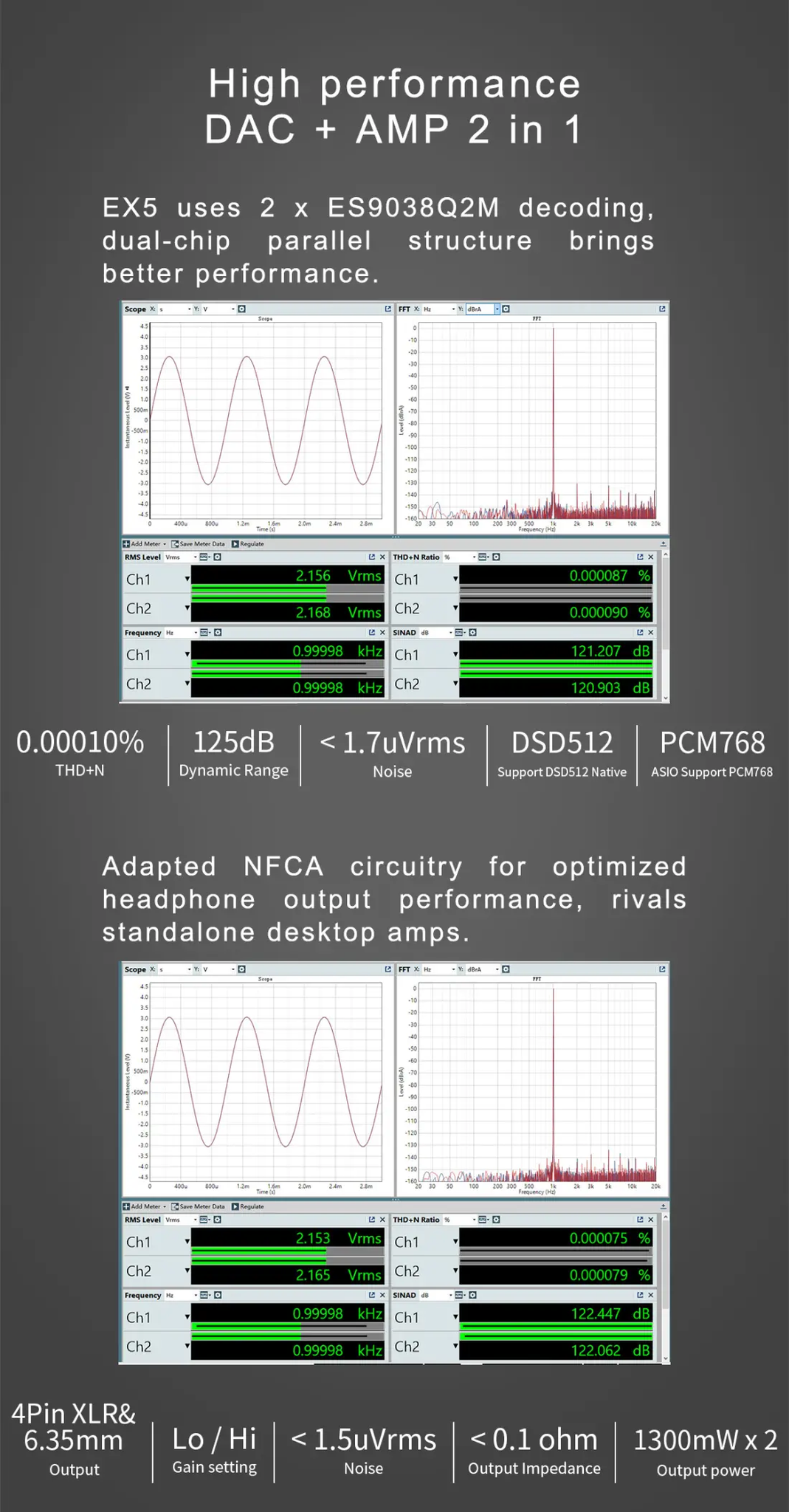

>Dual ES9038Q2M DAC & USB XMOS

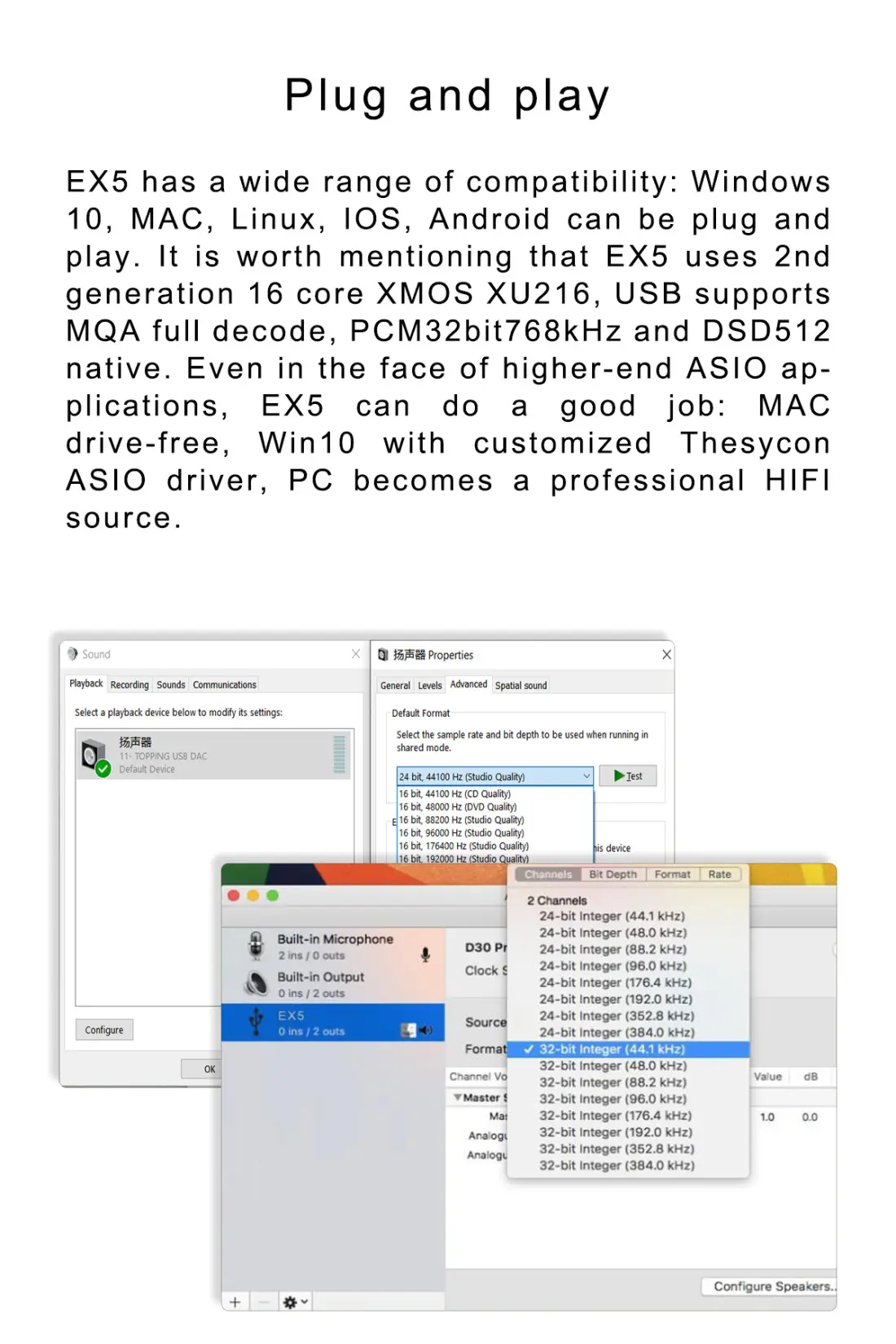

At the heart of the EX5 is a particularly efficient digital to analog conversion stage. Taking advantage of a symmetrical architecture, it uses two ESS ES9038Q2M chips, supporting PCM files up to 32bit 768kHz and DSD up to DSD512. These DACs allow to reach an excellent sound quality, marked by a great precision and a beautiful transparency. This conversion stage is associated with a USB XMOS XU216 interface which is also extremely powerful and allows the decoding of MQA files.

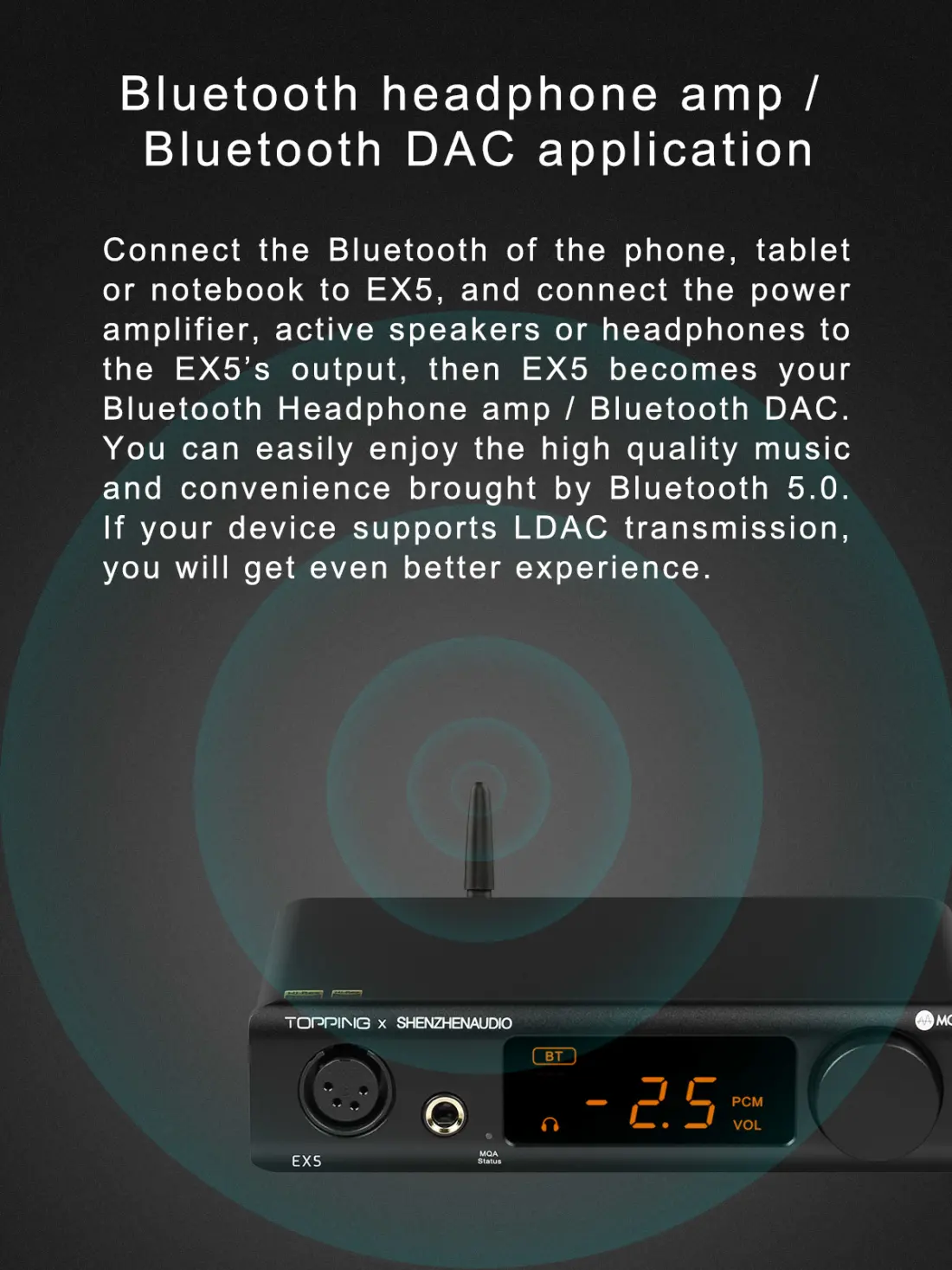

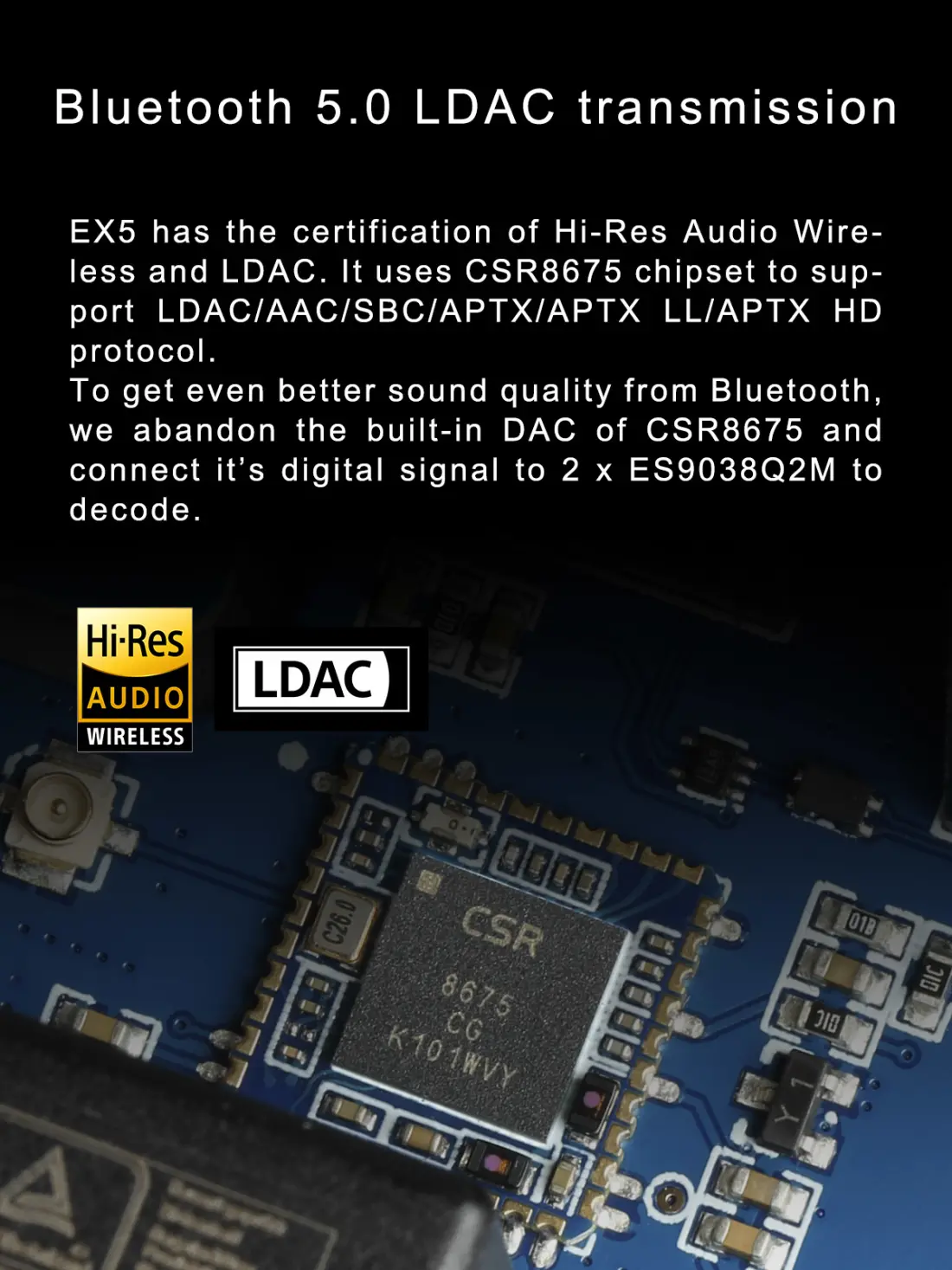

>Bluetooth 5.0
The EX5 embeds a Bluetooth 5.0 Qualcomm CSR8675 chip. It is thus possible to broadcast your music remotely directly from your smartphone for example. In addition, this Bluetooth chip supports the high-resolution codecs aptX, aptX HD, aptX LL and LDAC, allowing you to achieve a very good quality of sound reproduction in Bluetooth.

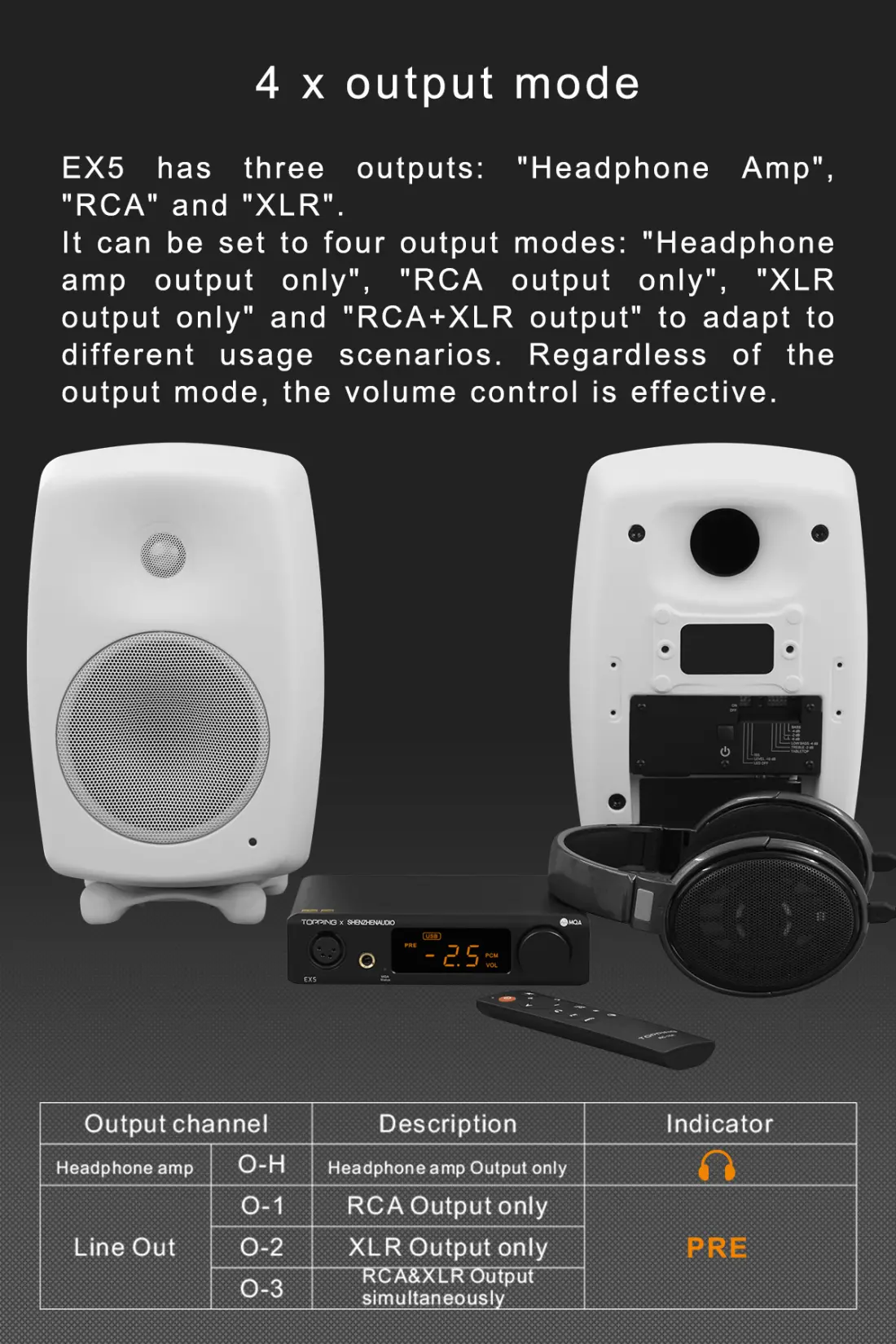

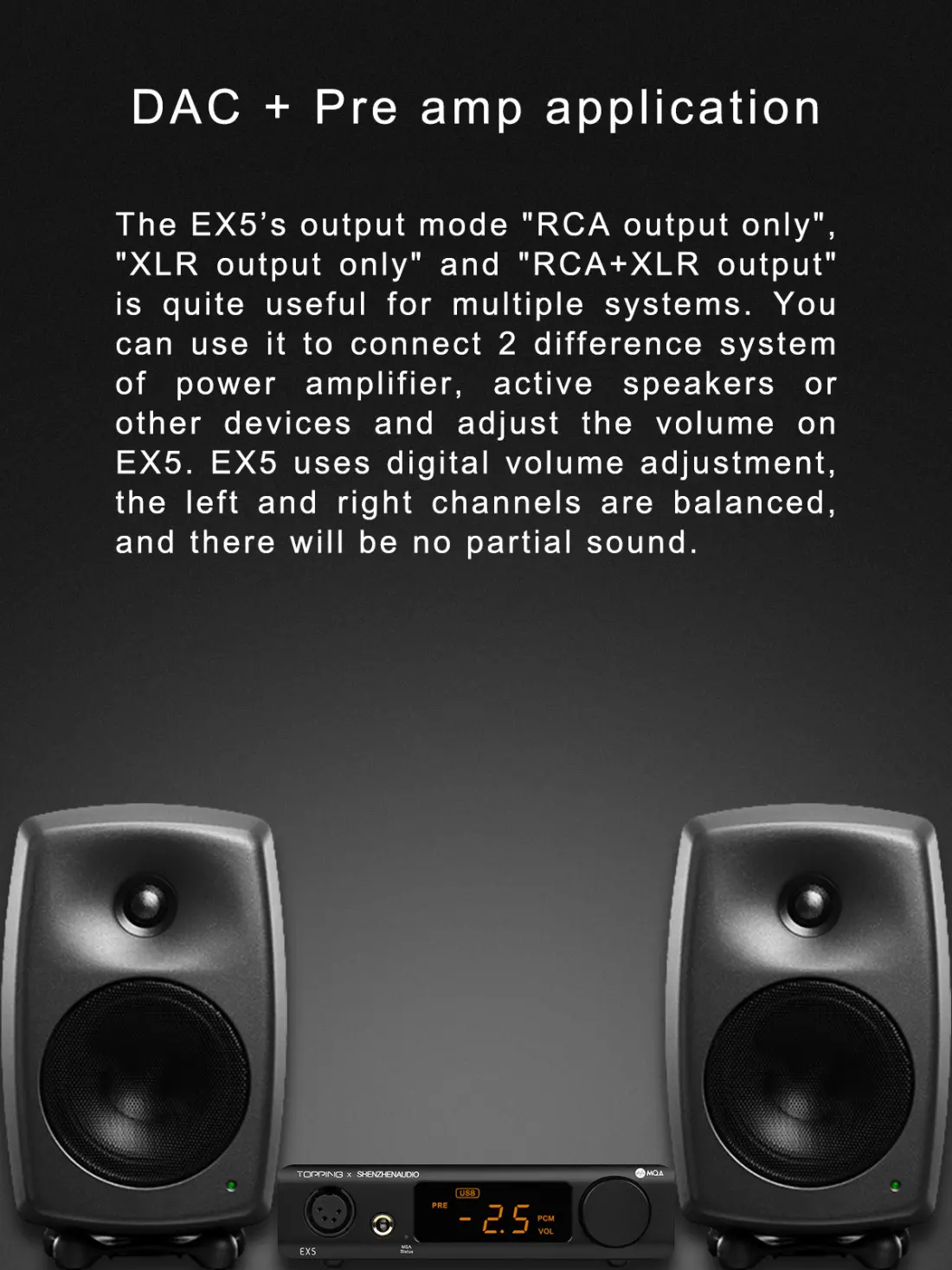

>Four output modes
The Topping EX5 has four outputs: one unbalanced headphone output on 6.35mm jack, one balanced headphone output on 4-pin XLR, and two line outputs on unbalanced RCA and balanced XLR. It is thus possible to define an output mode among four available: headphone output only, RCA only, XLR only or XLR + RCA. This selection allows the EX5 to adapt to different types of use. Regardless of the output mode, the volume control remains effective.

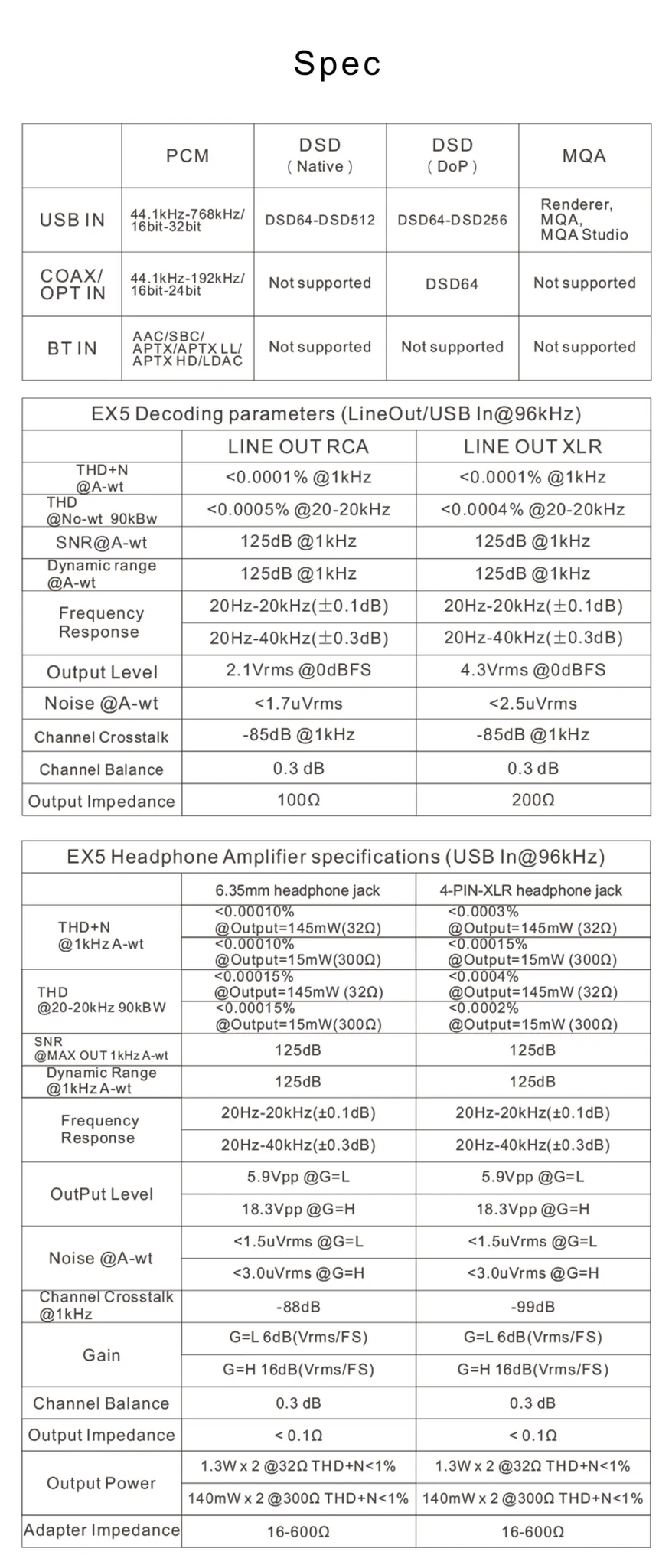

>SPECIFICATIONS
Product type: DAC / Headphone amplifier
Inputs:
- 1x USB
- 1x Optical Toslink
- 1x Coaxial
- Bluetooth 5.0
Outputs:
- 1x Single-ended RCA
- 1x Balanced XLR
- 1x Single-ended Jack 6.35mm headphone output
- 1x Balanced XLR 4 pins headphone output
Supported sampling rates USB: PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA
Coaxial / Optical: PCM up to 24bit 192kHz, DSD DoP up to DSD64
Supported Bluetooth codecs: AAC, SBC, aptX, aptX LL, aptX HD, LDAC

>GENERAL
Supply voltage: 100-240VAC 50Hz/60Hz (power cable included)
Dimensions: 17.4 x 13.8 x 4.5cm
Weight: 750g
Color: Black

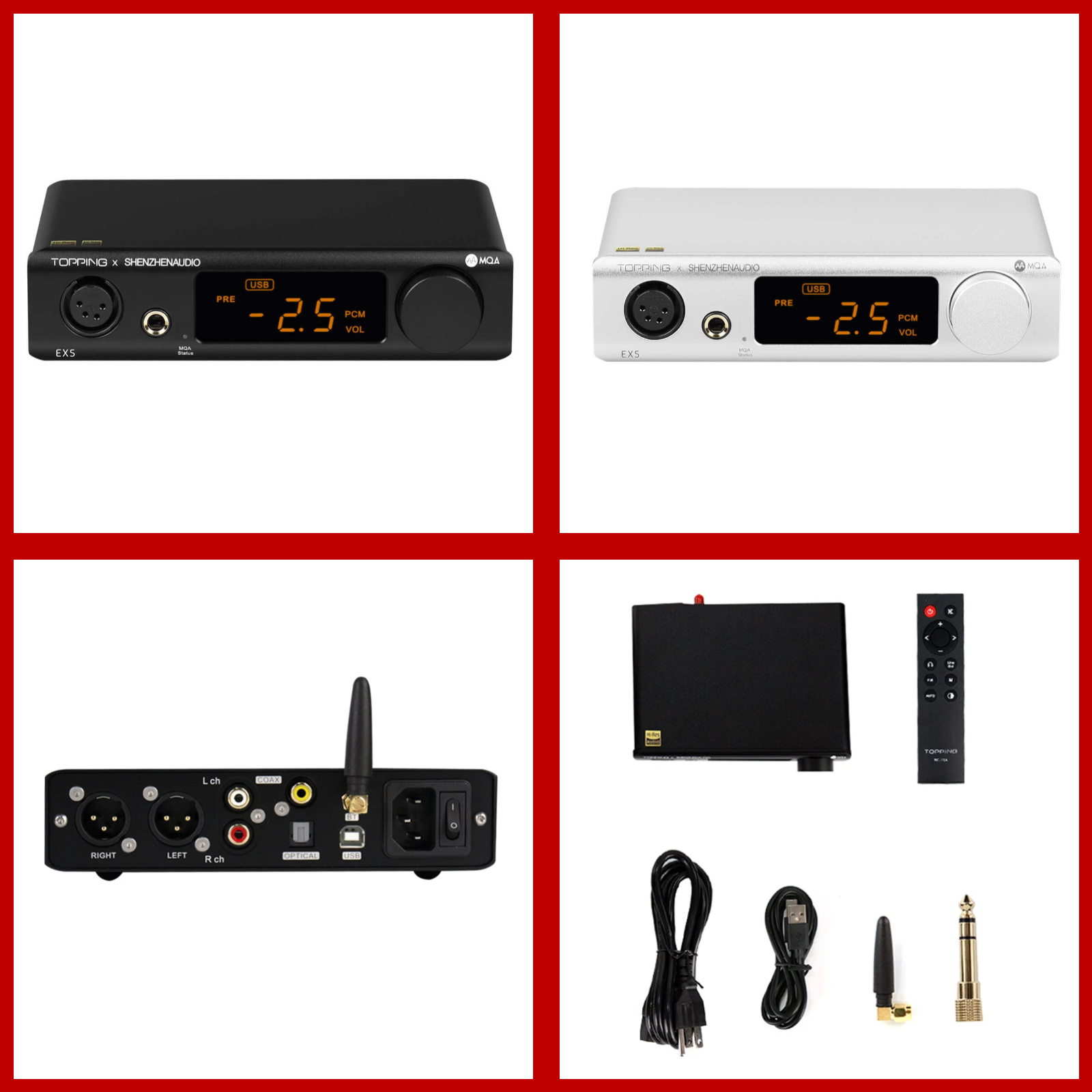

Package:
- 1x Topping EX5
- 1x Remote control
- 1x USB cable
- 1x Jack 6.35mm to Jack 3.5mm adapter
- 1x Bluetooth antenna
- 1x Power cable
