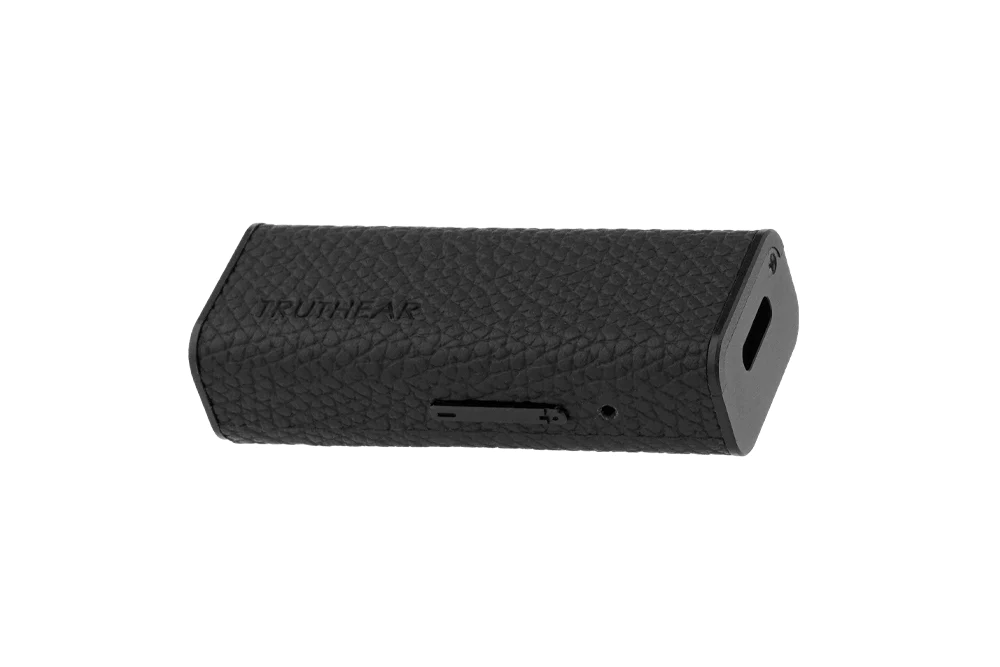

Truthear SHIO Dual CS43198 D/A Chips Lossless Portable DAC Amplifier/Dongle

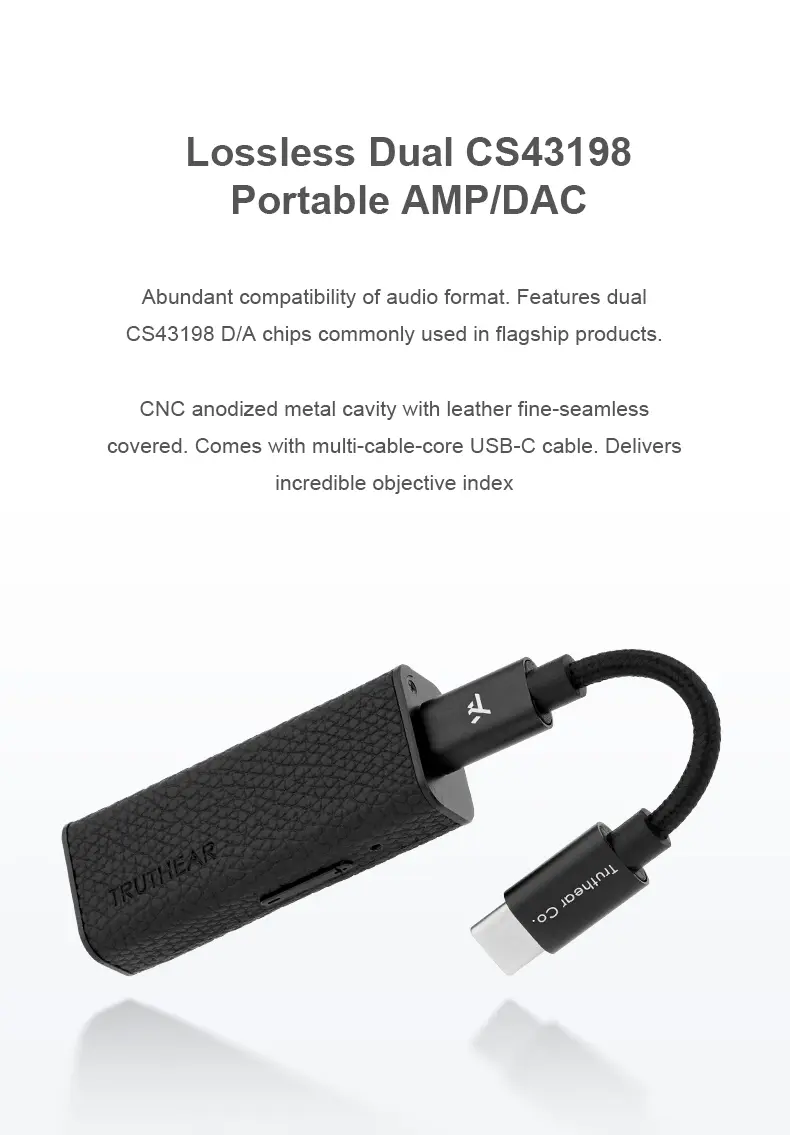

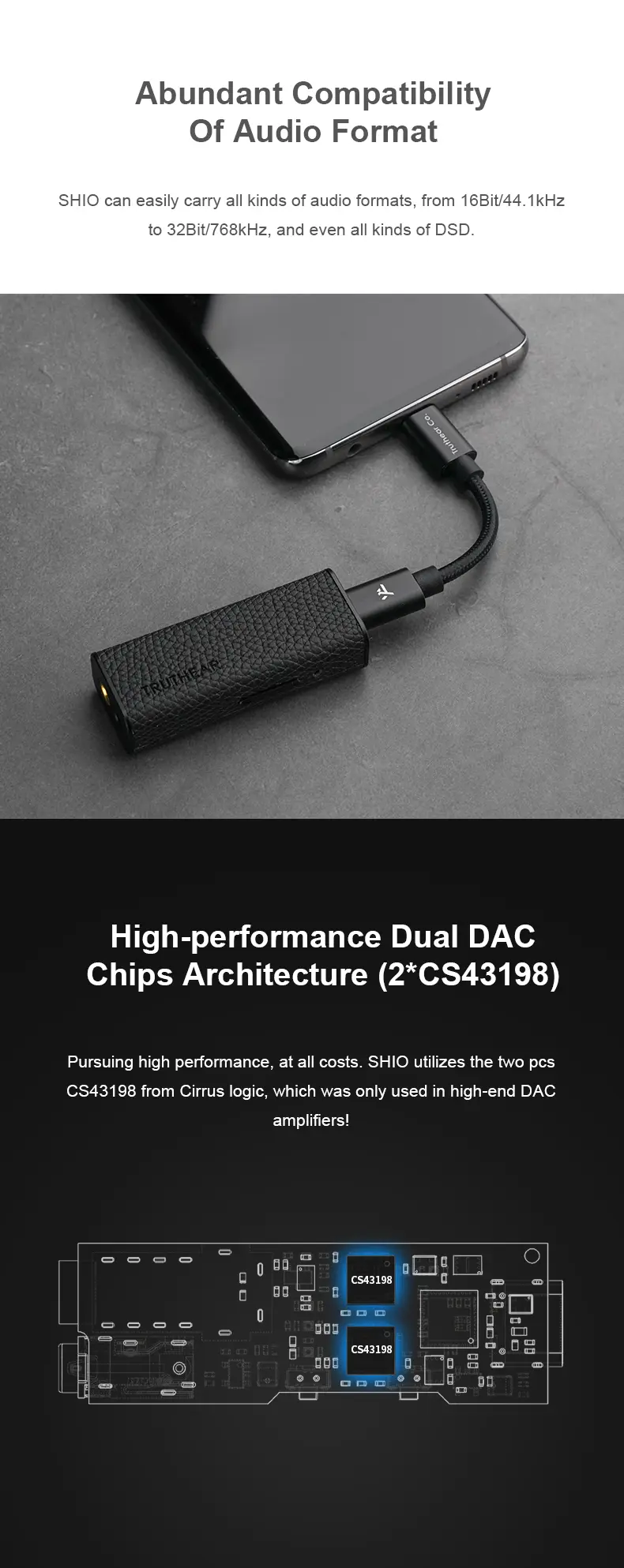

>Abundant compatibility of audio format.
>Features Dual CS43198 D/A chips commonly used in flagship products.
>CNC anodized metal cavity with leather fine-seamless covered.

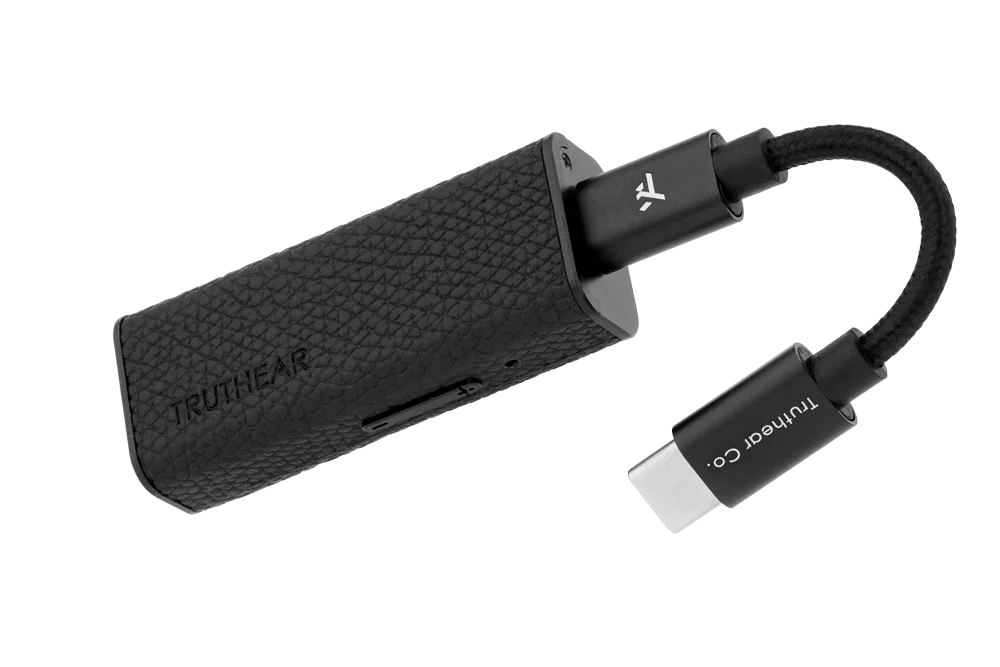

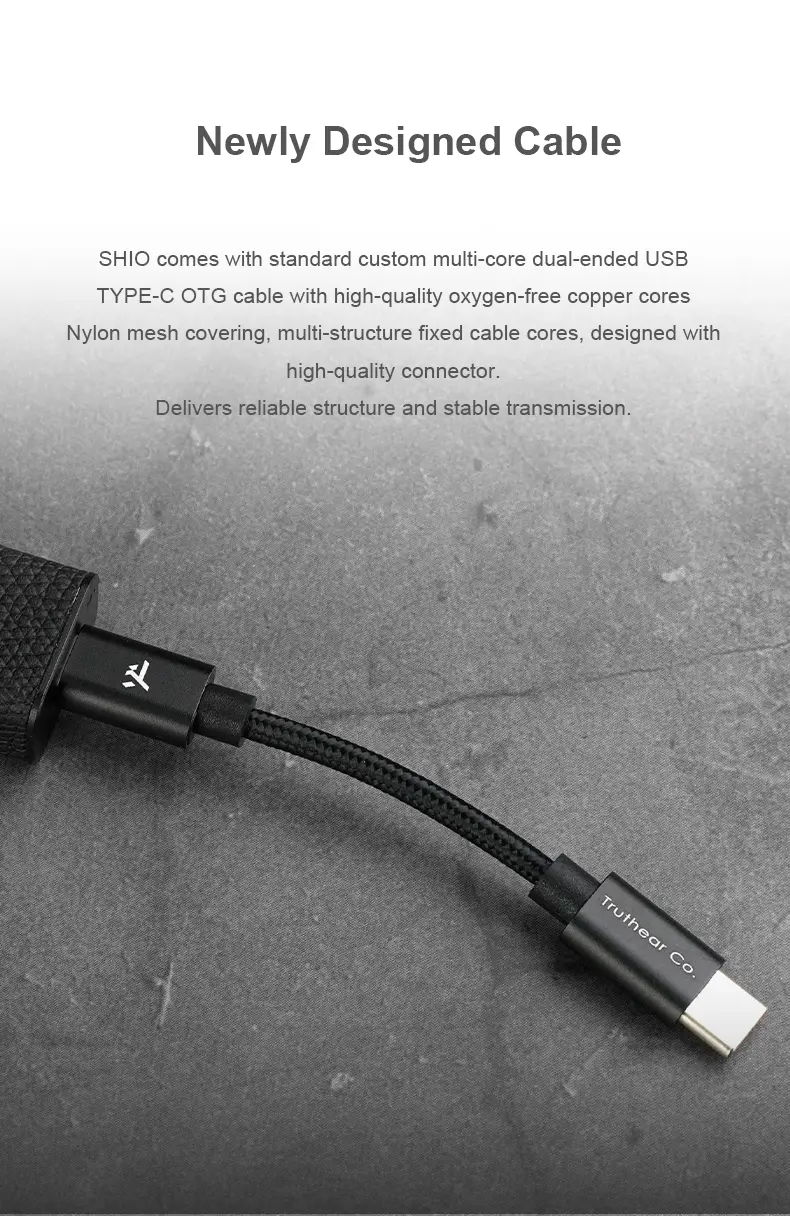

>Comes with multi-cable-core USB-C cable.

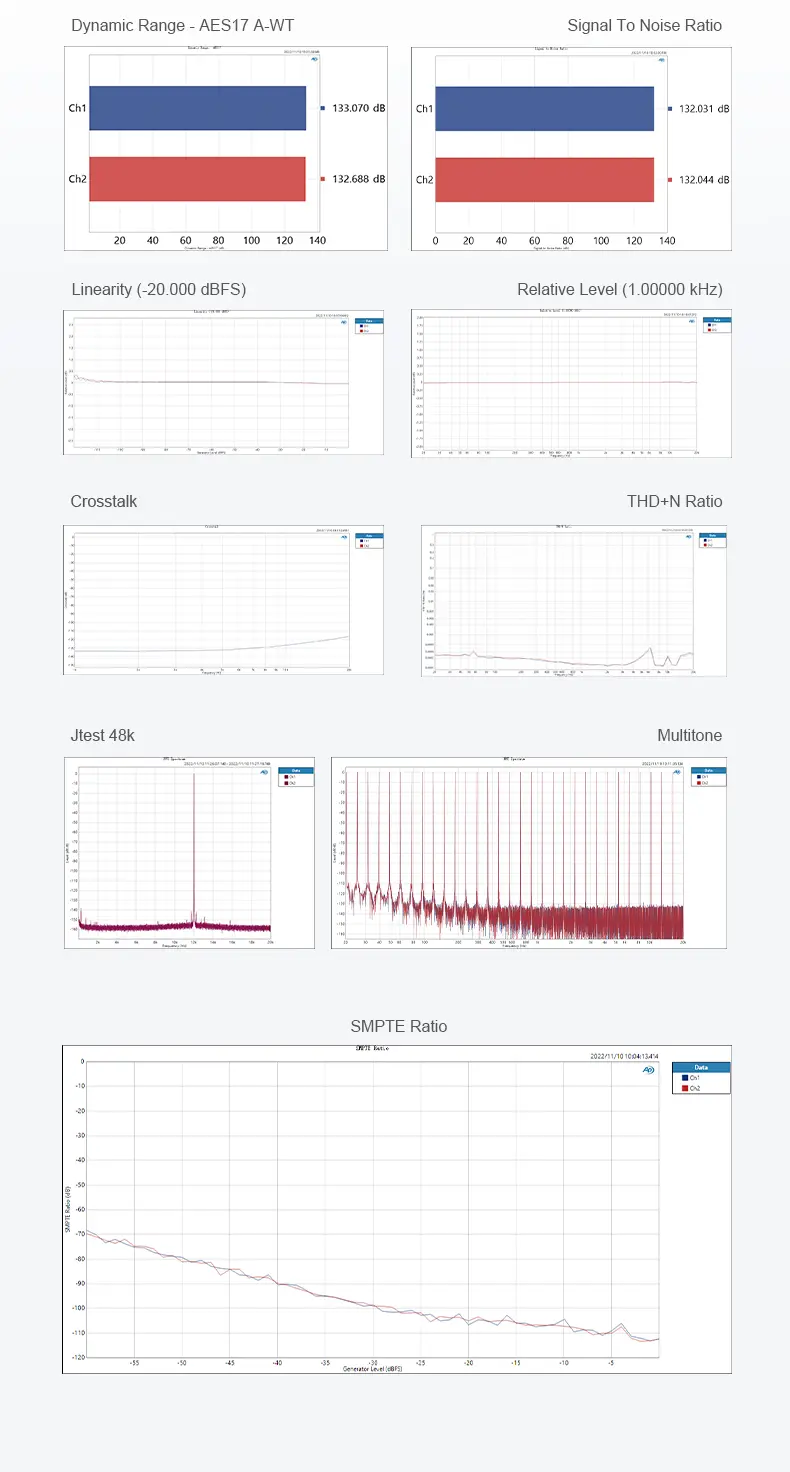

>Delivers incredible objective index
>Carry all kinds of audio formats, from 16Bit/44.1kHz to 32Bit/768kHz and even all kinds of DSD
--
Descriptions:
>Supports up to PCM 768 and DSD256.

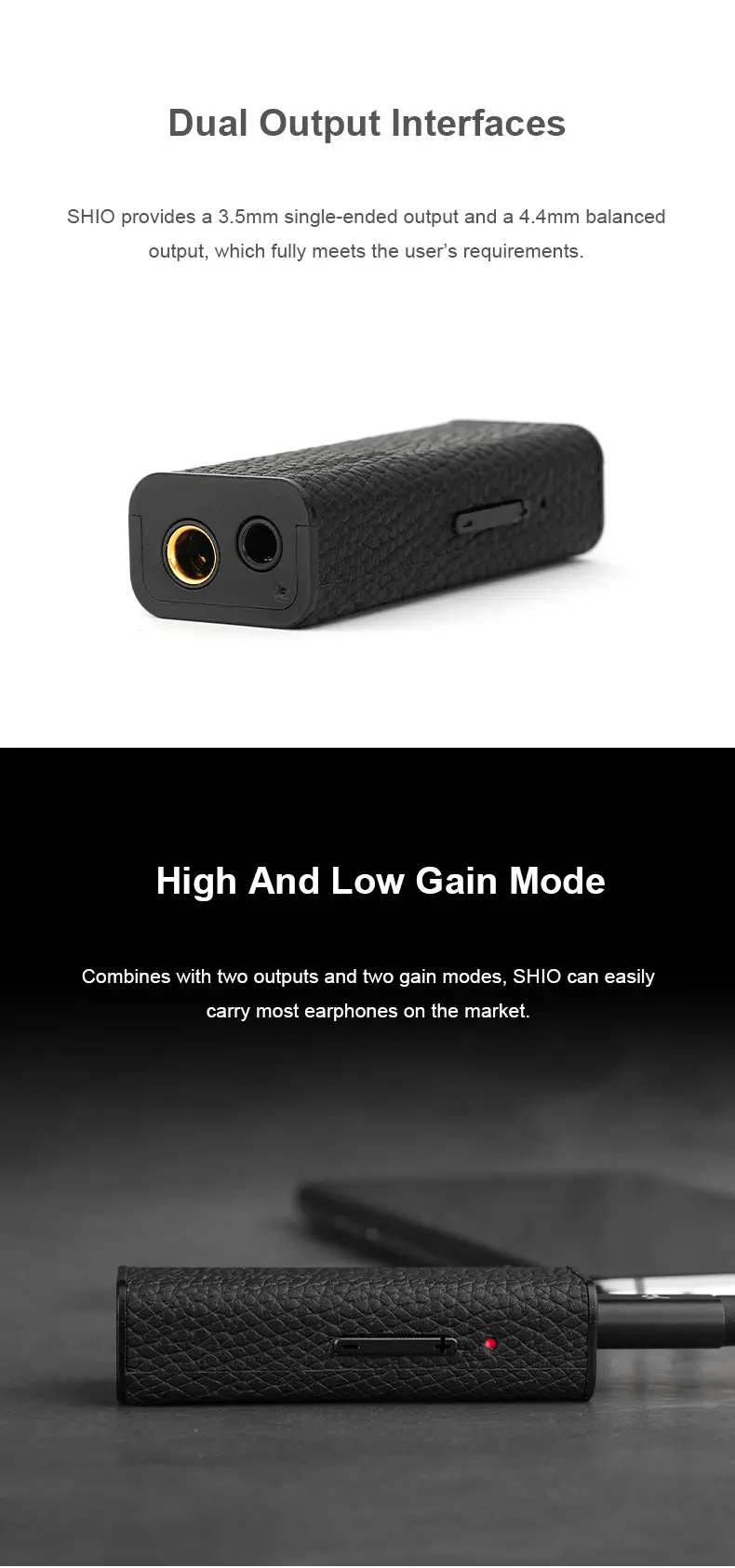

>Incorporates two types of audio output jacks, a 3.5mm TRS and a 4.4mm TRRS.

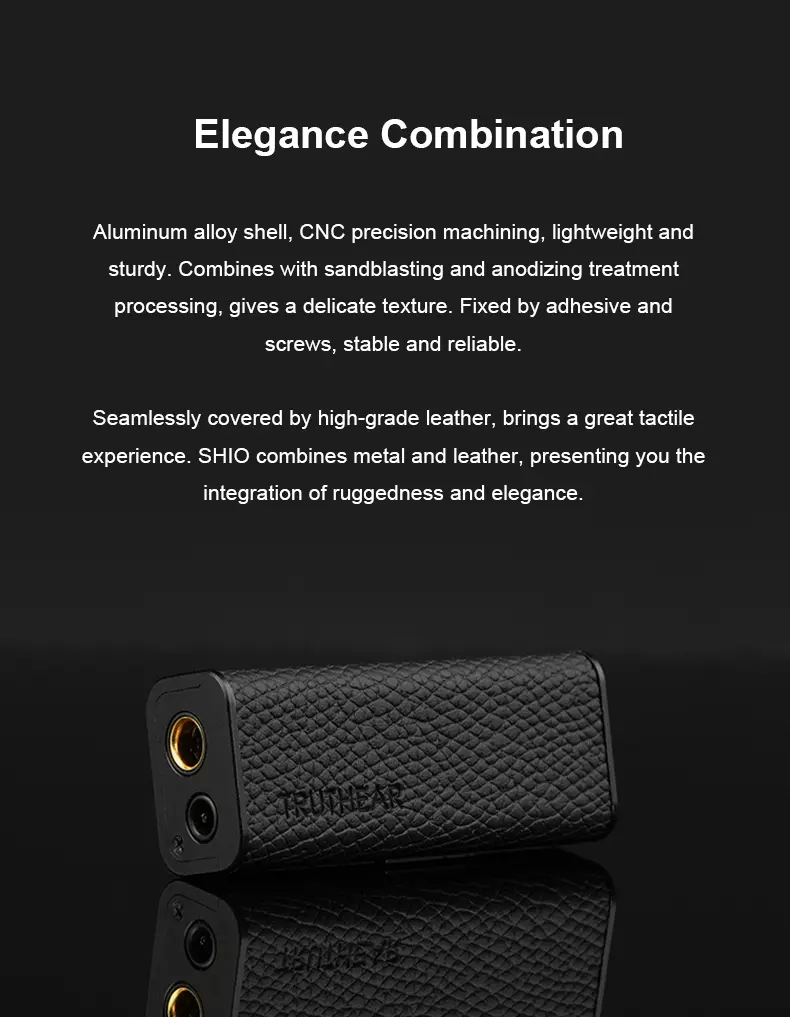

>CNC anodized metal chassis with seamless leather cover for classy and premium look.

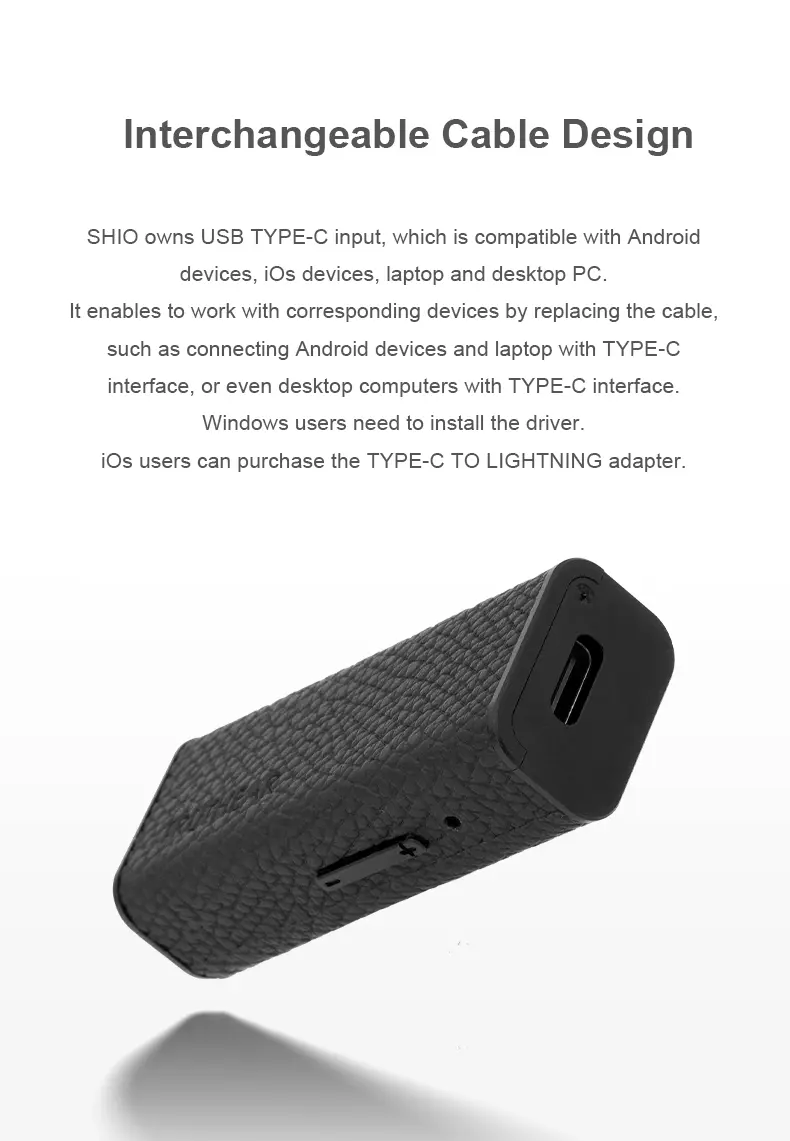

>Interchangeable cable.
>Hardware volume keys.
>Manual switch for gain mode (Low gain, High gain)
--

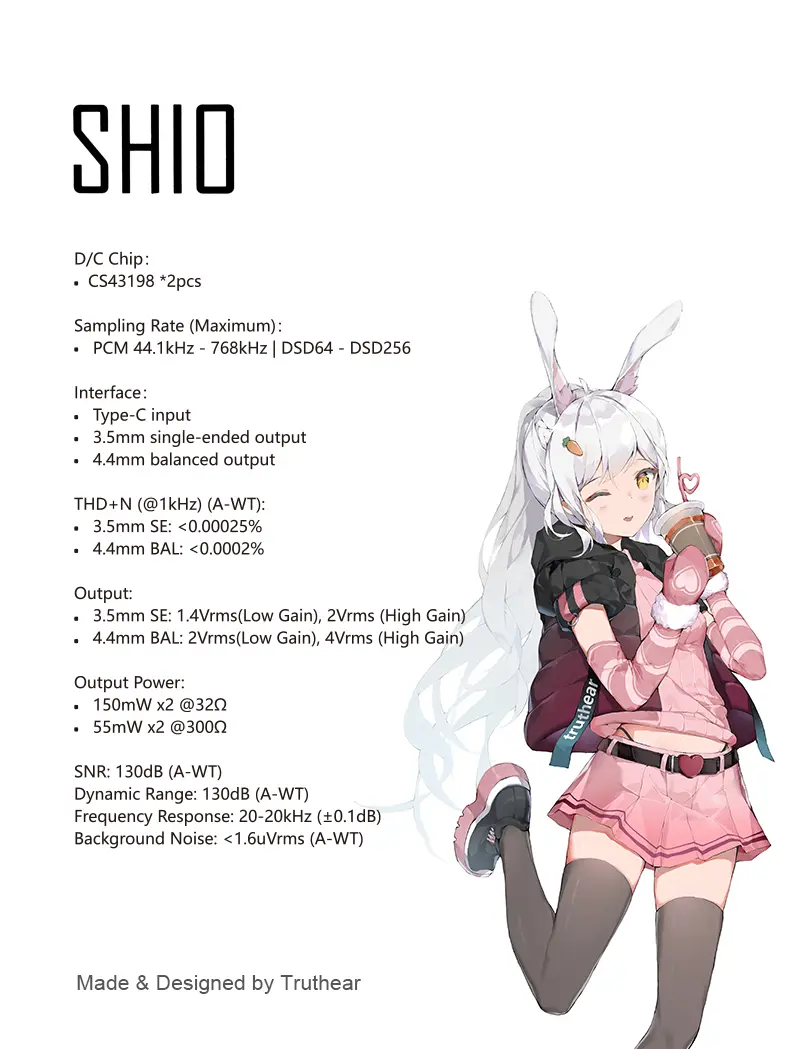

Specifications:
>D/C Chip:CS43198 *2pcs
>Sampling Rate (Maximum):PCM 44.1kHz - 768kHz | DSD64 - DSD256
>Interface:
>Type-C input
>3.5mm single-ended output
>4.4mm balanced output

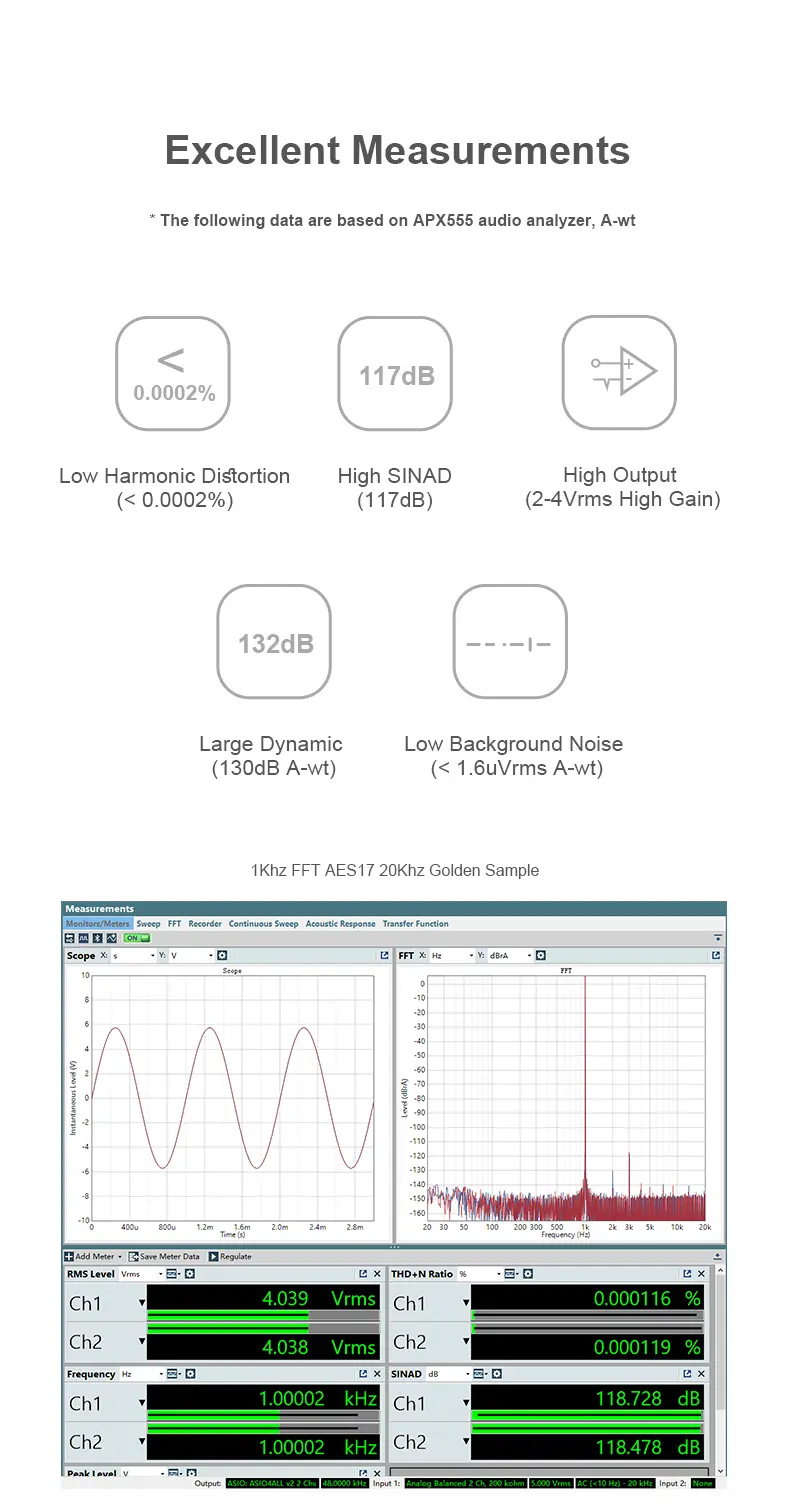

>THD+N (@1kHz) (A-WT):
>3.5mm SE: <0.00025%
>4.4mm BAL: <0.0002%
>Output:3.5mm SE: 1.4Vrms(Low Gain), 2Vrms (High Gain)
4.4mm BAL: 2Vrms(Low Gain), 4Vrms (High Gain)
>Output Power:
150mW x2 @32Ω
55mW x2 @300Ω
>SNR: 130dB (A-WT)
>Dynamic Range: 130dB (A-WT)
>Frequency Response: 20-20kHz (±0.1dB)
>Background Noise: <1.6uVrms (A-WT)
