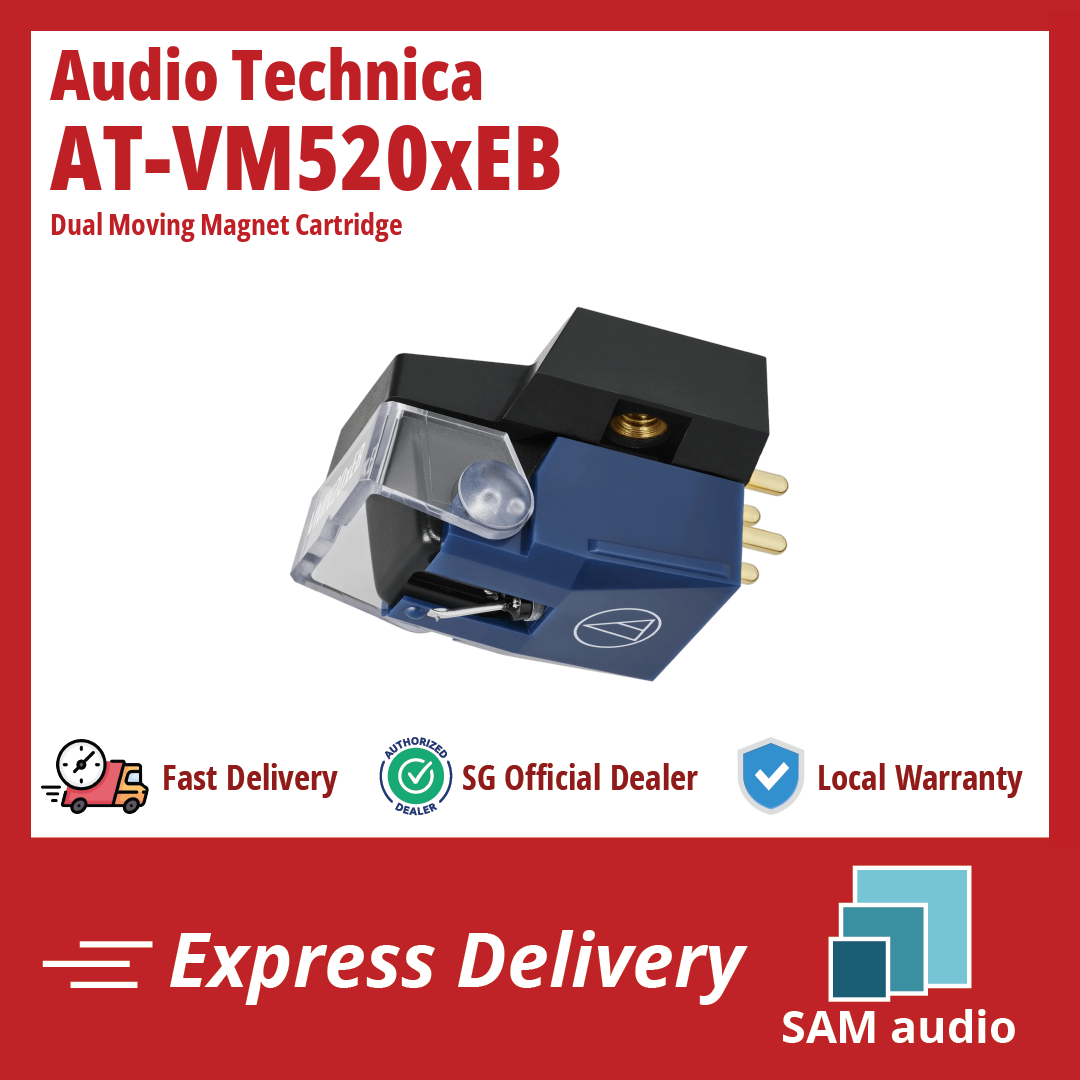

[🎶SG] AUDIO TECHNICA AT-VM520xEB - Dual Moving Magnet Cartridge

🎵 OFFICIAL AUDIO TECHNICA  DEALER

Contact Us:
📞 WhatsApp/Call us @ 83329084 https://wa.me/6583329084
📧 Email us @ sales@samaudiosg.com
🗺️ Visit Us @ CT HUB 2, 114 Lavender Street, #03-68 (Lobby 2), S(338729)

--

KEY BENEFITS:
- Delivers outstanding channel separation and frequency response.
- Easy installation with threaded inserts and improved stylus protection.
- Features high-quality Pure Copper Ultra High Drawability (PCUHD) coils for enhanced audio performance.

--
DESCRIPTIONS:

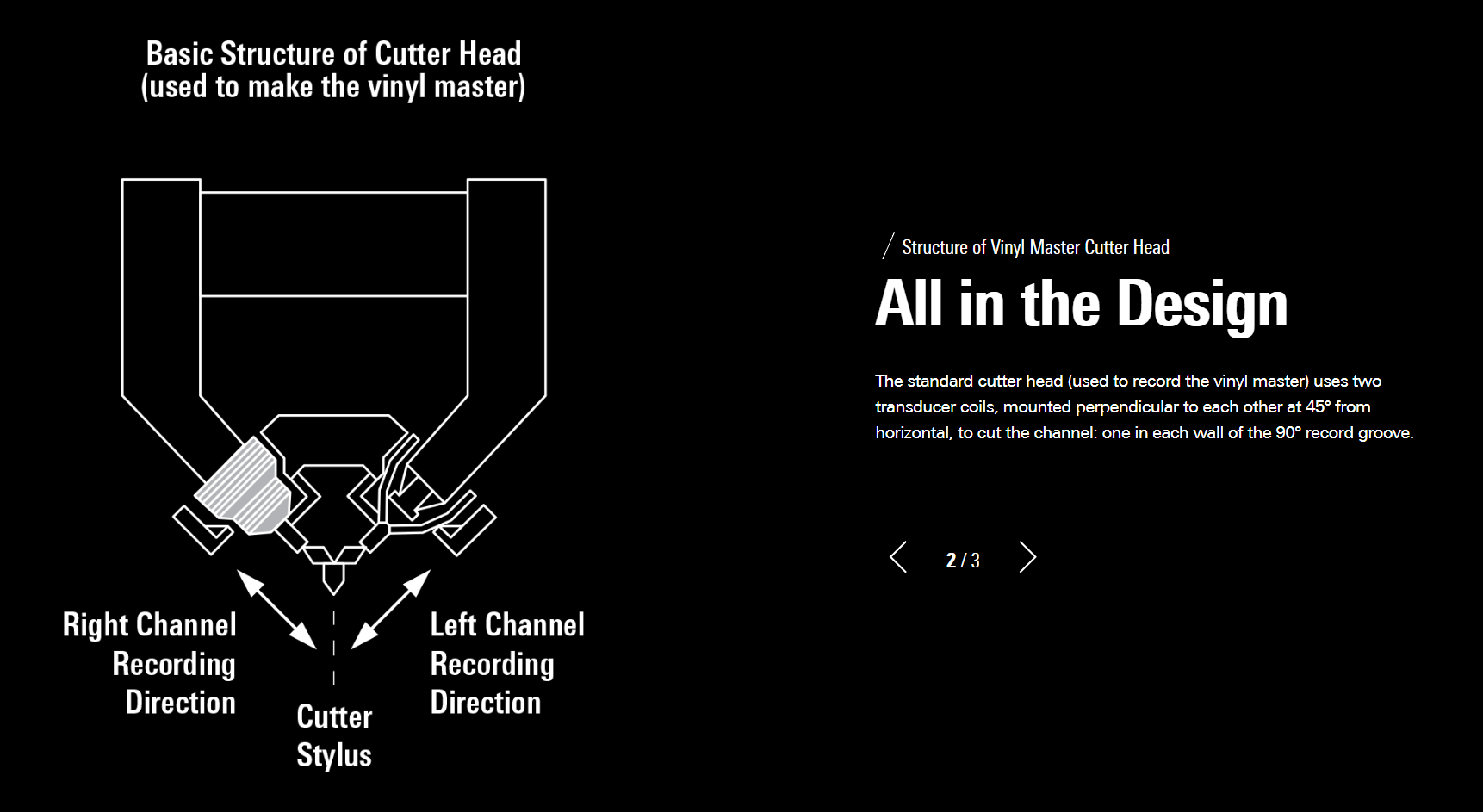

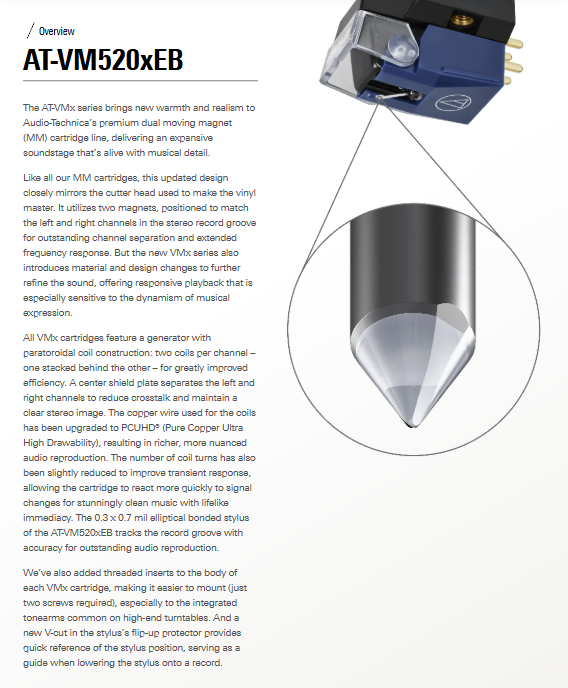

The AT-VM520xEB is a premium dual moving magnet cartridge that captures the essence of your vinyl records with incredible detail and warmth. Its innovative design closely mirrors the cutter head used to create vinyl masters, ensuring that you receive an authentic audio experience. The cartridge features advanced materials and engineering changes that bring responsiveness and dynamic expression to every play.

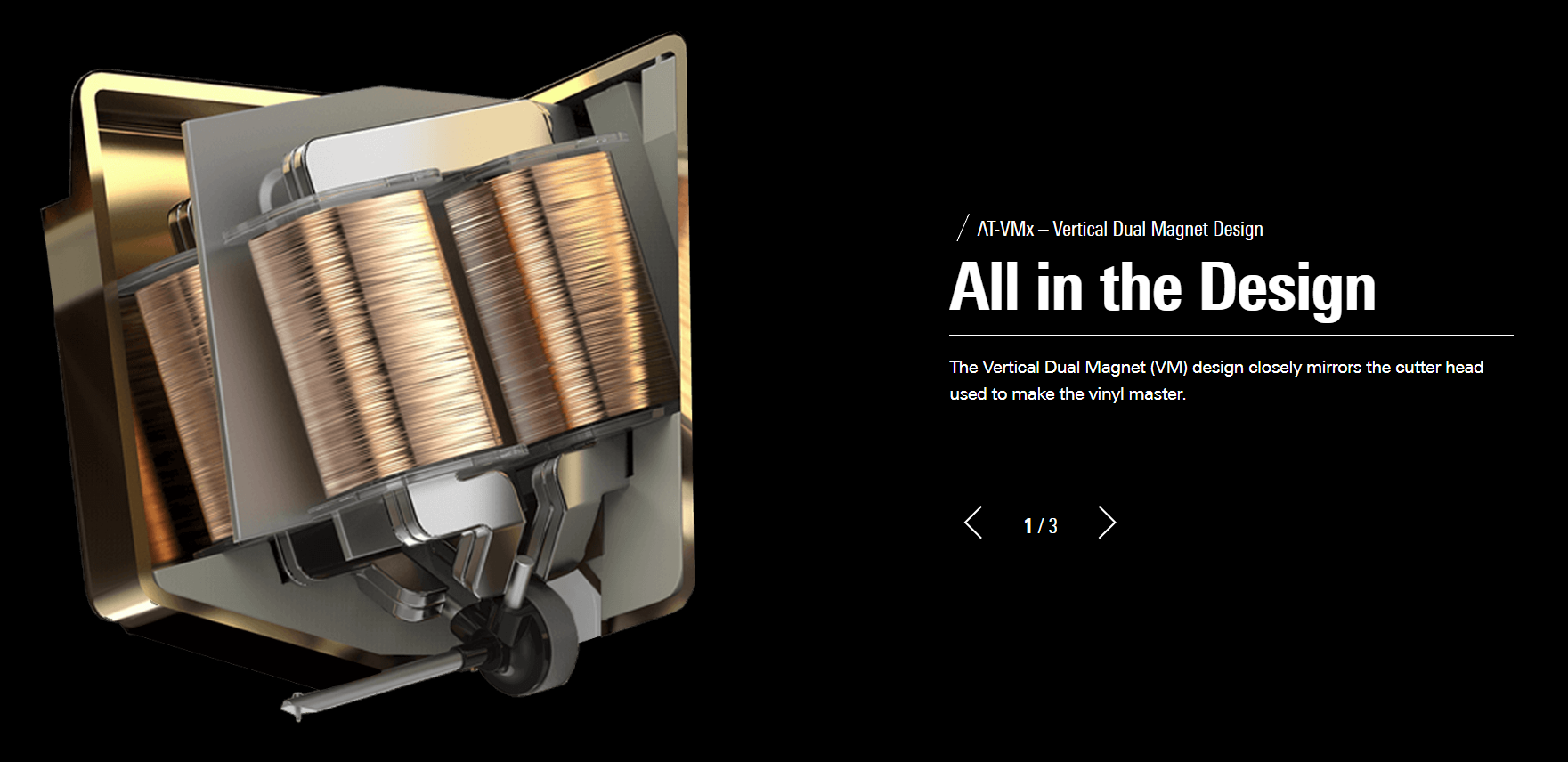

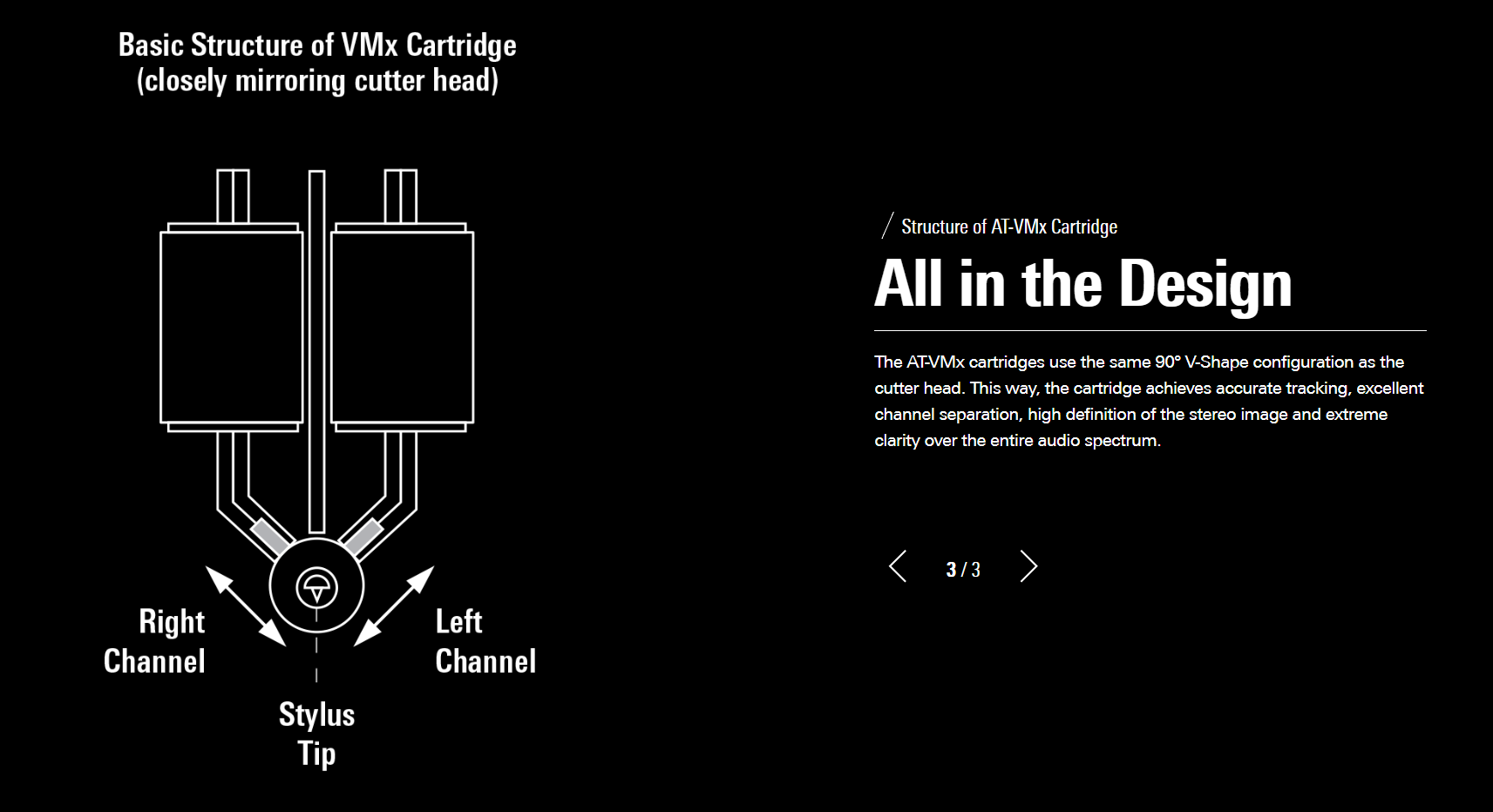

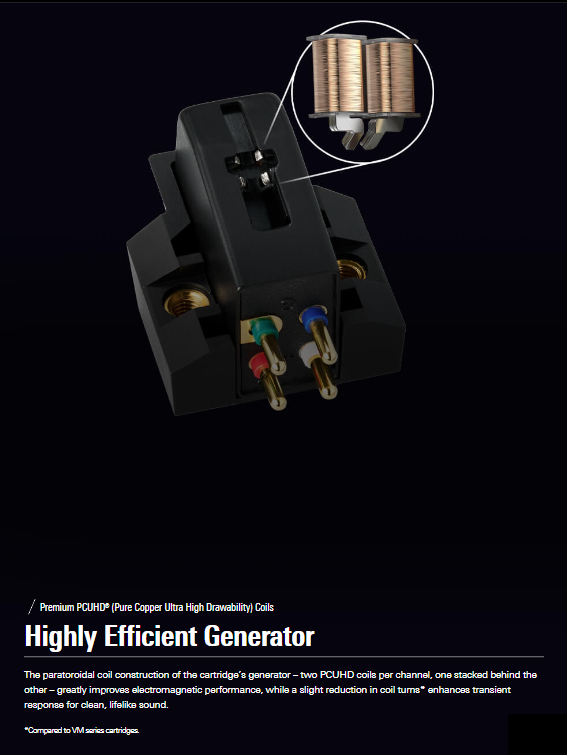

Equipped with two magnets aligned for precise audio readings, this cartridge offers a significant improvement in channel separation. The paratoroidal coil construction enhances electromagnetic performance and minimizes crosstalk. It's designed to provide a rich three-dimensional sound, leading to a more robust audio experience. With its elliptical bonded stylus, the AT-VM520xEB tracks grooves with accuracy, making it essential for discerning audiophiles.

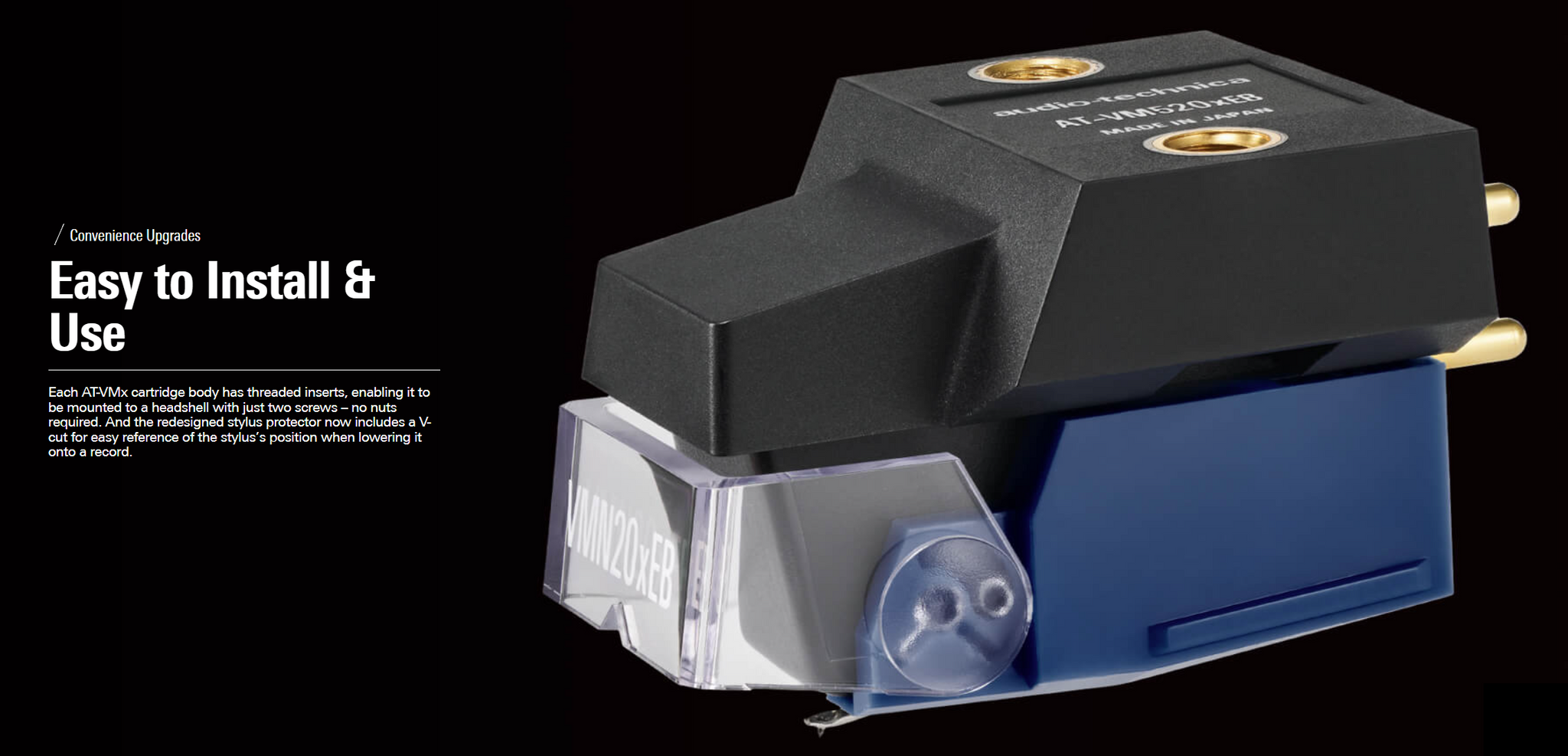

The user-friendly design includes threaded inserts, allowing for quick mounting to a headshell with just two screws. Additionally, the newly updated stylus protector features a V-cut that helps you gauge the stylus's position while lowering it onto a record, ensuring ease of use alongside high-quality playback.

--

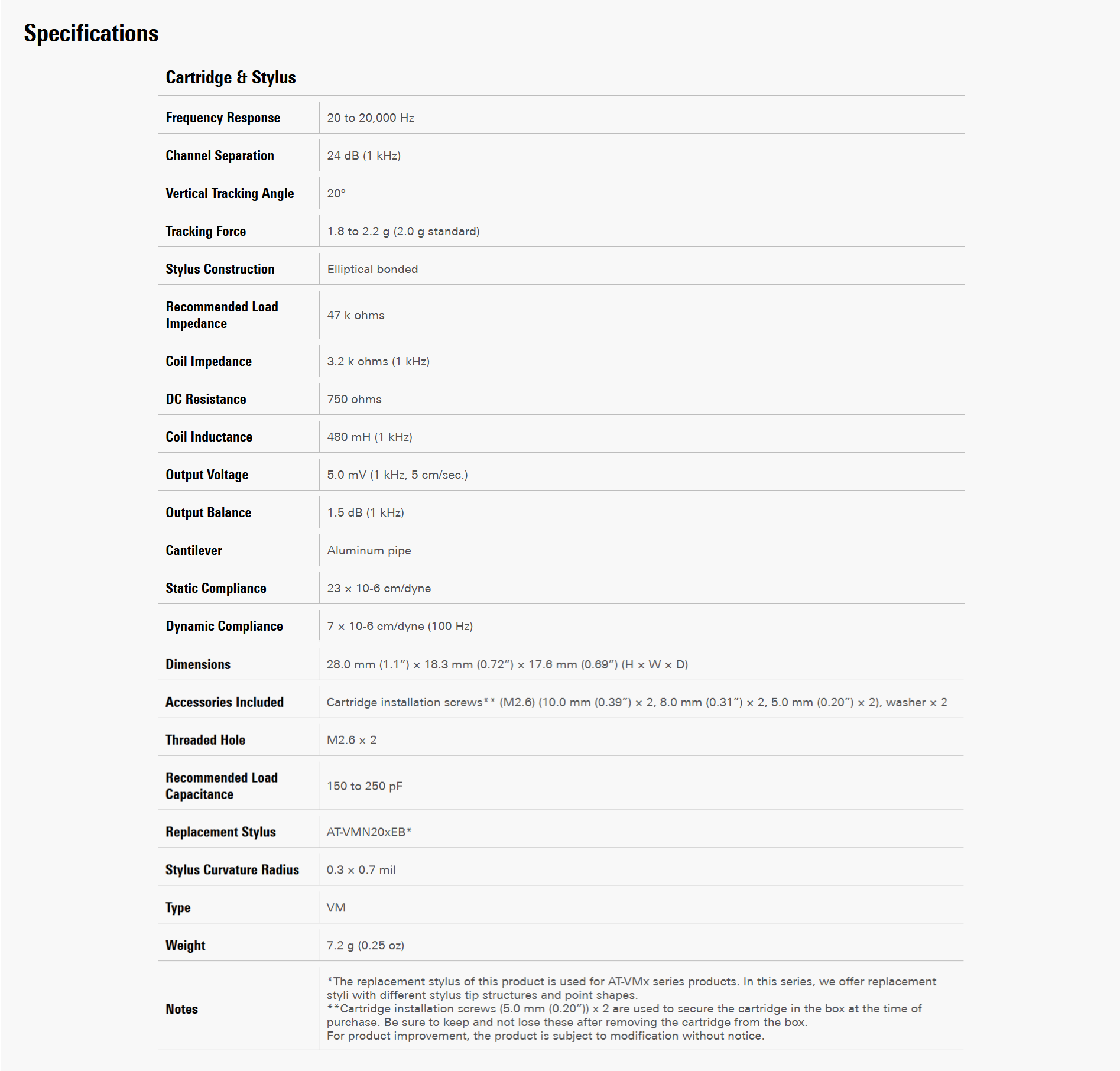

SPECIFICATIONS:

Cartridge & Stylus:
Frequency Response: 20 to 20,000 Hz
Channel Separation: 24 dB (1 kHz)
Vertical Tracking Angle: 20°
Tracking Force: 1.8 to 2.2 g (2.0 g standard)
Stylus Construction: Elliptical bonded
Recommended Load Impedance: 47 k ohms
Coil Impedance: 3.2 k ohms (1 kHz)
DC Resistance: 750 ohms
Coil Inductance: 480 mH (1 kHz)
Output Voltage: 5.0 mV (1 kHz, 5 cm/sec.)
Output Balance: 1.5 dB (1 kHz)
Cantilever: Aluminum pipe
Static Compliance: 23 x 10^-6 cm/dyne
Dynamic Compliance: 7 x 10^-6/dyne (100 Hz)
Dimensions: 28.0 mm (1.1") × 18.3 mm (0.72") × 17.6 mm (0.69") (H × W × D)
Accessories Included: Cartridge installation screws* (M2.6) (10.0 mm (0.39") × 2, 8.0 mm (0.31") × 2, 5.0 mm (0.20") × 2), washer × 2

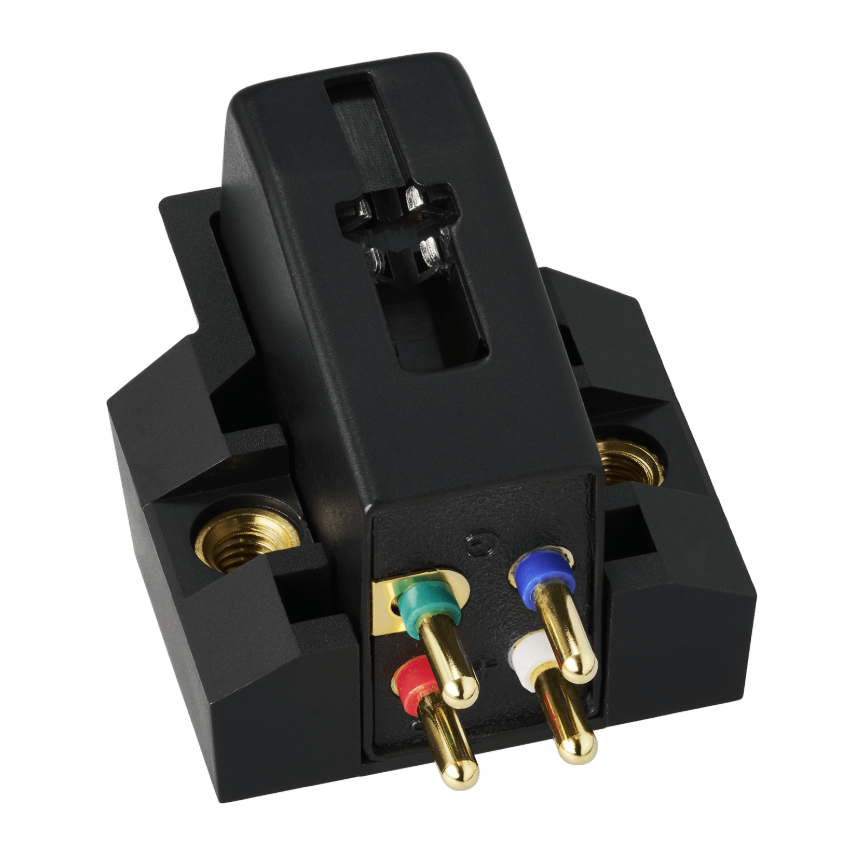

Threaded Hole: M2.6 x 2
Recommended Load Capacitance: 150 to 250 pF

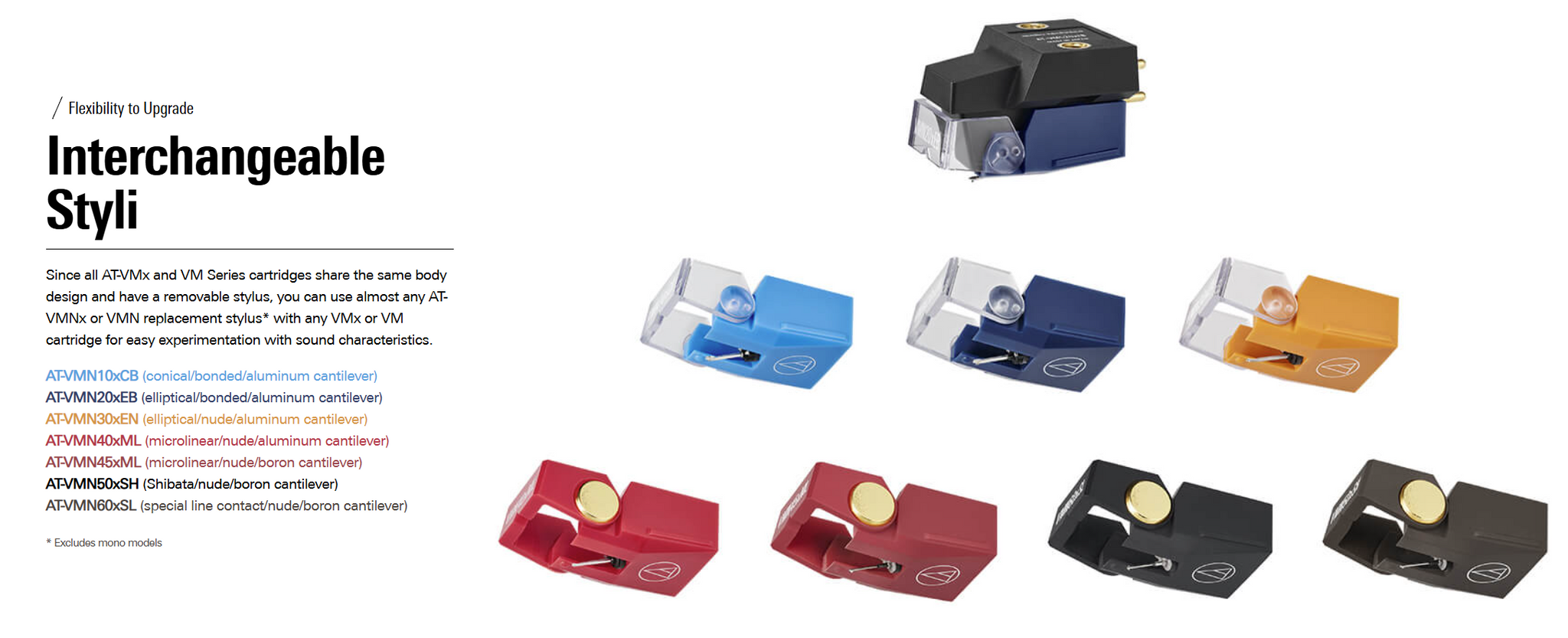

Replacement Stylus: AT-VMN20xEB*
Stylus Curvature Radius: 0.3 x 0.7 mil
Type: VM
Weight: 7.2 g (0.25 oz)

--
