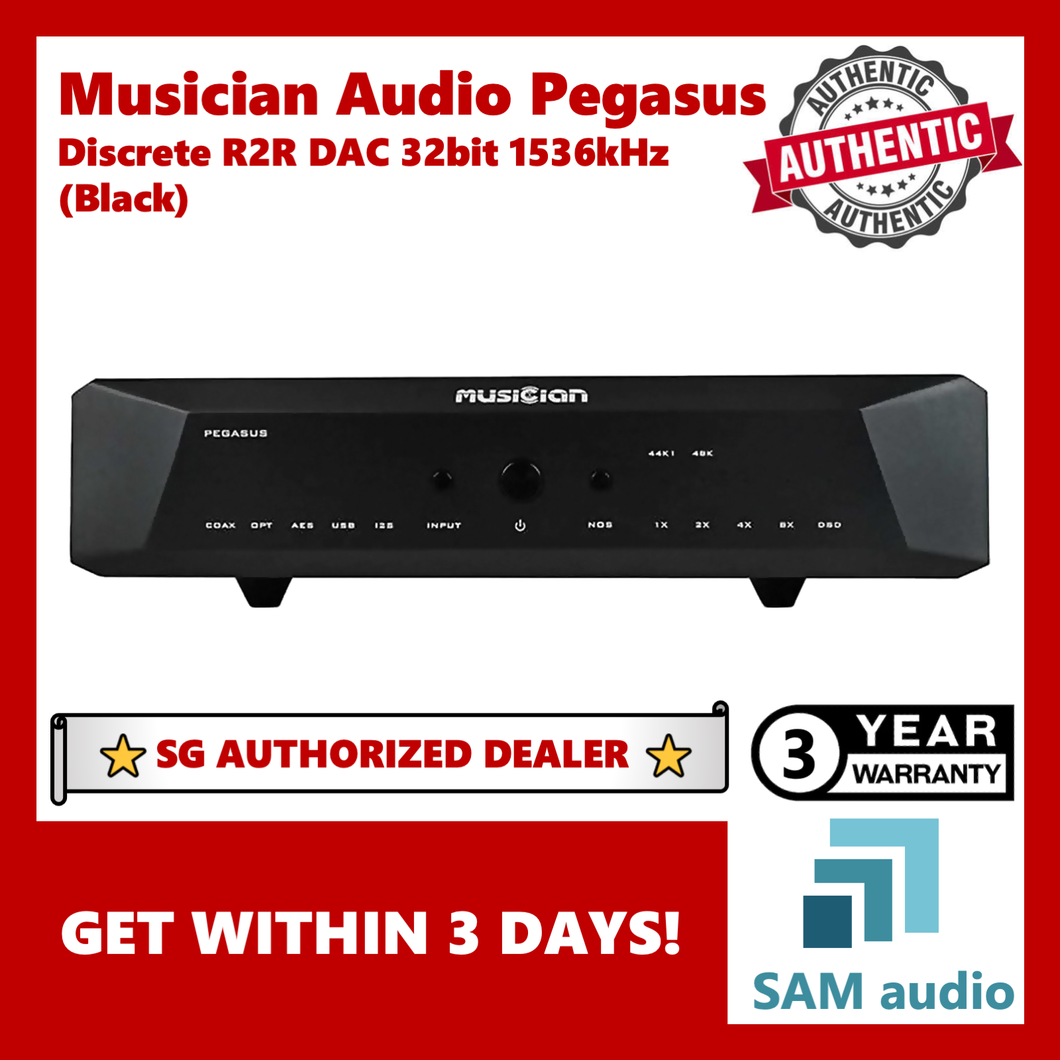

Musician Audio PEGASUS, Discrete R2R DAC 32bit, Balanced XLR, PCM 1536kHz DSD1024
(Free FANMUSIC XLR Interconnect cable, WORTH $89.90, when purchased together with Andromeda)

The Musician Pegasus presents itself as a magnificent and particularly powerful DAC, taking advantage of a neat R2R architecture. Integrating the best current technologies, the device benefits from a low-noise power supply, a FIFO buffer, signal processing by FPGA and a FIR filter. It is thus capable of decoding very high sample rates, up to 32bit PCM 1536kHz and DSD1024 via its USB and I2S inputs.


--

Descriptions:

>The Musician Pegasus presents itself as a magnificent and particularly powerful DAC, taking advantage of a neat R2R architecture. Integrating the best current technologies, the device benefits from a low-noise power supply, a FIFO buffer, signal processing by FPGA and a FIR filter. It is thus capable of decoding very high sample rates, up to 32bit PCM 1536kHz and DSD1024 via its USB and I2S inputs. The USB interface is managed by a STM32F446 MCU with Thesycon driver. The whole unit is integrated in a massive Aluminium case.


>The Musician Pegasus provides you with most of the connections common to today's HiFi devices. We thus find at the input of USB-B, I2S via HDMI LVDS, AES/EBU, Toslink Optics and Coaxial. On the output side, the device offers unbalanced RCA and balanced XLR, the latter output being obviously recommended to take advantage of the full potential of the device.

>Specifications

Product type : DAC R2R
Inputs : 1x USB-B, 1x Coaxial, 1x Optical Toslink, 1x AES/EBU, 1x I2S via HDMI LVDS
Outputs : 1x Single-ended RCA, 1x Balanced XLR
Supported sampling rates I2S / USB : PCM up to 32bit 1536kHz, DSD up to DSD1024
Others inputs : PCM up to 24bit 192kHz, DSD DoP up to DSD64
Frequency response : 10Hz - 60kHz
Output level RCA : 2.2Vrms
XLR : 3.55Vrms (5v pp)
Supply voltage 110-240VAC, 50/60Hz
Dimensions 280 x 250 x 50mm
Weight 3.9kg
Package 1x Musician Pegasus, 1x Power cable
