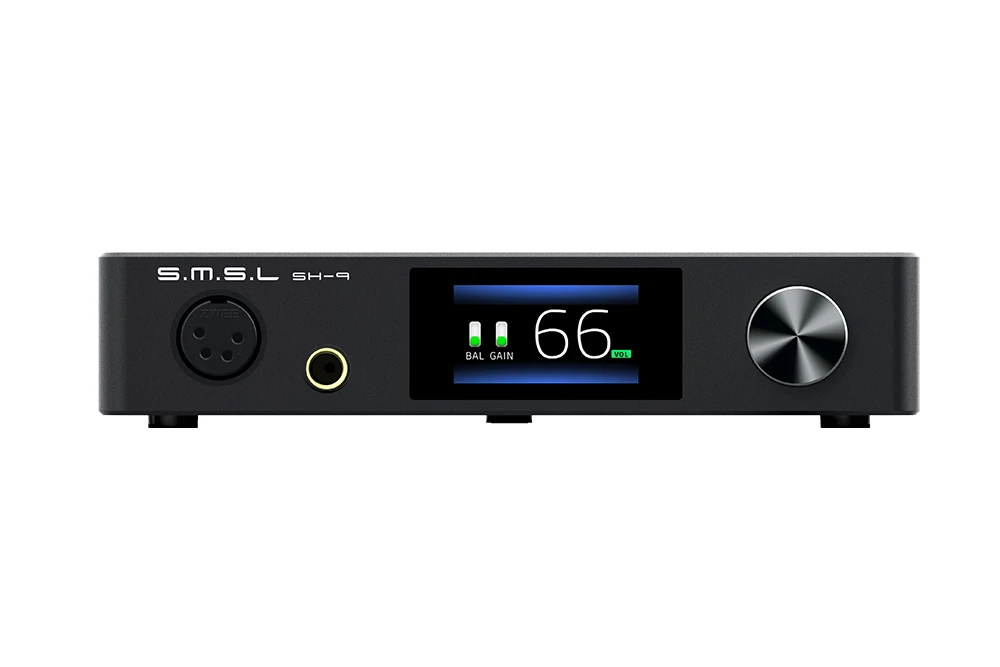

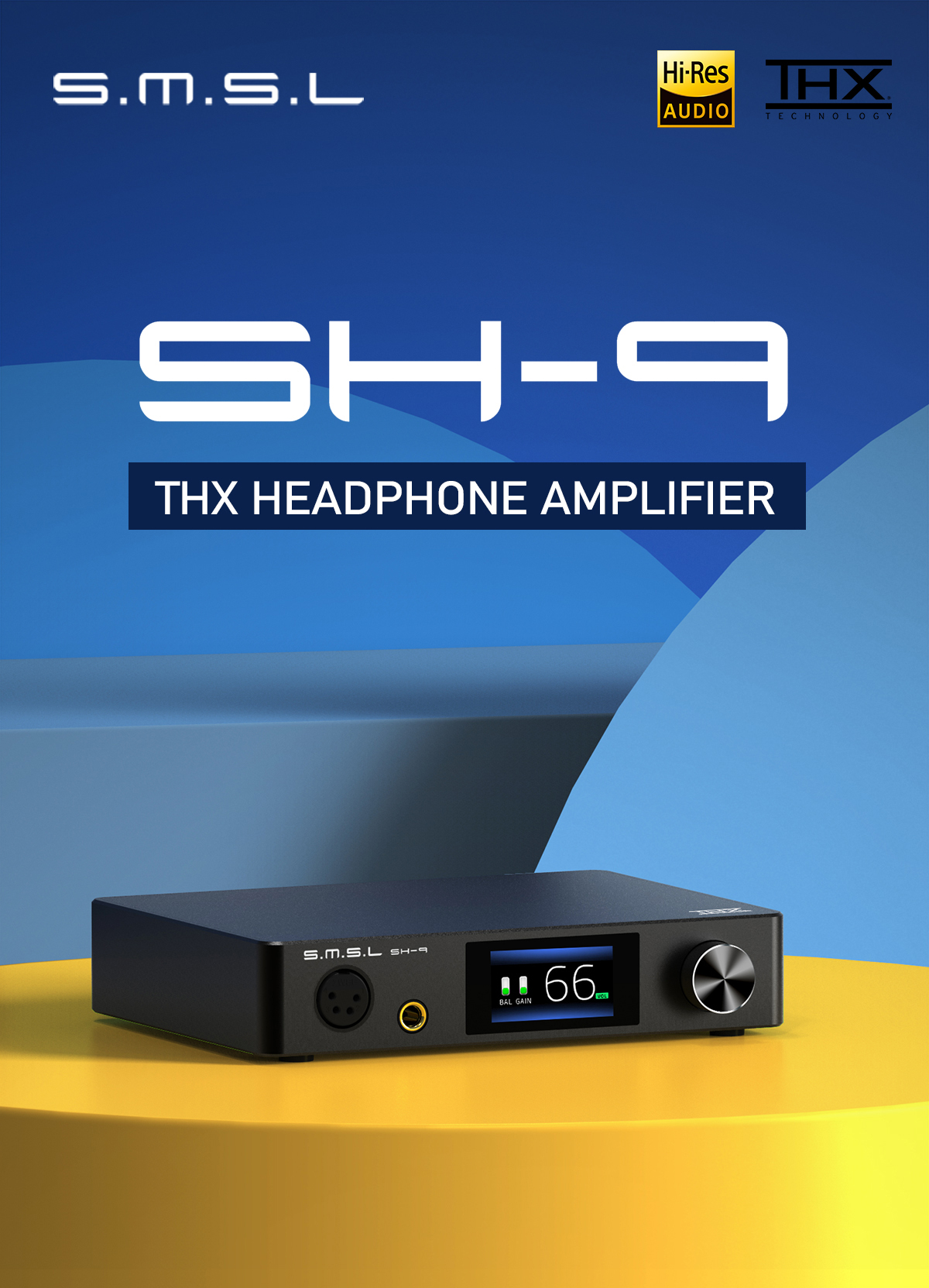

SMSL SH-9 Balanced Headphone Amplifier (SH 9 SH9)
!! Free FANMUSIC XLR Interconnect cable (WORTH $89.90) when purchased together with SMSL SU-9!!
>The SH-9 from SMSL is a headphone amplifier incorporating the great THX AAA technology (Achromatic Audio Amplifier). It benefits from the powerful correction algorithms specific to the THXAAA version 888 (Audiophile high power series) with up to 40dB of reduction against distortions (harmonic / intermodulation / crossover). This matchless technology offers incomparable listening performance in terms of sound transparency, dynamic range, maximum output power and sound pressure (SPL).

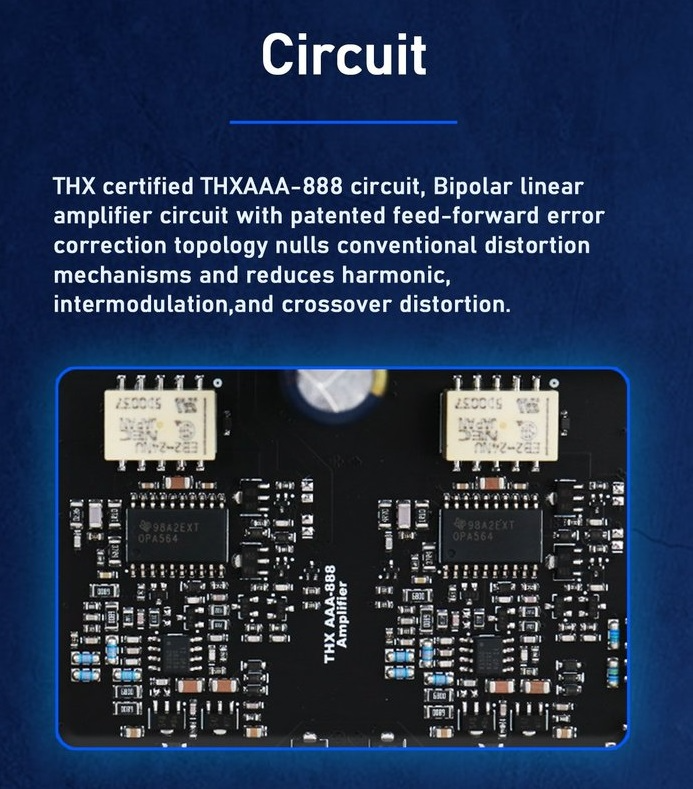

>Certified THX AAA-888 Amplification Circuit:-
The SMSL SH-9 is equipped with a certified THX AAA-888 amplification circuit. THX AAA(Achromatic Audio Amplifier) ensures an ultimate sound quality experience with supreme power, ultra-low levels of noise-floor, distortion, and power consumption.
>Patented Feed-Forward Error Connection Topology:-
The THX AAA-888 amplification circuit inside the SH-9 features a patented feed-forward error connection topology. It nullifies conventional distortion mechanisms and results in a high-fidelity sound quality experience for its users.
>Fully Balanced Architecture:-

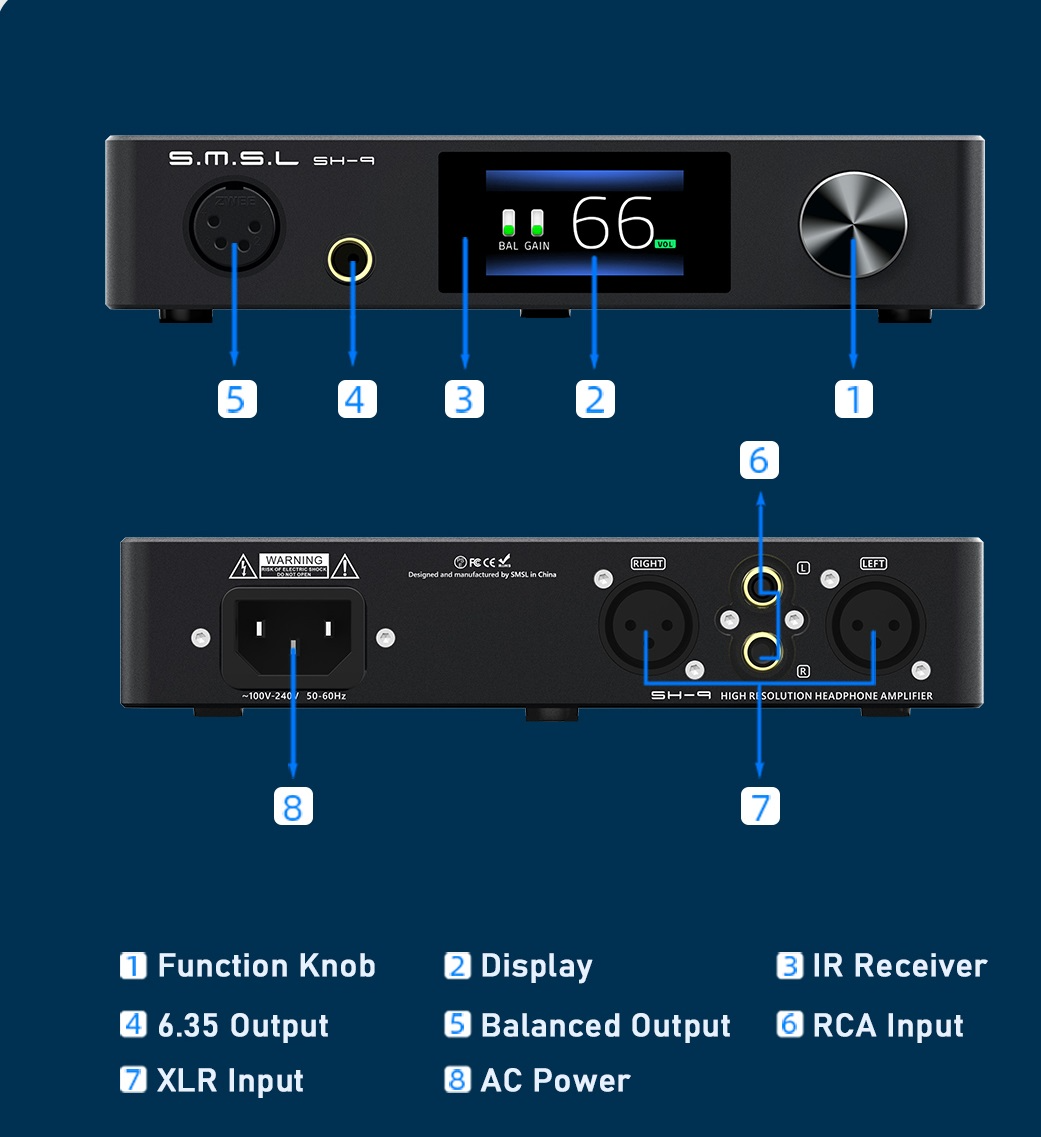

The SMSL SH-9 consists of a balanced circuitry for the audio signal amplification. It has both balanced and unbalanced input-output ports. It houses a balanced XLR signal input along with unbalanced RCA input. So you can connect it to your DAC systems without any trouble. For output, the SH-9 features a 4-pin XLR balanced port and a 6.35mm unbalanced port.
>PowerHouse For Your Headphones:-
Are you getting trouble powering your headphones? Don't worry anymore, we got your covered. The SMSL SH-9 is a highly capable device with humongous output power. It has a monstrous power rating of up to 6Wx2 @ 16Ω, 3Wx2 @ 32Ω, 440mWx2 @ 300Ω, and 220mWx2 @ 600Ω. This is more than enough to power up your most demanding headphones without any trouble.

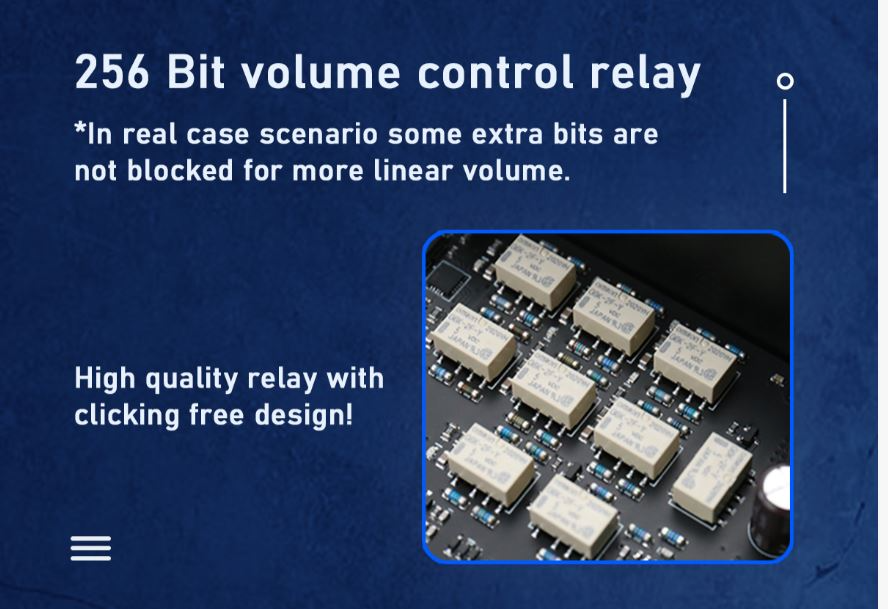

>High-Precision Volume Adjustment:-
The SMSL SH-9 features a high-precision 256-interval analog volume adjustment built on a resistance array. This ensures precise volume adjustment with your headphones and IEMs. Yes the SH-9 has an ultra-low output impedance of nearly 0Ω, so you can use sensitive IEMs with the SH-9.
>THX-888 Amplification Module.
>Patented Feed-Forward Error Correction Technology.

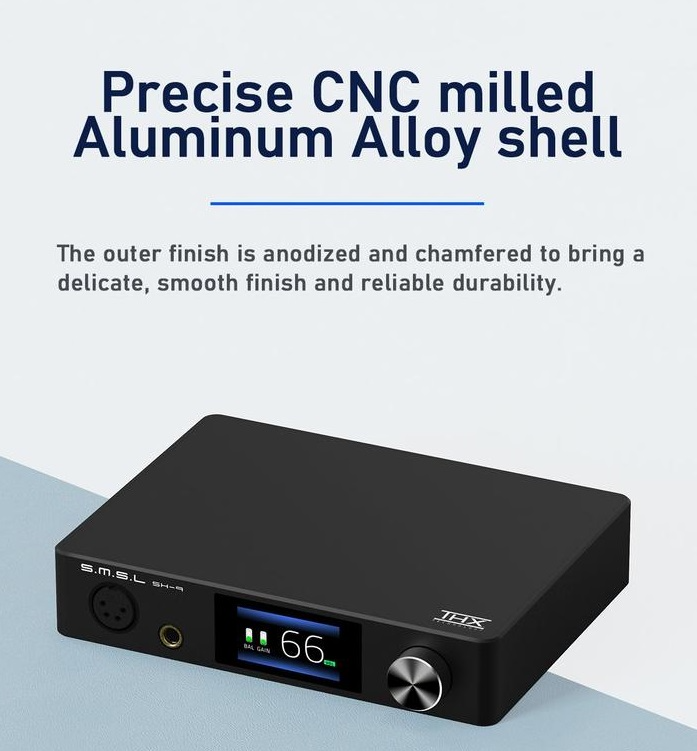

>CNC Milled Aluminium Body.
>4-Pin XLR Balanced Headphone Output.
>6.35mm Unbalanced Headphone Output.
>Two Gain Levels(Low: +0dB, High: +10dB).

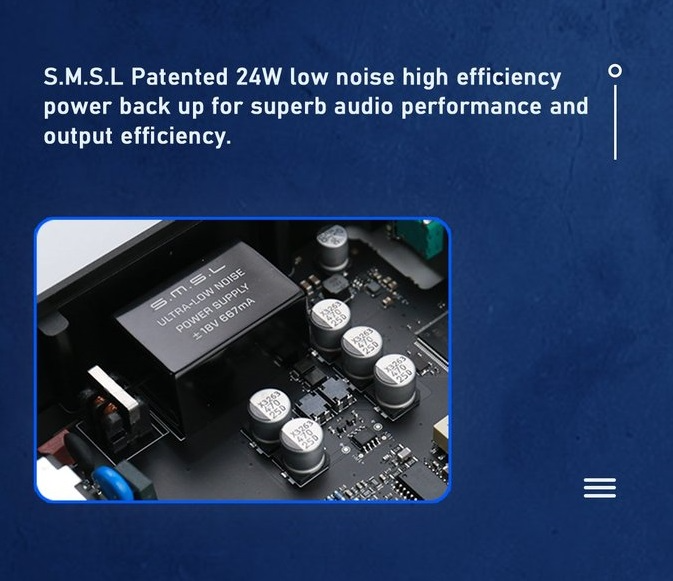

>Highly Efficient Low-Noise Power Supply.
>1.9” LCD Display.

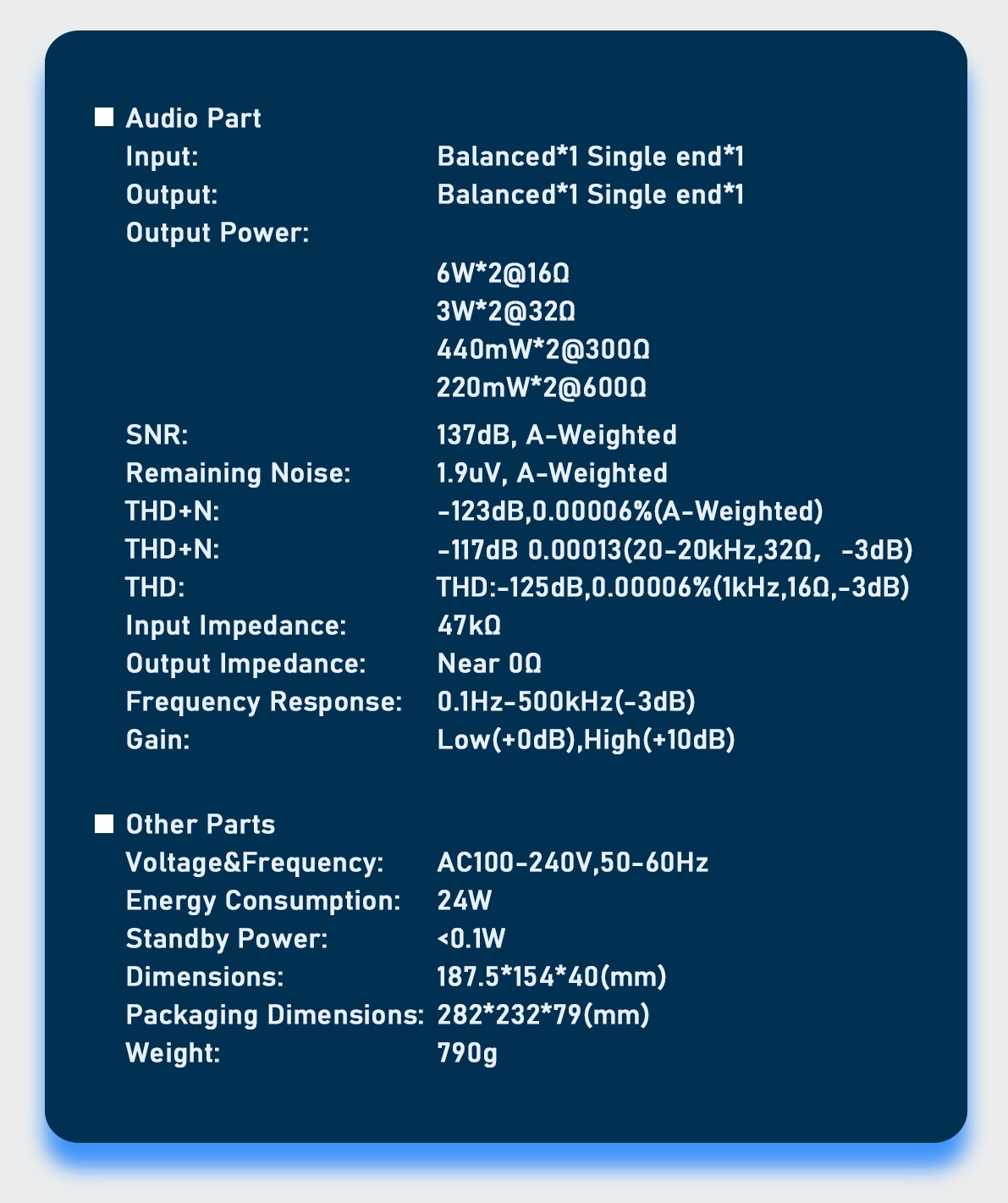

>Output Power: 6Wx2 @ 16Ω, 3Wx2 @ 32Ω, 440mWx2 @ 300Ω, 220mWx2 @ 600Ω.
>Signal To Noise Ratio: 137dB.
>Output Noise: 1.9uV, A-Weighted.
>THD+N: -123dB, 0.00006%(A-Weighted).
>THD+N: -117dB, 0.00013%(20Hz-20kHz, 32Ohm, -3dB).
>THD+N: -125dB, 0.00006%(1kHz, 16Ω, -3dB).
>Input Impedance: 47kΩ.
>Output Impedance: Near 0Ω.
>Frequency Response: 0.1Hz-500kHz(-3dB).
>Power supply voltage/frequency: AC100-240V, 50-60 Hz.
>Power consumption(EN60065): 24W.
>Power consumption in standby mode: <0.1W.

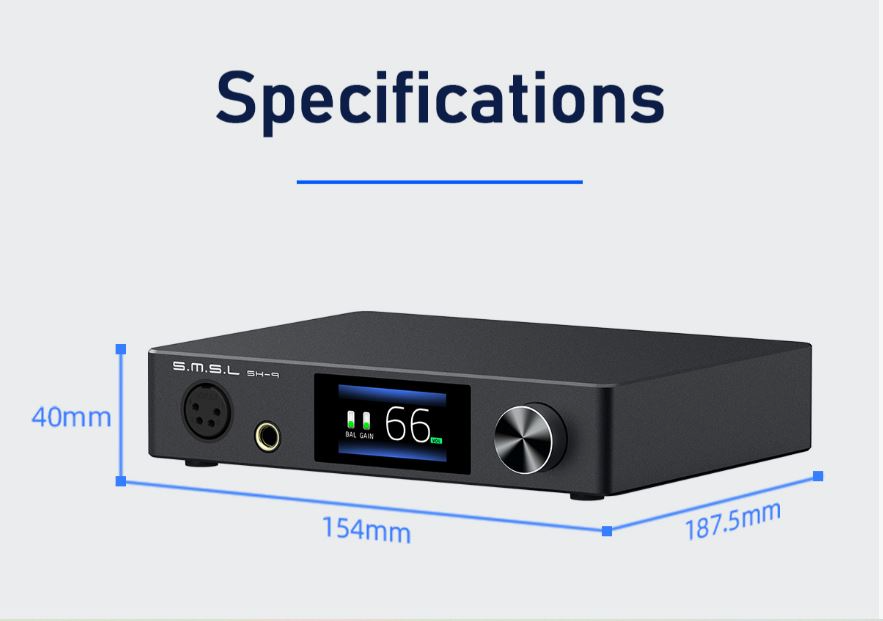

>Packing size: 282x232x79(mm).
